Road Stream Crossing Site PM_M023
Pere Marquette River Watershed, Big South Branch tributary
Masten Rd
Logan Twp,
Mason County
Information collected by:
Site Location
GPS Coordinates: 43.85053
, -86.05831
T17N
R15W
Sec 23
Owned by Private
Fish Passability 0.5
Total Erosion: 0.6109 tons/year
Severity: Moderate
Year Inventoried: 2014

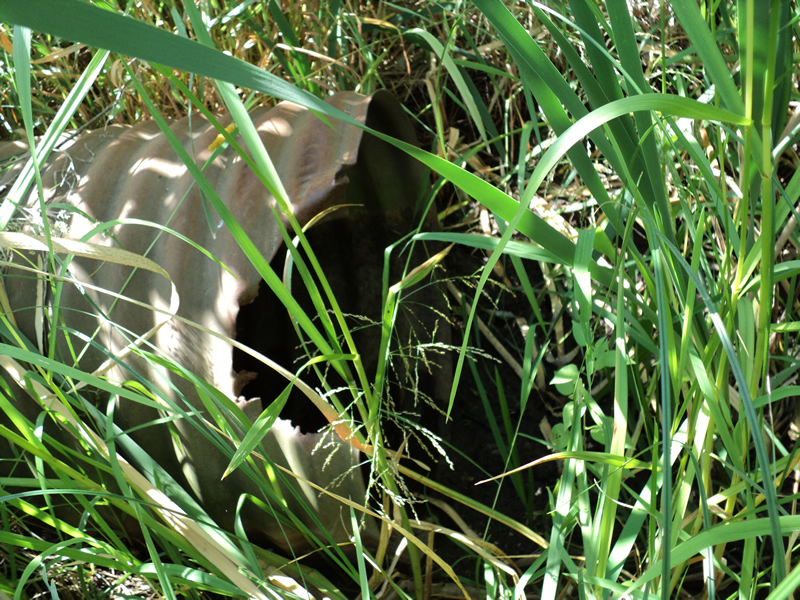

Inlet

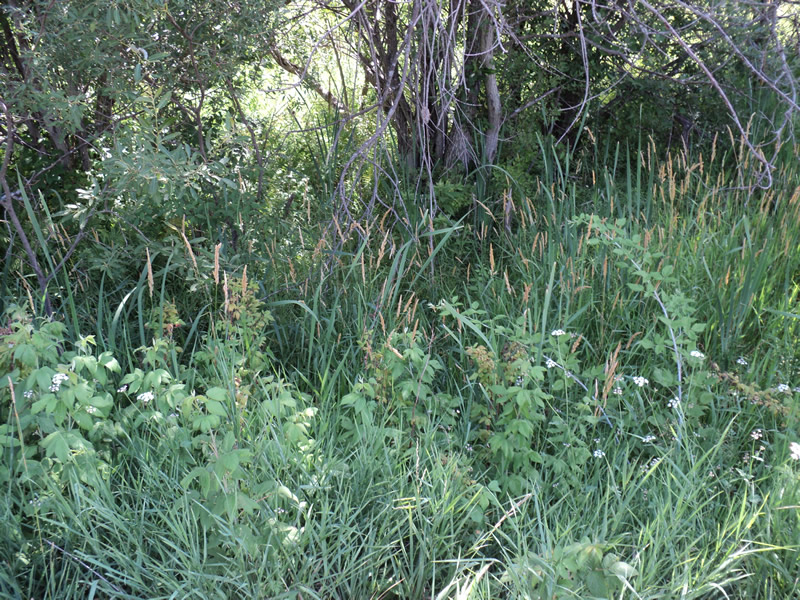

Upstream Conditions

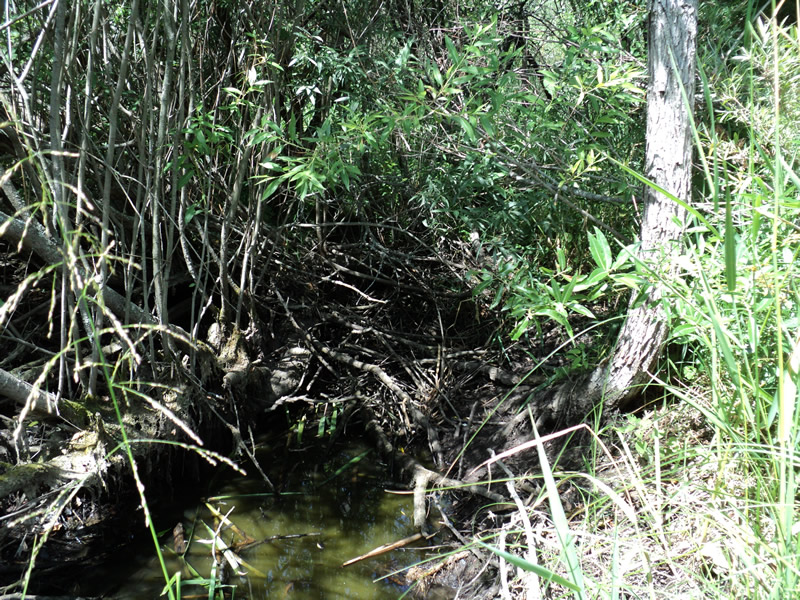

Downstream Conditions

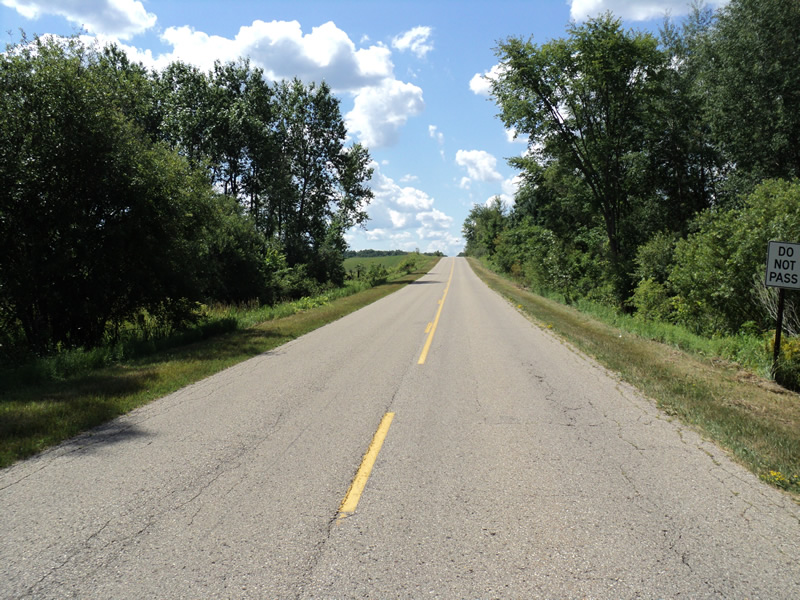

Road Approach - Left

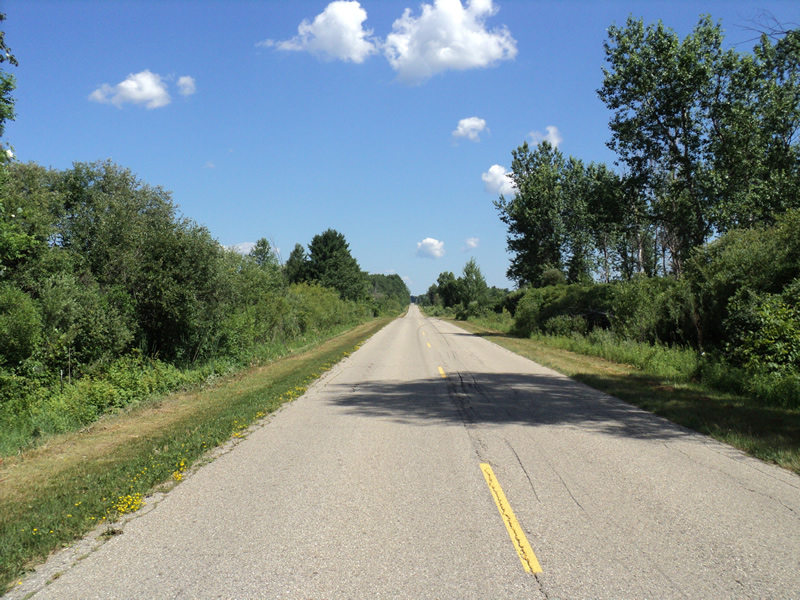

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 40 ft.
, Width 2 ft.
, Height 2 ft.
Water Depth: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Additional Comments
seasonal-dry
Stream Information
Stream Flow: None
Riffle Information
Water Depth: 0 ft.
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 23 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2 ft.
Slope: 1:2
Downstream
Fill Depth: 2.5 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 490 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.625
Erosion: 0.6052 tons/year
Right Approach
Length: 150 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0057 tons/year
Erosion Information
Total Erosion at Crossing: 0.6109 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0.5
