Road Stream Crossing Site PM_M110
Pere Marquette River Watershed, Swan Creek subwatershed
Kinney Rd
Riverton Twp,
Mason County
Information collected by:
Site Location
GPS Coordinates: 43.89022
, -86.30543
T17N
R17W
Sec 11
Owned by Private
Fish Passability 0.5
Total Erosion: 1.6215 tons/year
Severity: Moderate
Year Inventoried: 2014

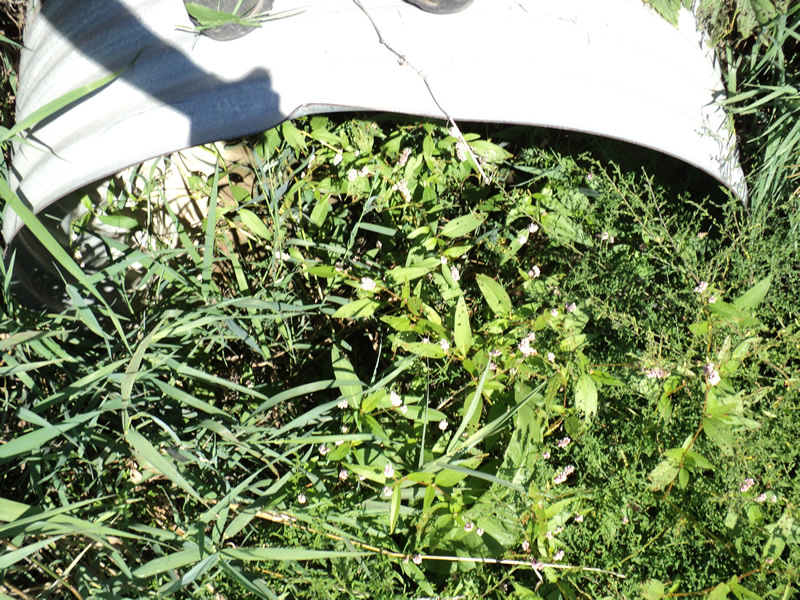

Inlet

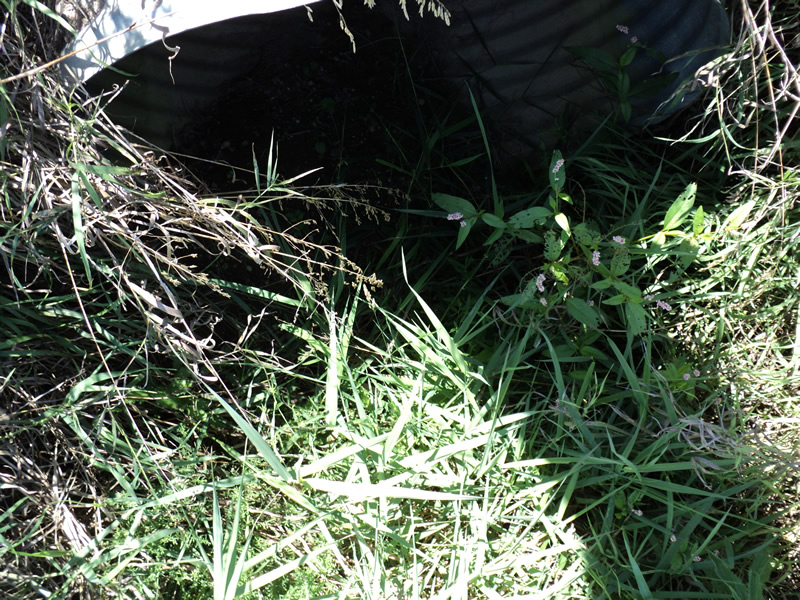

Outlet

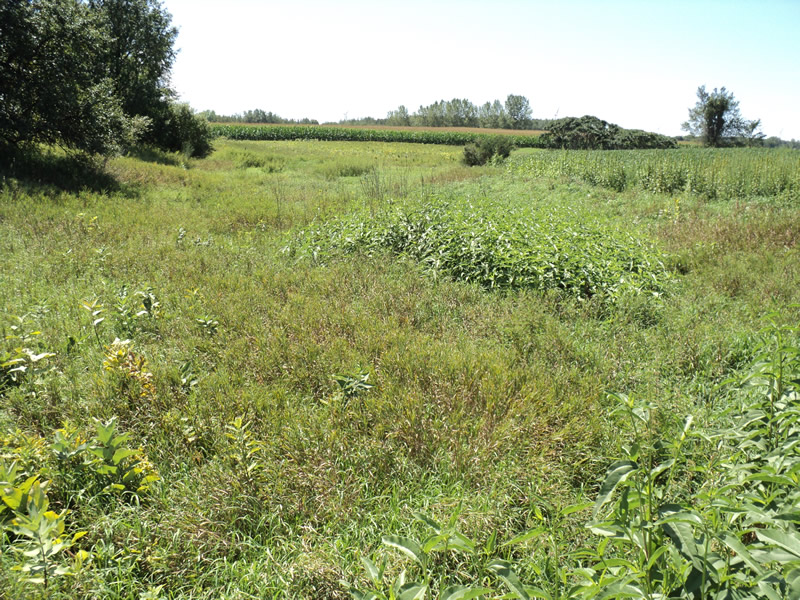

Upstream Conditions

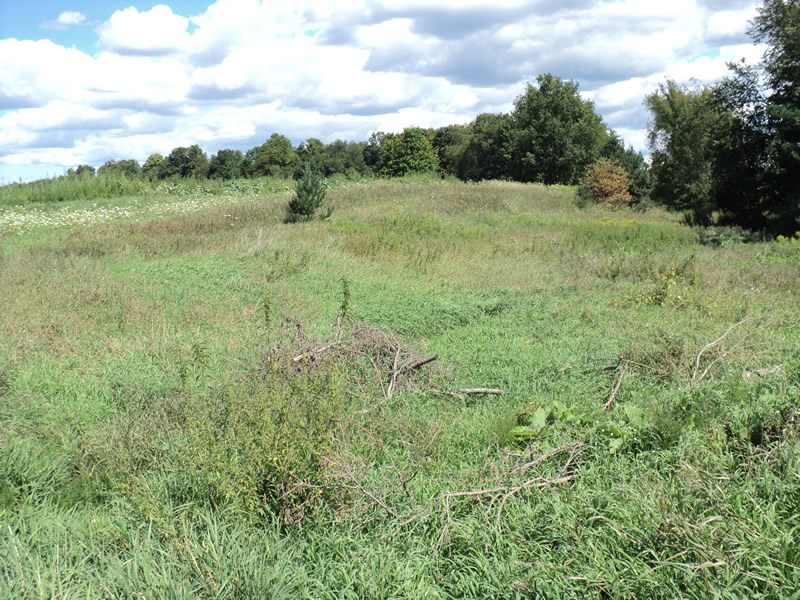

Downstream Conditions

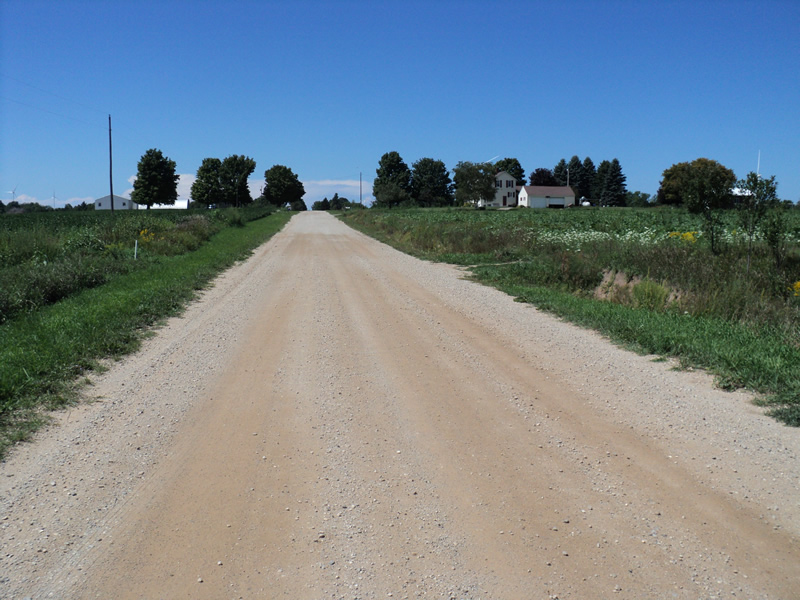

Road Approach - Left

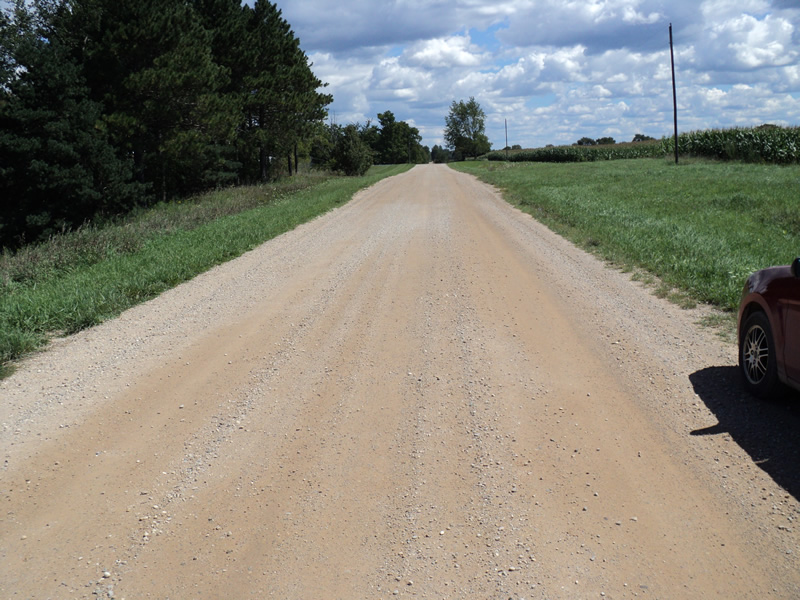

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 45 ft.
, Width 4 ft.
, Height 4 ft.
Water Depth: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Additional Comments
seasonal
Stream Information
Stream Flow: None
Riffle Information
Water Depth: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 23 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.5 ft.
Slope: 1:1.5
Downstream
Fill Depth: 1.5 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 360 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.472
Erosion: 1.0766 tons/year
Right Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.5449 tons/year
Erosion Information
Total Erosion at Crossing: 1.6215 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Knapweed
