Road Stream Crossing Site PM_M116
Pere Marquette River Watershed, Swan Creek tributary
Kinney Rd
Riverton Twp,
Mason County
Information collected by:
Site Location
GPS Coordinates: 43.8903
, -86.31467
T17N
R17W
Sec 11
Owned by Private
Fish Passability 0.5
Total Erosion: 2.7512 tons/year
Severity: Severe
Year Inventoried: 2014

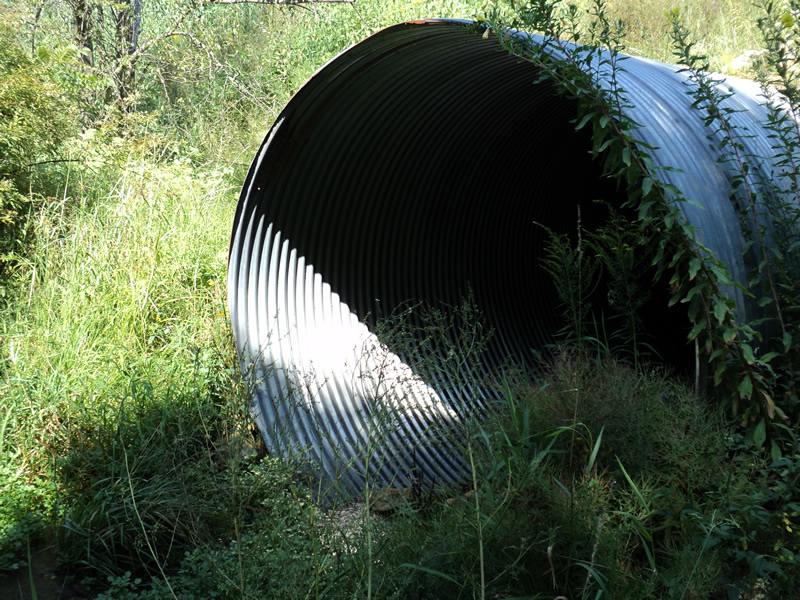

Inlet

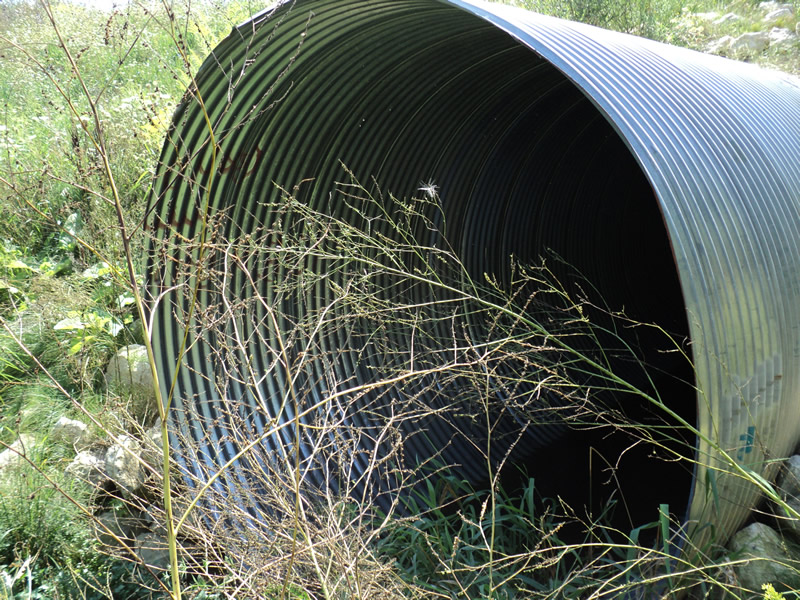

Outlet

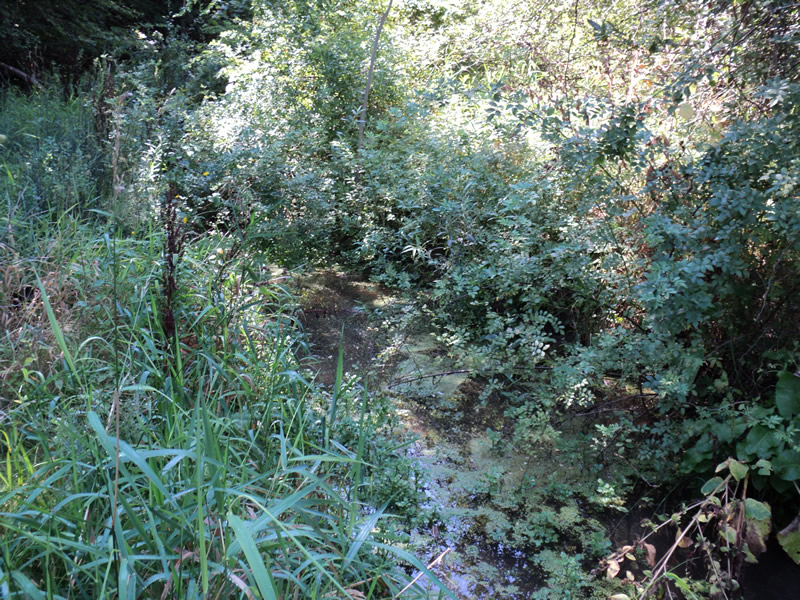

Upstream Conditions

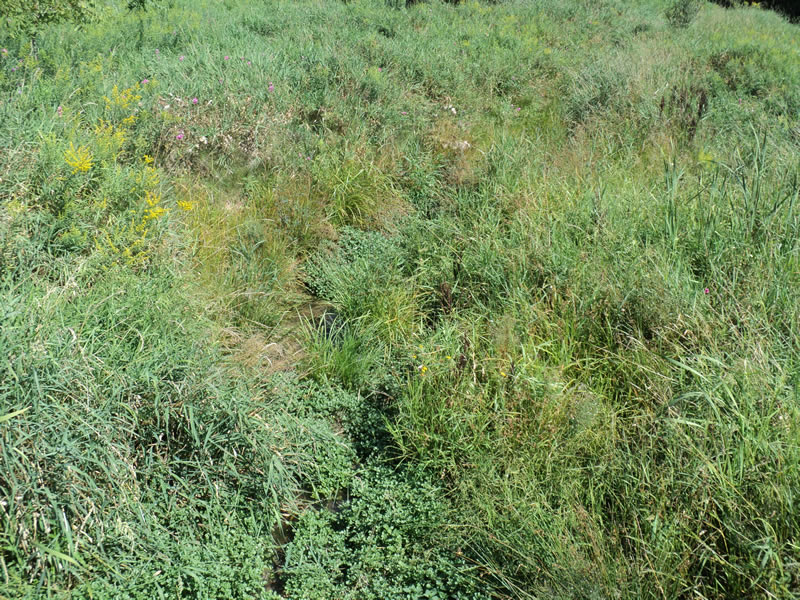

Downstream Conditions

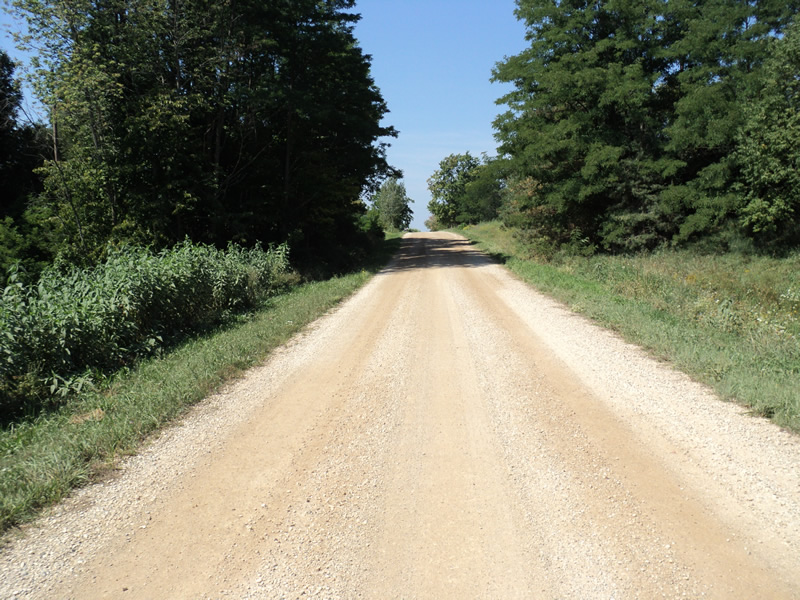

Road Approach - Left

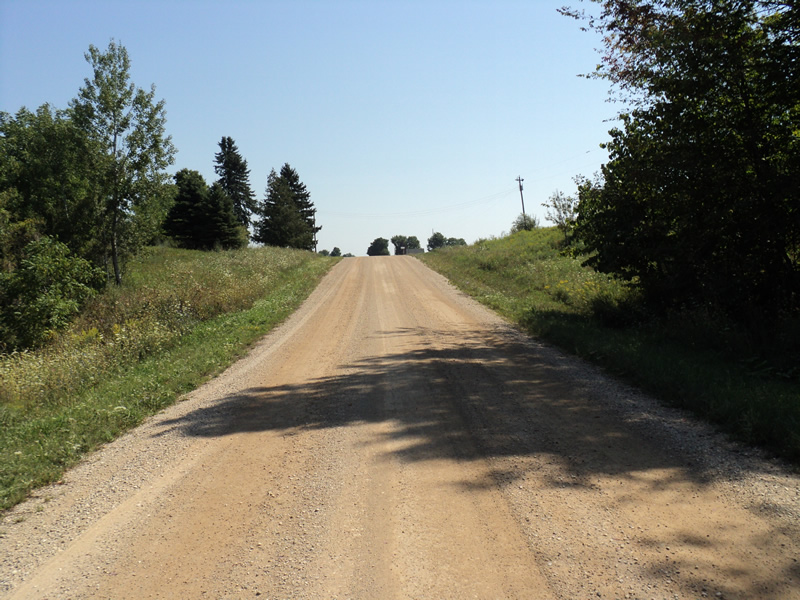

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: New
Structure Interior: corrugated
Dimensions of Structure: Length 120 ft.
, Width 9 ft.
, Height 9 ft.
Structure Inlet
Water Depth: 0.5 ft.
Water Velocity*: 0.5 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Water Velocity*: 0.4 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 6 ft.
Wetted Width: 5 ft.
Water Velocity: 0.2 ft./sec.
(Measured with Meter)
Dominant Substrate: Silt
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 21 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 6.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 6 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 210 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.248
Erosion: 1.5162 tons/year
Right Approach
Length: 180 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.186
Erosion: 1.235 tons/year
Erosion Information
Total Erosion at Crossing: 2.7512 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0.5
