Road Stream Crossing Site PM_M122
Pere Marquette River Watershed, Lichte Creek subwatershed
Morton Rd
Riverton Twp,
Mason County
Information collected by:
Site Location
GPS Coordinates: 43.88443
, -86.35823
T17N
R17W
Sec 9
Owned by Private
Fish Passability 0.5
Total Erosion: 0.7524 tons/year
Severity: Moderate
Year Inventoried: 2014

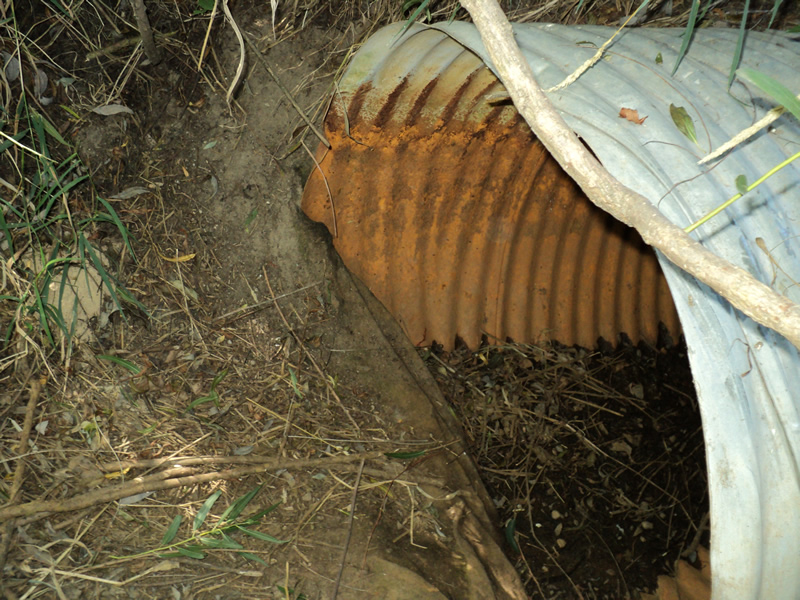

Inlet

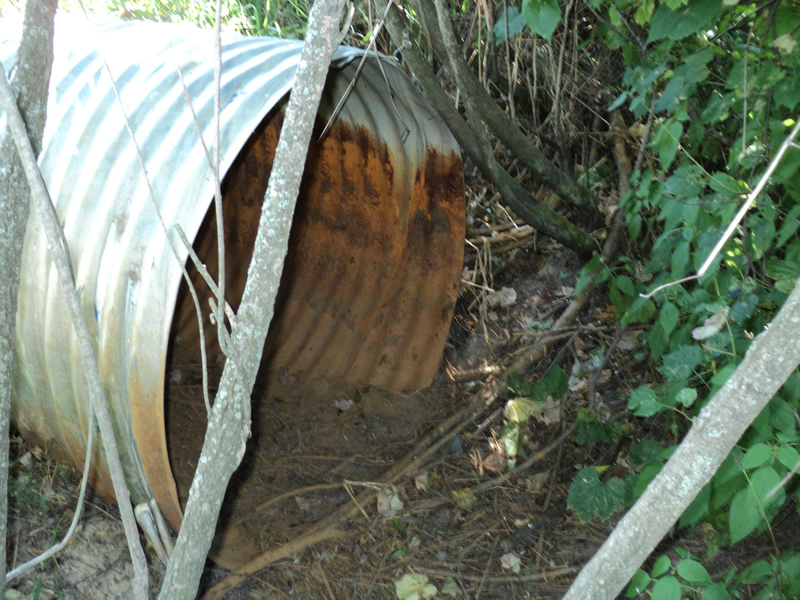

Outlet

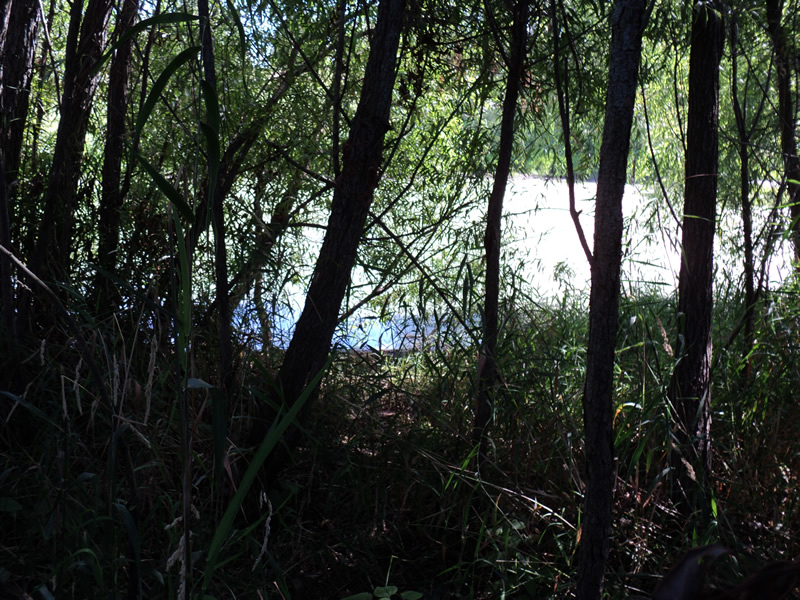

Upstream Conditions

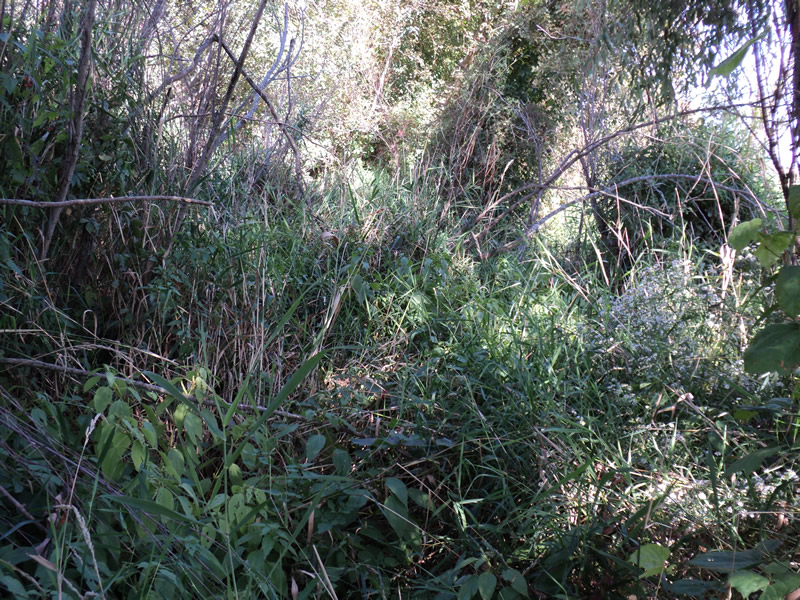

Downstream Conditions

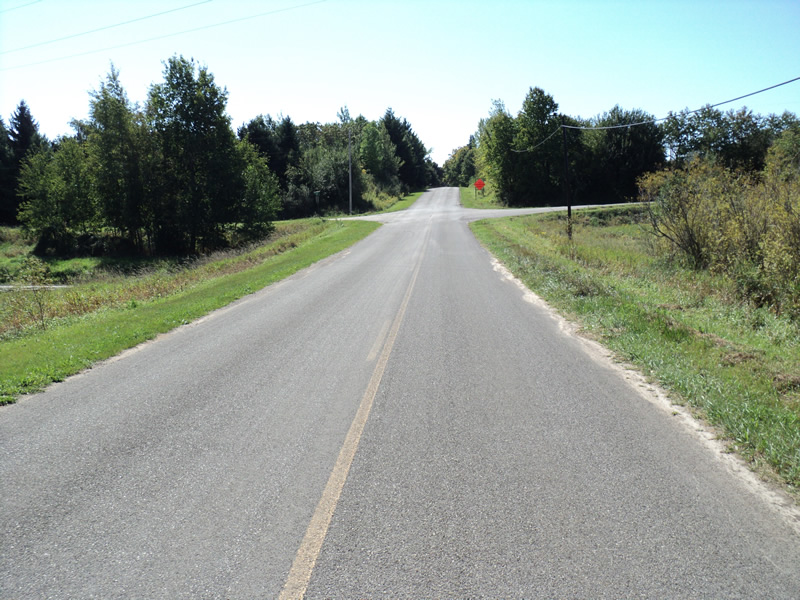

Road Approach - Left

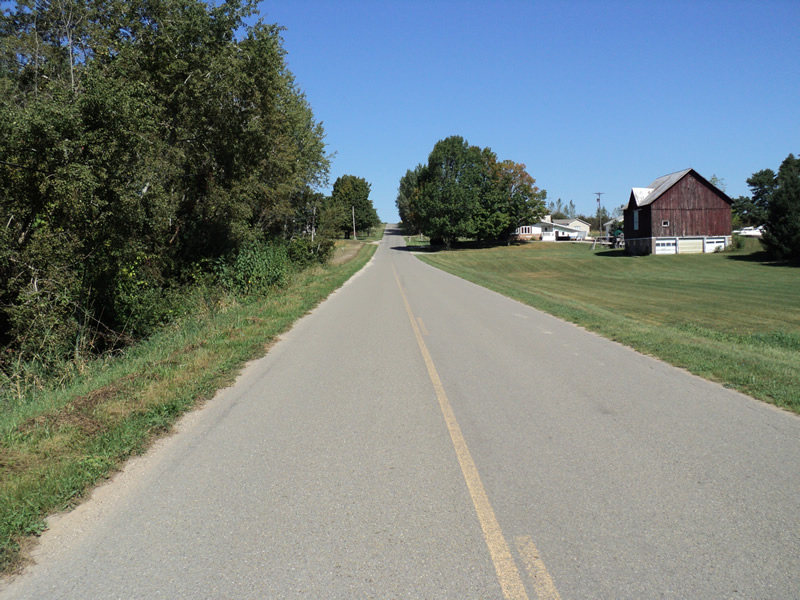

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 70 ft.
, Width 3.5 ft.
, Height 3.5 ft.
Water Depth: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Stream Information
Stream Flow: None
Riffle Information
Water Depth: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 21 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3 ft.
Slope: 1:2
Downstream
Fill Depth: 3 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 400 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.53
Erosion: 0.4249 tons/year
Right Approach
Length: 850 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.555
Erosion: 0.3275 tons/year
Erosion Information
Total Erosion at Crossing: 0.7524 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0.5
