Road Stream Crossing Site PM_M126
Pere Marquette River Watershed, Lichte Creek subwatershed
Gerber Rd
Riverton Twp,
Mason County
Information collected by:
Site Location
GPS Coordinates: 43.89813
, -86.35493
T17N
R17W
Sec 4
Owned by Private
Fish Passability 0.5
Total Erosion: 0.0744 tons/year
Severity: Moderate
Year Inventoried: 2014

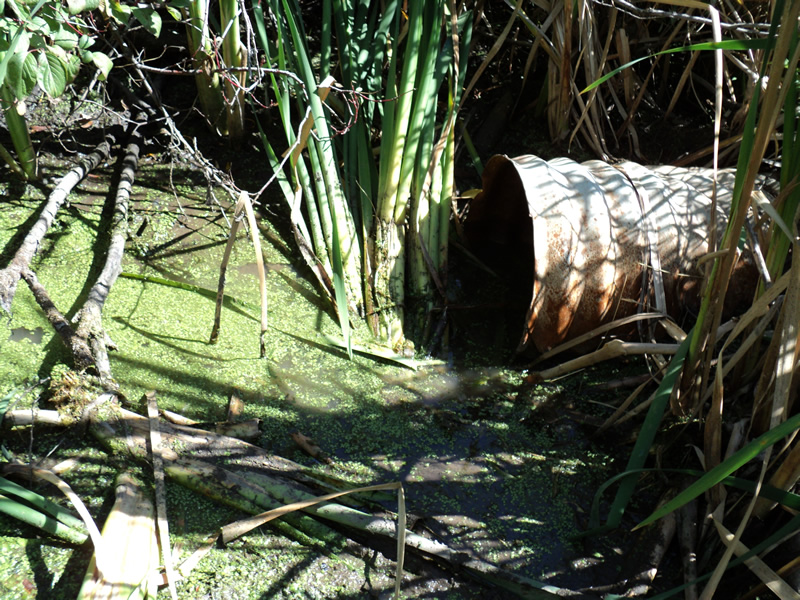

Inlet

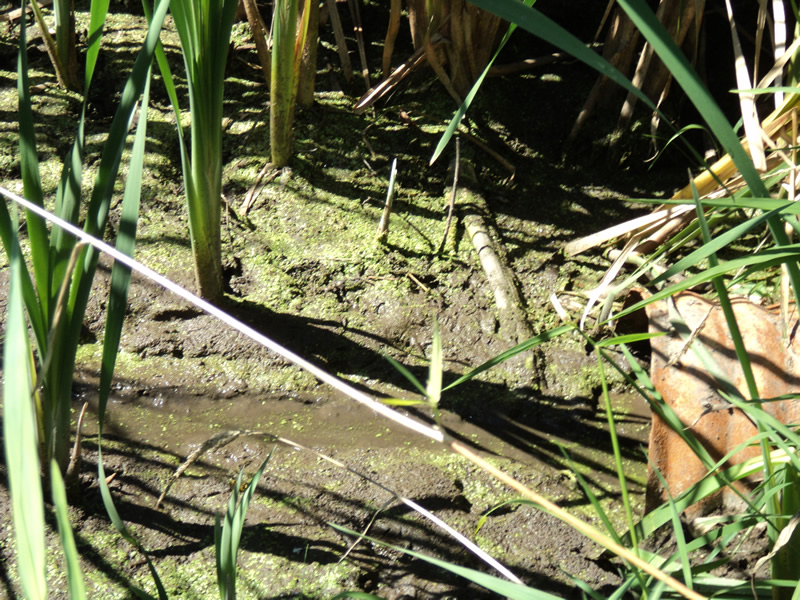

Outlet

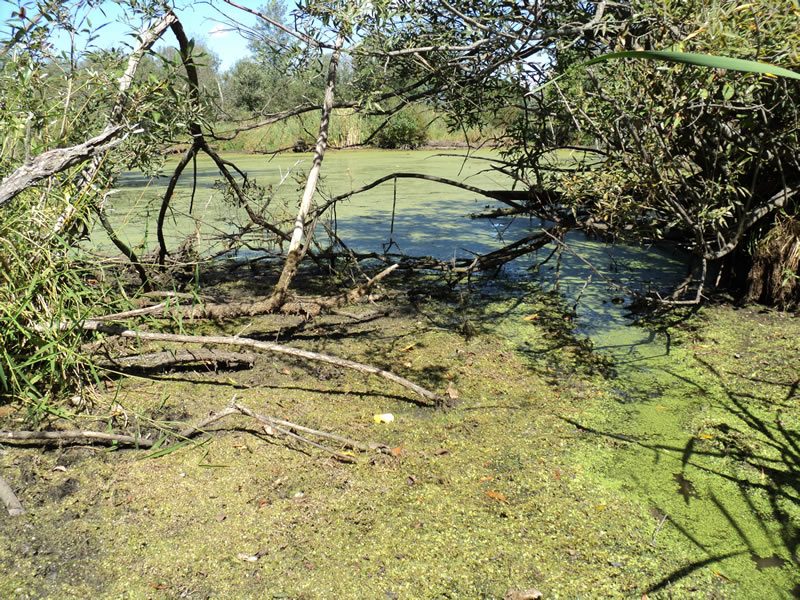

Upstream Conditions

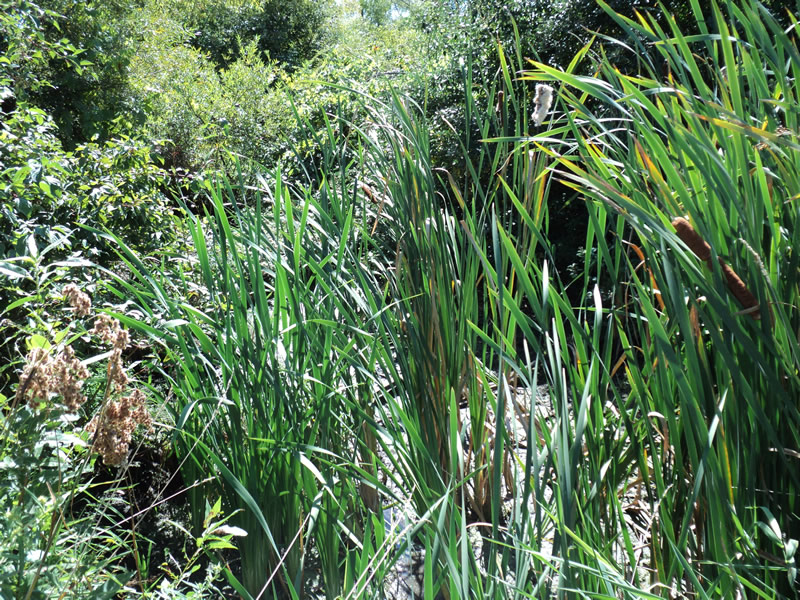

Downstream Conditions

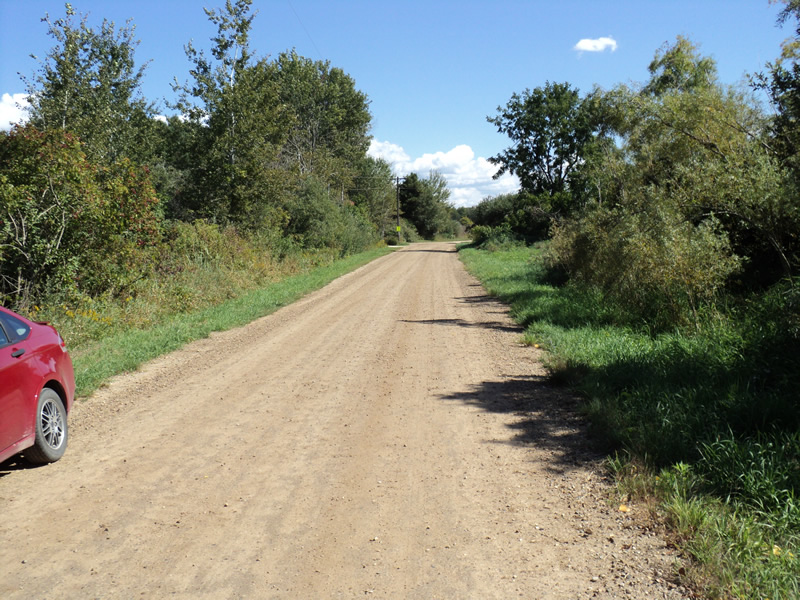

Road Approach - Left

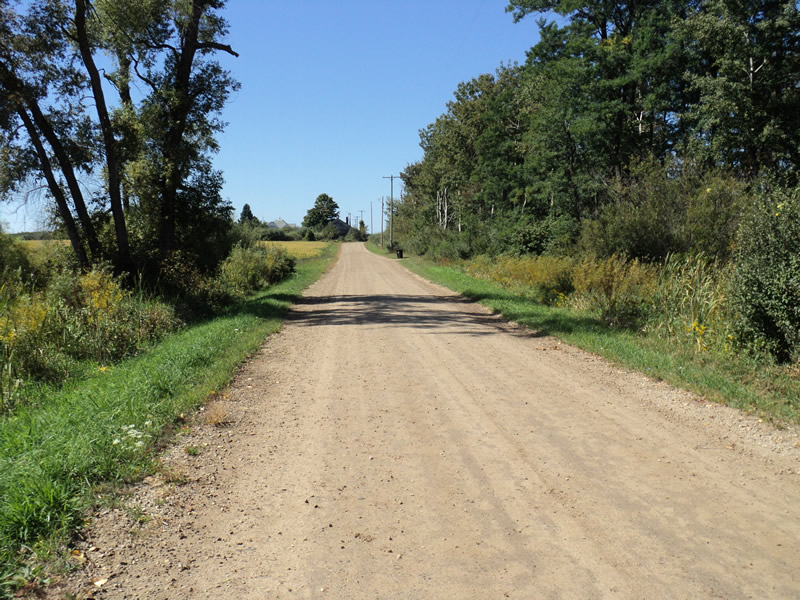

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 40 ft.
, Width 1 ft.
, Height 1 ft.
Structure Inlet
Water Depth: 0.2 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Additional Comments
Large pond immediately upstream
Stream Information
Stream Flow: None
Riffle Information
Water Depth: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 18 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2 ft.
Slope: 1:2
Downstream
Fill Depth: 2 ft.
Slope: 1:2
Approaches
Left Approach
Length: 150 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0372 tons/year
Right Approach
Length: 150 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0372 tons/year
Erosion Information
Total Erosion at Crossing: 0.0744 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0.5
