Road Stream Crossing Site PM_M132

Pere Marquette River Watershed, Lichte Creek
Kinney Rd
Riverton Twp, Mason County
Information collected by:
Site Location
GPS Coordinates: 43.89133 , -86.37312
T17N R17W Sec 5
Owned by Private
Fish Passability 0.5
Total Erosion: 3.3272 tons/year
Severity: Severe
Year Inventoried: 2014

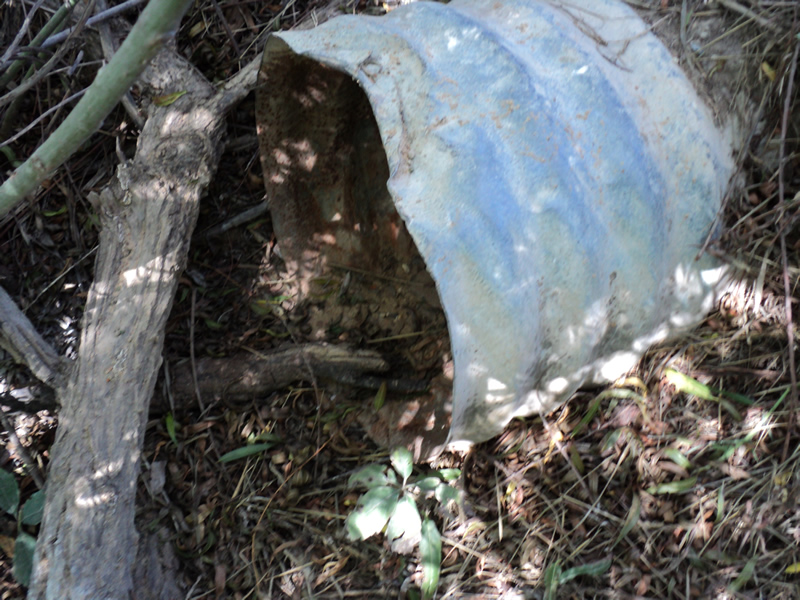

Outlet

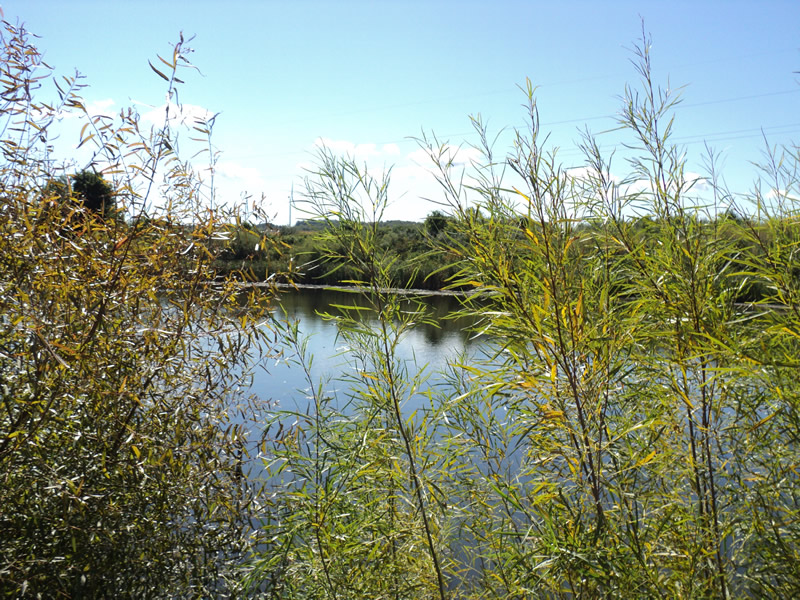

Upstream Conditions

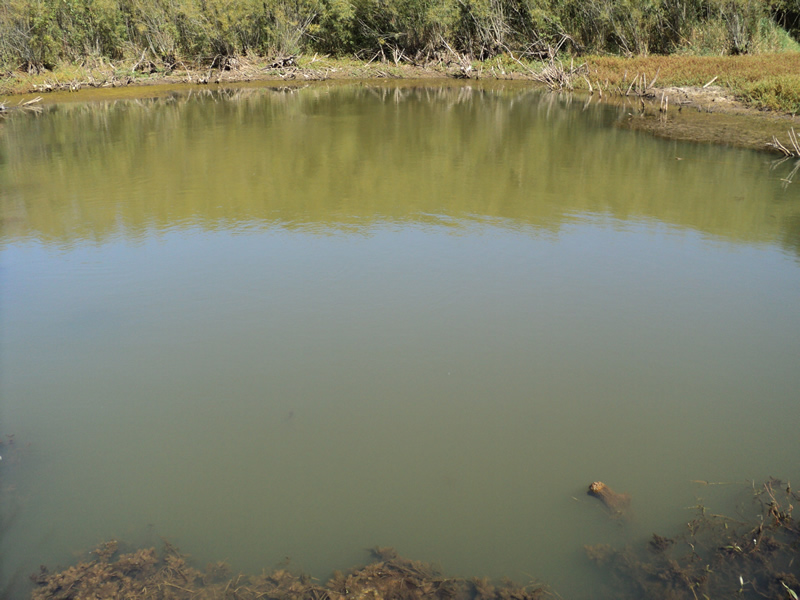

Downstream Conditions

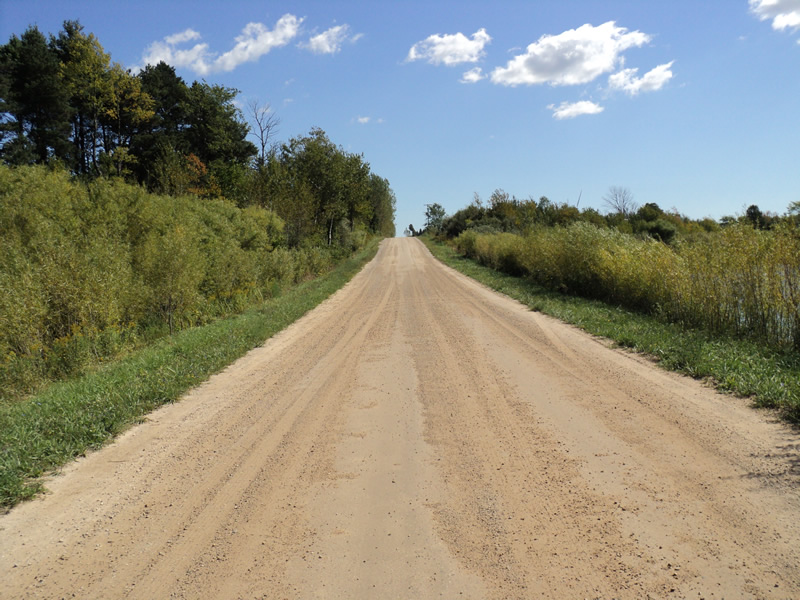

Road Approach - Left

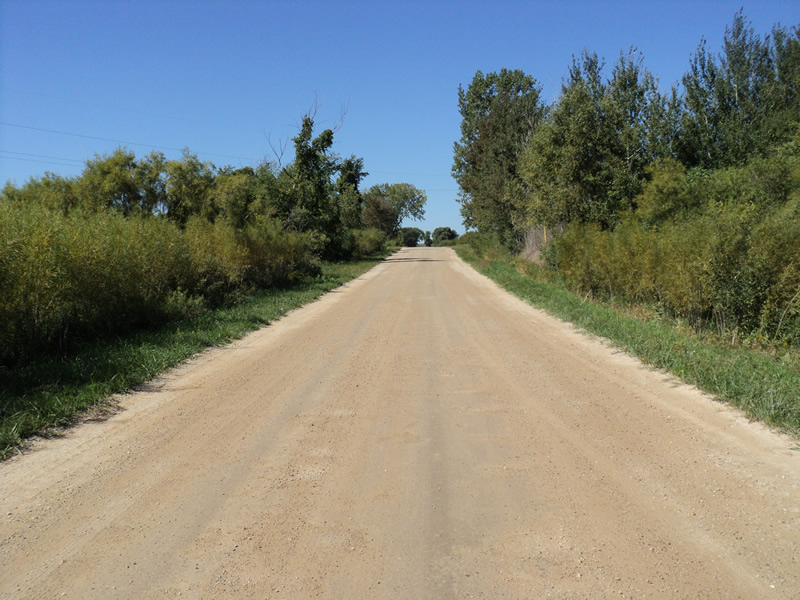

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 40 ft. , Width 1 ft. , Height 1 ft.
Water Depth: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface (with Meter)
Additional Comments
No stream-stagnant ponds on both sides of road
Stream Information
Stream Flow: None
Riffle Information
Water Depth: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 23 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 1 ft.
Slope: 1:2
Downstream
Fill Depth: 1 ft.
Slope: 1:2
Approaches
Left Approach
Length: 240 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.438
Erosion: 0.666 tons/year
Right Approach
Length: 300 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.4
Erosion: 2.6612 tons/year
Erosion Information
Total Erosion at Crossing: 3.3272 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0.5
