Road Stream Crossing Site PM_M148
Pere Marquette River Watershed, Pere Marquette tributary
Dennis Rd
Amber Twp,
Mason County
Information collected by:
Site Location
GPS Coordinates: 43.93472
, -86.3687
T18N
R17W
Sec 20
Owned by Private
Fish Passability 0.5
Total Erosion: 0.5369 tons/year
Severity: Moderate
Year Inventoried: 2014

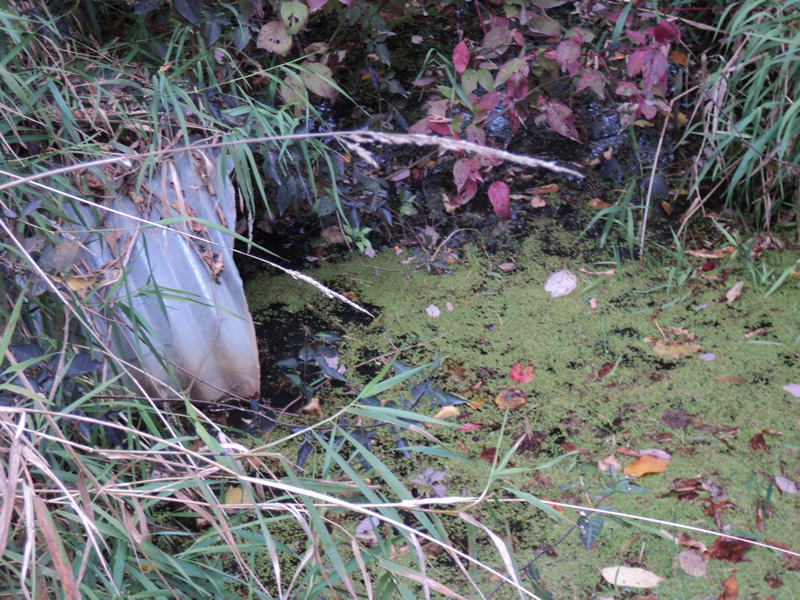

Inlet

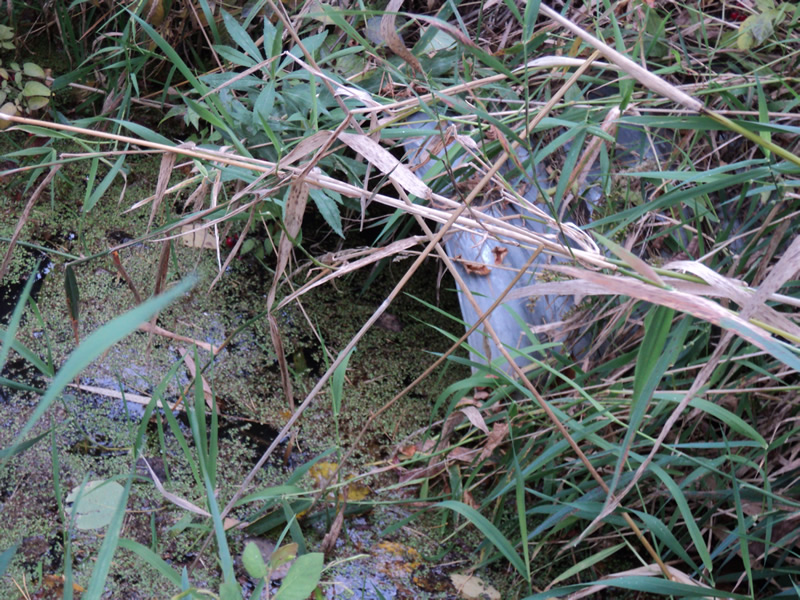

Outlet

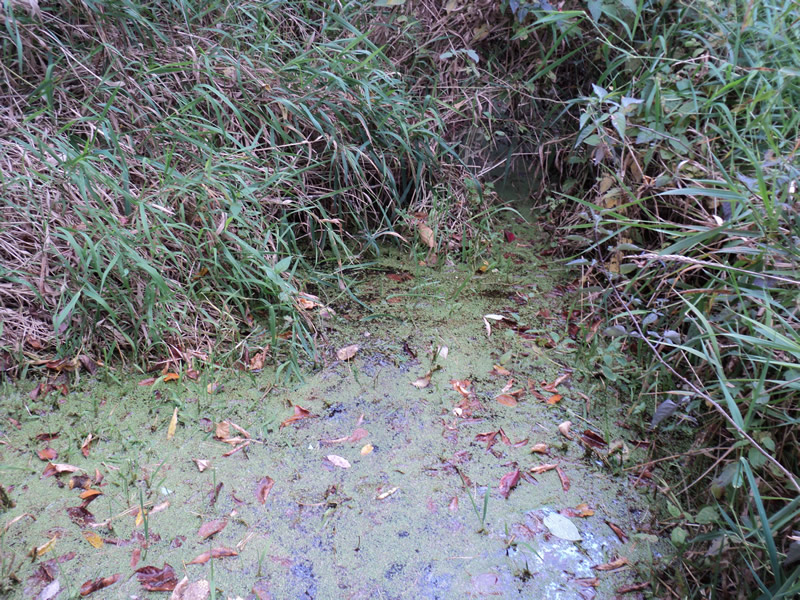

Upstream Conditions

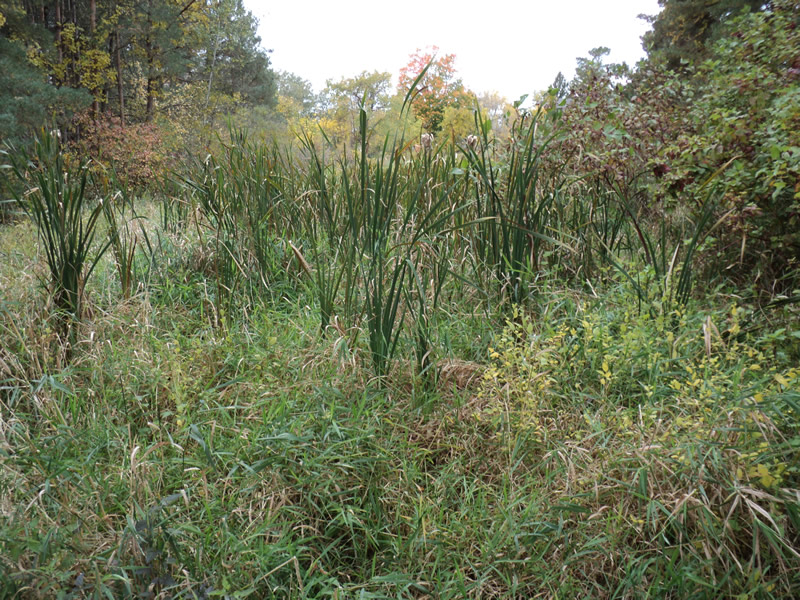

Downstream Conditions

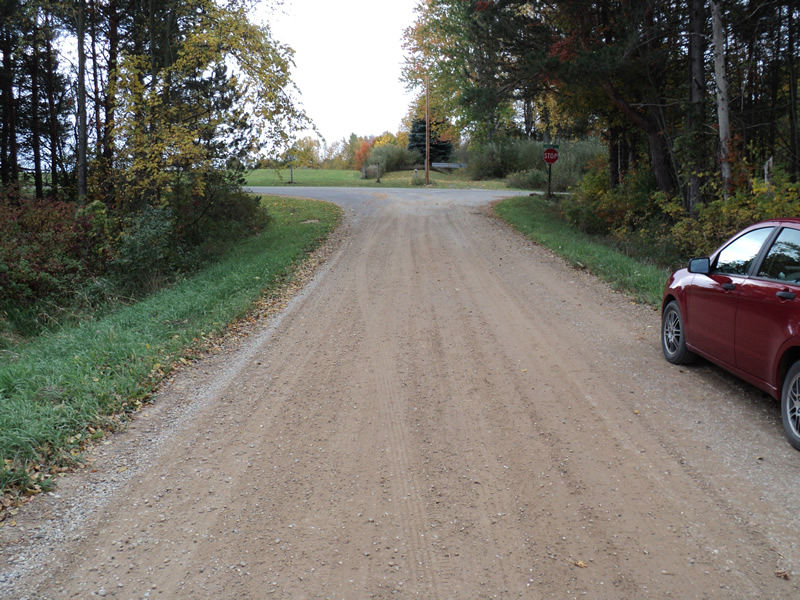

Road Approach - Left

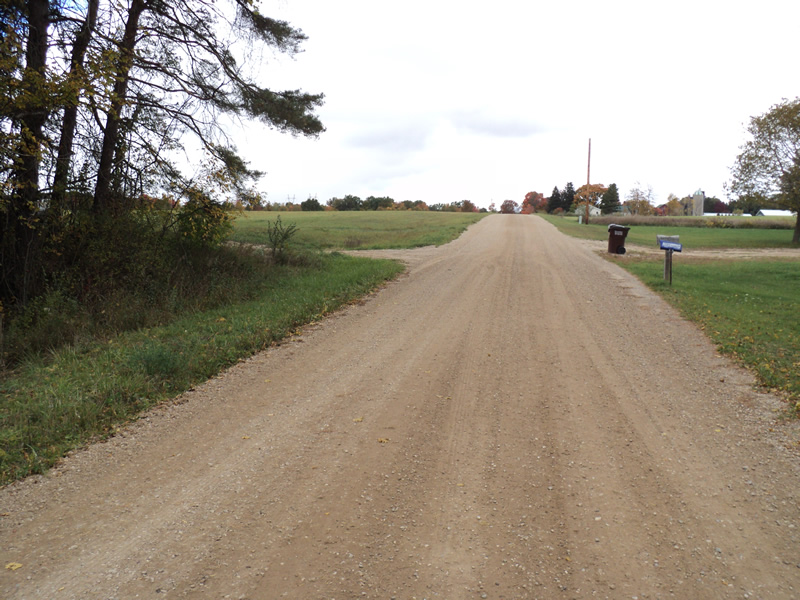

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 48 ft.
, Width 2 ft.
, Height 2 ft.
Structure Inlet
Water Depth: 1 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 0.8 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Additional Comments
connects 2 marshes
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 3 ft.
Wetted Width: 2 ft.
Water Velocity: 0.2 ft./sec.
(Measured with Meter)
Dominant Substrate: Organics
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 16 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 6 ft.
Slope: 1:1.5
Downstream
Fill Depth: 6 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 120 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.388
Erosion: 0.2052 tons/year
Right Approach
Length: 180 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.418
Erosion: 0.3316 tons/year
Erosion Information
Total Erosion at Crossing: 0.5369 tons/year
Summary Information
Fish Passability 0.5
