Road Stream Crossing Site Mu-001

Muskegon River Watershed, West Branch Muskegon River
7 mile Rd
West Branch Twp, Missaukee County
Information collected by:
Site Location
GPS Coordinates: 44.36556 , -85.07593
T23N R6W Sec 20
Owned by Private
Structure is NOT Perched
Total Erosion: 0.6066 tons/year
Severity: Minor
Year Inventoried: 2014
Site ID
Inlet
Outlet
Upstream Conditions
Downstream Conditions

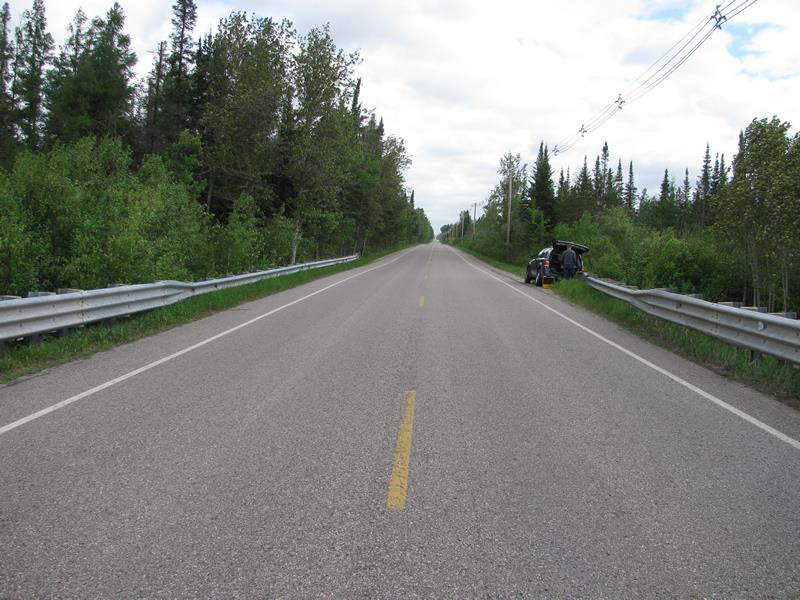

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Other
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Gravel
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 31.5 ft. , Width 19 ft. , Height 4.8 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.9 ft./sec.
Structure Outlet
Water Depth: 1.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.7 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 1.3 ft.
Bankfull Width: 25 ft.
Wetted Width: 21 ft.
Water Velocity: 0.5 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 31.5 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 250 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.013 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.5936 tons/year
Erosion Information
Total Erosion at Crossing: 0.6066 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
