Road Stream Crossing Site Mu-041
Muskegon River Watershed, Lawrence Creek
7 Mile Rd
Lincoln Twp,
Osceola County
Information collected by:
Site Location
GPS Coordinates: 43.91605
, -85.50521
T18N
R10W
Sec 33
Owned by Private
Fish Passability 0
Perch Height: 0.1 ft.
Total Erosion: 0.165 tons/year
Severity: Severe
Year Inventoried: 2014
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 40 ft.
, Width 2 ft.
, Height 2 ft.
Percentage Plugged:
Inlet: 51% to 75%
Outlet: 0%
In Pipe: 0%
Perch Height: 0.1 ft.

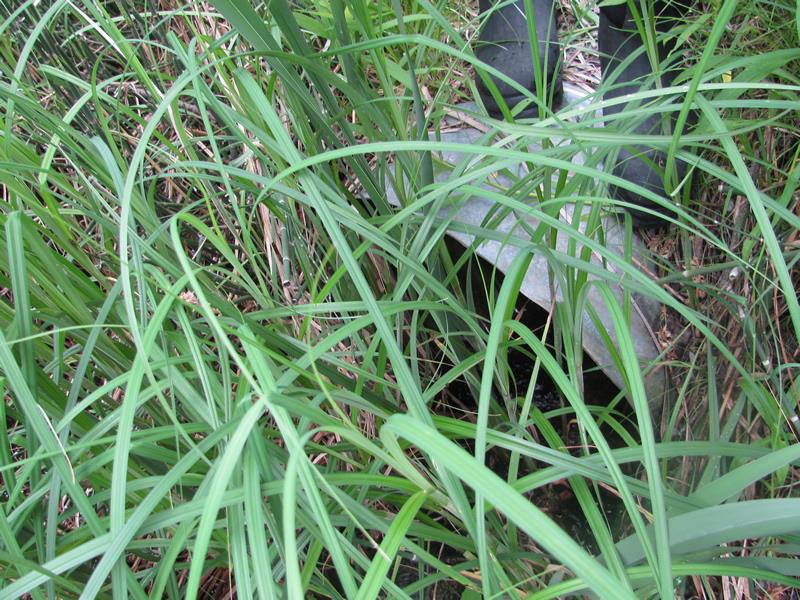

Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.4 ft./sec.

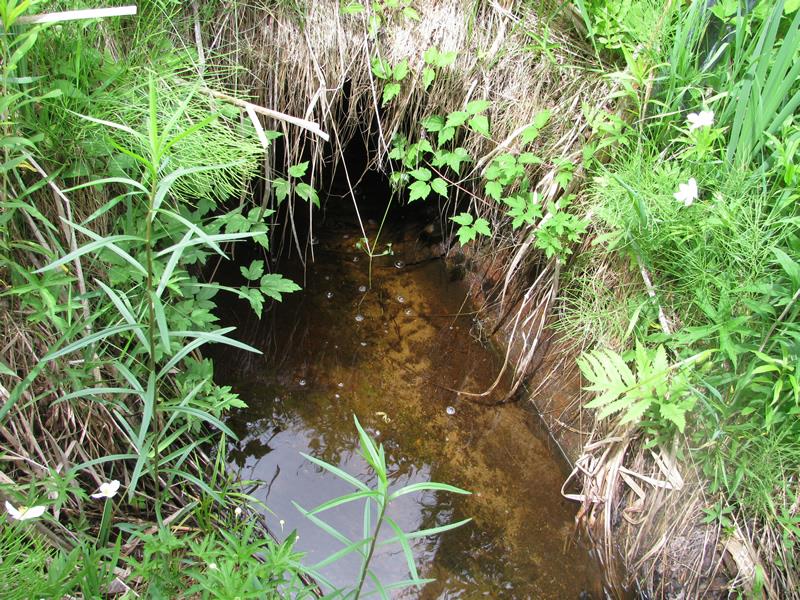

Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.3 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 3 ft.
Wetted Width: 1.3 ft.
Water Velocity: 0.7 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Fair
Road Width at Culvert: 26 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments

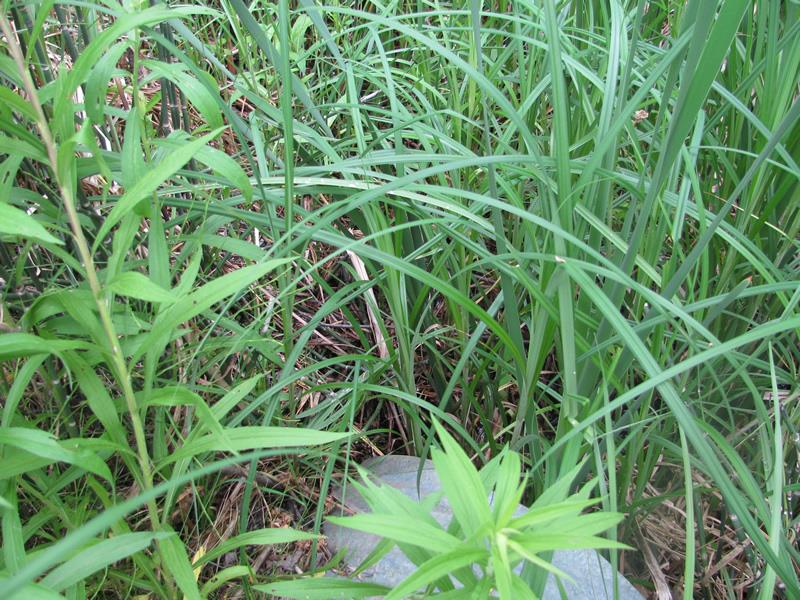

Upstream
Fill Depth: 1.6 ft.
Slope: More than 1:2

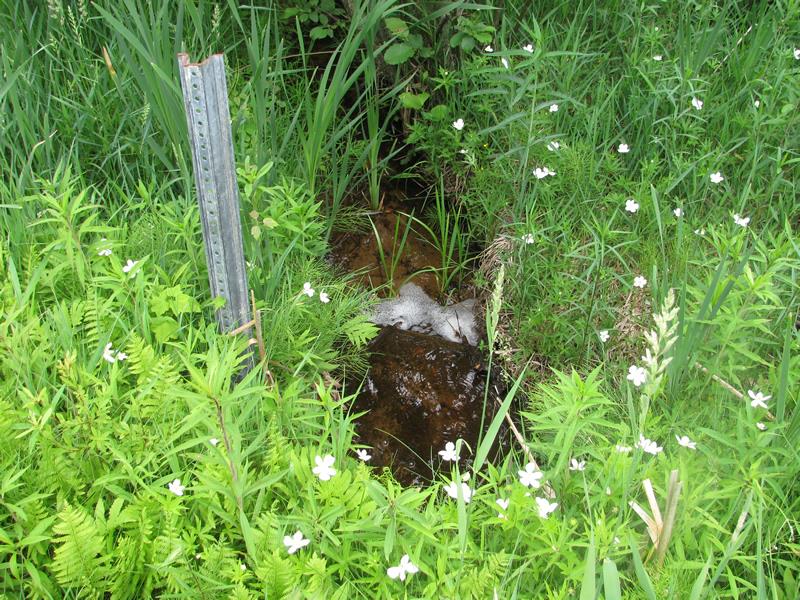

Downstream
Fill Depth: 3 ft.
Slope: More than 1:2
Approaches

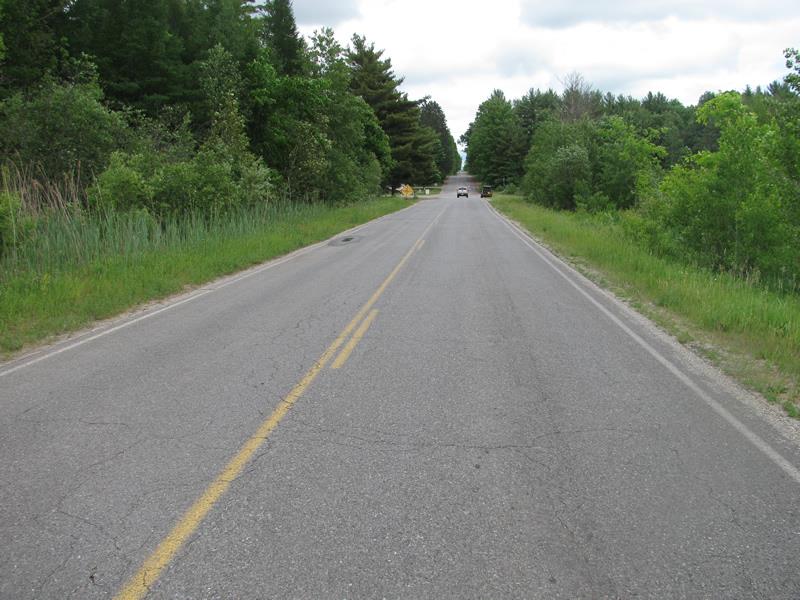

Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year

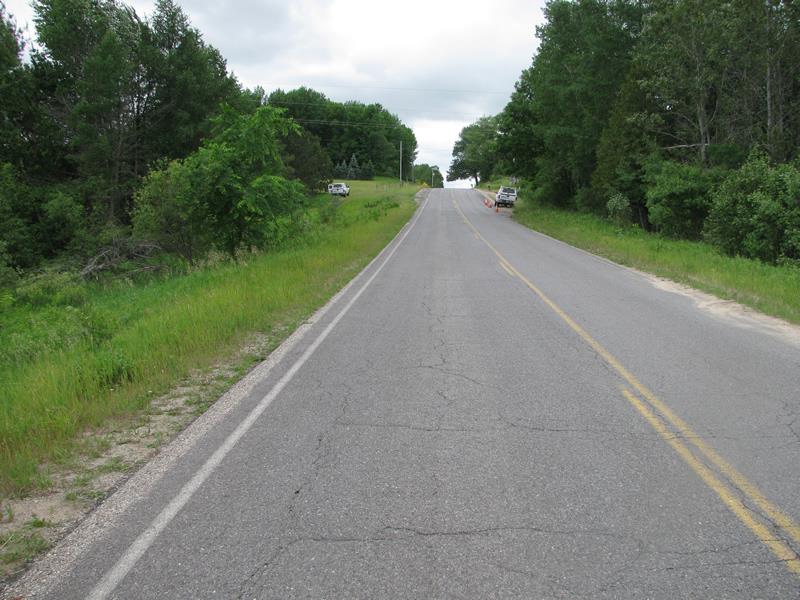

Right Approach
Length: 400 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.48
Erosion: 0.165 tons/year
Erosion Information
Total Erosion at Crossing: 0.165 tons/year
Summary Information
Fish Passability 0
These non-native species were observerd at this site: phargmites
