Road Stream Crossing Site Mu-061
Muskegon River Watershed, Muskegon River
Main St
Evart,
Osceola County
Information collected by:
Site Location
GPS Coordinates: 43.89495
, -85.25941
T17N
R8W
Sec 3
Owned by Private
Structure is NOT Perched
Total Erosion: 0.0582 tons/year
Severity: Minor
Year Inventoried: 2014
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Other
Outlet Type: Other
Structure Material: Concrete
Structure Substrate: Rock
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 42 ft.
, Width 200 ft.
, Height 12 ft.
Structure is NOT Perched

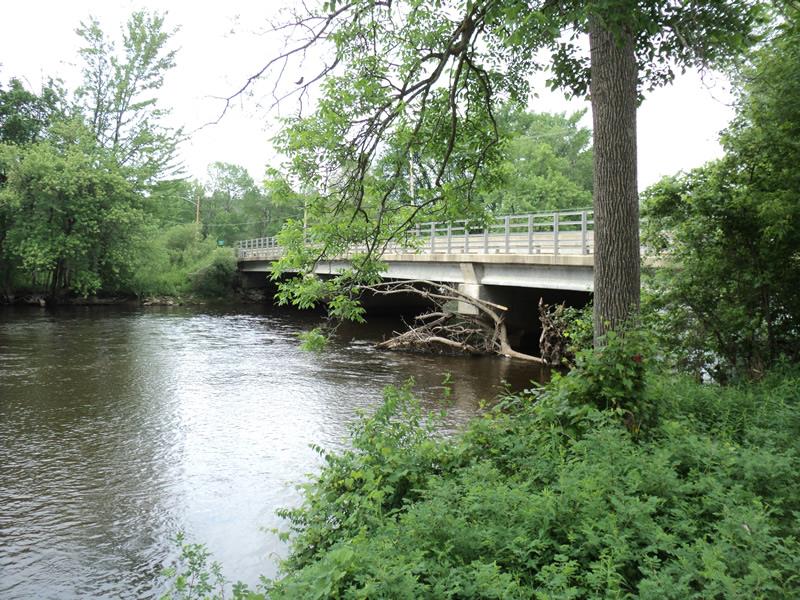

Structure Inlet
Water Depth: 4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.5 ft./sec.

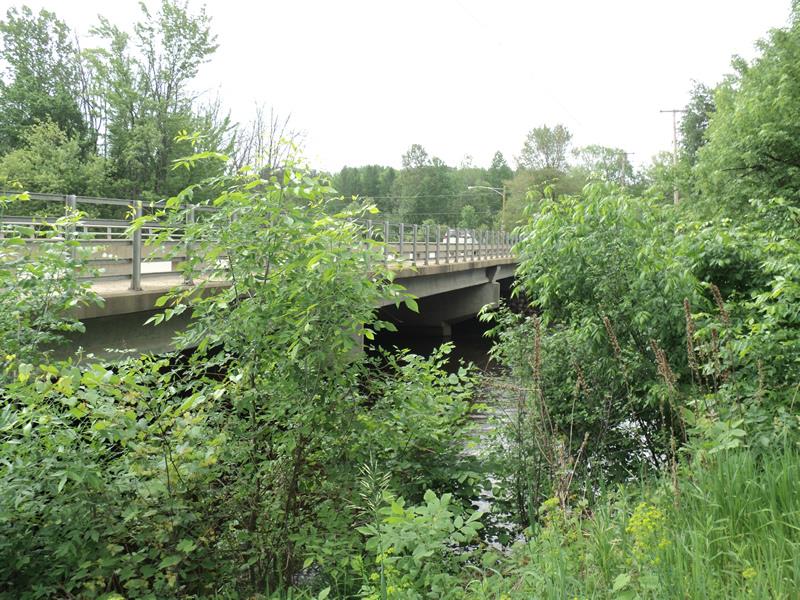

Structure Outlet
Water Depth: 4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.5 ft./sec.
*Water Velocities were measured 1 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 5 ft.
Bankfull Width: 220 ft.
Wetted Width: 200 ft.
Water Velocity: 1.5 ft./sec.
(Measured with Meter)
Dominant Substrate: Cobble
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 32 ft.
Location of Low Point: At Stream

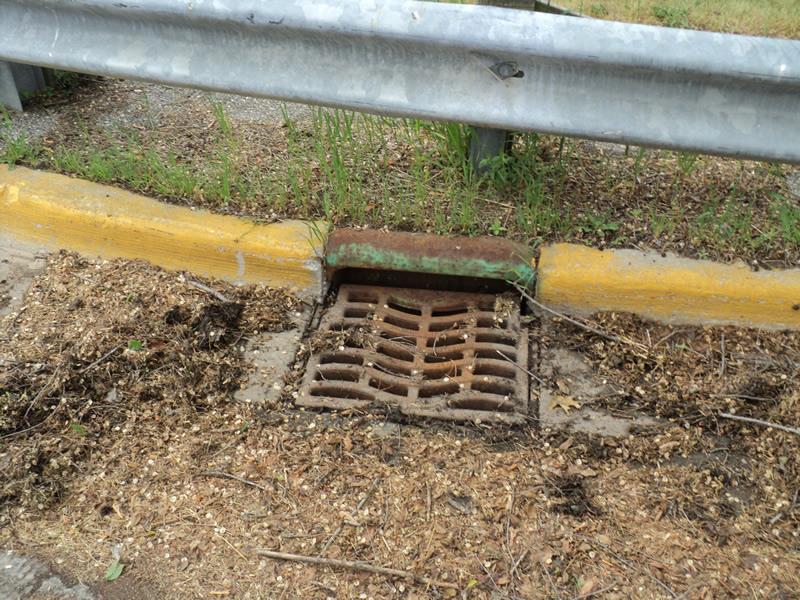

Runoff Path: Roadway
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches

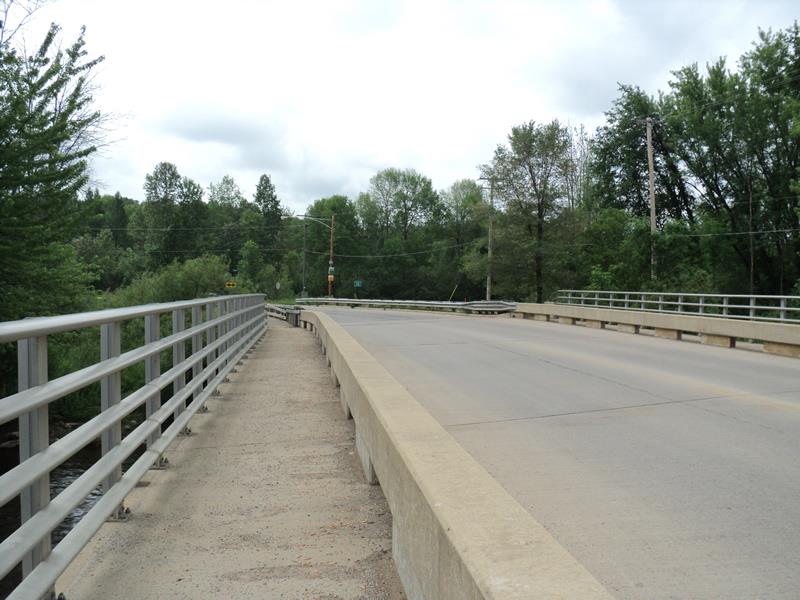

Left Approach
Length: 100 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0053 tons/year

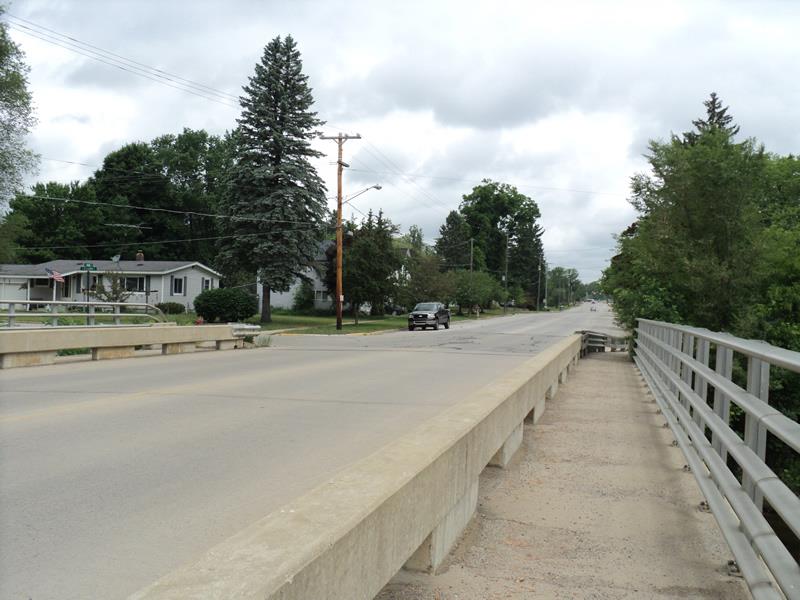

Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0529 tons/year
Erosion Information
Total Erosion at Crossing: 0.0582 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
