Road Stream Crossing Site Mu-067

Muskegon River Watershed, Twin Creek
110th Ave
Osceola Twp, Osceola County
Information collected by:
Site Location
GPS Coordinates: 43.94002 , -85.30679
T18N R8W Sec 19
Owned by Private
Structure is NOT Perched
Total Erosion: 2.0112 tons/year
Severity: Moderate
Year Inventoried: 2014

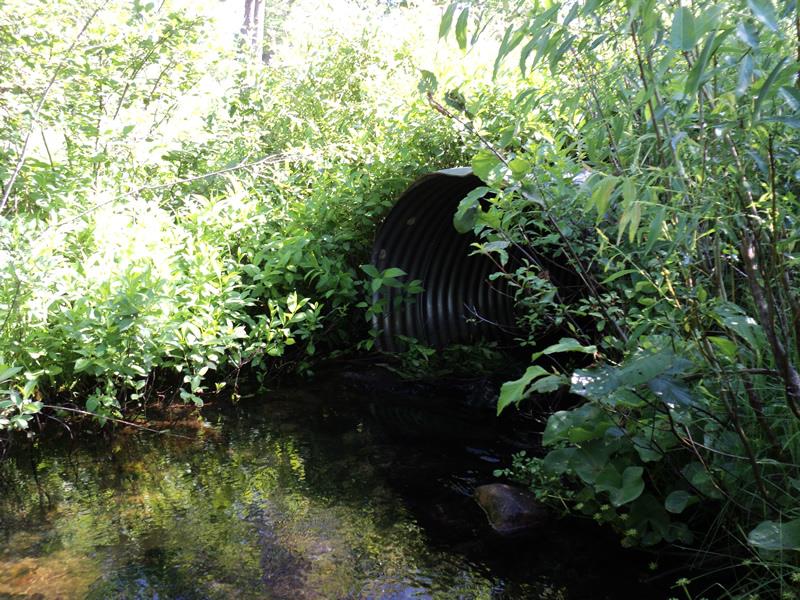

Inlet
Outlet

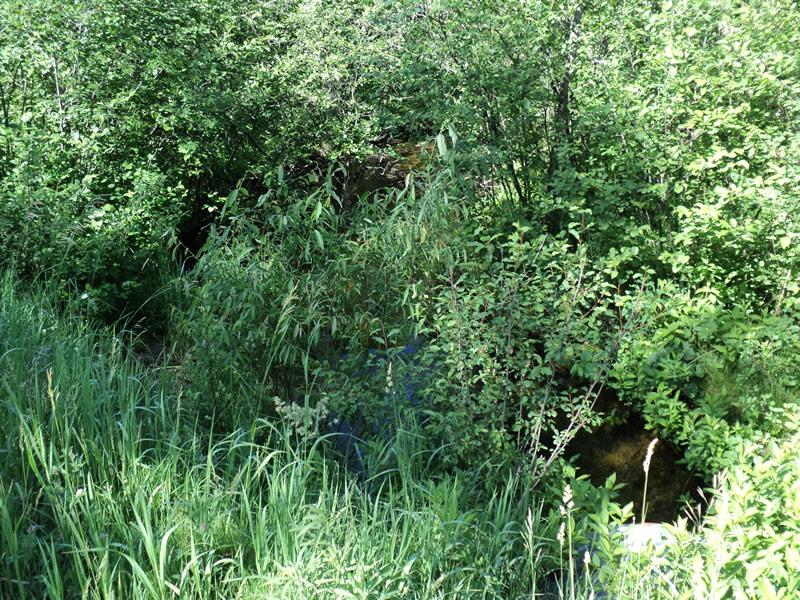

Upstream Conditions

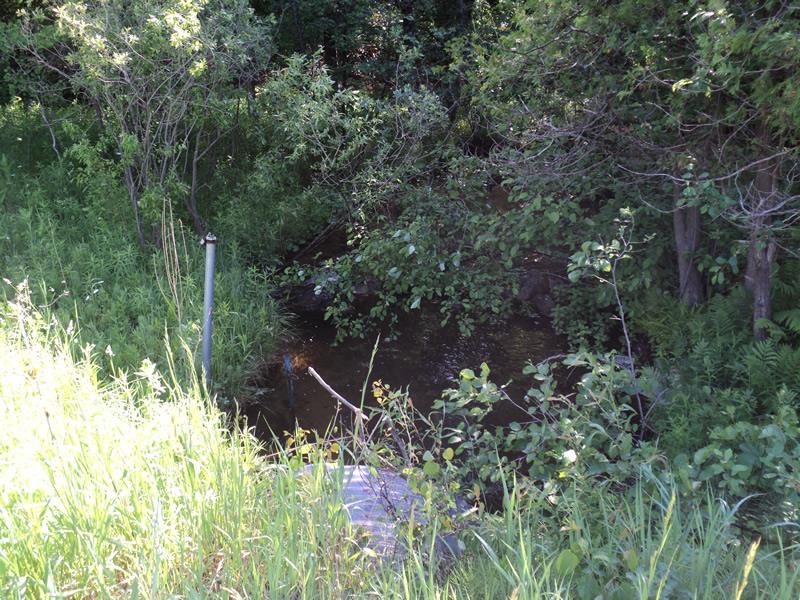

Downstream Conditions

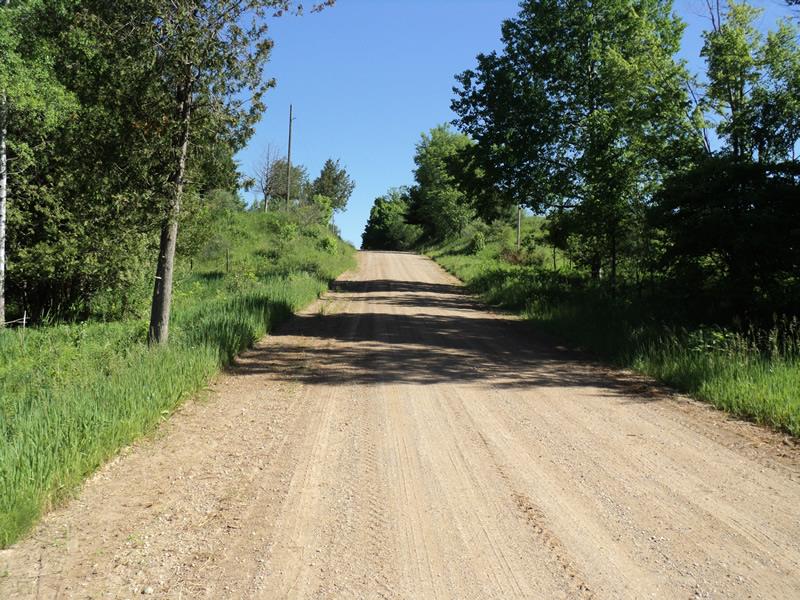

Road Approach - Left

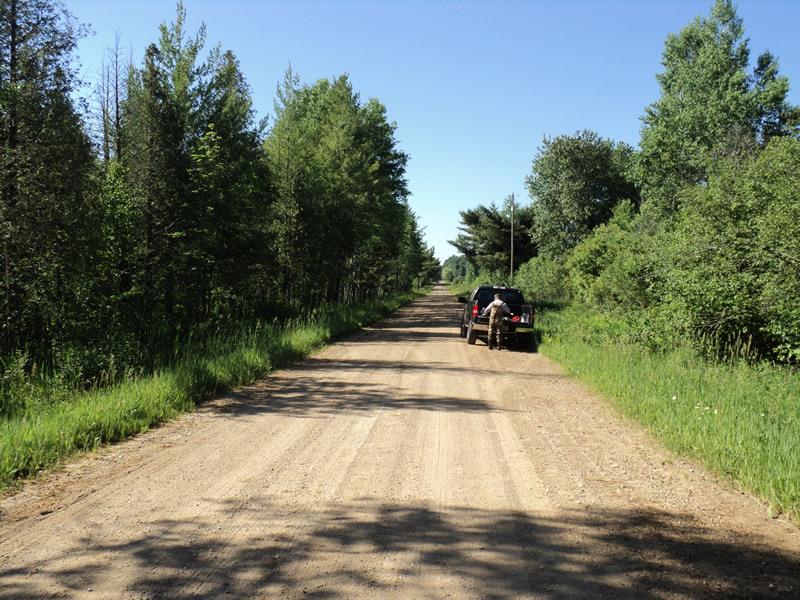

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Ellipse
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Rock
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 38 ft. , Width 4.8 ft. , Height 3.6 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 3 ft./sec.
Structure Outlet
Water Depth: 1.1 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.7 ft./sec.
*Water Velocities were measured 0.8 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 16 ft.
Wetted Width: 9 ft.
Water Velocity: 1.3 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel County Road
Road Condition: Fair
Road Width at Culvert: 20 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 270 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.352
Erosion: 2.0112 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 2.0112 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.

No, good flow/velocity.
