Road Stream Crossing Site PM_N035
Pere Marquette River Watershed, McDuffee Creek tributary
Pine Ave
Barton Twp,
Newaygo County
Information collected by:
Site Location
GPS Coordinates: 43.72956
, -85.6814
T16N
R11W
Sec 31
Owned by Private
Fish Passability 0.9
Total Erosion: 0.4521 tons/year
Severity: Moderate
Year Inventoried: 2014

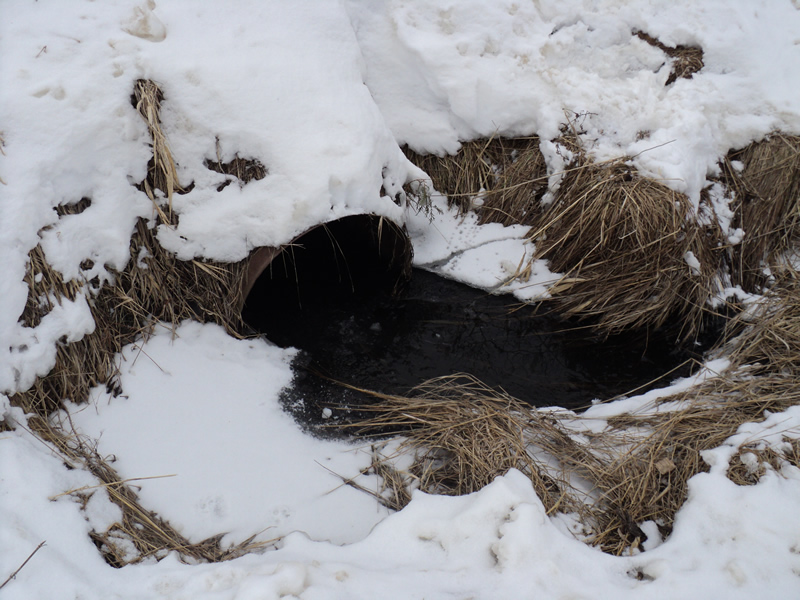

Inlet

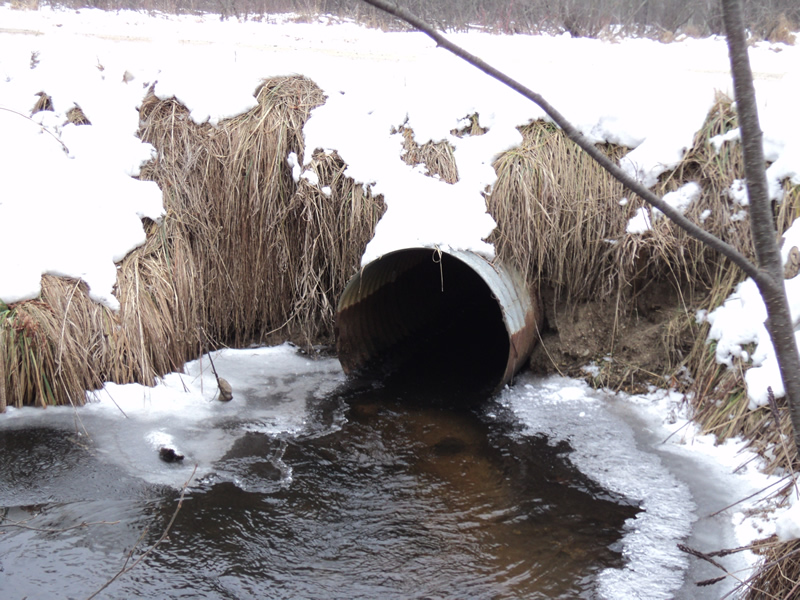

Outlet
Upstream Conditions

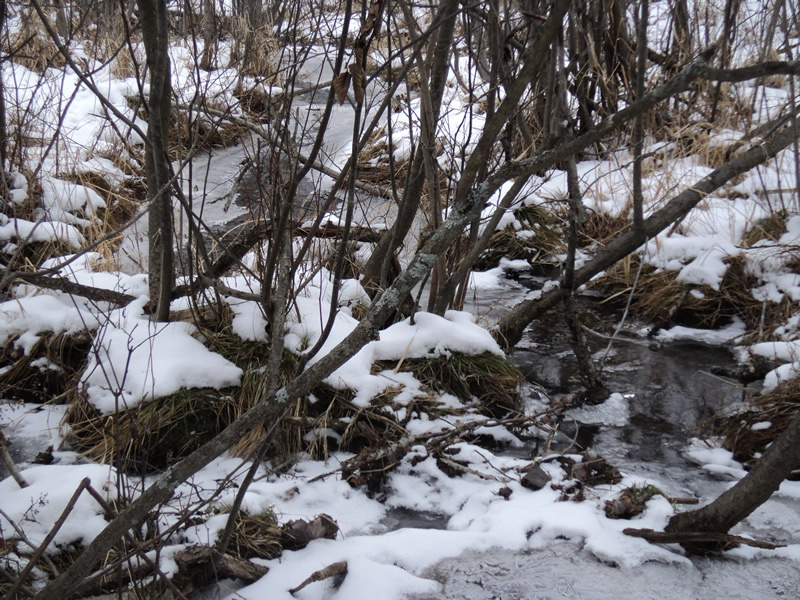

Downstream Conditions

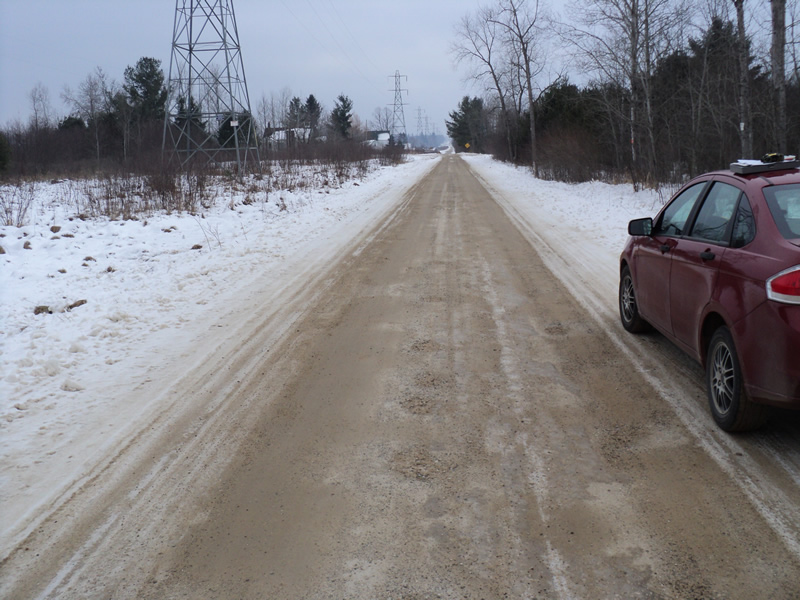

Road Approach - Left

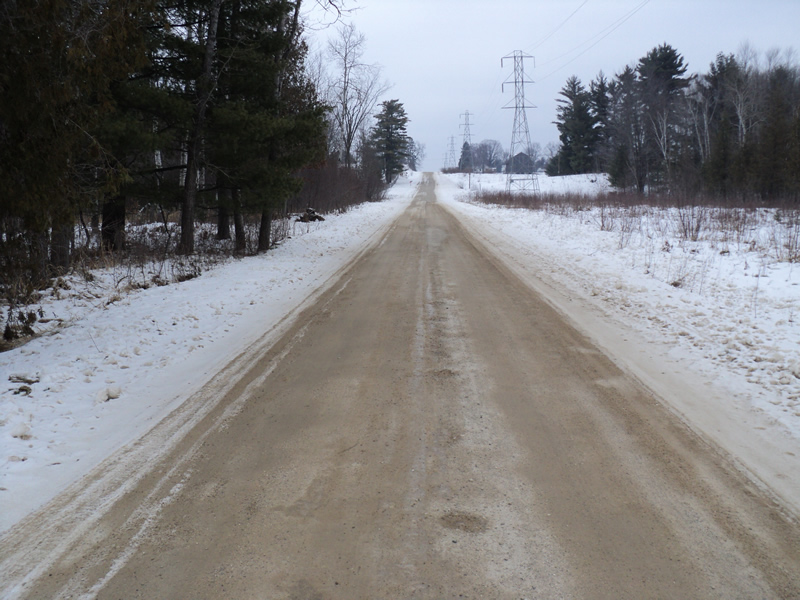

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 29 ft.
, Width 2 ft.
, Height 2 ft.
Structure Inlet
Water Depth: 0.8 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 0.8 ft.
Water Velocity*: 1.5 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
, Depth 1.5 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 6 ft.
Wetted Width: 6 ft.
Water Velocity: 1.3 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 17 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments

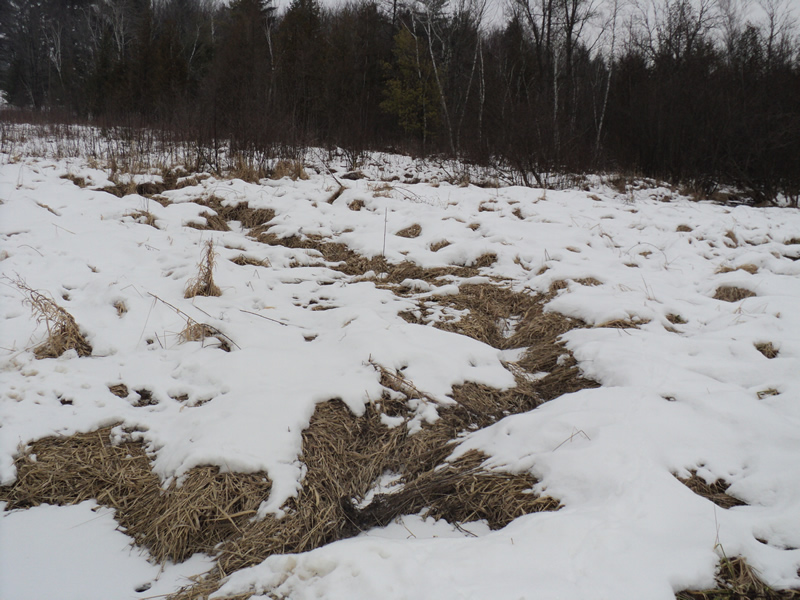

Upstream
Fill Depth: 1.2 ft.
Slope: Vertical
Downstream
Fill Depth: 2 ft.
Slope: Vertical
Approaches
Left Approach
Length: 200 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0468 tons/year
Right Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.4028 tons/year
Erosion Information
Total Erosion at Crossing: 0.4521 tons/year
Extent of Erosion: Minor
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Total Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | |
Left Downstream Streambank |
3 ft. |
2 ft. |
0.5 ft. |
yes |
Gravelly Loam |
0.0015 |
Right Downstream Streambank |
2 ft. |
2 ft. |
0.5 ft. |
yes |
Gravelly Loam |
0.001 |
Summary Information
Fish Passability 0.9
