Road Stream Crossing Site E29
Maple River Watershed, Tributary of West Branch Maple River
Tower Rd
Emmet County
Information collected by:
Site Location
GPS Coordinates: 45.539923259532
, -84.8216541856527
T36N
R4W
Sec 5
Owned by Private
Perch Height: 1 ft.
Total Erosion: 0.0258 tons/year
Severity: Severe
Year Inventoried: 2014

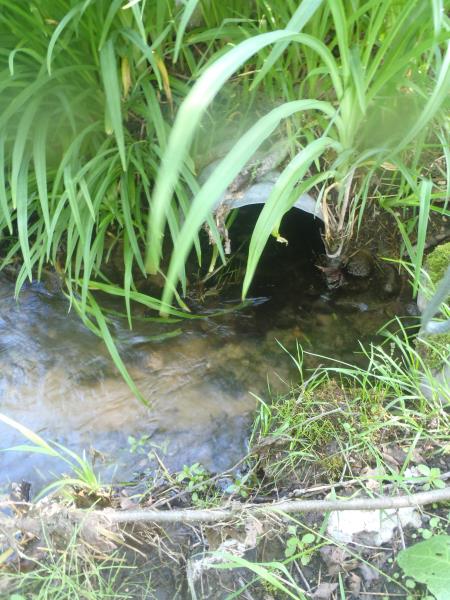

Inlet

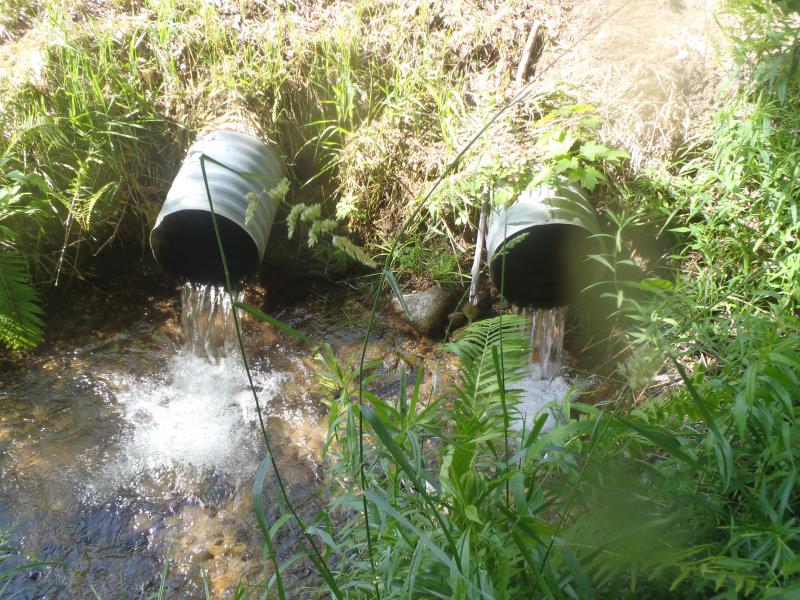

Outlet

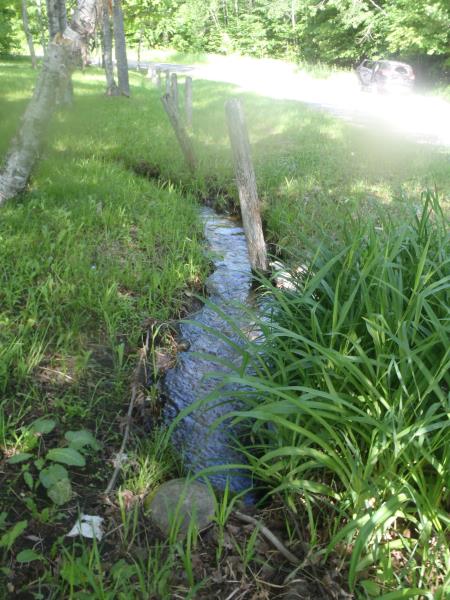

Upstream Conditions

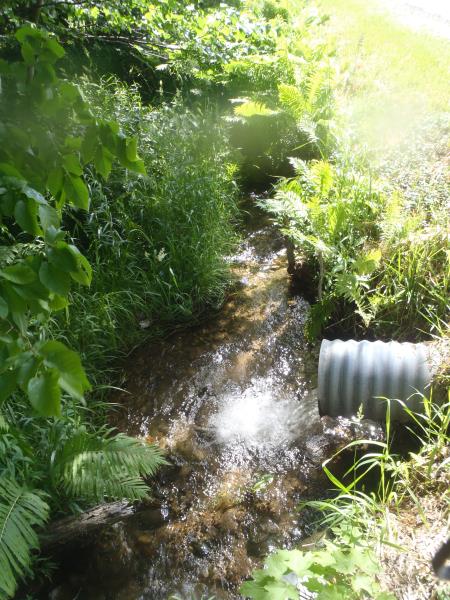

Downstream Conditions

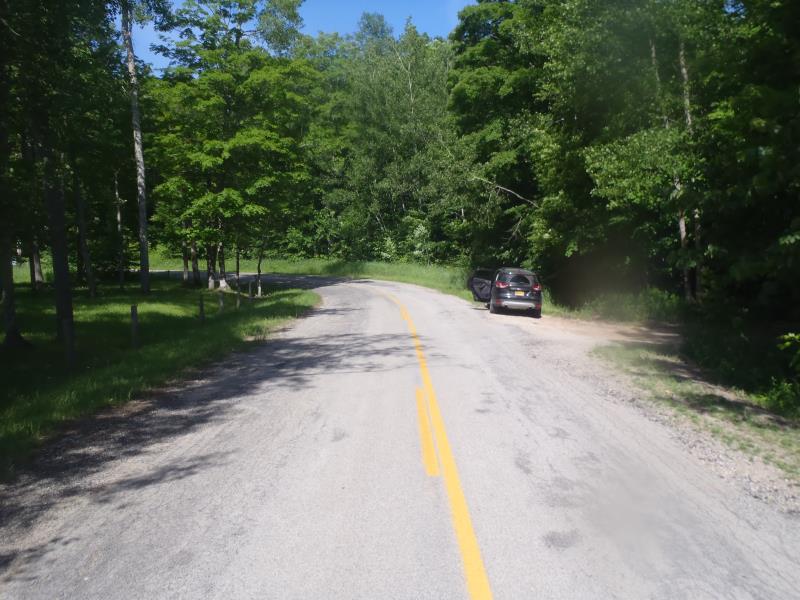

Road Approach - Left

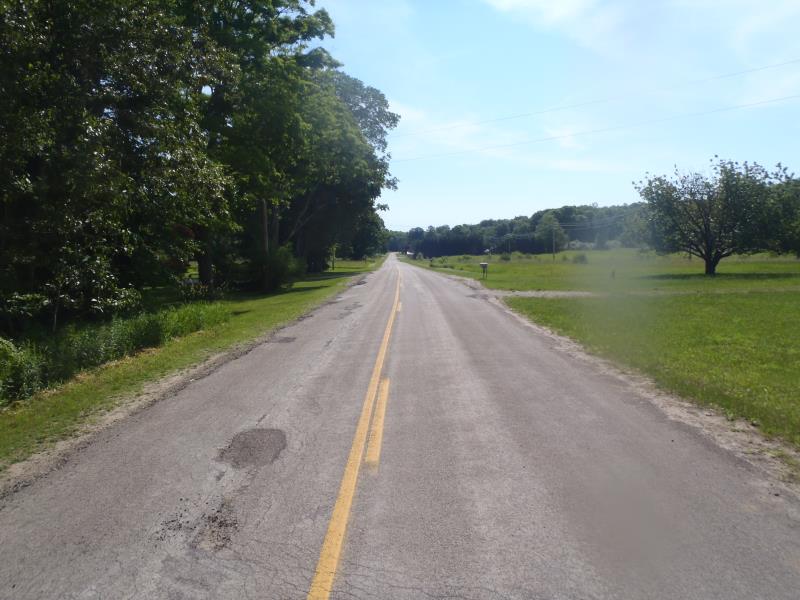

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
1.3 ft. |
40 ft. |
1.3 ft. |
Metal |
2 |
1.3 ft. |
40 ft. |
1.3 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 40 ft.
, Width 1.3 ft.
, Height 1.3 ft.
Perch Height: 1 ft.
Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.3 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 4.2 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 4.4 ft.
, Width 6 ft.
, Depth 1.2 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 7 ft.
Wetted Width: 3 ft.
Water Velocity: 1.7 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved
County Road
Road Condition: Fair
Road Width at Culvert: 20 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.8 ft.
Slope: 1:2
Downstream
Fill Depth: 1.2 ft.
Slope: 1:1
Approaches
Left Approach
Length: 100 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.39
Erosion: 0.0258 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.0258 tons/year
Extent of Erosion: Moderate
Summary Information
Fish Passage is an area of concern for this site.
Yes, perched outlet.
A future visit to this site is recommended.
Yes, look at replacing crossing.
