Road Stream Crossing Site MAN_KA_001

Big Manistee River Watershed, Goose Creek
Blue Lake Rd
Blue Lake Twp, Kalkaska County
Information collected by:
Site Location
GPS Coordinates: 44.79917 , -84.89348
T28N R5W Sec 27
Owned by Private
Structure is NOT Perched
Total Erosion: 0.2746 tons/year
Severity: Minor
Year Inventoried: 2014

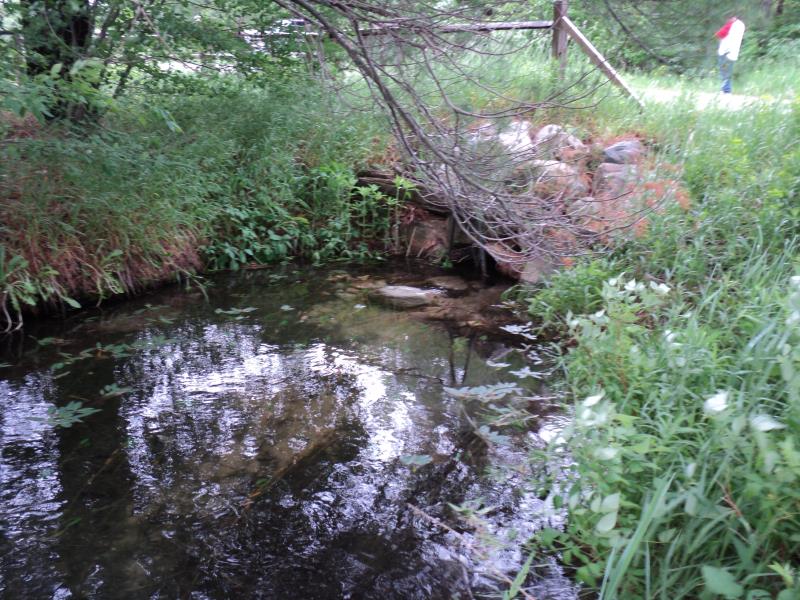

Inlet

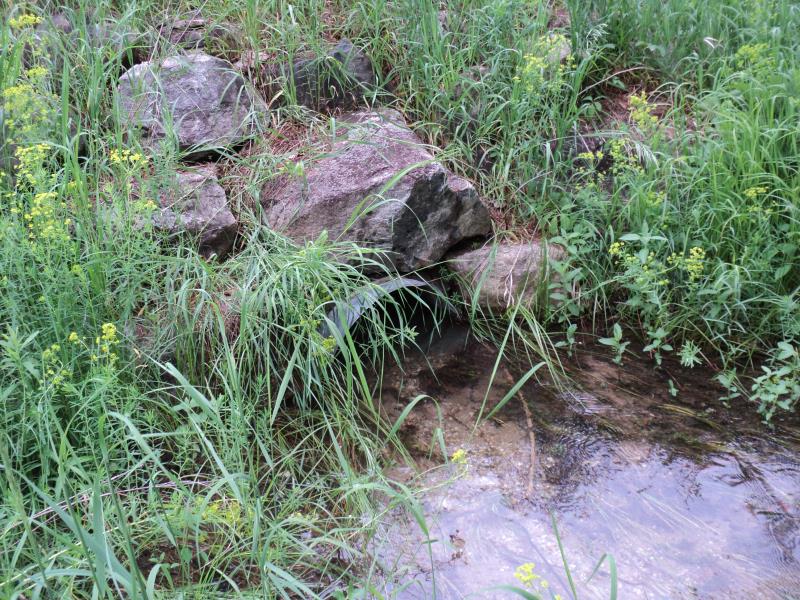

Outlet

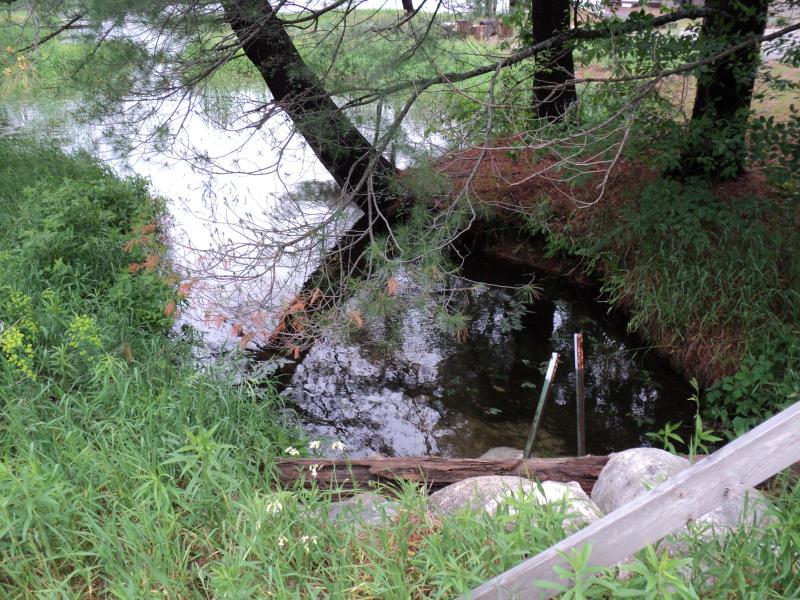

Upstream Conditions

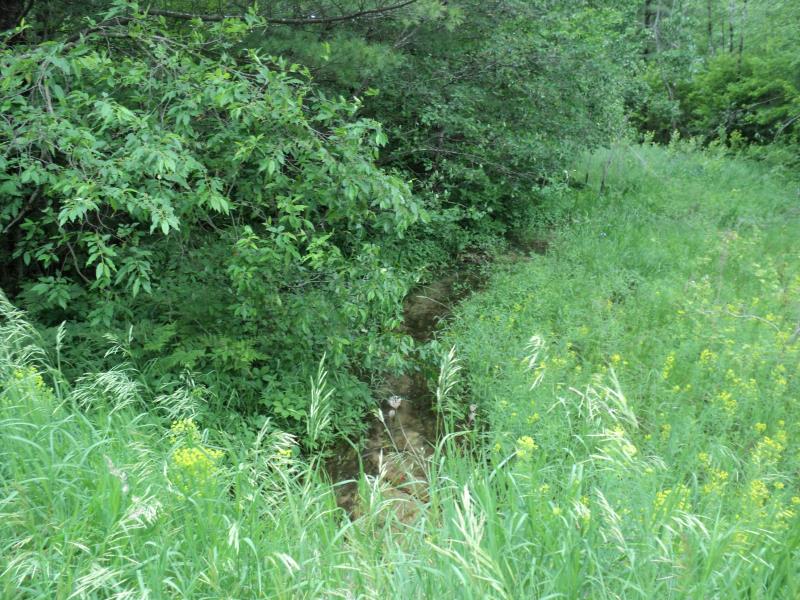

Downstream Conditions

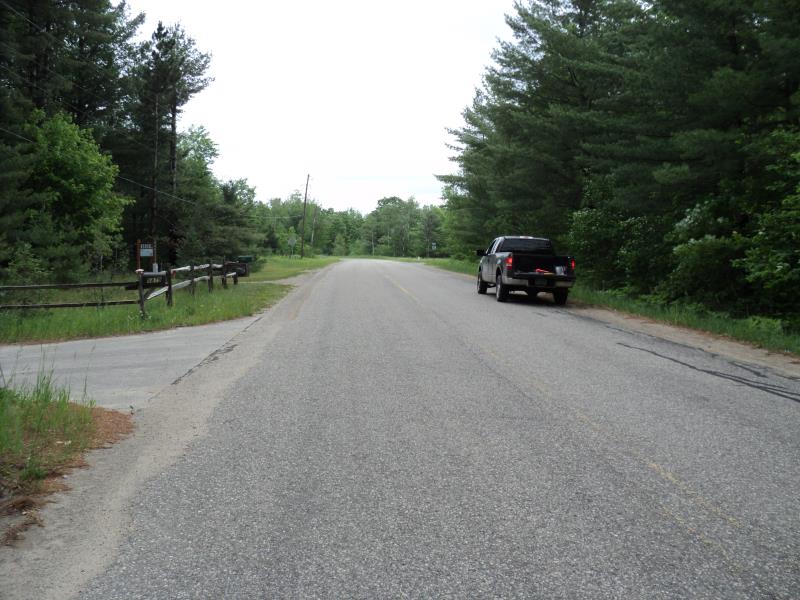

Road Approach - Left

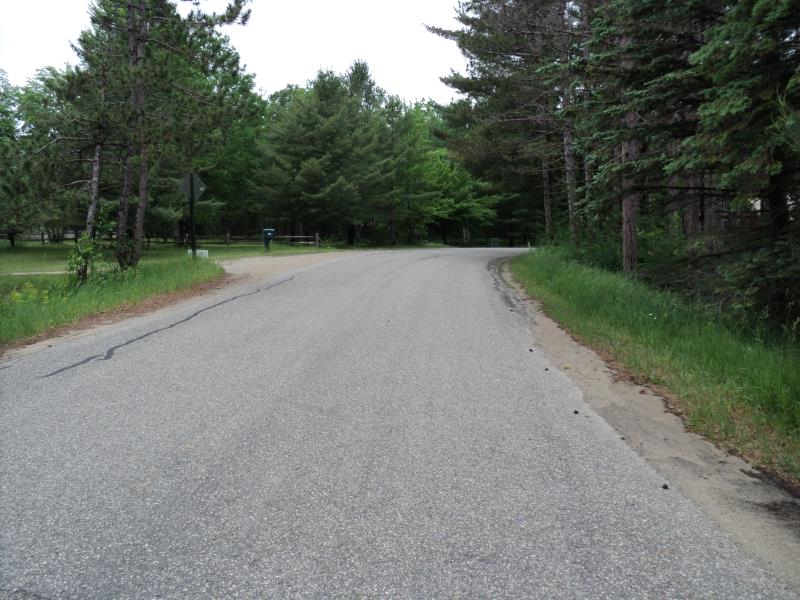

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Gravel
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 50 ft. , Width 2.4 ft. , Height 2.4 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.9 ft./sec.
Structure Outlet
Water Depth: 1.1 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 1.2 ft./sec.
*Water Velocities were measured 0.7 ft. below Surface (with Meter)
Stream Information
Stream Flow: Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 1 ft.
Bankfull Width: 30 ft.
Wetted Width: 30 ft.
Water Velocity: 1.7 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 27 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 3.8 ft.
Slope: More than 1:2
Downstream
Fill Depth: 3.4 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 370 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.474
Erosion: 0.1565 tons/year
Right Approach
Length: 290 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.456
Erosion: 0.118 tons/year
Erosion Information
Total Erosion at Crossing: 0.2746 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
