Road Stream Crossing Site MAN_KA_005
Big Manistee River Watershed, Unknown (tributary to Manistee River)
Tower Rd
Cold Springs Twp,
Kalkaska County
Information collected by:
Site Location
GPS Coordinates: 44.79368
, -84.97619
T28N
R6W
Sec 25
Owned by Private
Structure is NOT Perched
Total Erosion: 3.9224 tons/year
Severity: Severe
Year Inventoried: 2014

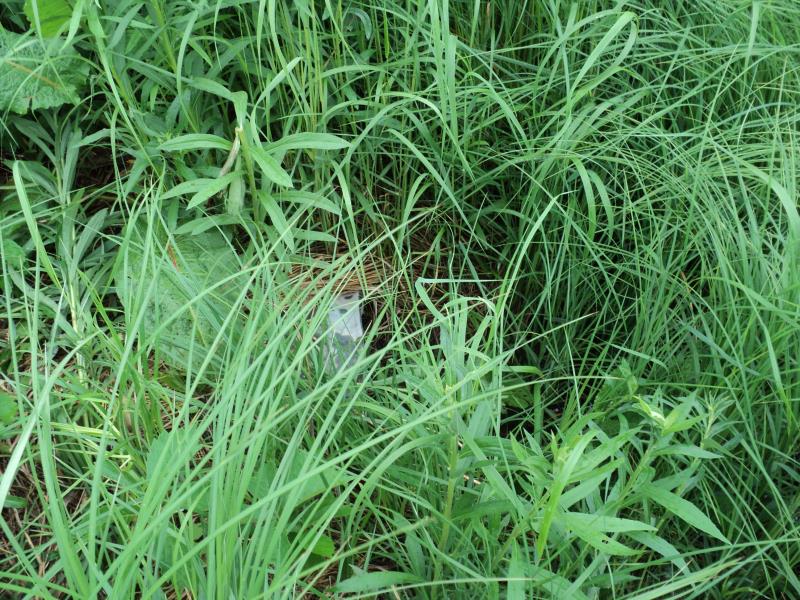

Inlet

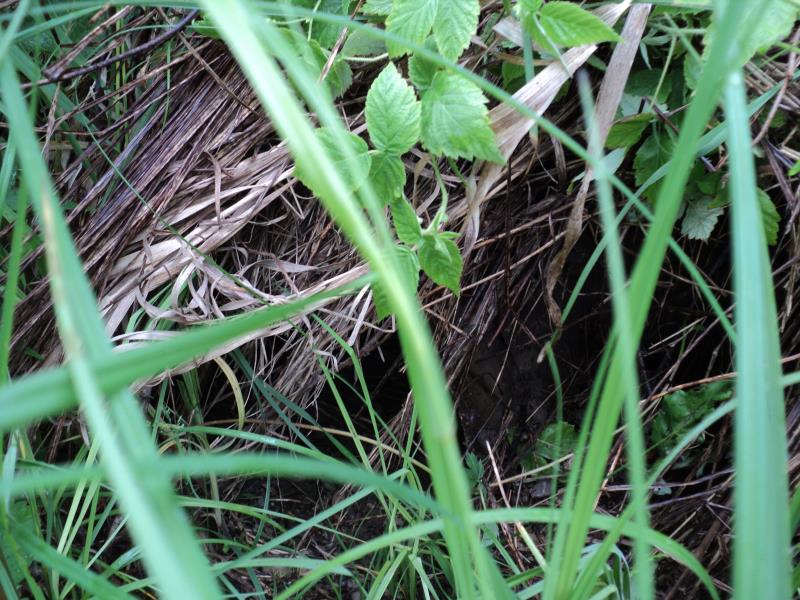

Outlet

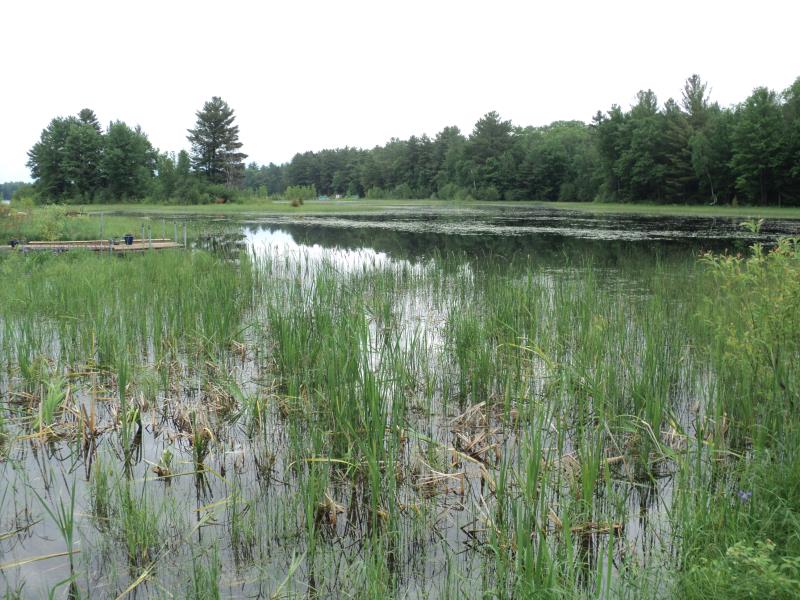

Upstream Conditions

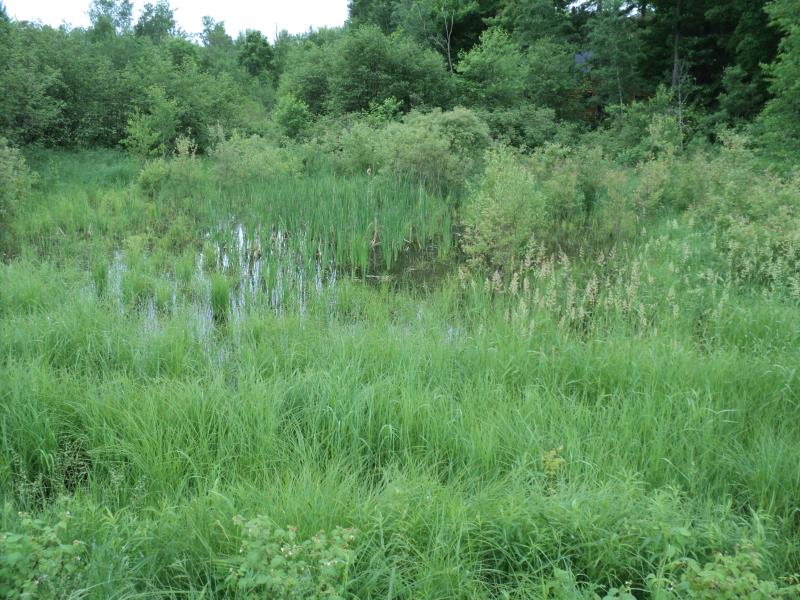

Downstream Conditions

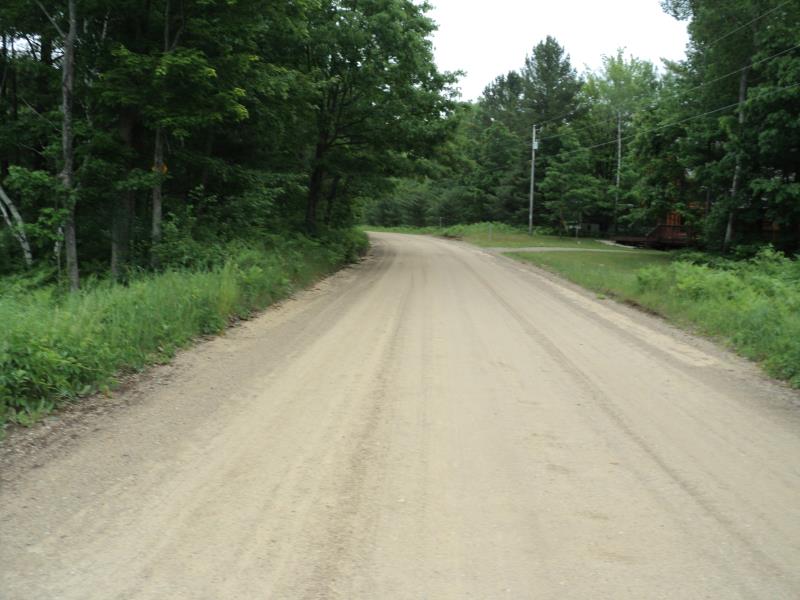

Road Approach - Left

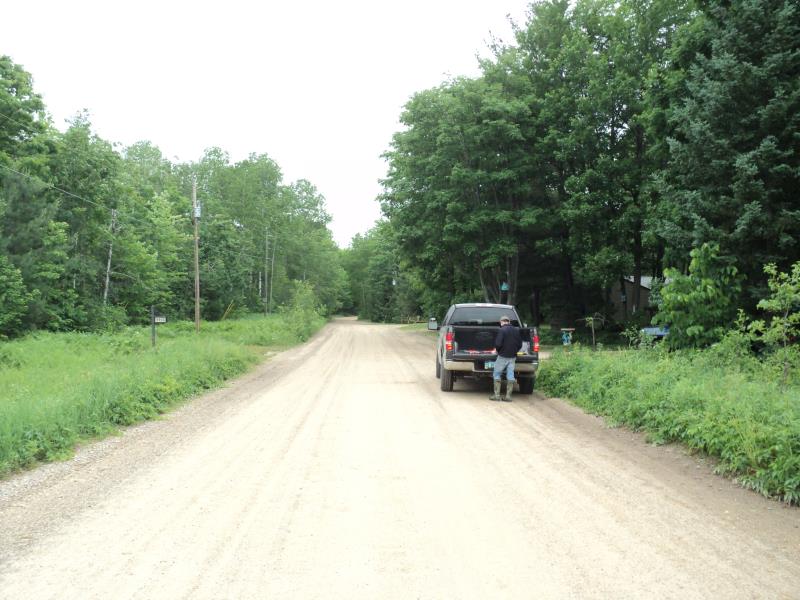

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 34 ft.
, Width 1.2 ft.
, Height 1.2 ft.
Percentage Plugged:
Inlet: 1% to 25%
Outlet: 51% to 75%
In Pipe: 0%
Structure is NOT Perched
Water Depth: 0 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0.7 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Stream Information
Stream Flow: Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
(Measured with Meter)
Dominant Substrate: Organics
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 1.6 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.4 ft.
Slope: 1:2
Approaches
Left Approach
Length: 775 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.546
Erosion: 2.799 tons/year
Right Approach
Length: 360 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.472
Erosion: 1.1234 tons/year
Erosion Information
Total Erosion at Crossing: 3.9224 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
Yes, to alleviate plugged culvert.
A future visit to this site is recommended.
Yes, to clear culvert openings.
