Road Stream Crossing Site MAN_KA_006
Big Manistee River Watershed, Goose Creek
County Rd 612
Blue Lake Twp,
Kalkaska County
Information collected by:
Site Location
GPS Coordinates: 44.77115
, -84.86454
T28N
R5W
Sec 36
Owned by State
Structure is NOT Perched
Total Erosion: 0.8316 tons/year
Severity: Moderate
Year Inventoried: 2014

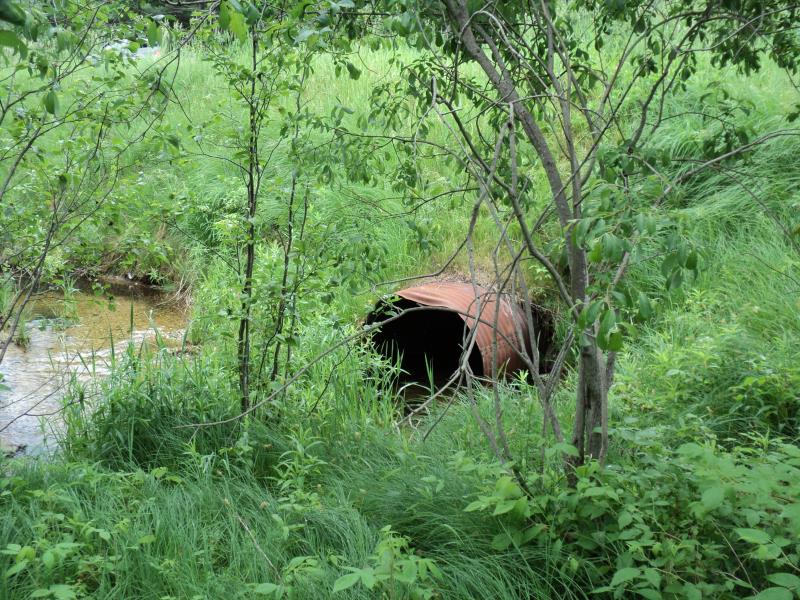

Inlet
Outlet

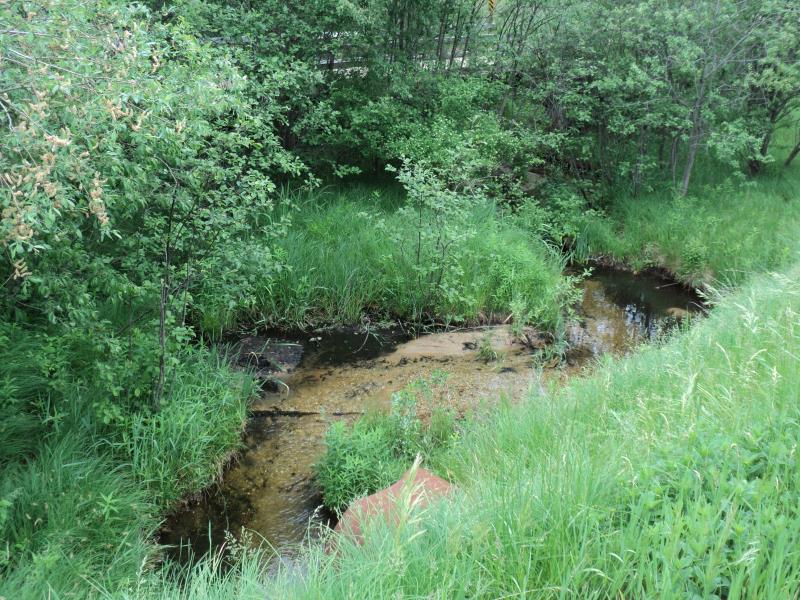

Upstream Conditions

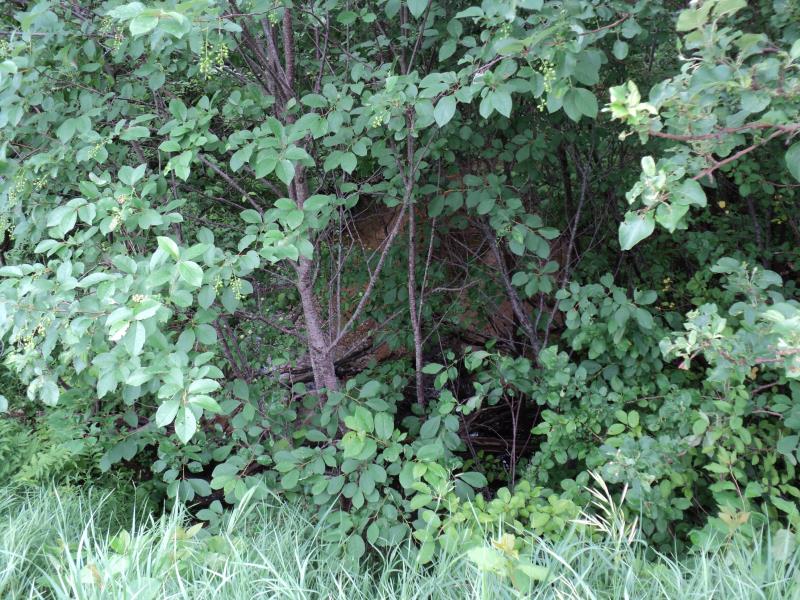

Downstream Conditions

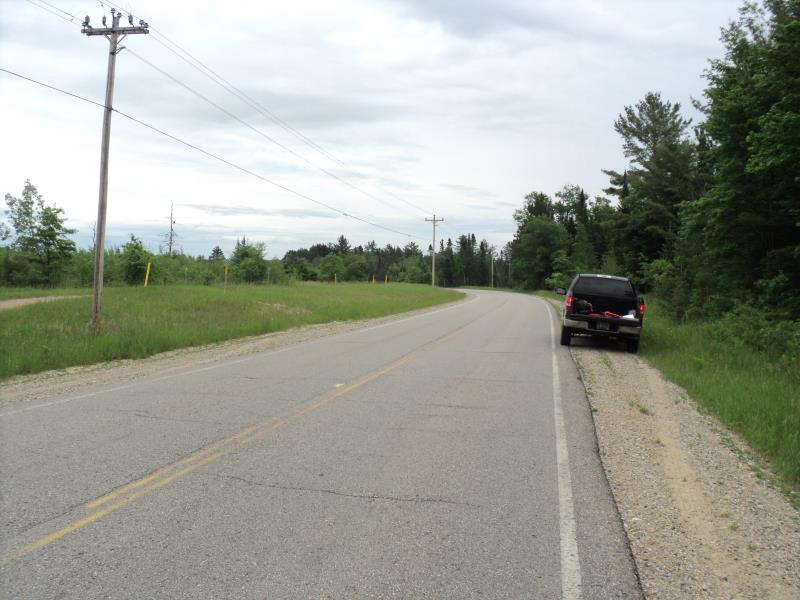

Road Approach - Left

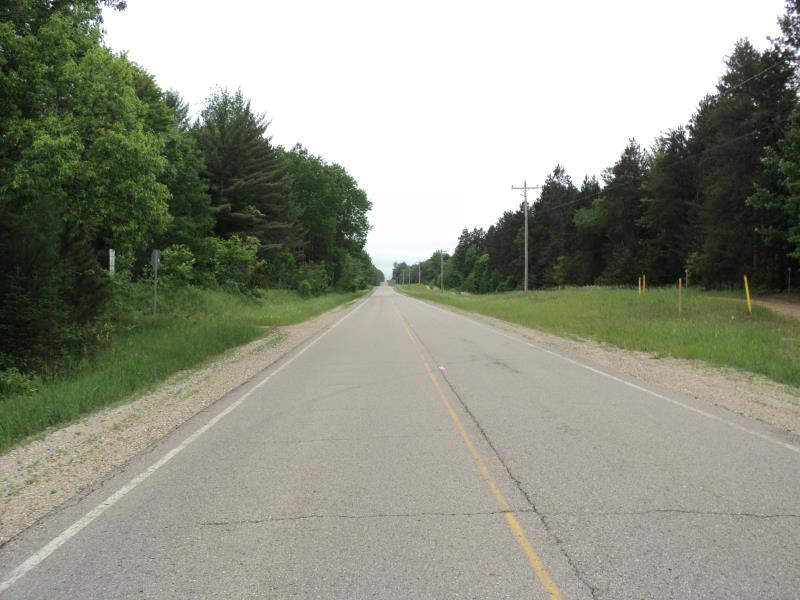

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 57 ft.
, Width 3.6 ft.
, Height 3.6 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.1 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0.8 ft.
Water Velocity*: 0.7 ft./sec.
*Water Velocities were measured 0.7 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 1.1 ft.
Bankfull Width: 9.8 ft.
Wetted Width: 4.6 ft.
Water Velocity: 0.2 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 34 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 6.5 ft.
Slope: 1:1.5
Downstream
Fill Depth: 5.5 ft.
Slope: 1:2
Approaches
Left Approach
Length: 360 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.472
Erosion: 0.191 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.6407 tons/year
Erosion Information
Total Erosion at Crossing: 0.8316 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
