Road Stream Crossing Site MAN_MA_011

Big Manistee River Watershed, Cedar Creek
Coates Hwy
Dickson Twp, Manistee County
Information collected by:
Site Location
GPS Coordinates: 44.30735 , -85.83073
T22N R13W Sec 13
Owned by Private
Fish Passability 0
Structure is NOT Perched
Total Erosion: 0.0101 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID

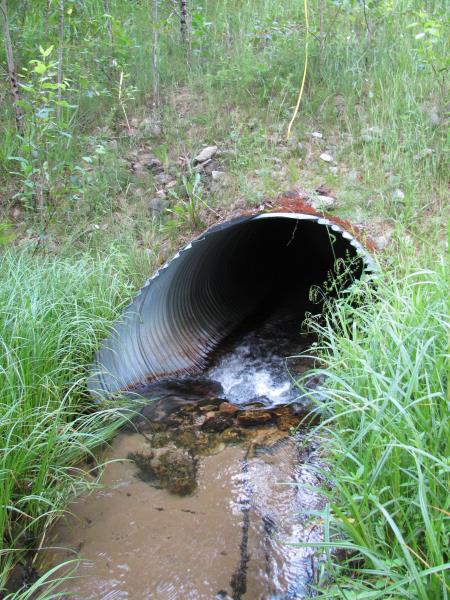

Inlet

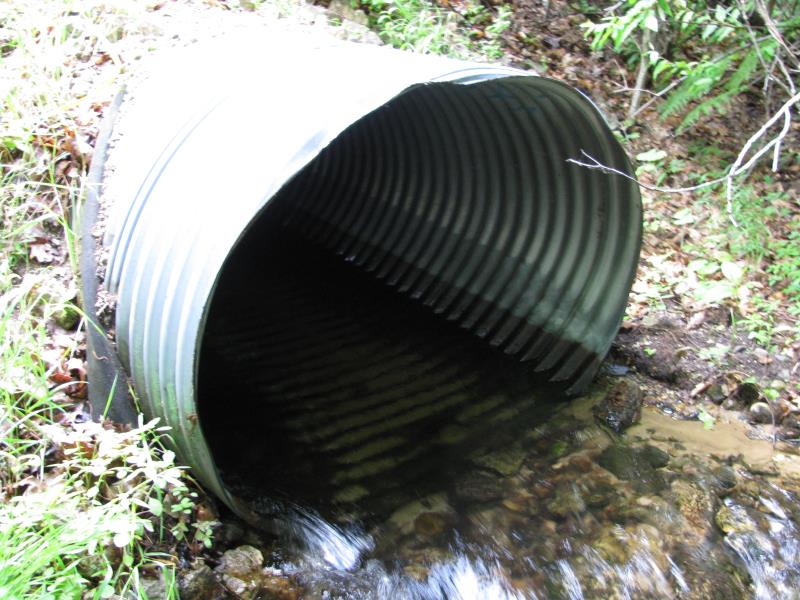

Outlet

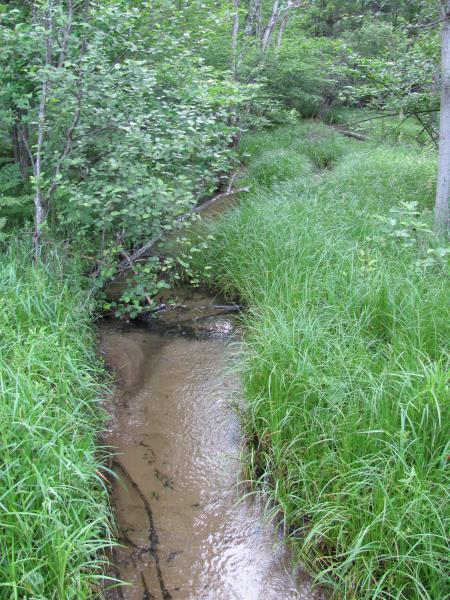

Upstream Conditions

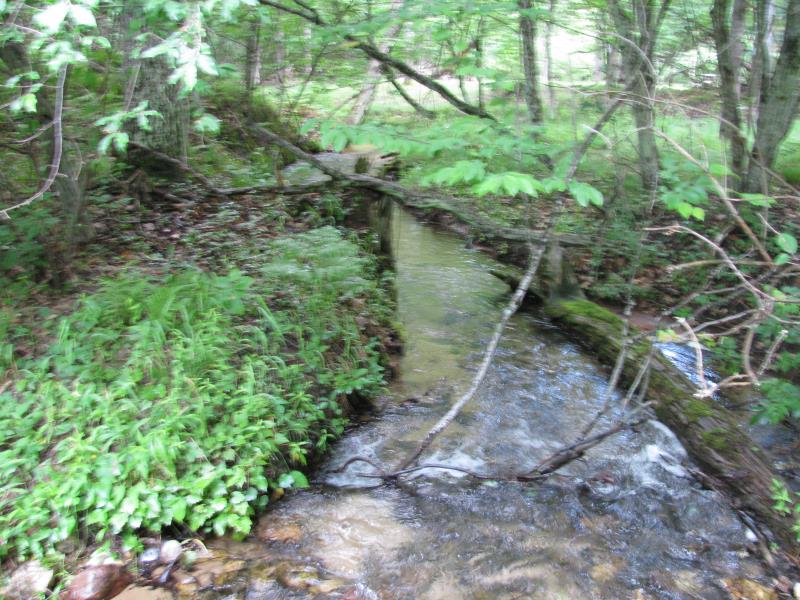

Downstream Conditions

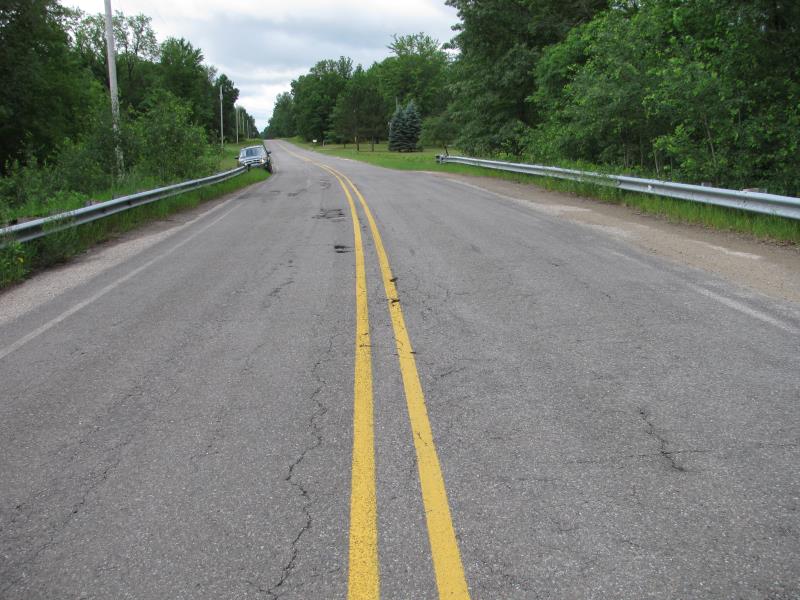

Road Approach - Left

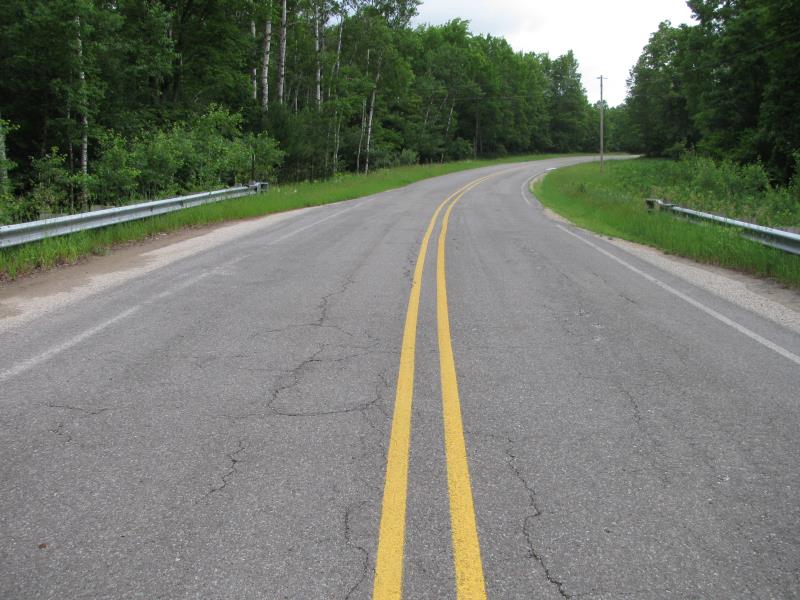

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Ellipse
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 98 ft. , Width 5 ft. , Height 3.8 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.6 ft.
Water Velocity*: 3.3 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 10 ft.
Wetted Width: 7 ft.
Water Velocity: 2.2 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved County Road
Road Condition: Fair
Road Width at Culvert: 34 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 8.3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 9 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 180 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0101 tons/year
Erosion Information
Total Erosion at Crossing: 0.0101 tons/year
Summary Information
Fish Passability 0
