Road Stream Crossing Site MAN_WE_010
Big Manistee River Watershed, Smail Creek
24 1/2 Rd
Springville Twp,
Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.34748
, -85.71189
T23N
R12W
Sec 36
Owned by Federal
Fish Passability 0
Perch Height: 0.5 ft.
Total Erosion: 0.0048 tons/year
Severity: Severe
Year Inventoried: 2014

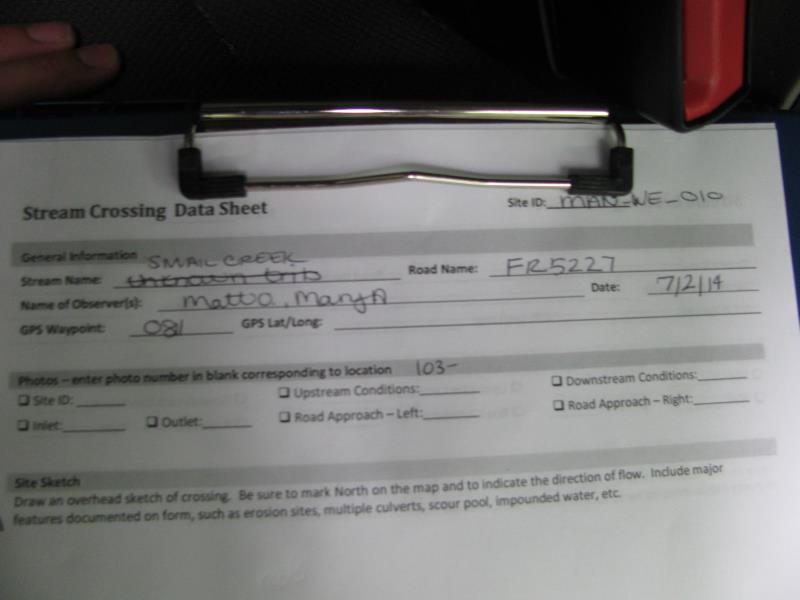

Site ID

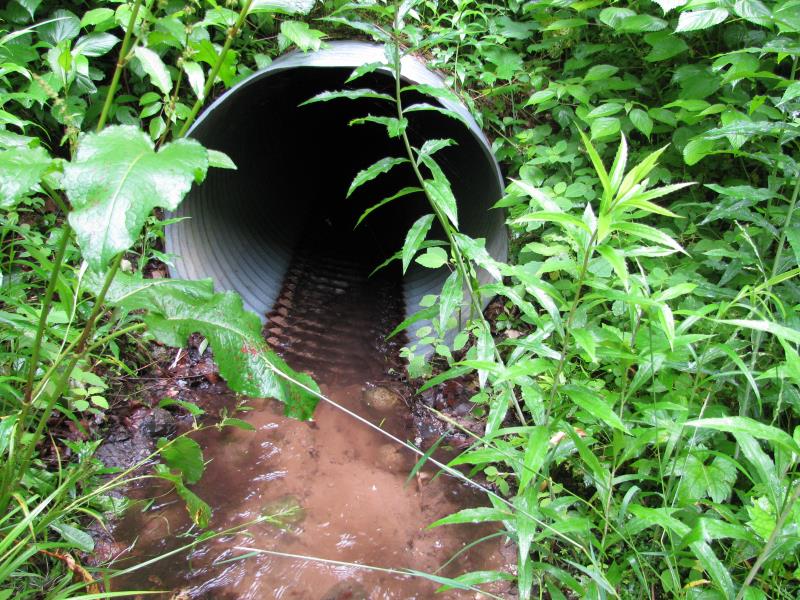

Inlet

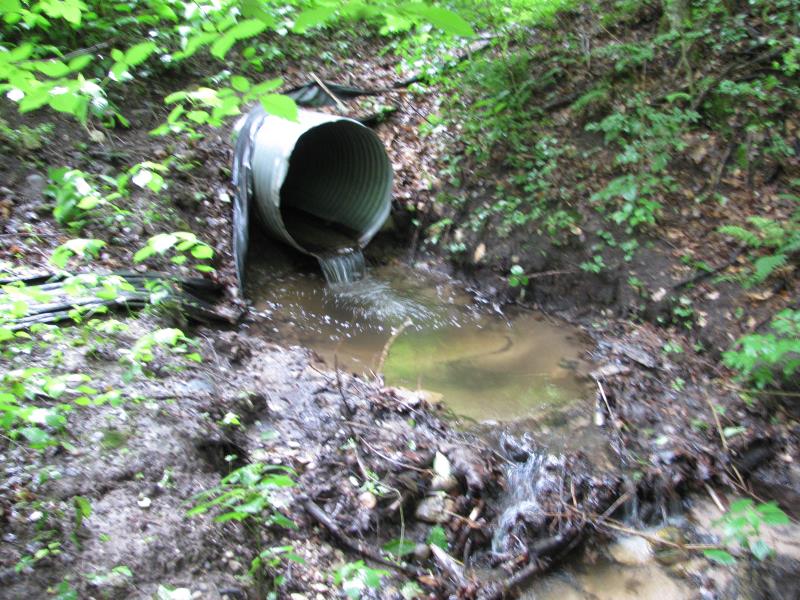

Outlet

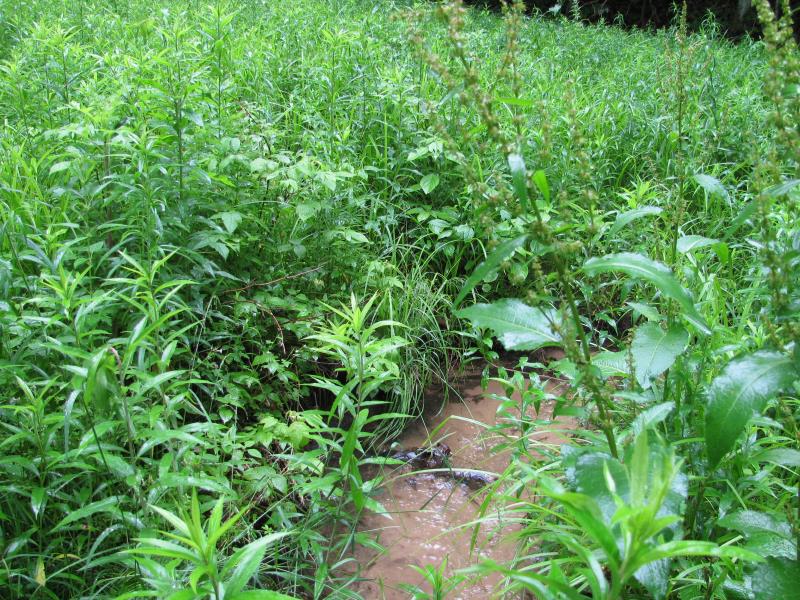

Upstream Conditions

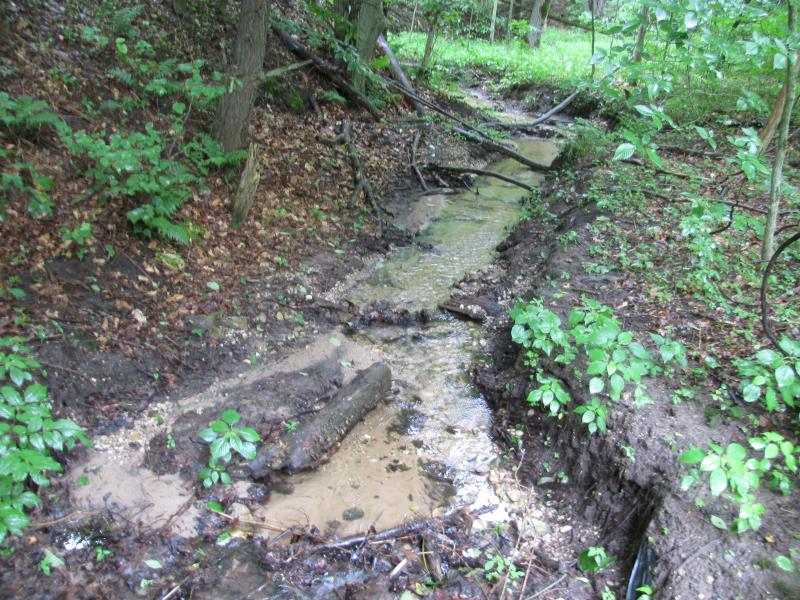

Downstream Conditions

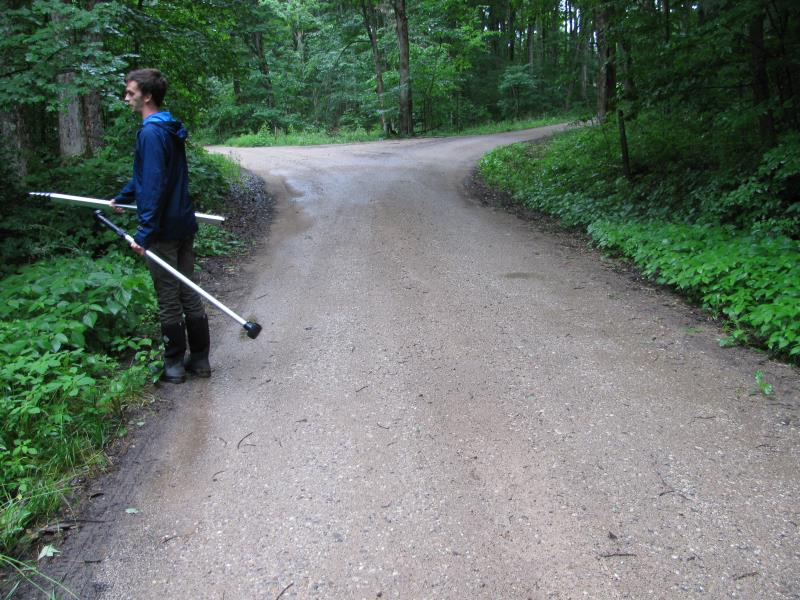

Road Approach - Left

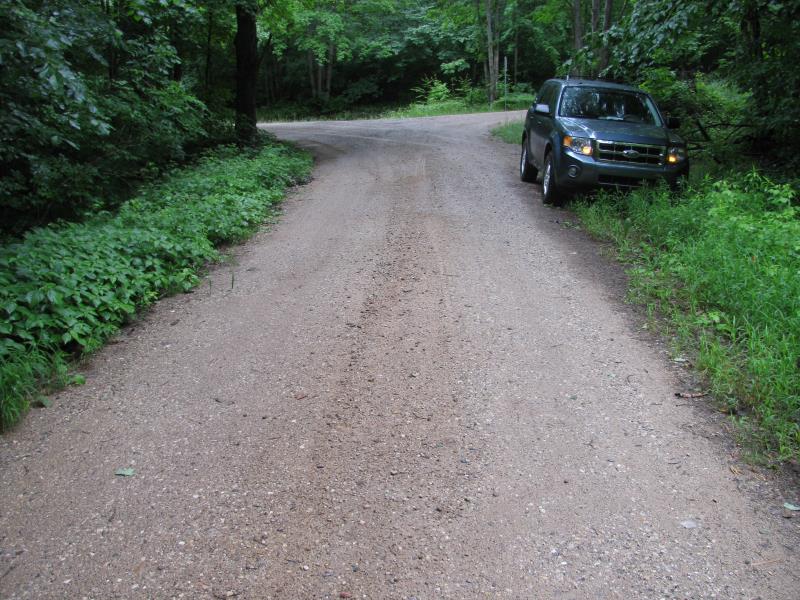

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 27.5 ft.
, Width 3 ft.
, Height 3 ft.
Perch Height: 0.5 ft.
Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.3 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.3 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 7.8 ft.
, Width 5.3 ft.
, Depth 1.7 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 6.6 ft.
Wetted Width: 4.8 ft.
Water Velocity: 1.3 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved
Federal Road
(Seasonal)
Road Condition: Good
Road Width at Culvert: 13 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2.2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 3.4 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 130 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0028 tons/year
Right Approach
Length: 94 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.002 tons/year
Erosion Information
Total Erosion at Crossing: 0.0048 tons/year
Summary Information
Fish Passability 0
