Road Stream Crossing Site MAN_WE_015

Big Manistee River Watershed, Unknown (tributary to Manistee River)
Old M-37
Springville Twp, Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.39402 , -85.7336
T23N R12W Sec 14
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.0218 tons/year
Severity: Moderate
Year Inventoried: 2014
Site ID

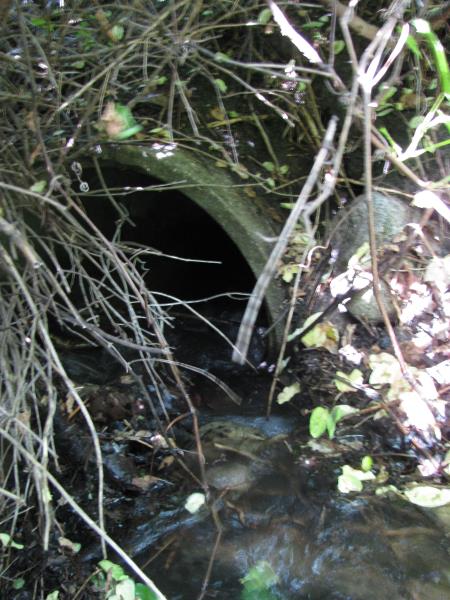

Inlet

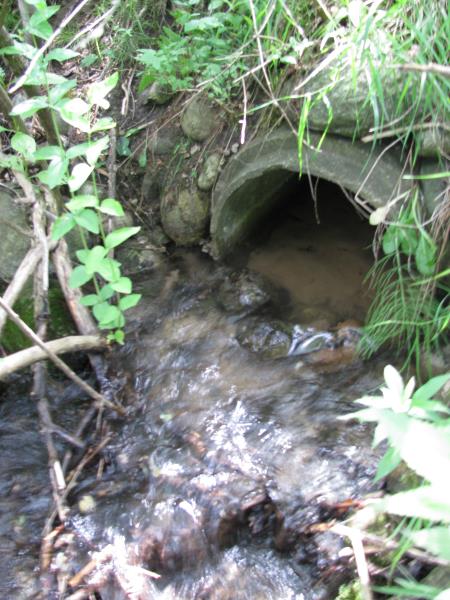

Outlet

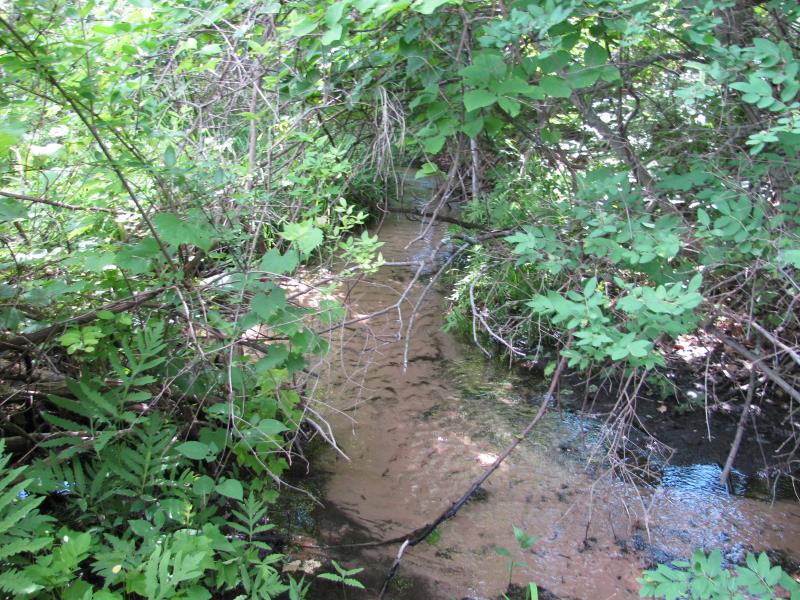

Upstream Conditions

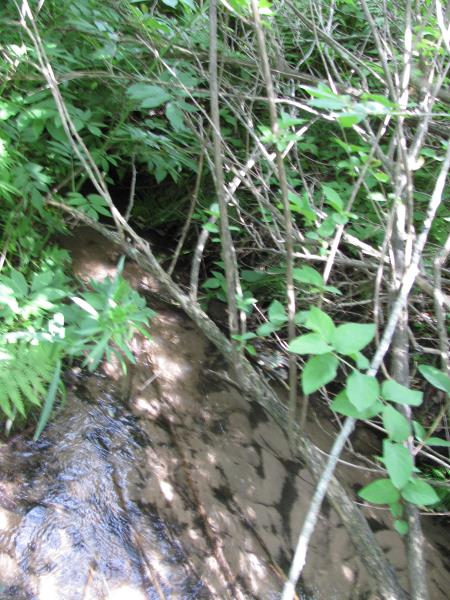

Downstream Conditions

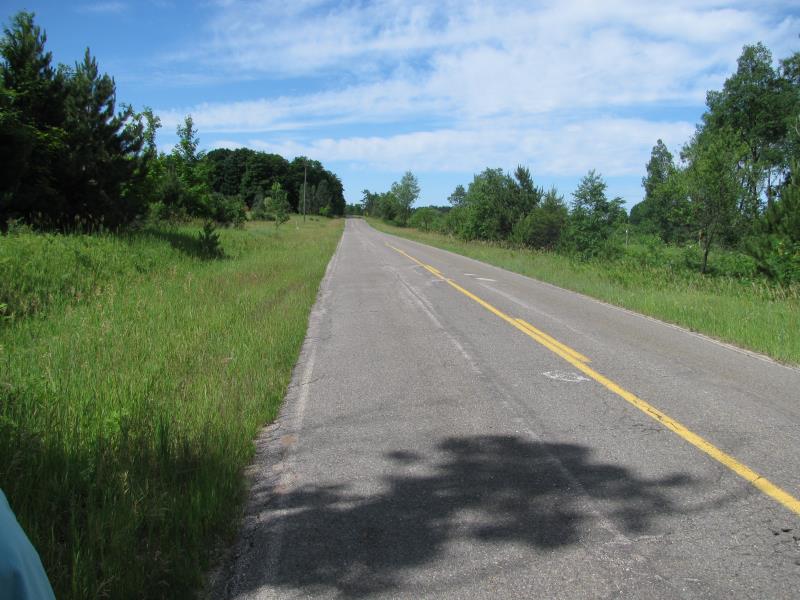

Road Approach - Left

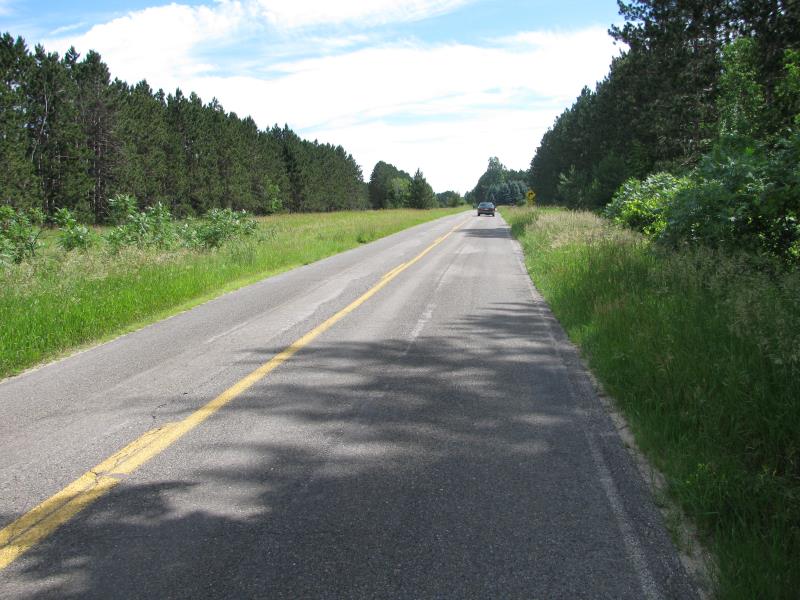

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Cascade over Riprap
Structure Material: Concrete
Structure Substrate: None
General Conditions: Poor
Structure Interior: smooth
Dimensions of Structure: Length 60 ft. , Width 2 ft. , Height 1.3 ft.
Percentage Plugged: Inlet: 26% to 50% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0.7 ft.
Water Velocity*: 1.3 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 1.5 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 7.5 ft. , Width 6.5 ft. , Depth 0.4 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 6.7 ft.
Wetted Width: 4.5 ft.
Water Velocity: 1.1 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Fair
Road Width at Culvert: 22 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 5.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 6.2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 600 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0218 tons/year
Erosion Information
Total Erosion at Crossing: 0.0218 tons/year
Summary Information
Fish Passability 0.5
