Road Stream Crossing Site MAN_WE_030
Big Manistee River Watershed, Chase creek
10 Rd
Liberty Twp,
Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.45413
, -85.36549
T24N
R9W
Sec 23
Owned by State
Structure is NOT Perched
Total Erosion: 0.1675 tons/year
Severity: Restored
Year Inventoried: 2014

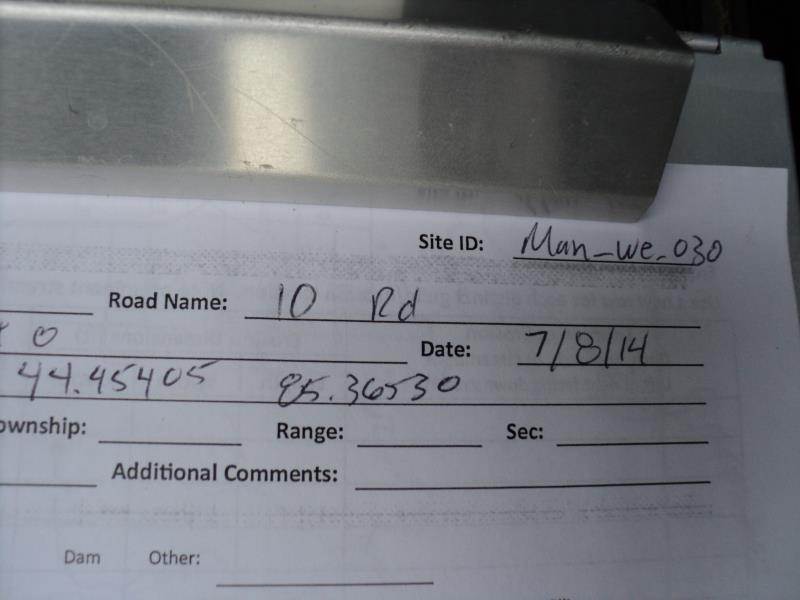

Site ID

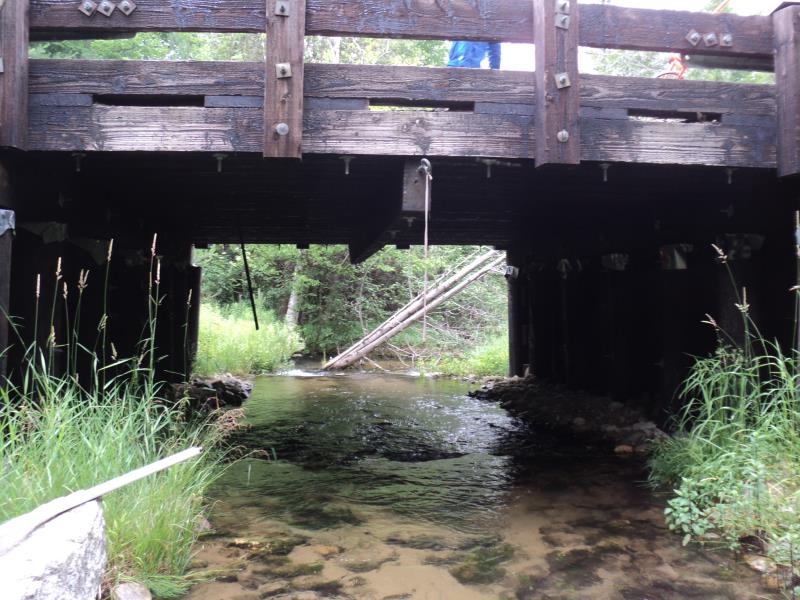

Inlet

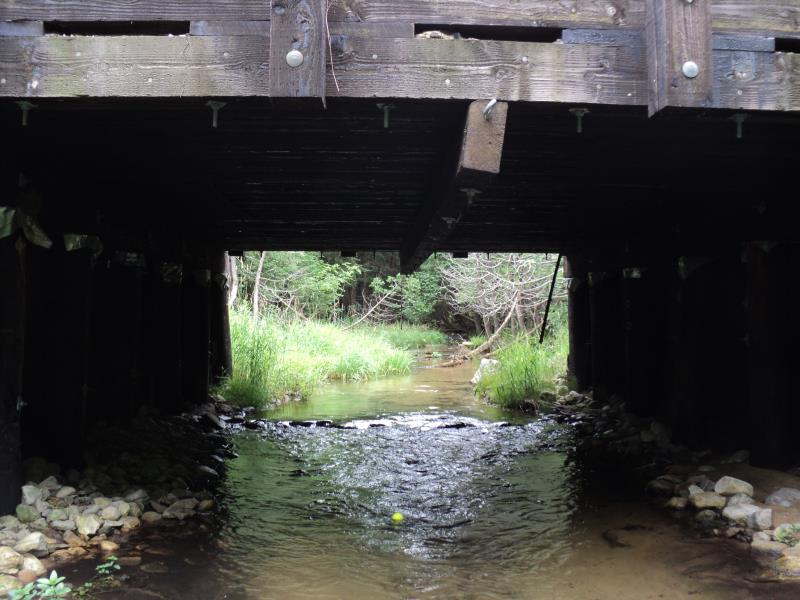

Outlet

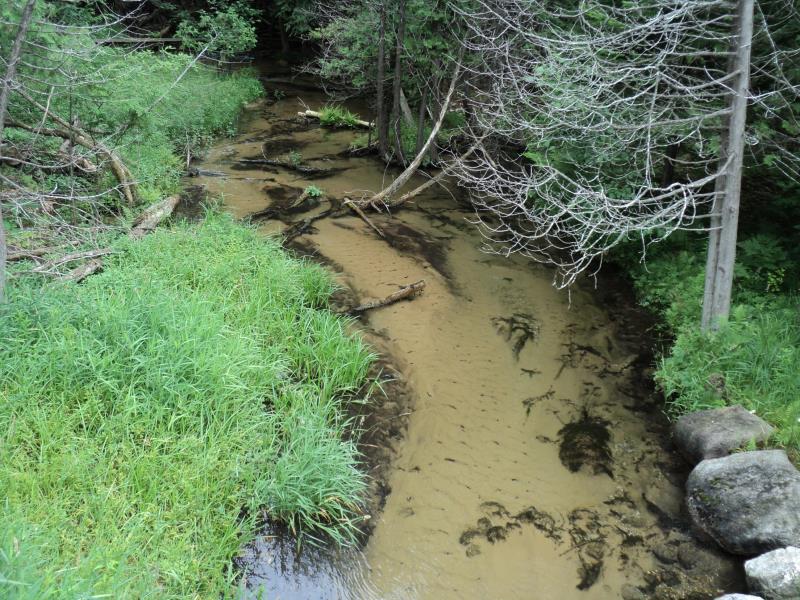

Upstream Conditions

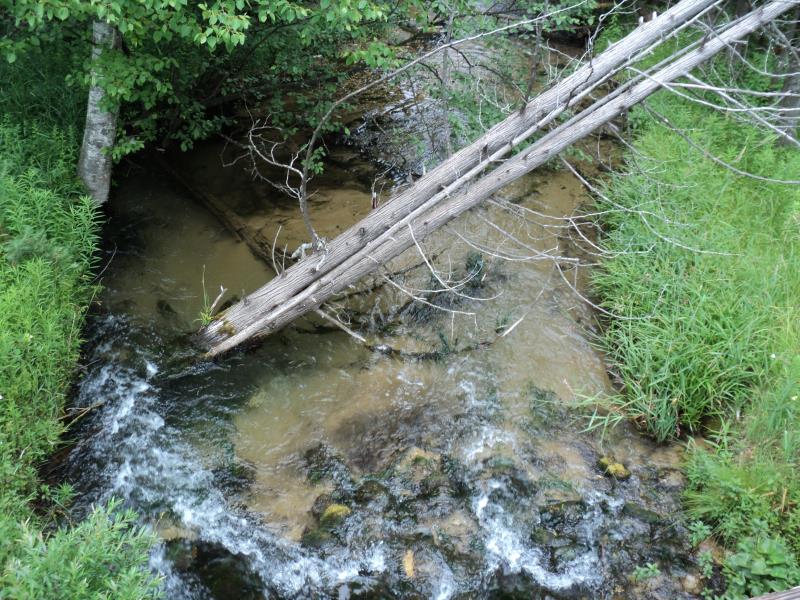

Downstream Conditions

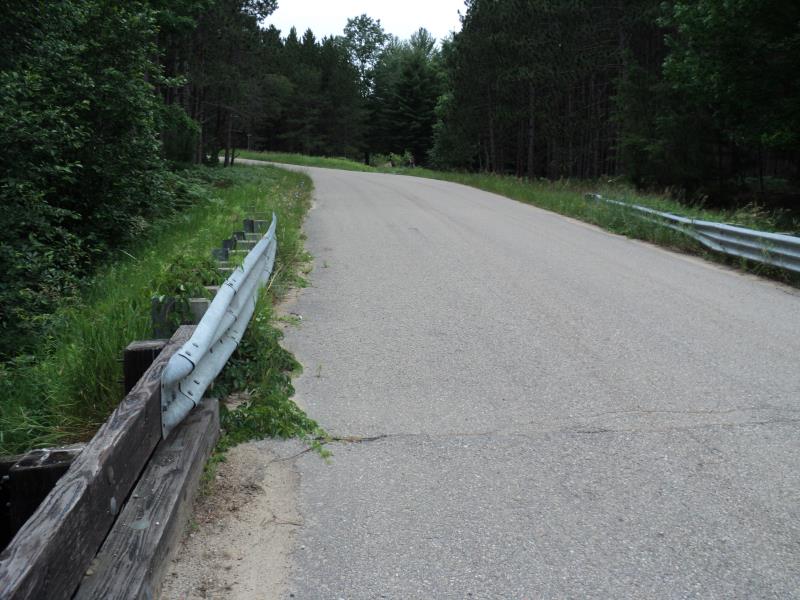

Road Approach - Left

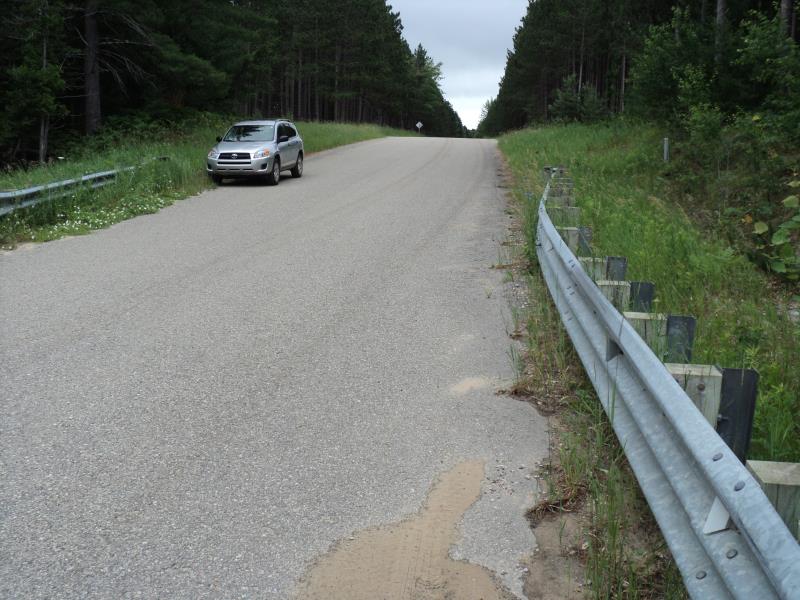

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 30-70 Degree
Outlet Type: Cascade over Riprap
Structure Material: Wood
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 25 ft.
, Width 16 ft.
, Height 8.2 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1 ft./sec.
Structure Outlet
Water Depth: 1.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.8 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 20 ft.
Wetted Width: 15 ft.
Water Velocity: 1 ft./sec.
(Measured with Float Test)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 270 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0107 tons/year
Right Approach
Length: 410 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.482
Erosion: 0.1568 tons/year
Erosion Information
Total Erosion at Crossing: 0.1675 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
No, decent timber bridge.
