Road Stream Crossing Site MAN_WE_060
Big Manistee River Watershed, Manistee River
M-37
Wexford Twp,
Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.42886
, -85.69843
T24N
R12W
Sec 36
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.5924 tons/year
Severity: Moderate
Year Inventoried: 2014

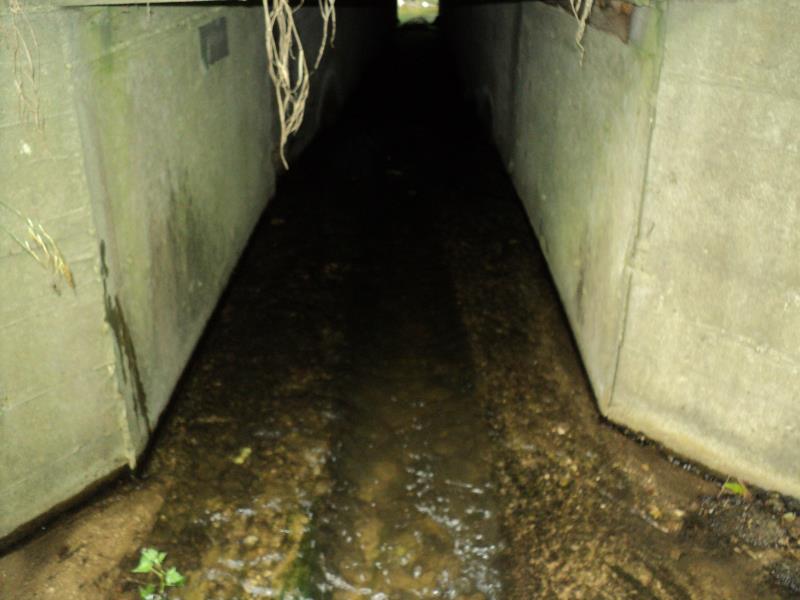

Inlet

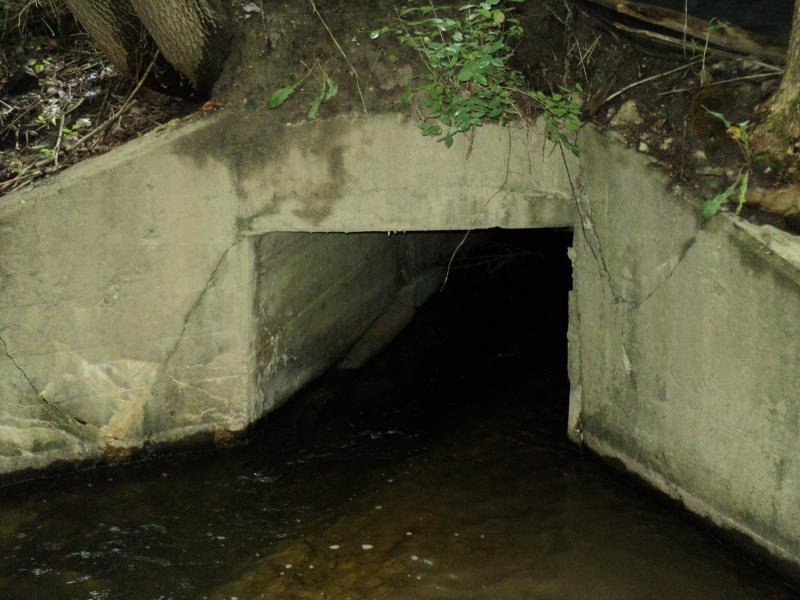

Outlet

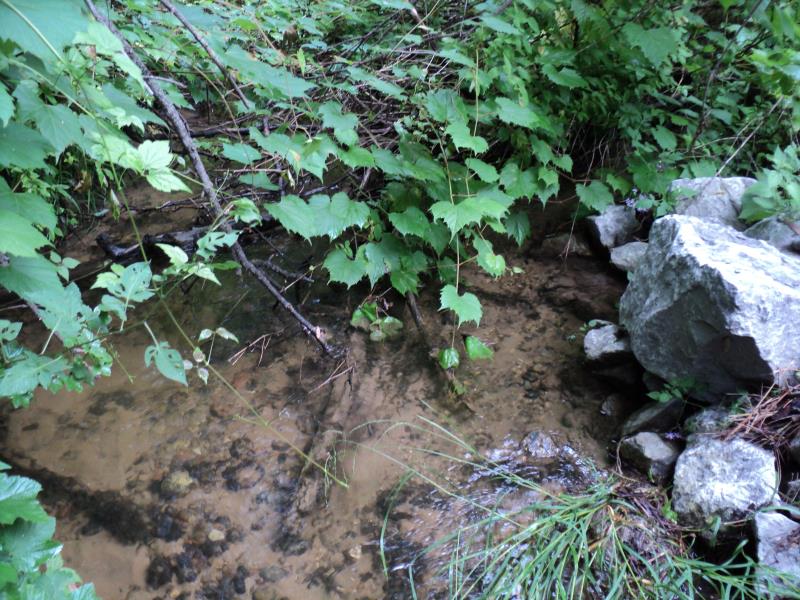

Upstream Conditions

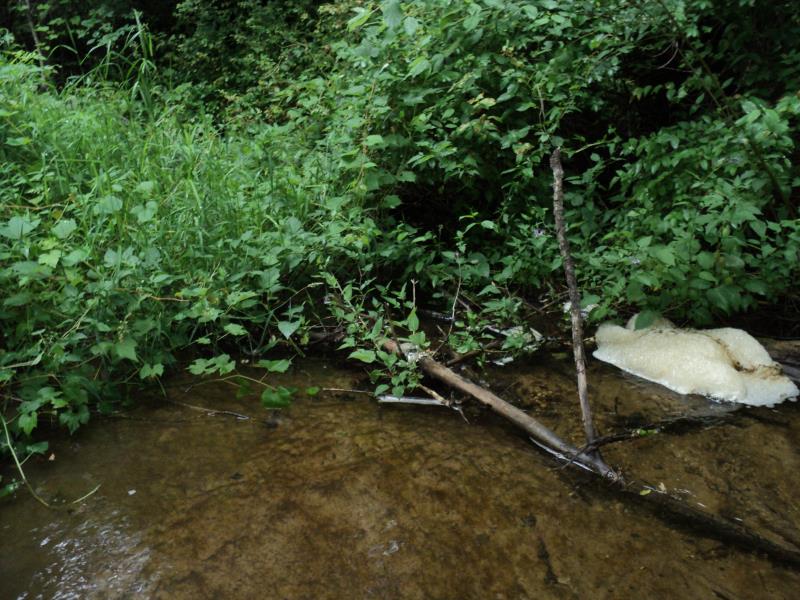

Downstream Conditions

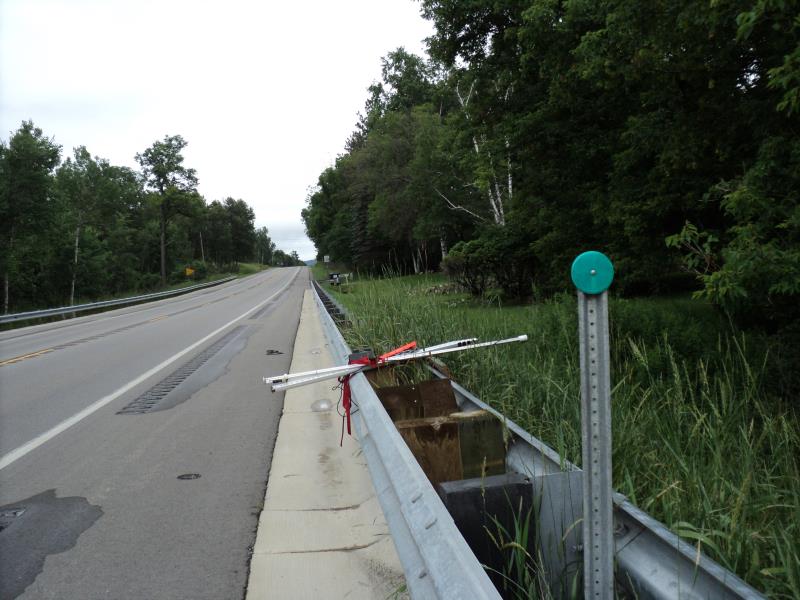

Road Approach - Left

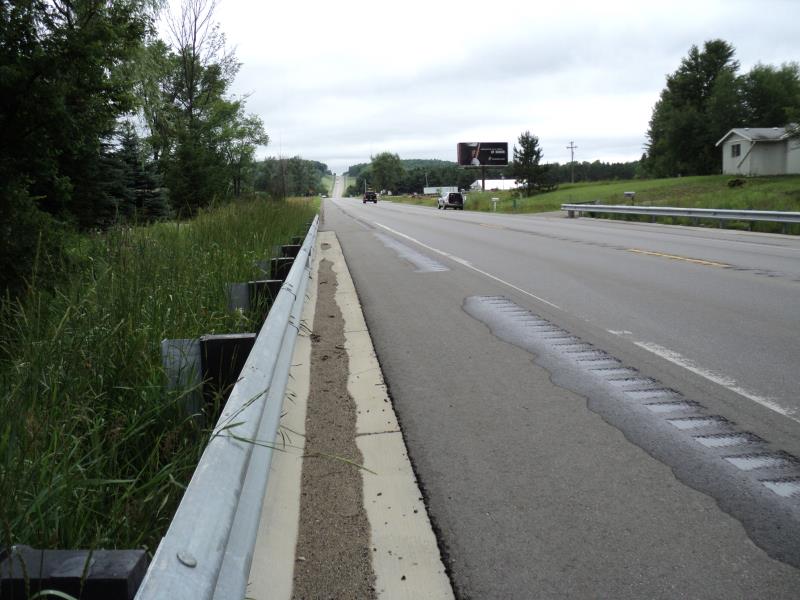

Road Approach - Right

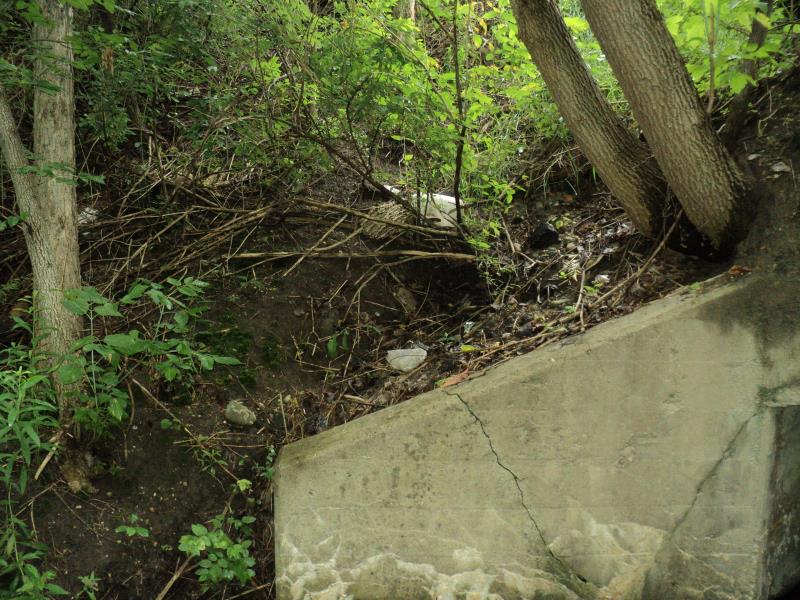

Erosion
Invasive Species
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Square/Rectangle
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: None
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 84 ft.
, Width 4 ft.
, Height 3.7 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.3 ft./sec.
Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 8 ft.
Wetted Width: 6 ft.
Water Velocity: 0.8 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
State Road
Road Condition: Good
Road Width at Culvert: 42 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 11 ft.
Slope: 1:1.5
Downstream
Fill Depth: 13 ft.
Slope: 1:2
Approaches
Left Approach
Length: 780 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.547
Erosion: 0.5924 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.5924 tons/year
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Total Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | |
Left Downstream Embankment |
8 ft. |
3 ft. |
7.5 ft. |
yes |
Sand |
|
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Thistle
