Road Stream Crossing Site MAN_WE_099
Big Manistee River Watershed, Silver Creek
33 Rd
Greenwood Twp,
Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.46424
, -85.49831
T24N
R10W
Sec 22
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.4334 tons/year
Severity: Minor
Year Inventoried: 2014

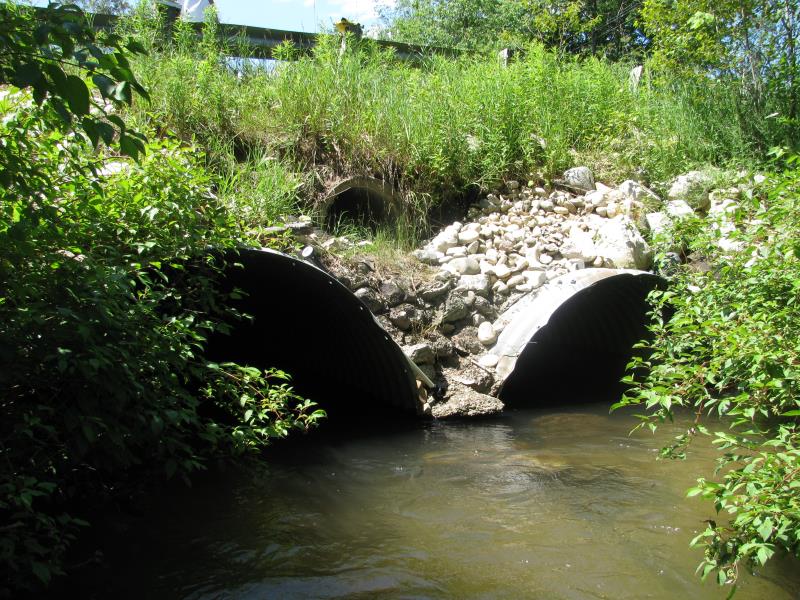

Inlet

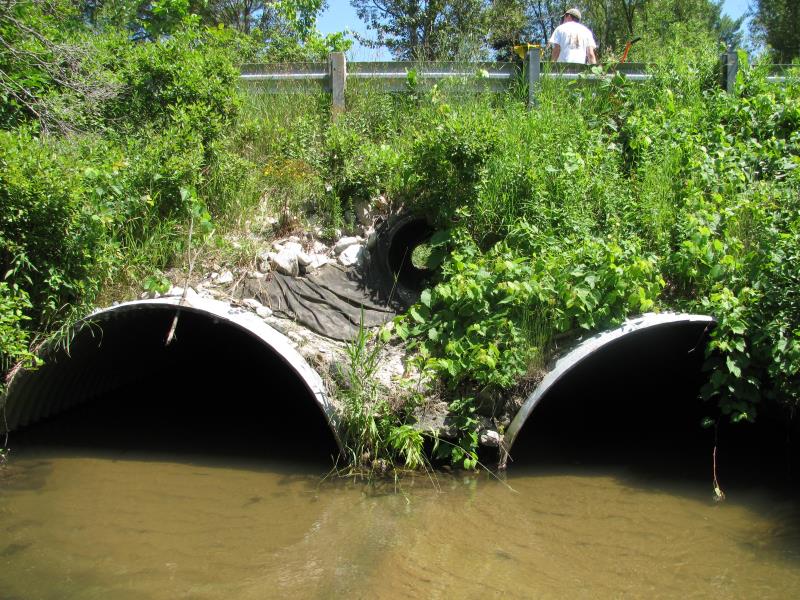

Outlet

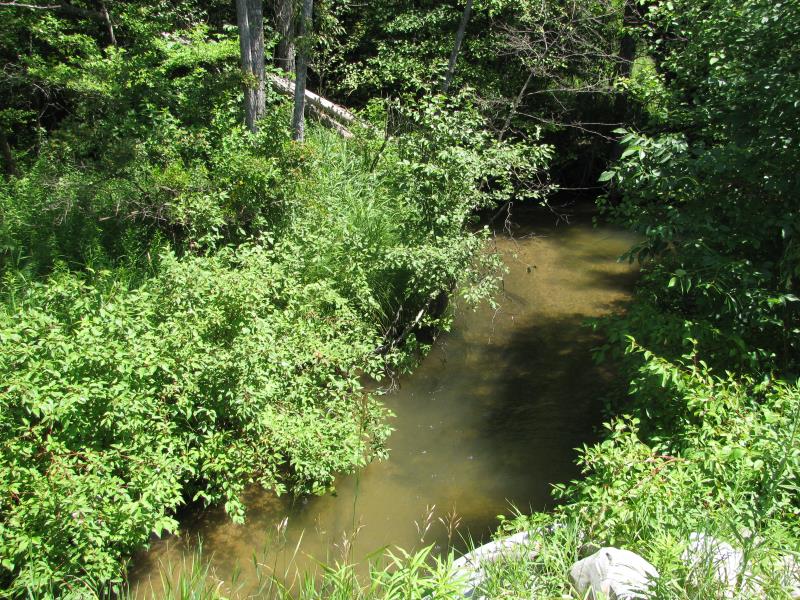

Upstream Conditions

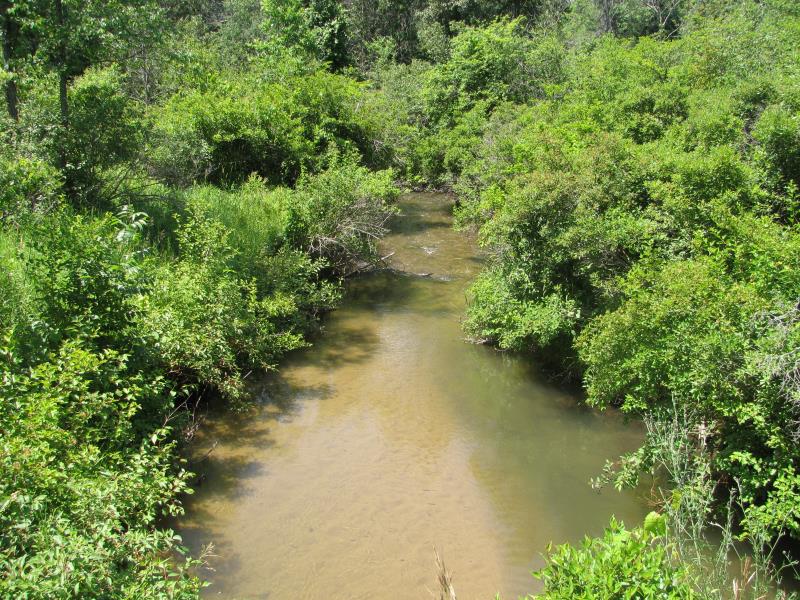

Downstream Conditions

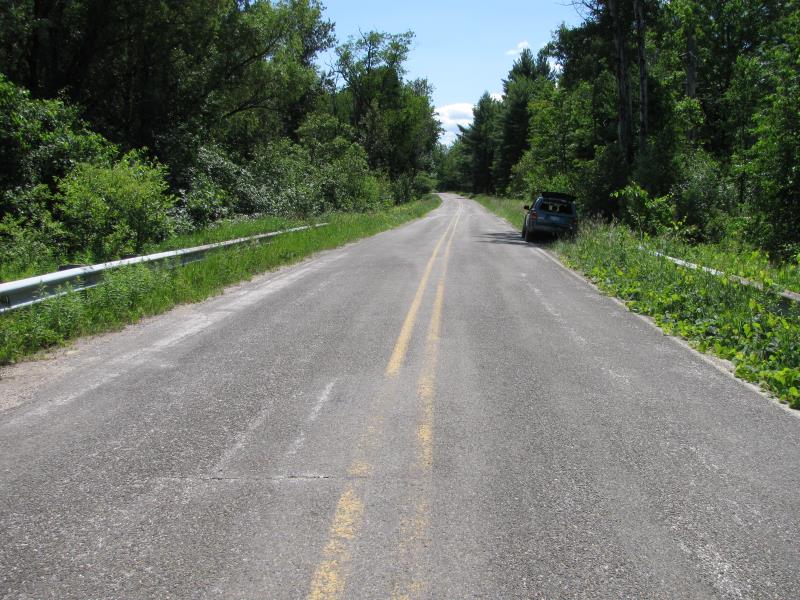

Road Approach - Left

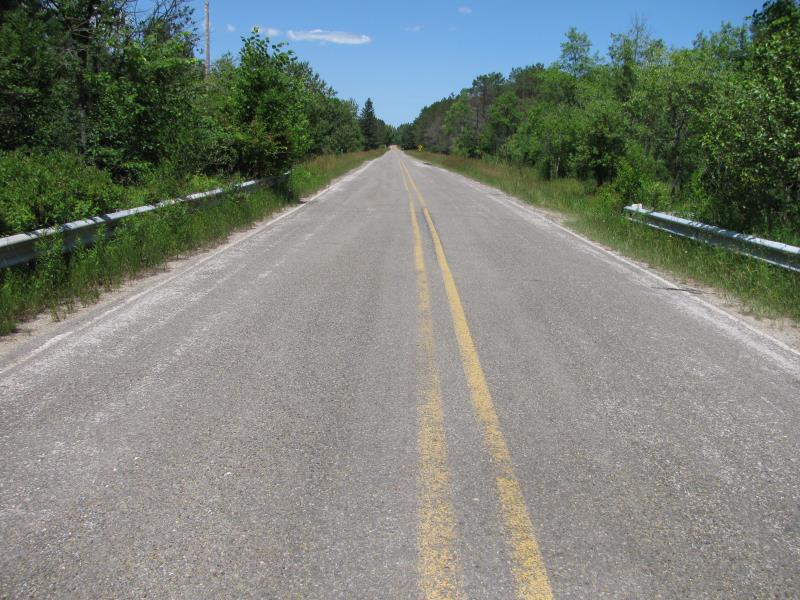

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
2 |
7.5 ft. |
54 ft. |
6.5 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 54 ft.
, Width 7.5 ft.
, Height 6.5 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 2.2 ft.
Embedded Depth of Structure: 1.5 ft.
Water Velocity*: 1.5 ft./sec.
Structure Outlet
Water Depth: 1.5 ft.
Embedded Depth of Structure: 1.5 ft.
Water Velocity*: 1.5 ft./sec.
*Water Velocities were measured 0.7 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 21 ft.
Wetted Width: 17.5 ft.
Water Velocity: 2.8 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 23 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 5.4 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.4334 tons/year
Erosion Information
Total Erosion at Crossing: 0.4334 tons/year
Summary Information
Fish Passability 0.9
