Road Stream Crossing Site MAN_WE_105
Big Manistee River Watershed, Unknown (tributary to Manistee River)
10 Rd
Hanover Twp,
Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.45354
, -85.65663
T24N
R11W
Sec 21
Owned by State
Private
Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.2399 tons/year
Severity: Minor
Year Inventoried: 2014

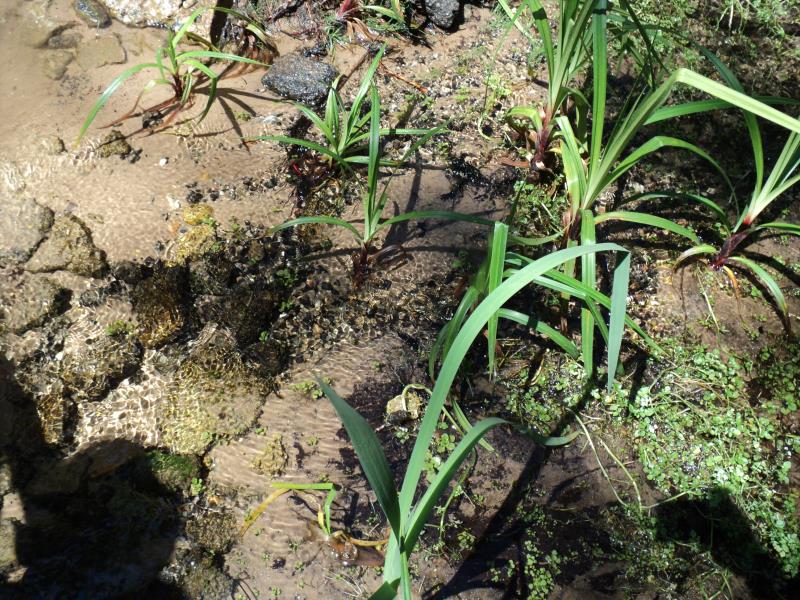

Inlet

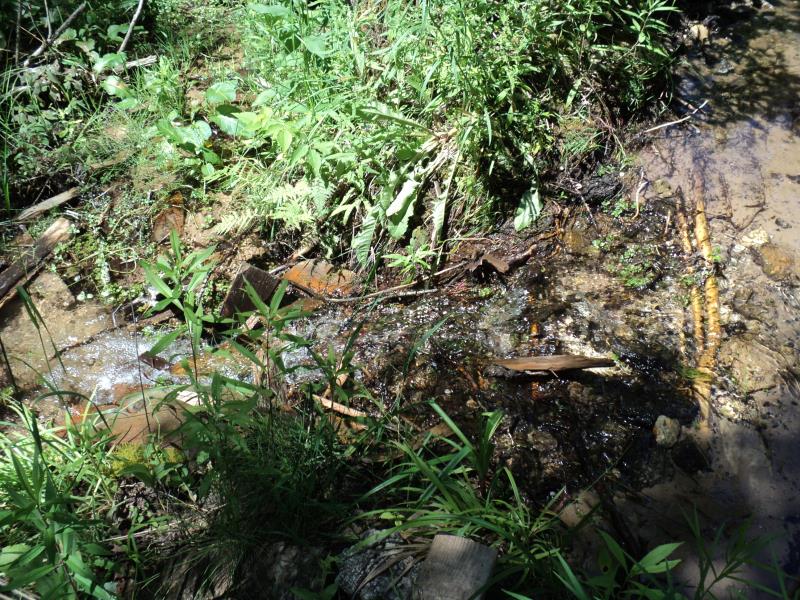

Outlet

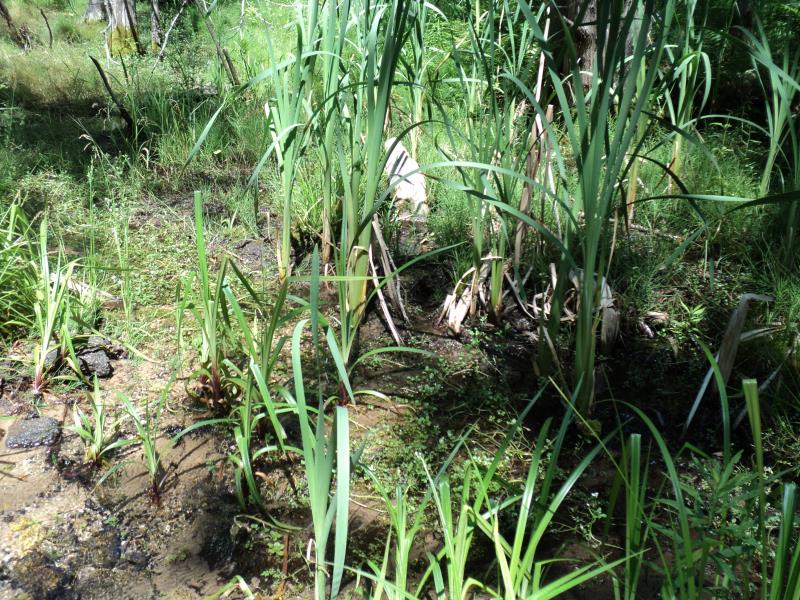

Upstream Conditions

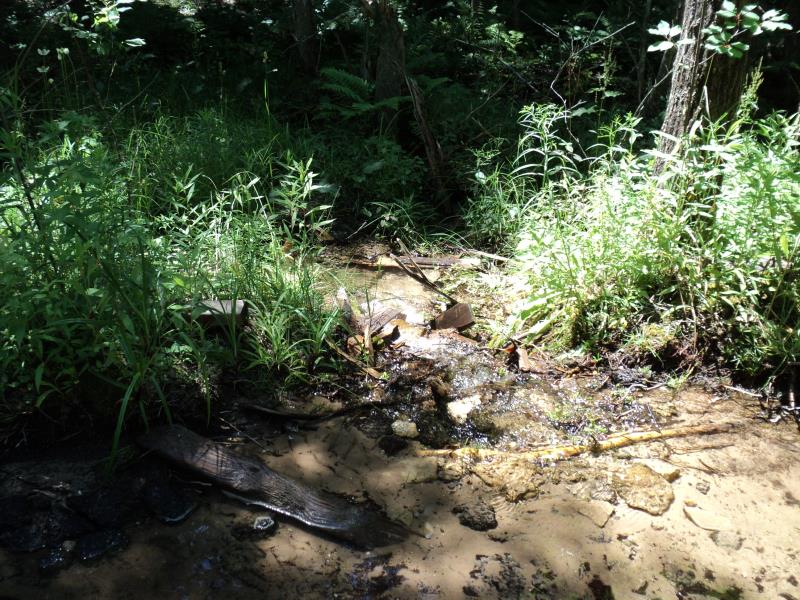

Downstream Conditions

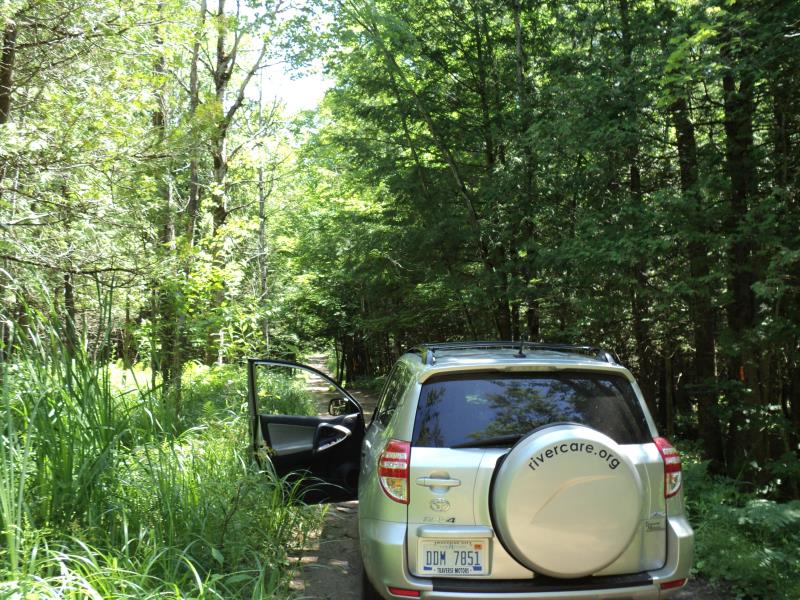

Road Approach - Left

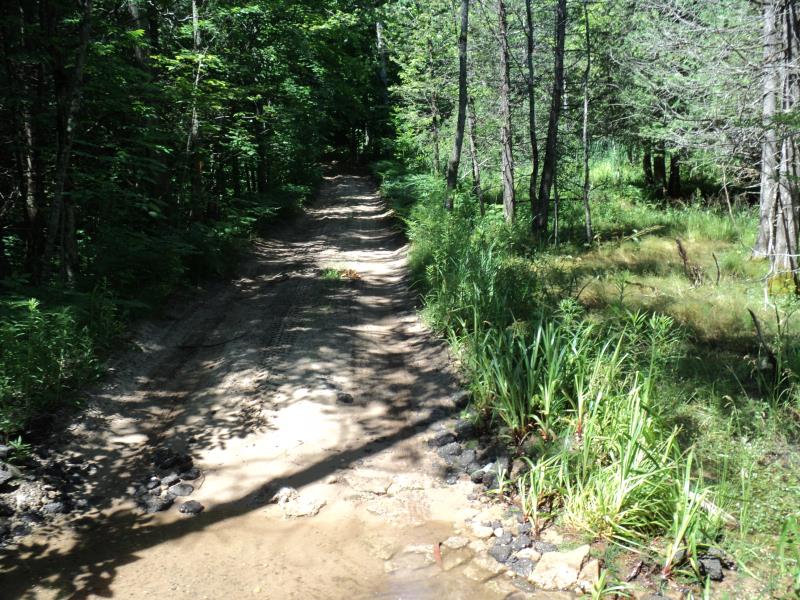

Road Approach - Right
Other
Crossing Information

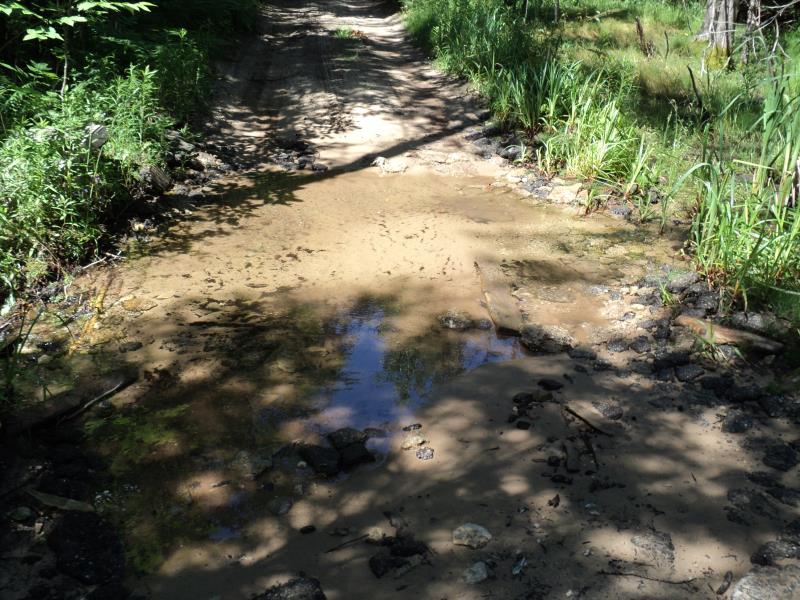

Type of Crossing: Ford
Dimensions of Structure: Length 10 ft.
, Width 14 ft.
, Height 0.4 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.8 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.6 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 8 ft.
Wetted Width: 2.5 ft.
Water Velocity: 0.7 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Sand
County Road
(Seasonal)
Road Condition: Poor
Road Width at Culvert: 8 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Fill Depth: 0 ft.
Slope: More than 1:2
Fill Depth: 0 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 60 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.342
Erosion: 0.0452 tons/year
Right Approach
Length: 205 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.431
Erosion: 0.1947 tons/year
Erosion Information
Total Erosion at Crossing: 0.2399 tons/year
Summary Information
Fish Passability 1
