Road Stream Crossing Site P005

Pine River Watershed, Rose Lake outlet
180th Ave
Burdell Twp, Osceola County
Information collected by:
Site Location
GPS Coordinates: 44.10156 , -85.44418
T20N R10W Sec 25
Owned by Private
Structure is NOT Perched
Total Erosion: 0.5176 tons/year
Severity: Minor
Year Inventoried: 2014
Site ID

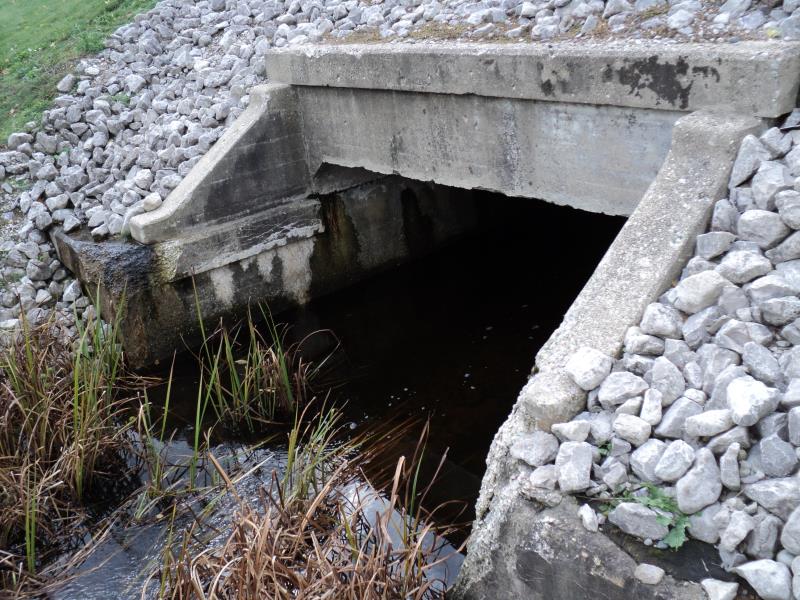

Inlet

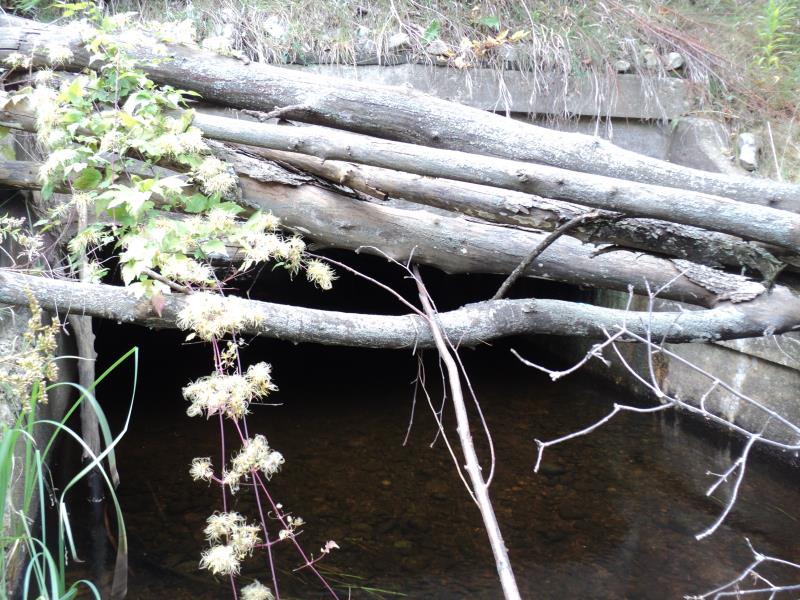

Outlet

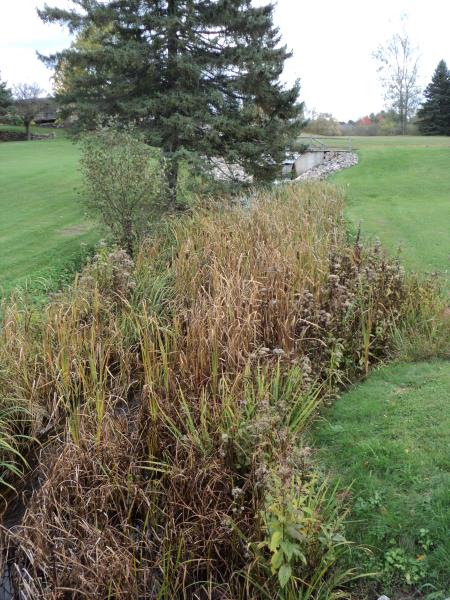

Upstream Conditions

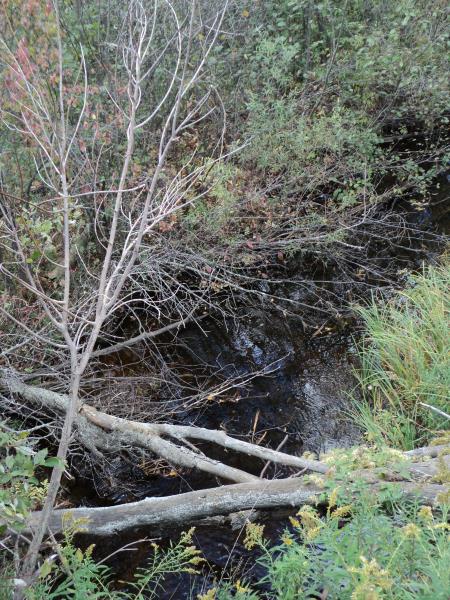

Downstream Conditions

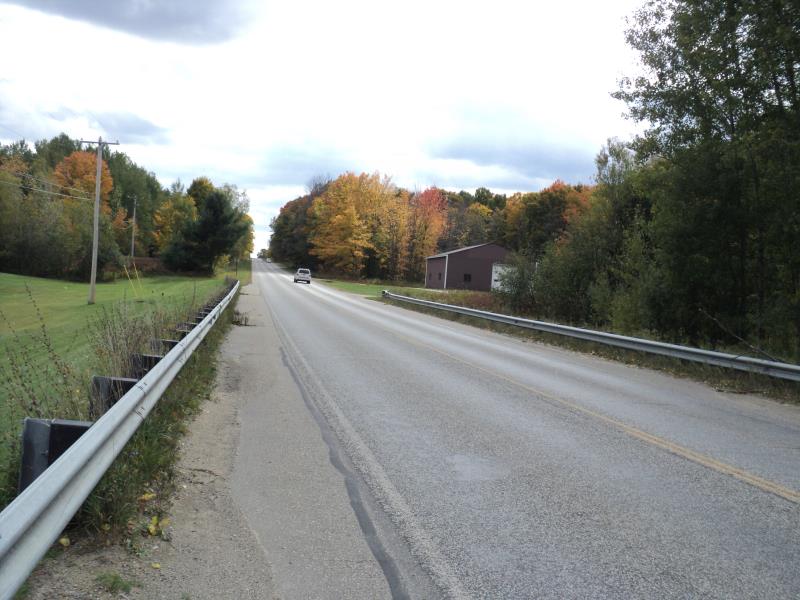

Road Approach - Left

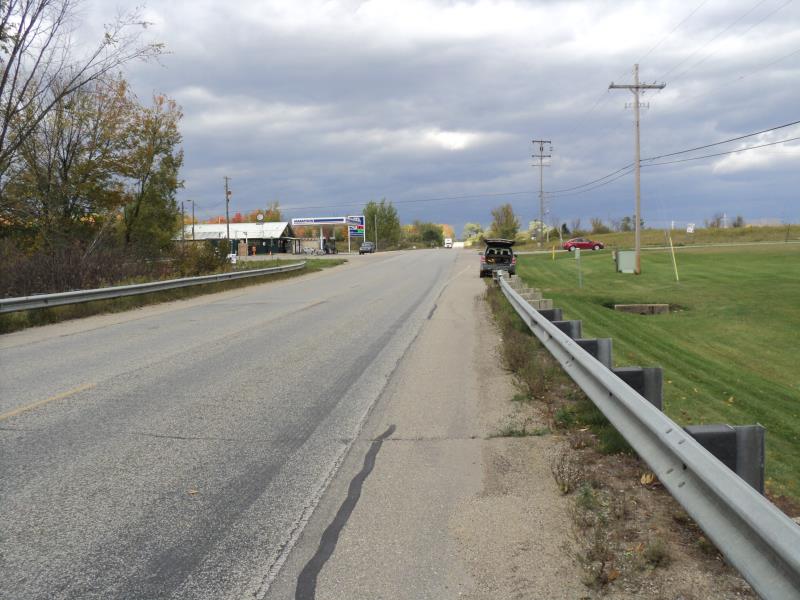

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Square/Rectangle
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Mixture
General Conditions: Poor
Structure Interior: smooth
Dimensions of Structure: Length 55 ft. , Width 9.5 ft. , Height 4.8 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.6 ft.
Embedded Depth of Structure: 0.5 ft.
Water Velocity*: 0.7 ft./sec.
Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 1 ft.
Water Velocity*: 0.4 ft./sec.
*Water Velocities were measured 0.6 ft. below Surface (with Meter)
Additional Comments

Man-made dam upstream.

Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 16 ft.
Wetted Width: 13.5 ft.
Water Velocity: 1 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 34 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 4.4 ft.
Slope: More than 1:2
Downstream
Fill Depth: 4.7 ft.
Slope: 1:2
Approaches
Left Approach
Length: 700 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.535
Erosion: 0.4209 tons/year
Right Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.0967 tons/year
Erosion Information
Total Erosion at Crossing: 0.5176 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
