Road Stream Crossing Site P010
Pine River Watershed, Unknown (tributary to Pine River)
Kent St
Leroy Twp,
Osceola County
Information collected by:
Site Location
GPS Coordinates: 44.03662
, -85.45377
T19N
R10W
Sec 13
Owned by Local Government
Private
Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.1164 tons/year
Severity: Minor
Year Inventoried: 2014
Site ID
Inlet
Outlet

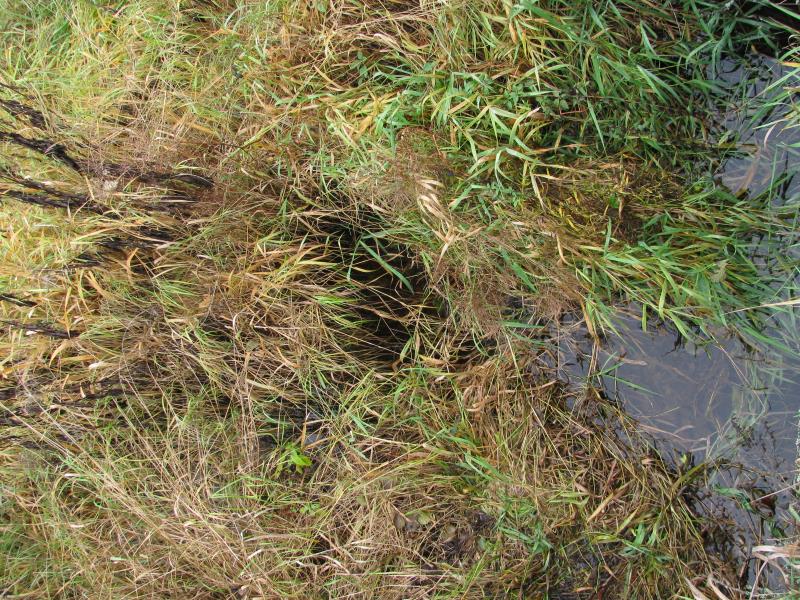

Upstream Conditions
Downstream Conditions

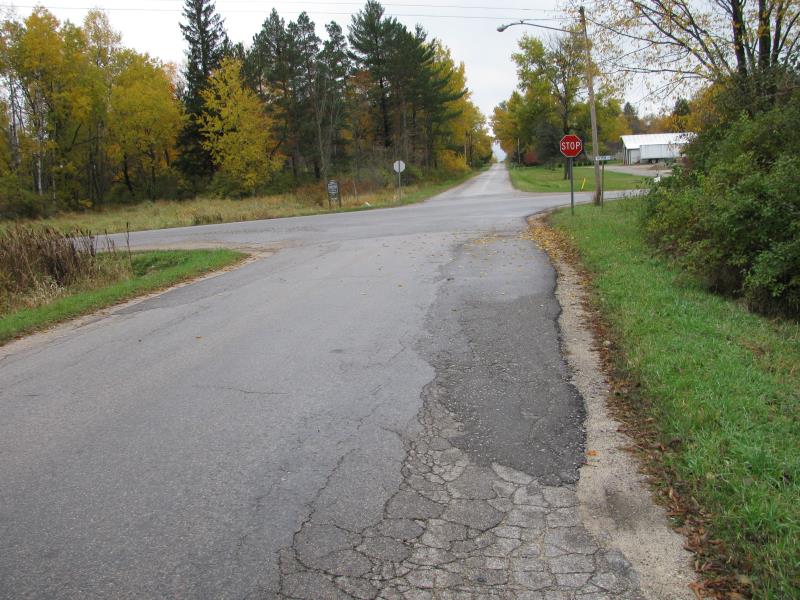

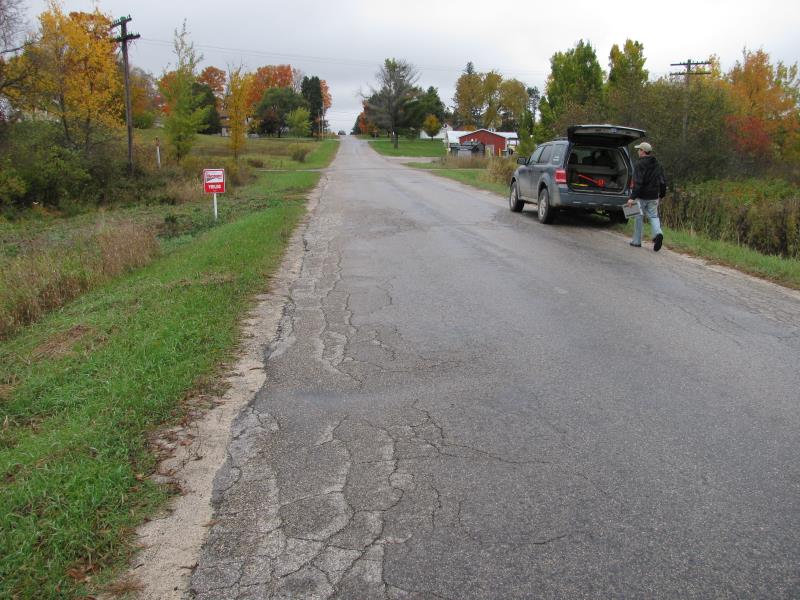

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Open Bottom Arch
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Mixture
General Conditions: Poor
Structure Interior: smooth
Dimensions of Structure: Length 35 ft.
, Width 4 ft.
, Height 3 ft.
Percentage Crushed:
Inlet: 0%
Outlet: 1% to 25%
In Pipe: 0%
Structure is NOT Perched

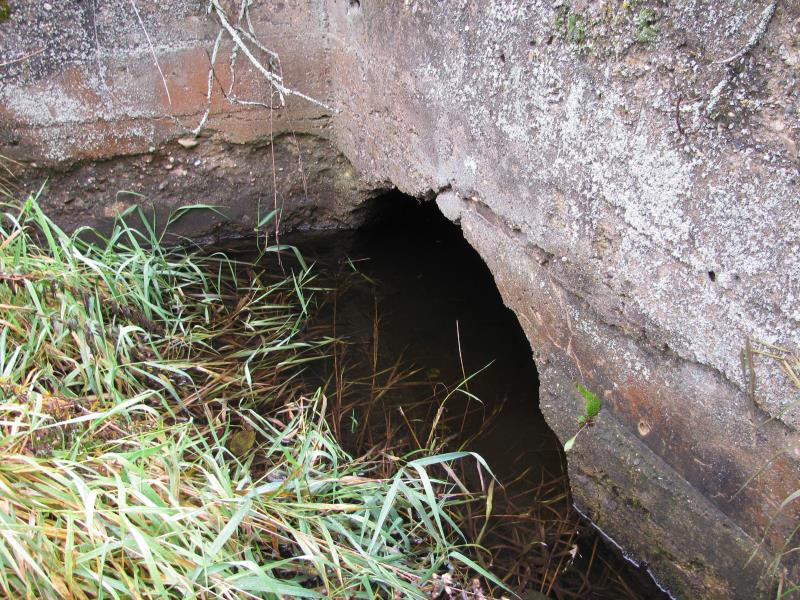

Structure Inlet
Water Depth: 1.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.

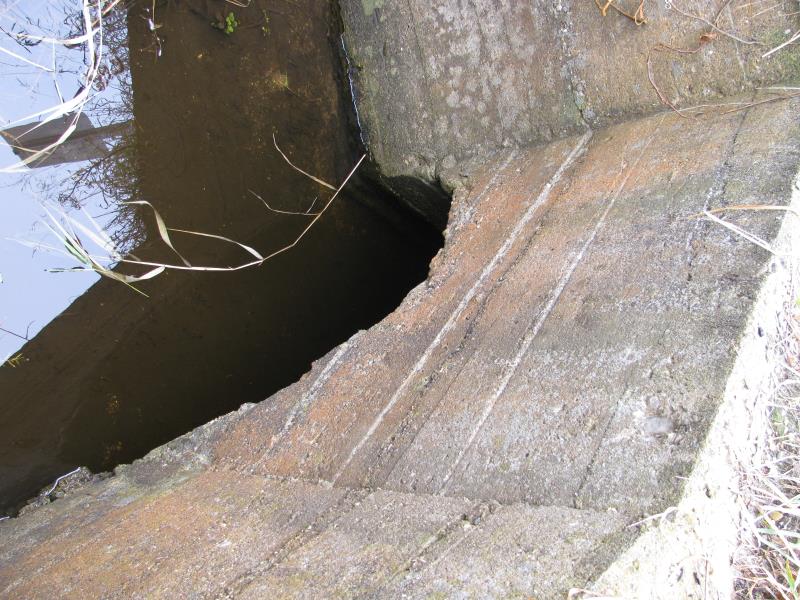

Structure Outlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 10 ft.
Wetted Width: 7 ft.
Water Velocity: 0.6 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
Town Road
Road Condition: Fair
Road Width at Culvert: 20 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.3 ft.
Slope: Vertical
Downstream
Fill Depth: 0.3 ft.
Slope: Vertical
Approaches
Left Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.0912 tons/year
Right Approach
Length: 100 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.38
Erosion: 0.0251 tons/year
Erosion Information
Total Erosion at Crossing: 0.1164 tons/year
Summary Information
Fish Passability 0.9
A future visit to this site is recommended. Yes, to monitor condition of structure.
