Road Stream Crossing Site P020

Pine River Watershed, Unknown (tributary to Pine River)
Mackinaw Trail
Leroy Twp, Osceola County

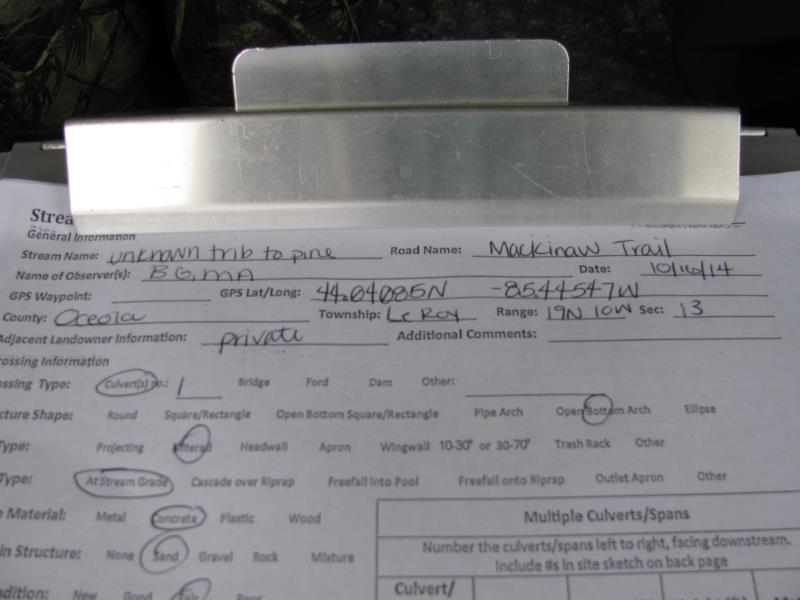

Information collected by:
Site Location
GPS Coordinates: 44.04085 , -85.44547
T19N R10W Sec 13
Owned by Local Government
Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.6961 tons/year
Severity: Minor
Year Inventoried: 2014
Site ID

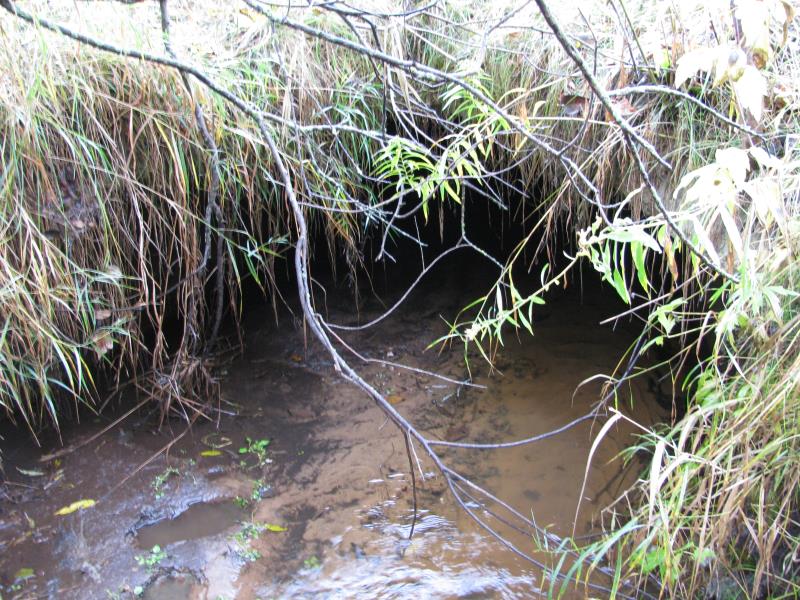

Inlet

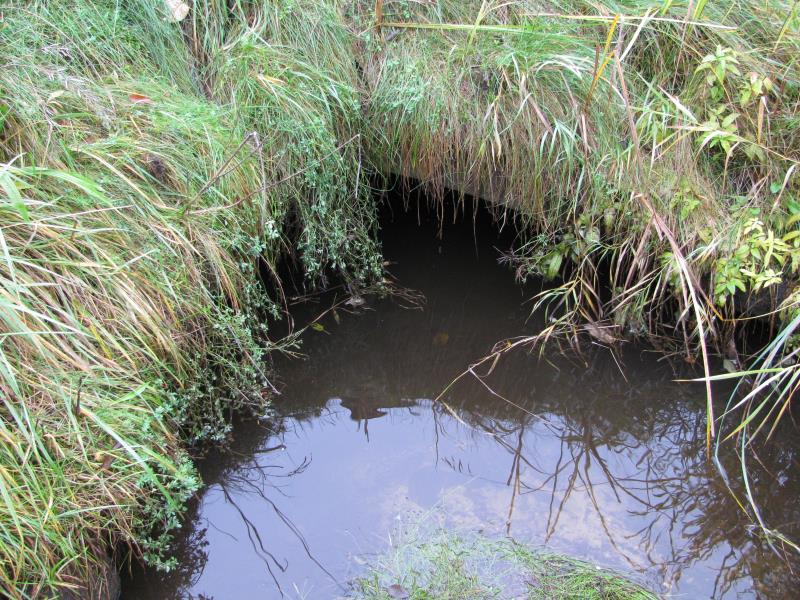

Outlet

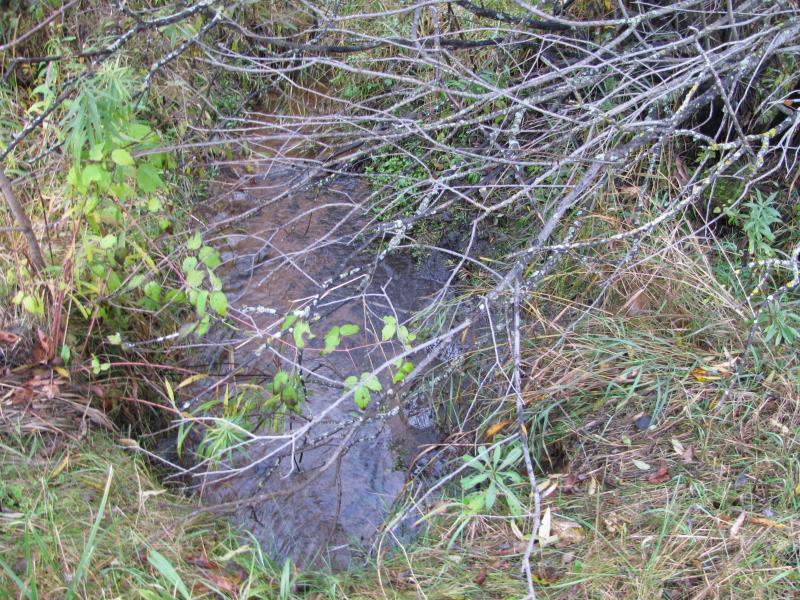

Upstream Conditions

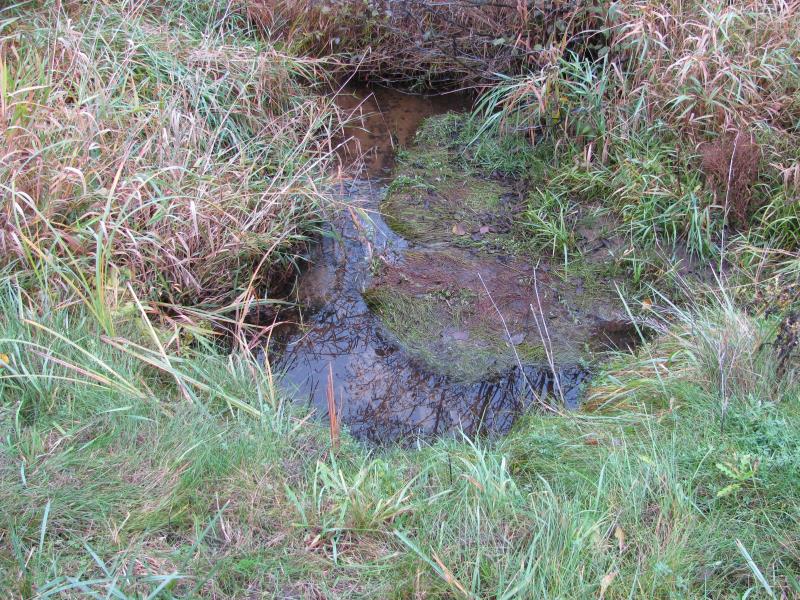

Downstream Conditions

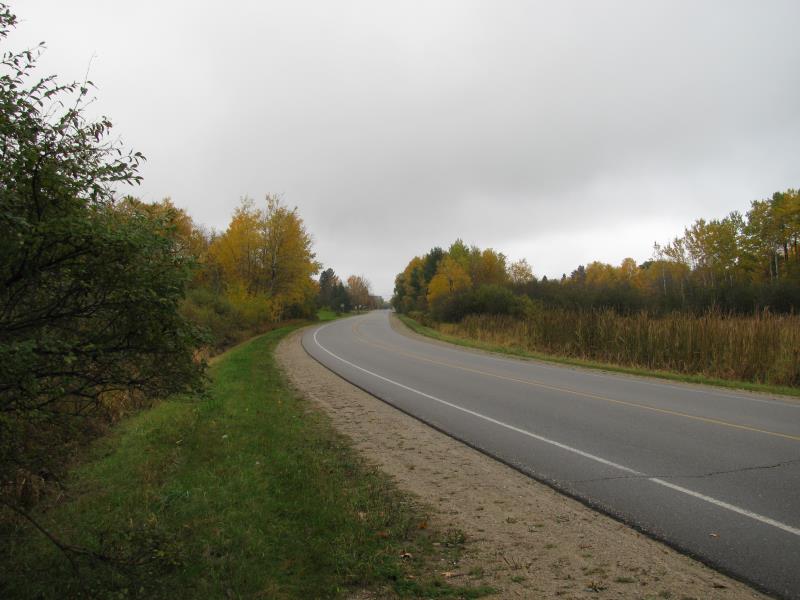

Road Approach - Left

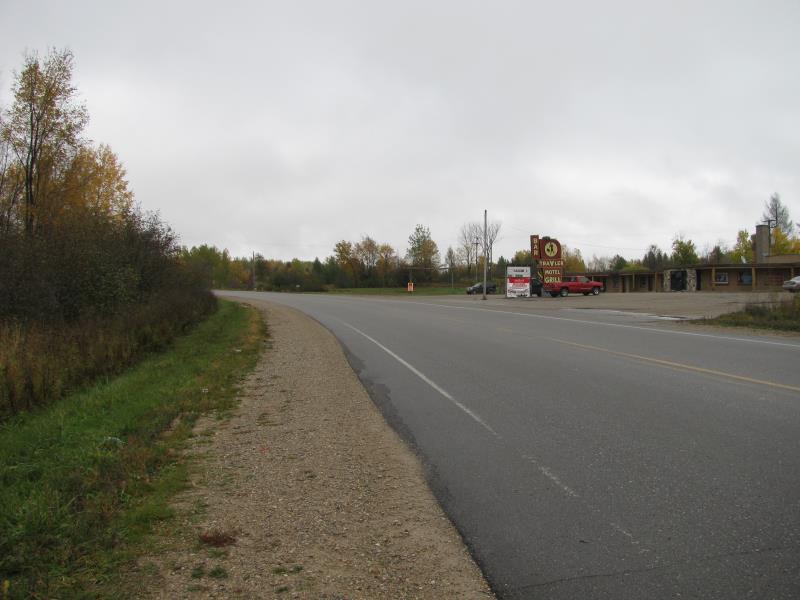

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 65 ft. , Width 8 ft. , Height 3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.6 ft.
Water Velocity*: 1.9 ft./sec.
Structure Outlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 1.5 ft.
Water Velocity*: 0.4 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Additional Comments
Large amount of sediment at outlet.
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 5 ft.
Wetted Width: 3.6 ft.
Water Velocity: 0.6 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 28 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 1.8 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.8 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 800 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.55
Erosion: 0.4073 tons/year
Right Approach
Length: 600 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.52
Erosion: 0.2888 tons/year
Erosion Information
Total Erosion at Crossing: 0.6961 tons/year
Summary Information
Fish Passability 1
