Road Stream Crossing Site P025

Pine River Watershed, Unknown (tributary to Big Beaver Creek)
16 Mile Rd
Leroy Twp, Osceola County
Information collected by:
Site Location
GPS Coordinates: 44.04538 , -85.48186
T19N R10W Sec 11
Owned by Private
Fish Passability 0
Perch Height: 1.2 ft.
Total Erosion: 1.3785 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID
Inlet

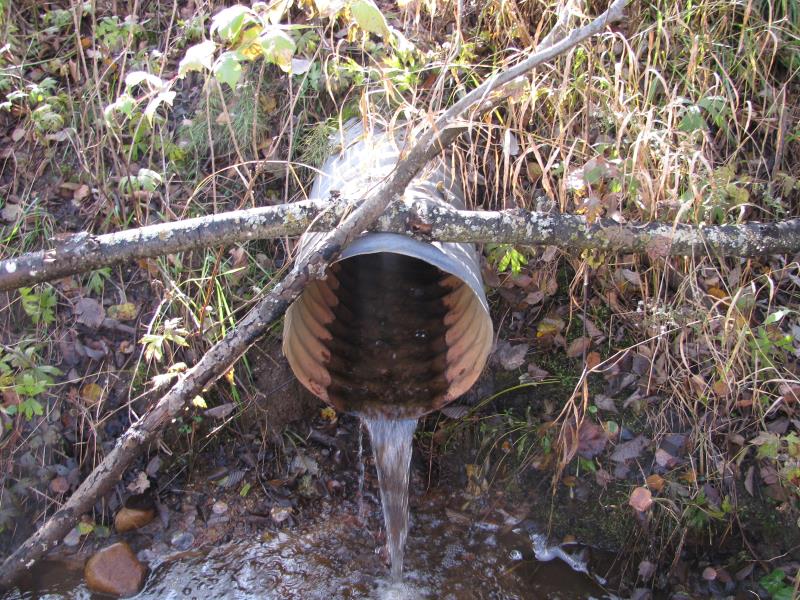

Outlet

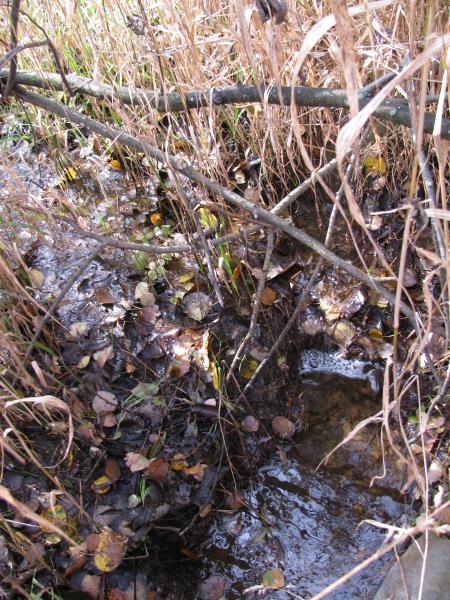

Upstream Conditions

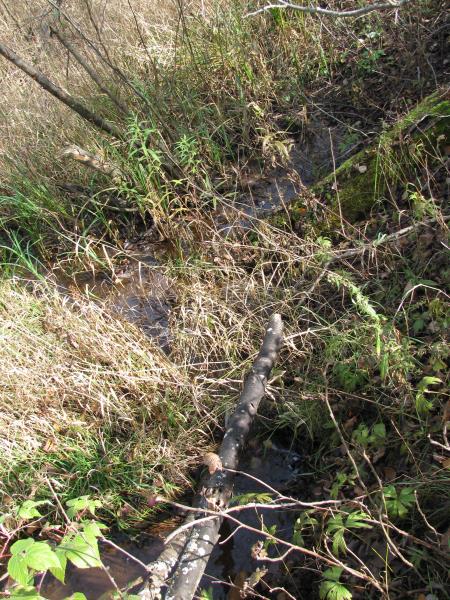

Downstream Conditions

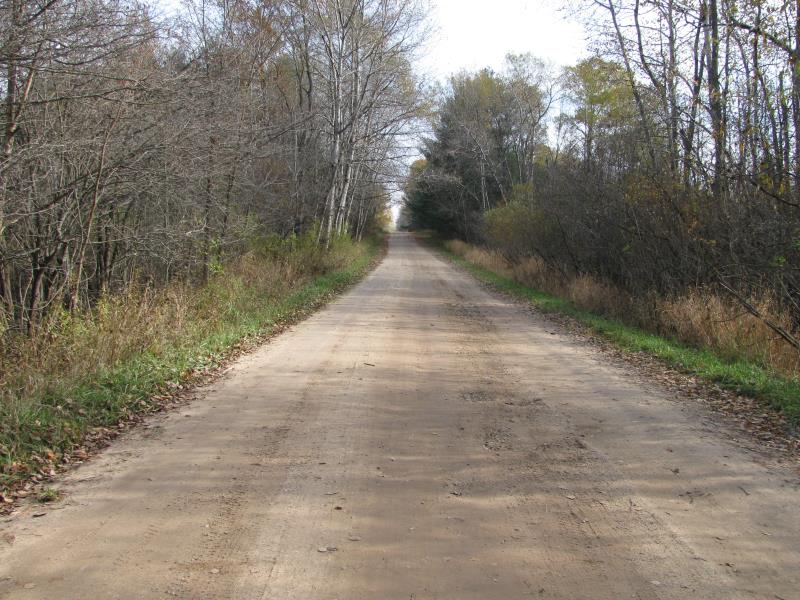

Road Approach - Left

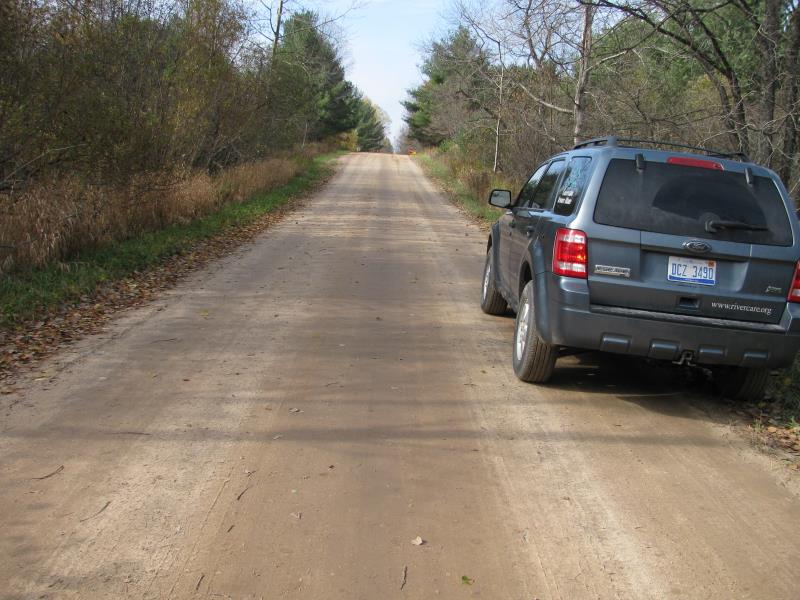

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 40 ft. , Width 1.3 ft. , Height 1.3 ft.
Perch Height: 1.2 ft.
Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.7 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 5.5 ft. , Width 4.5 ft. , Depth 0.5 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 7 ft.
Wetted Width: 5 ft.
Water Velocity: 0.4 ft./sec. (Measured with Meter)
Dominant Substrate: Organics
Road Information
Gravel County Road
Road Condition: Fair
Road Width at Culvert: 18 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.6 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.4264 tons/year
Right Approach
Length: 400 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.48
Erosion: 0.9521 tons/year
Erosion Information
Total Erosion at Crossing: 1.3785 tons/year
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site. Yes, perched outlet.
