Road Stream Crossing Site P027
Pine River Watershed, Unknown (tributary to Big Beaver Creek)
15 Mile Rd
Leroy Twp,
Osceola County

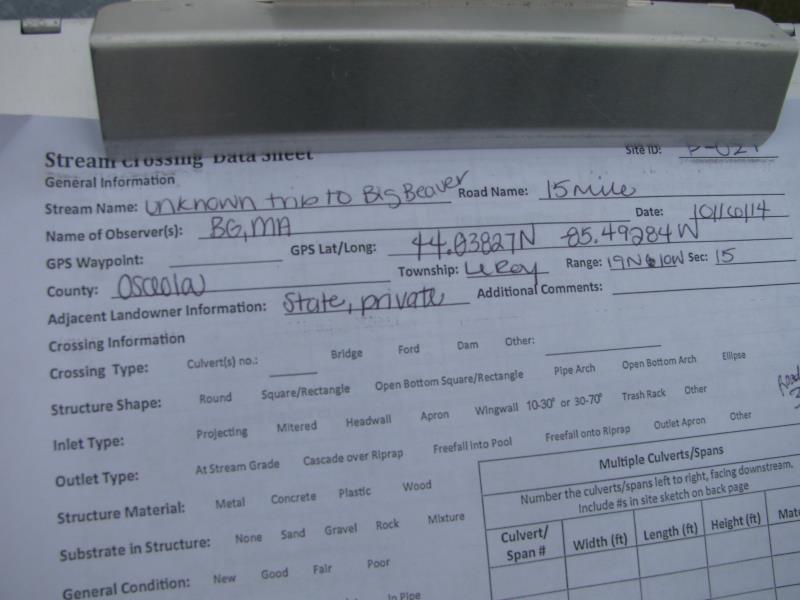

Information collected by:
Site Location
GPS Coordinates: 44.03827
, -85.49284
T19N
R10W
Sec 15
Owned by State
Private
Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.0436 tons/year
Severity: Moderate
Year Inventoried: 2014
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 160 ft.
, Width 7 ft.
, Height 6 ft.
Structure is NOT Perched

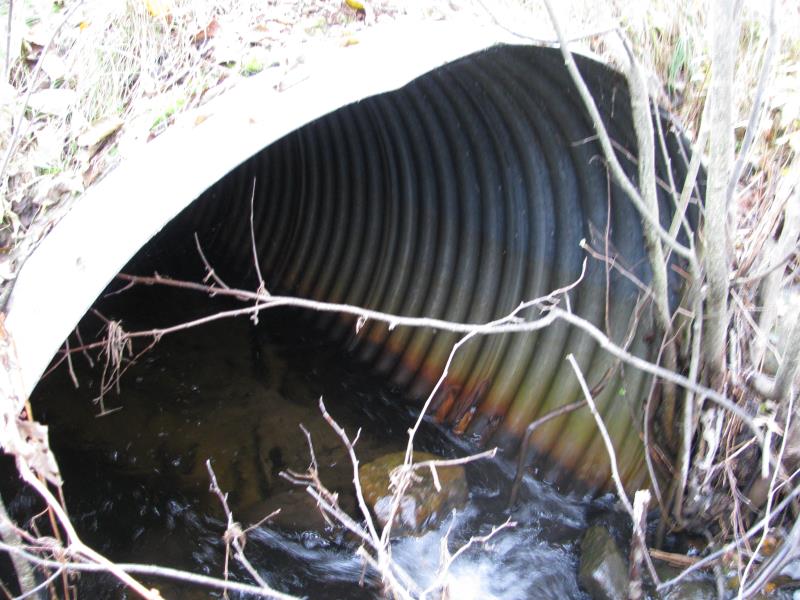

Structure Inlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 2.5 ft./sec.

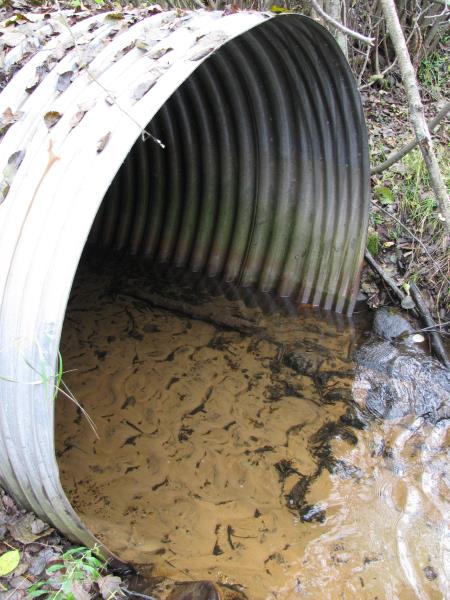

Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 0.9 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 8.5 ft.
Wetted Width: 5.3 ft.
Water Velocity: 0.9 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments

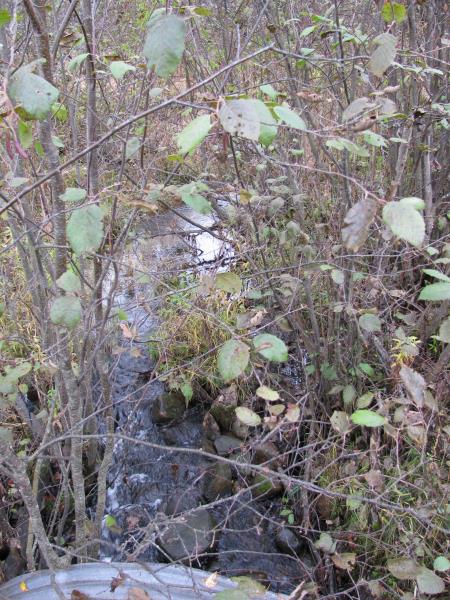

Upstream
Fill Depth: 22.3 ft.
Slope: More than 1:2

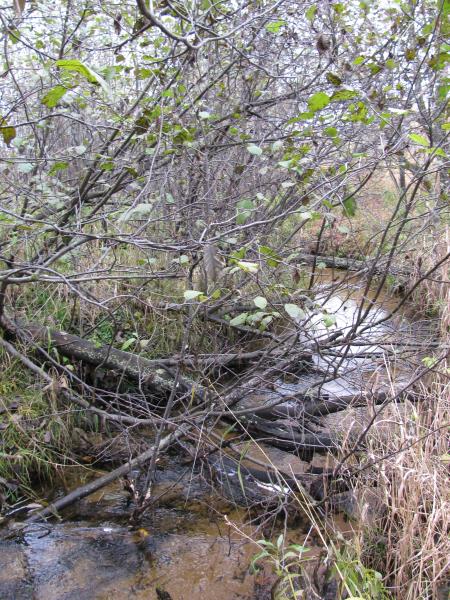

Downstream
Fill Depth: 23.5 ft.
Slope: More than 1:2
Approaches

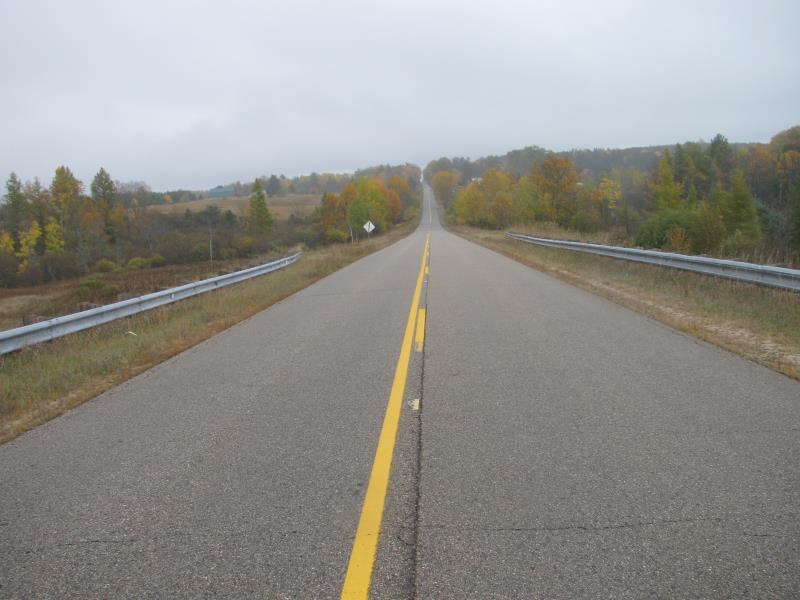

Left Approach
Length: 150 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.4
Erosion: 0.0436 tons/year

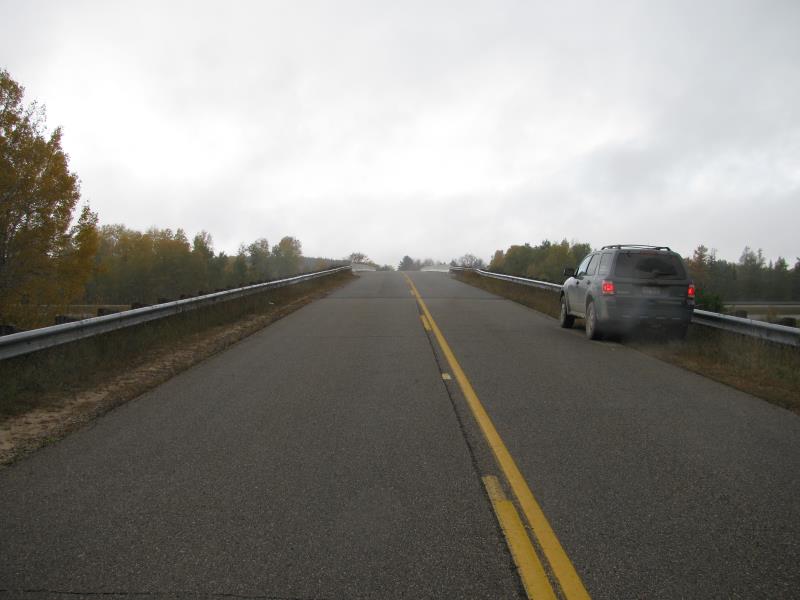

Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.0436 tons/year
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Phragmites, large stand on south side of road, just east of crossing
