Road Stream Crossing Site P033(SOUTH)

Pine River Watershed, East Branch Pine River
US-131 South Bound
Burdell Twp, Osceola County
Information collected by:
Site Location
GPS Coordinates: 44.13968 , -85.46674
T20N R10W Sec 11
Owned by State
Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.0793 tons/year
Severity: Moderate
Year Inventoried: 2014

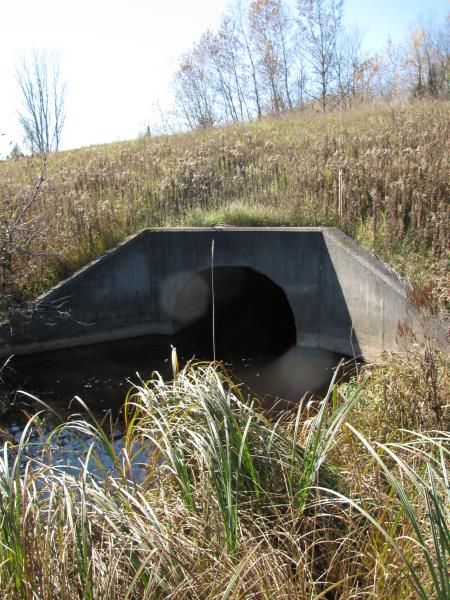

Inlet

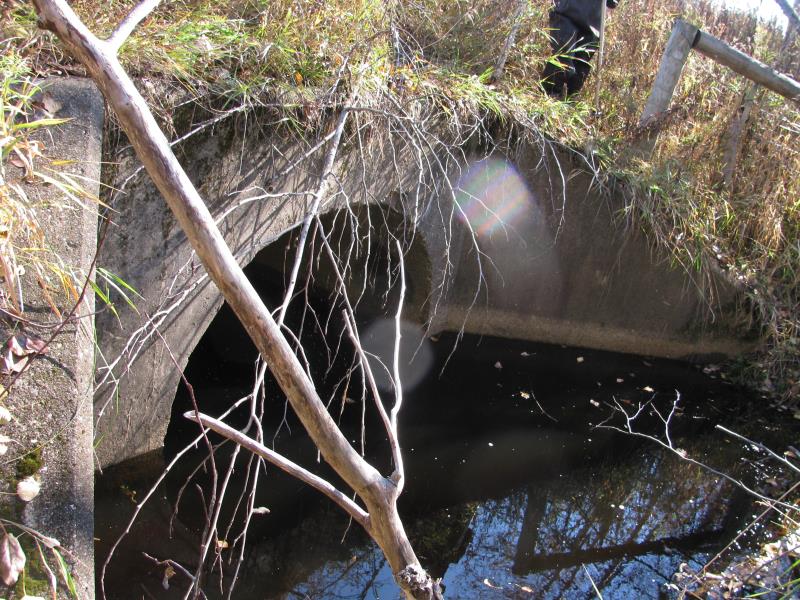

Outlet

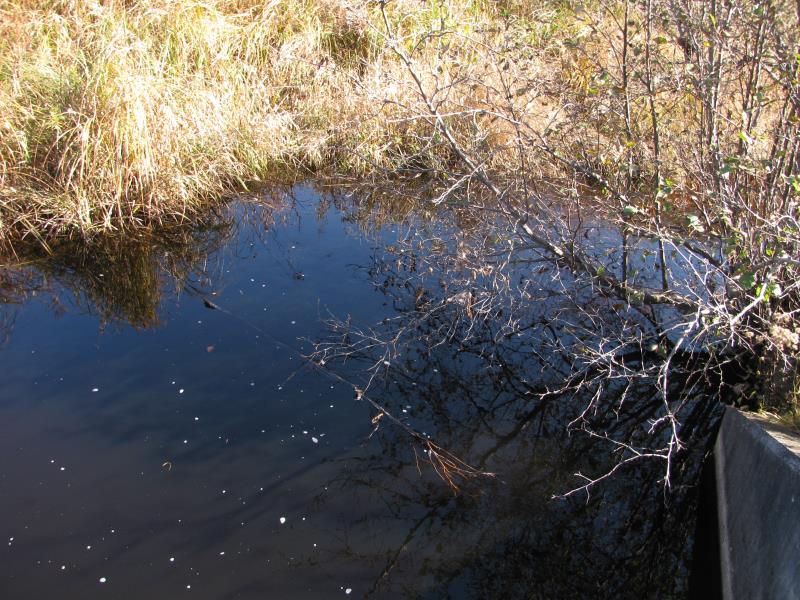

Upstream Conditions

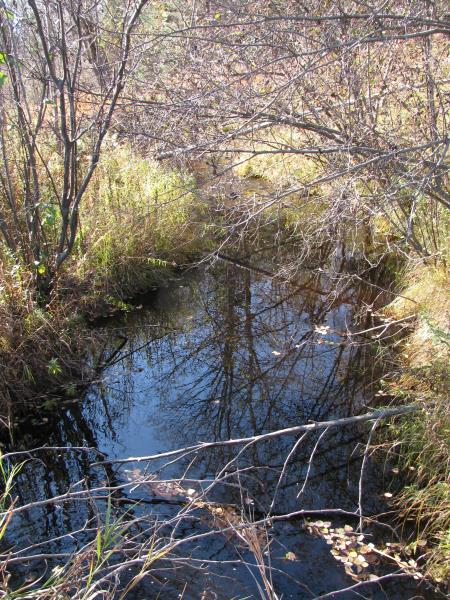

Downstream Conditions

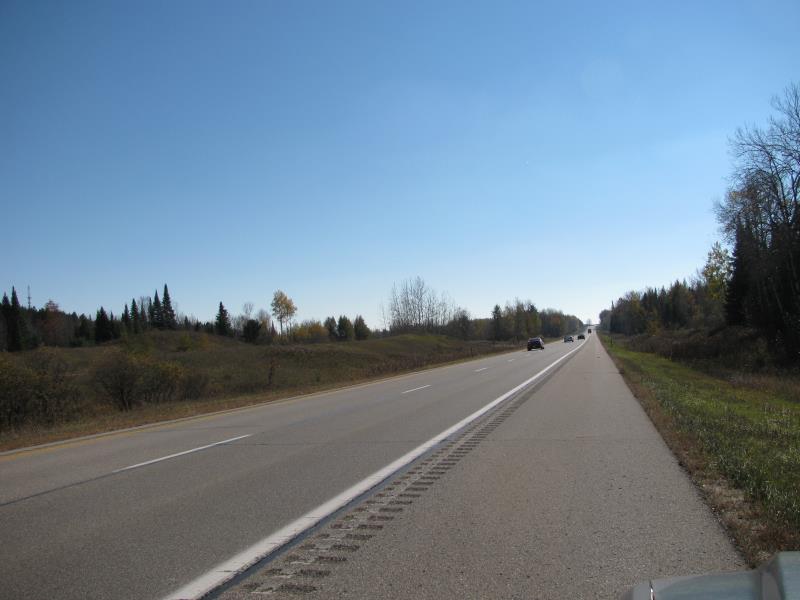

Road Approach - Left

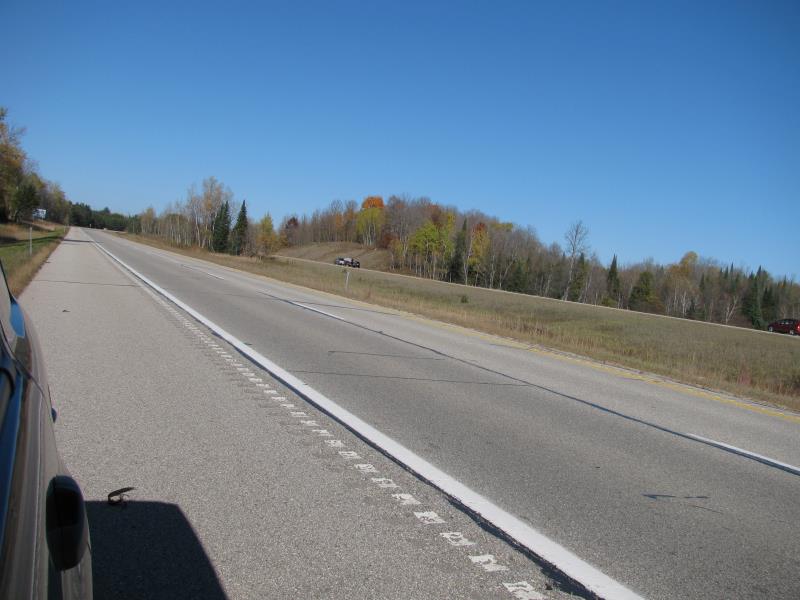

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: None
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 140 ft. , Width 7 ft. , Height 7 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.4 ft./sec.
Structure Outlet
Water Depth: 3.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.3 ft./sec.
*Water Velocities were measured 1.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 20 ft. , Width 20 ft. , Depth 4 ft.
Riffle Information
Water Depth: 1.7 ft.
Bankfull Width: 9 ft.
Wetted Width: 7.5 ft.
Water Velocity: 1.3 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved State Road
Road Condition: Good
Road Width at Culvert: 40 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 6.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 6 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 600 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0397 tons/year
Right Approach
Length: 600 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0397 tons/year
Erosion Information
Total Erosion at Crossing: 0.0793 tons/year
Summary Information
Fish Passability 0.5
