Road Stream Crossing Site P062

Pine River Watershed, Rose Lake outlet
200th Ave
Burdell Twp, Osceola County
Information collected by:
Site Location
GPS Coordinates: 44.12111 , -85.48426
T20N R10W Sec 15
Owned by Private
Structure is NOT Perched
Total Erosion: 0.6895 tons/year
Severity: Restored
Year Inventoried: 2014

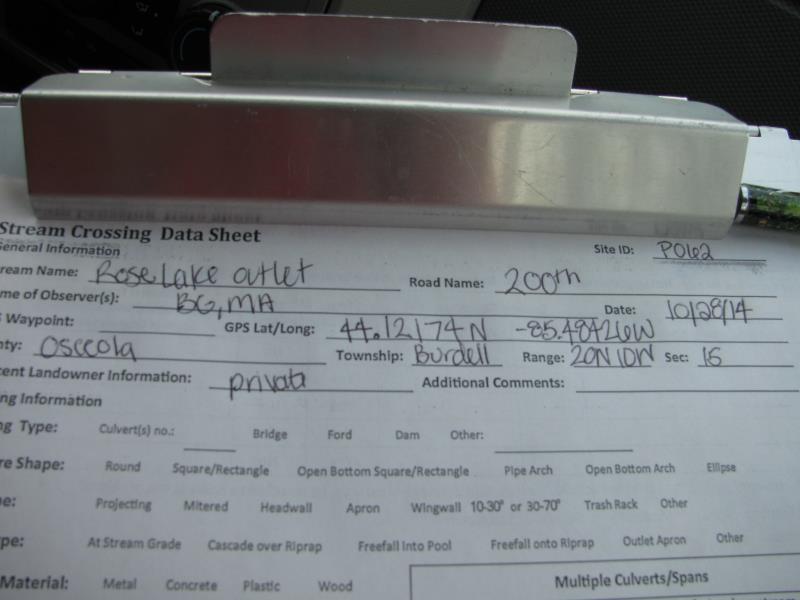

Site ID

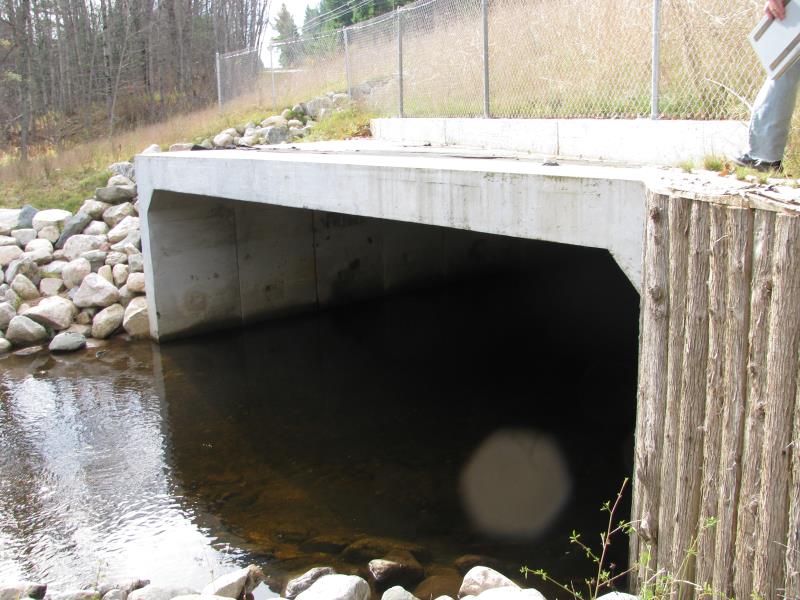

Inlet
Outlet

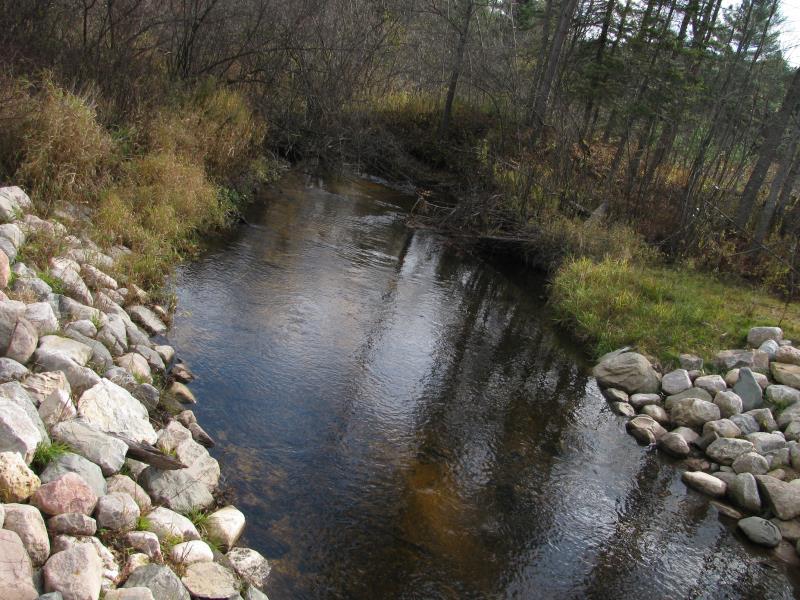

Upstream Conditions

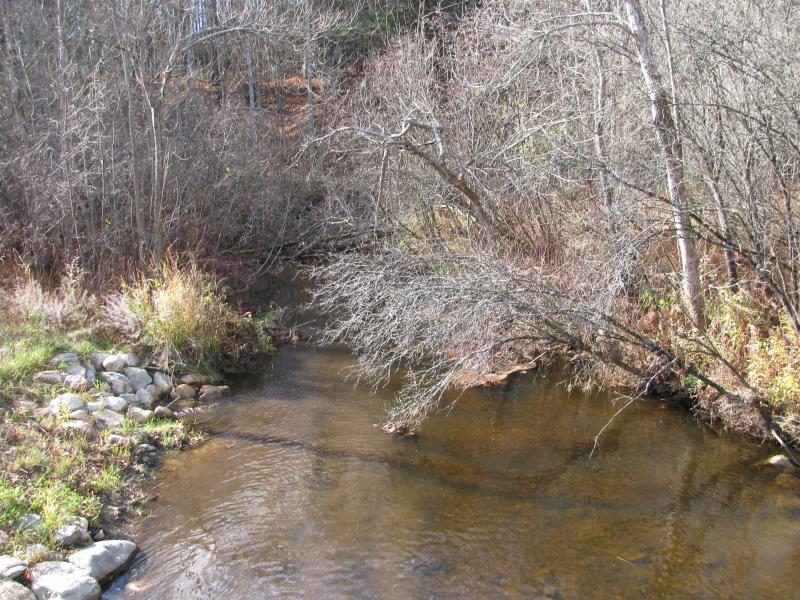

Downstream Conditions

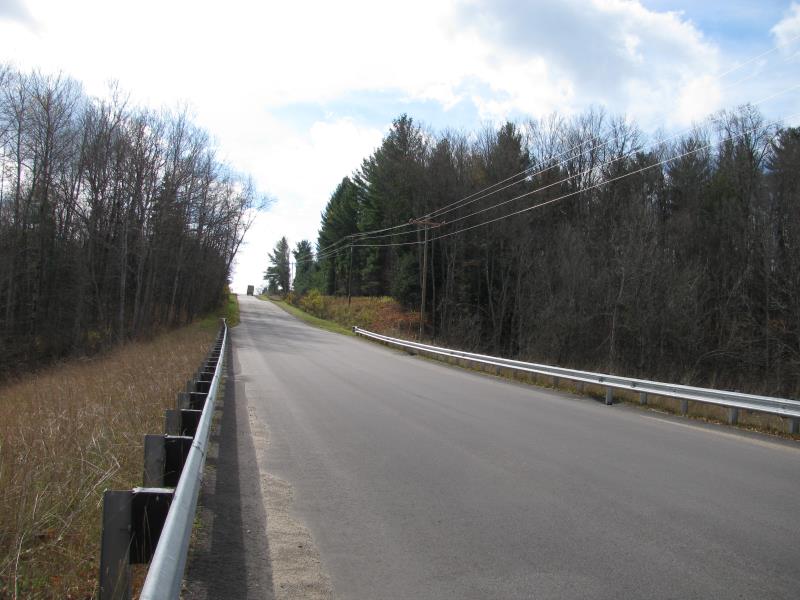

Road Approach - Left

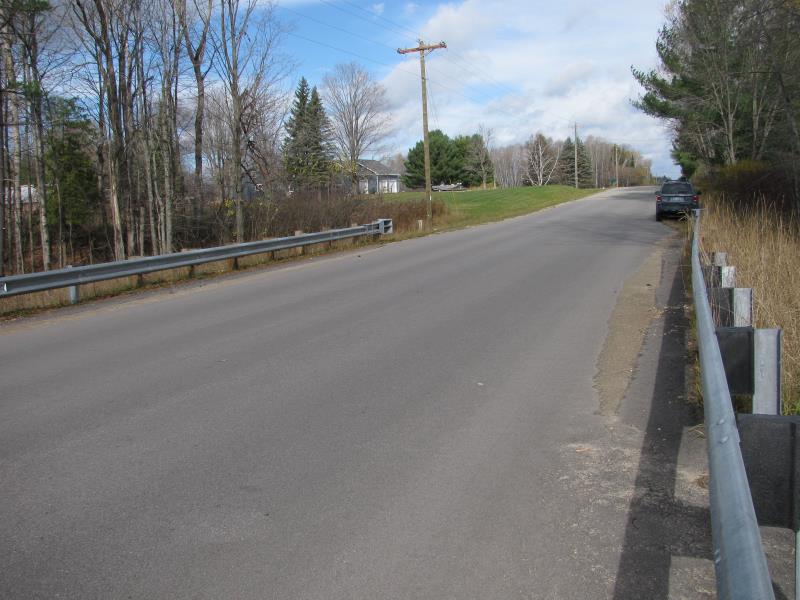

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Other
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: New
Structure Interior: smooth
Dimensions of Structure: Length 97 ft. , Width 24 ft. , Height 8.4 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.8 ft./sec.
Structure Outlet
Water Depth: 2.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.7 ft./sec.
*Water Velocities were measured 0.8 ft. below Surface (with Meter)
Additional Comments

New in 2013.

Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 1.4 ft.
Bankfull Width: 21 ft.
Wetted Width: 17.5 ft.
Water Velocity: 1.5 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 33 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 5.3 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 800 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.55
Erosion: 0.48 tons/year
Right Approach
Length: 400 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.48
Erosion: 0.2095 tons/year
Erosion Information
Total Erosion at Crossing: 0.6895 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
