Road Stream Crossing Site P070
Pine River Watershed, Tributary to East Branch Pine River
Hewitt Rd
Burdell Twp,
Osceola County
Information collected by:
Site Location
GPS Coordinates: 44.09566
, -85.51309
T20N
R10W
Sec 28
Owned by Private
Fish Passability 0
Perch Height: 0.3 ft.
Total Erosion: 1.2 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID

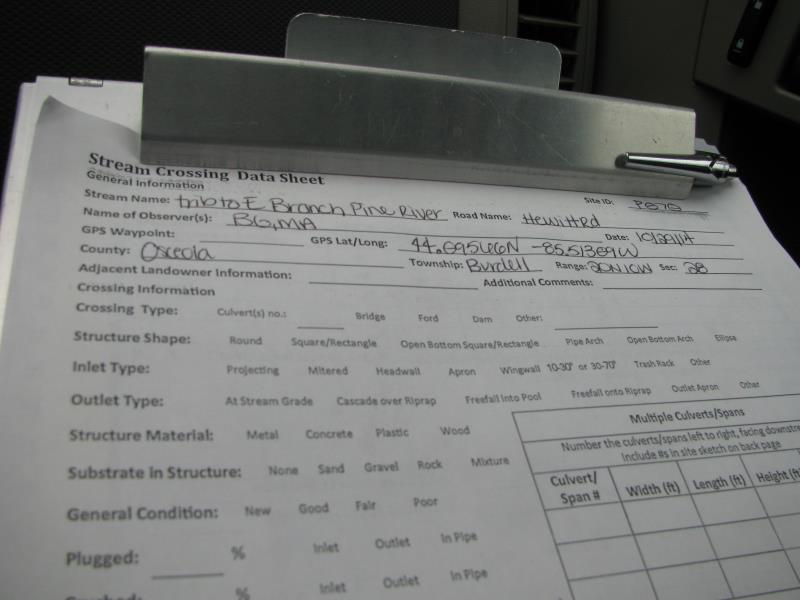

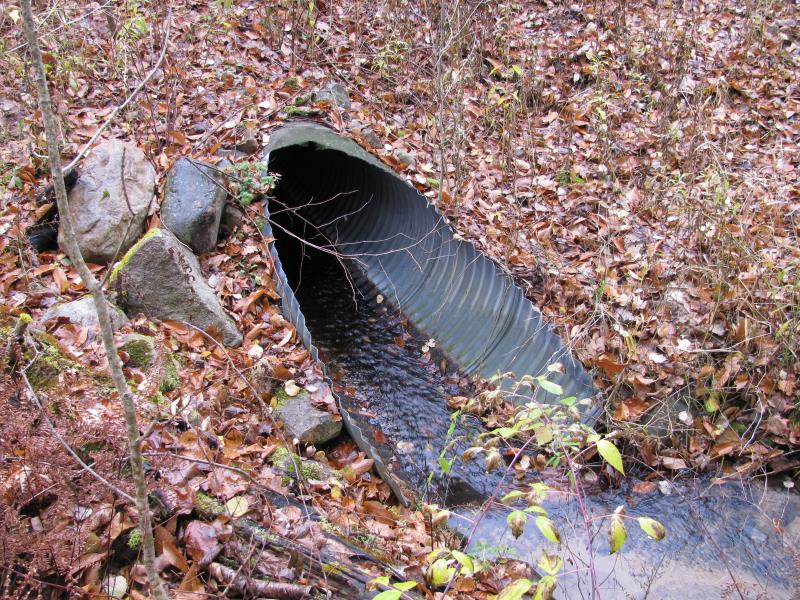

Inlet

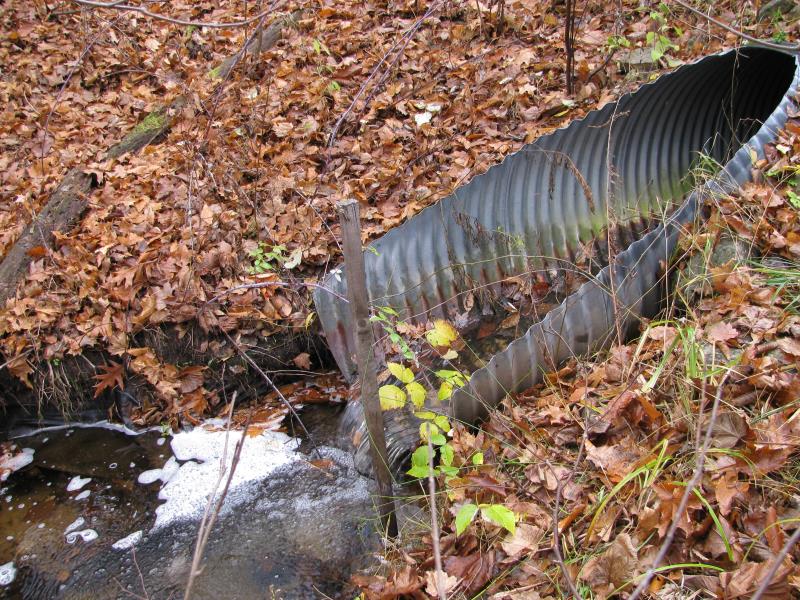

Outlet

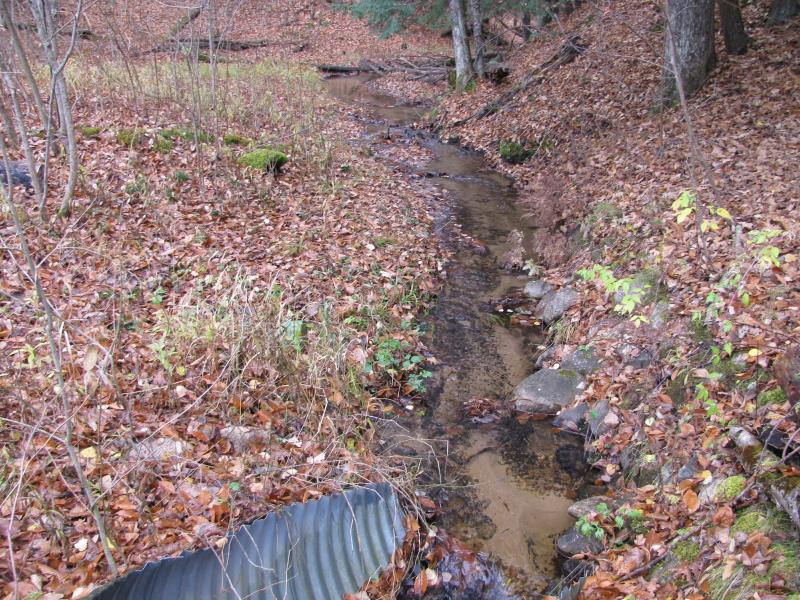

Upstream Conditions

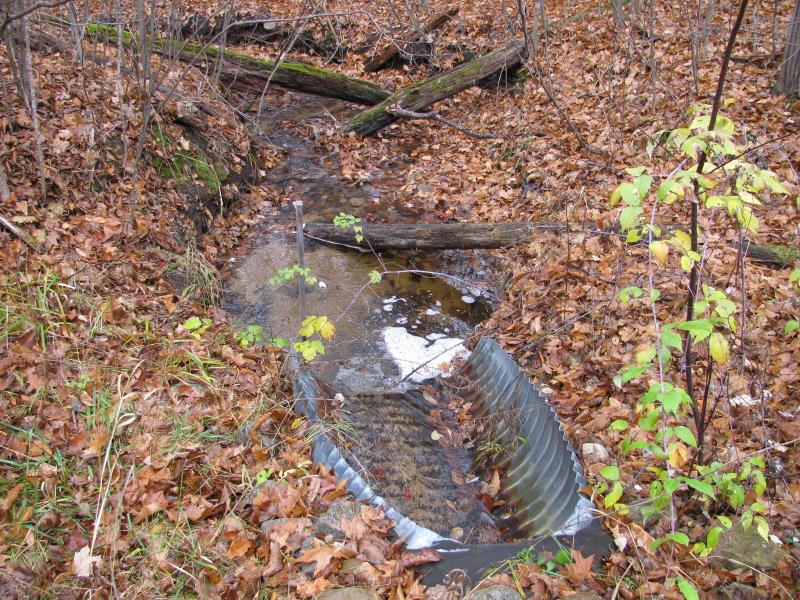

Downstream Conditions

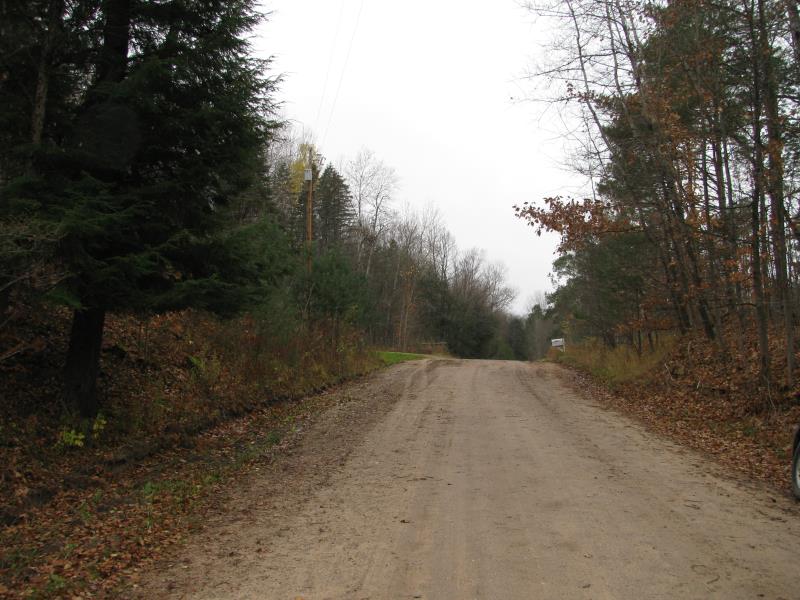

Road Approach - Left

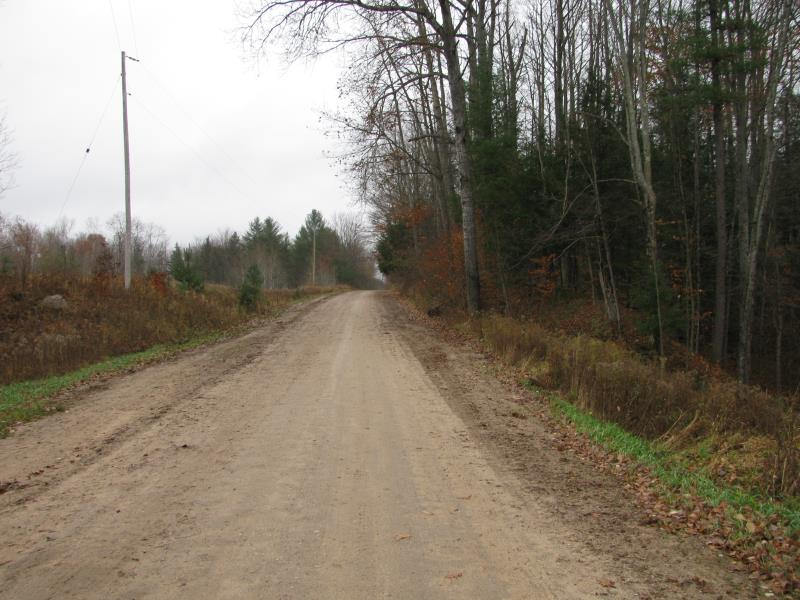

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Mitered
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 117 ft.
, Width 3 ft.
, Height 3 ft.
Perch Height: 0.3 ft.
Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2 ft./sec.
Structure Outlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3 ft./sec.
*Water Velocities were measured 0.1 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 8 ft.
, Width 8 ft.
, Depth 1.7 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 6 ft.
Wetted Width: 3 ft.
Water Velocity: 1.2 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 9.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 8.8 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 150 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.4
Erosion: 0.3636 tons/year
Right Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.8364 tons/year
Erosion Information
Total Erosion at Crossing: 1.2 tons/year
Summary Information
Fish Passability 0
