Road Stream Crossing Site P075
Pine River Watershed, North Branch Pine River
Hibma Rd
Burdell Twp,
Osceola County
Information collected by:
Site Location
GPS Coordinates: 44.15401
, -85.50821
T20N
R10W
Sec 4
Owned by Private
Structure is NOT Perched
Total Erosion: 1.9413 tons/year
Severity: Restored
Year Inventoried: 2014

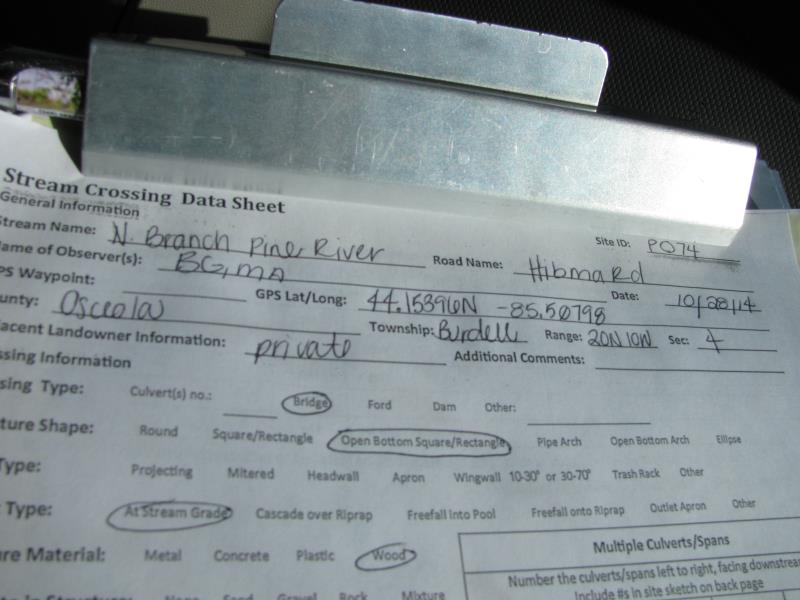

Site ID
Inlet
Outlet

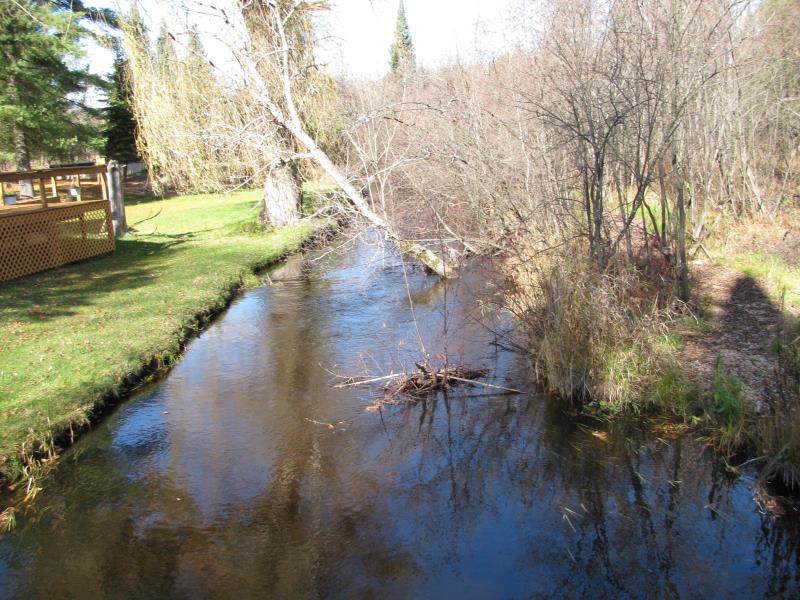

Upstream Conditions

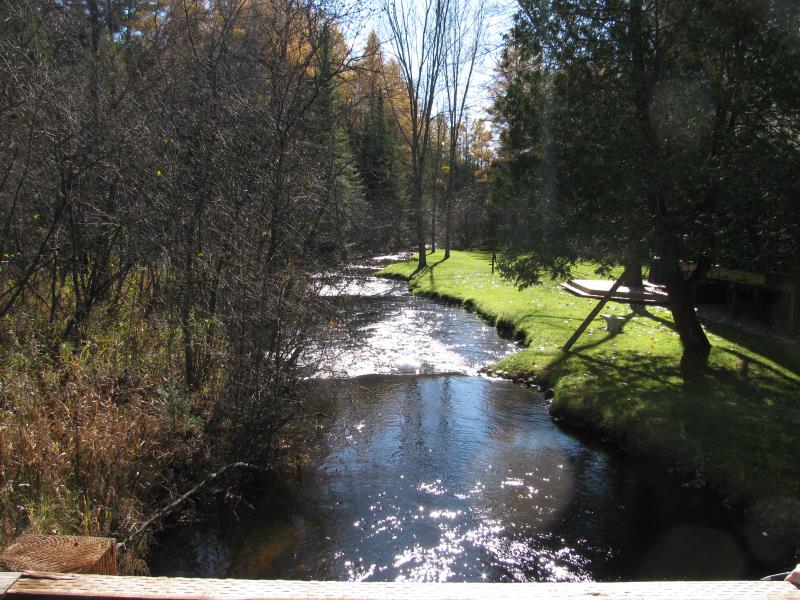

Downstream Conditions
Road Approach - Left

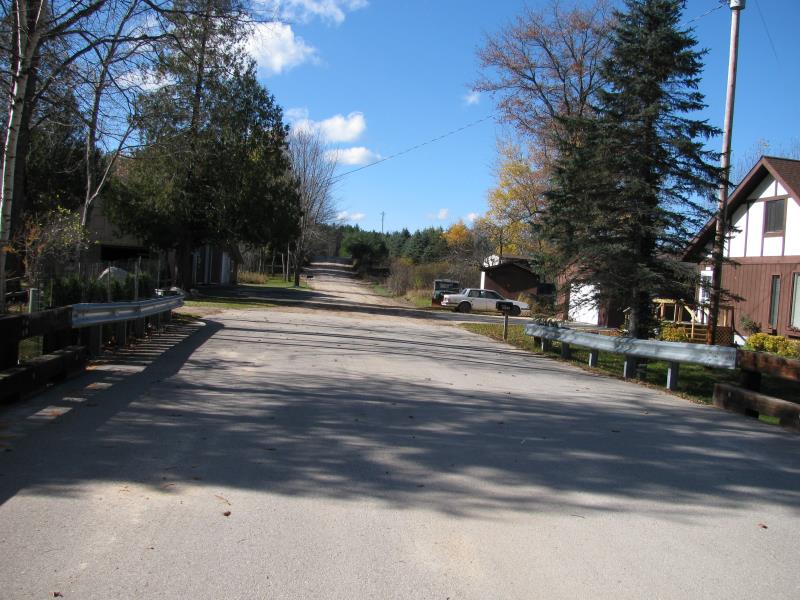

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Wood
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 31 ft.
, Width 30 ft.
, Height 4.6 ft.
Structure is NOT Perched

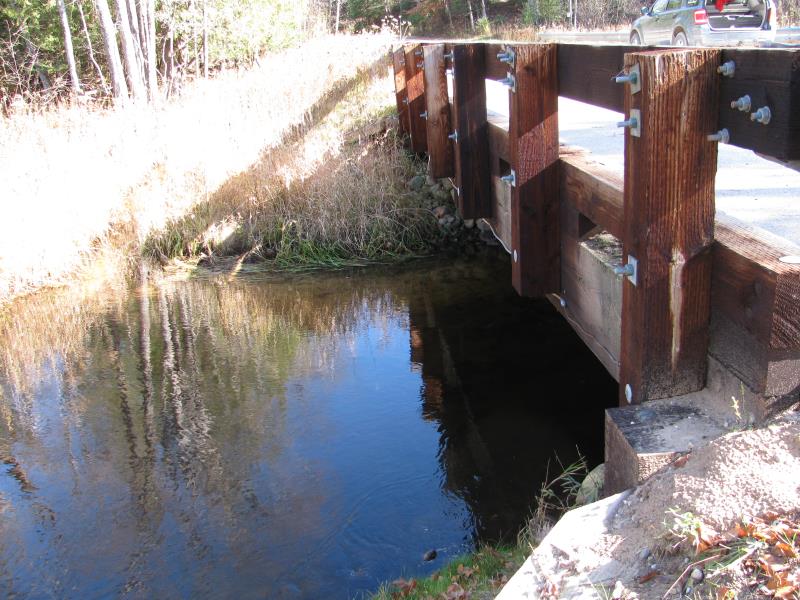

Structure Inlet
Water Depth: 1.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.1 ft./sec.

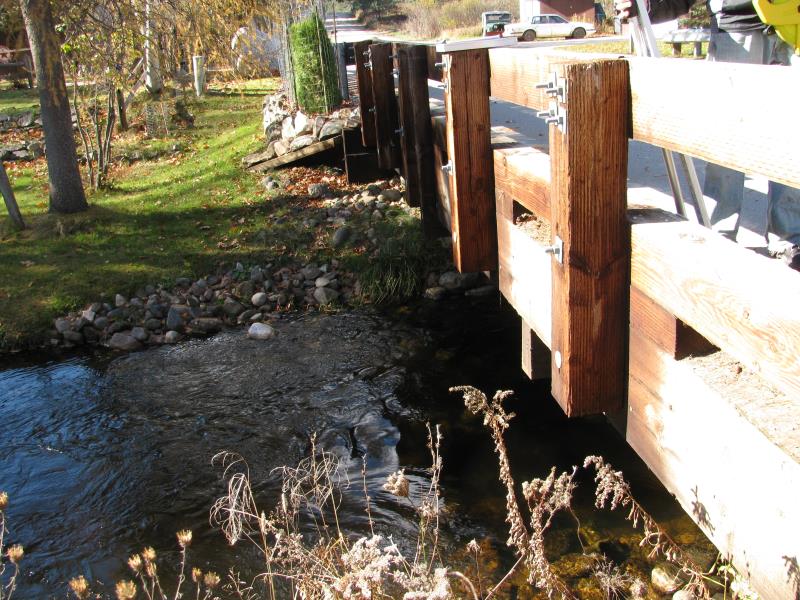

Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.5 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 2.1 ft.
Bankfull Width: 14 ft.
Wetted Width: 12.3 ft.
Water Velocity: 1.1 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 29 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 450 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.49
Erosion: 1.7616 tons/year
Right Approach
Length: 450 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.1798 tons/year
Erosion Information
Total Erosion at Crossing: 1.9413 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
