Road Stream Crossing Site P079

Pine River Watershed, North Branch Pine River
22 Mile Rd
Burdell Twp, Osceola County
Information collected by:
Site Location
GPS Coordinates: 44.13238 , -85.52446
T20N R10W Sec 8
Owned by Private
Structure is NOT Perched
Total Erosion: 1.697 tons/year
Severity: Restored
Year Inventoried: 2014

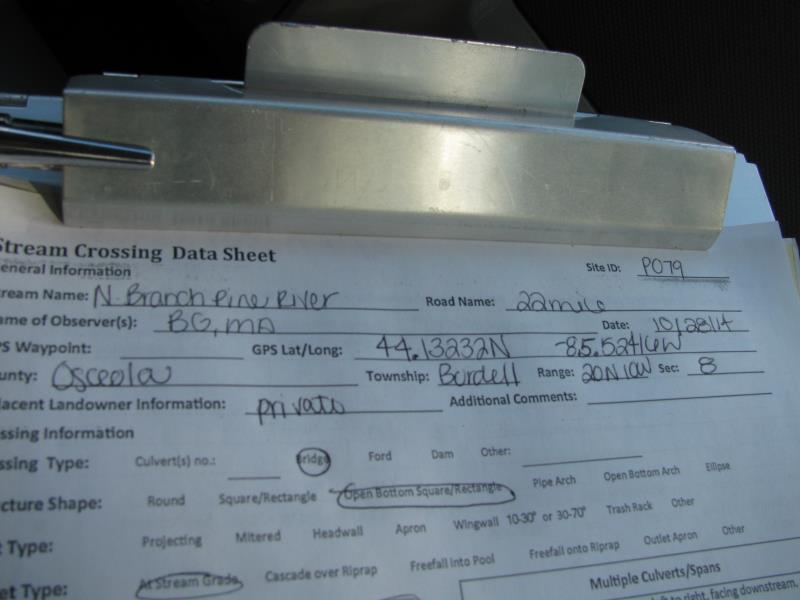

Site ID
Inlet
Outlet

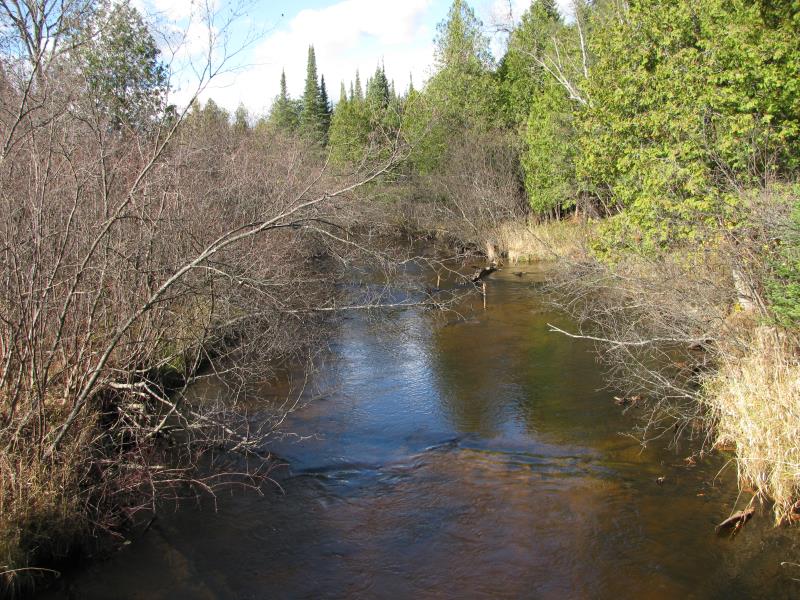

Upstream Conditions

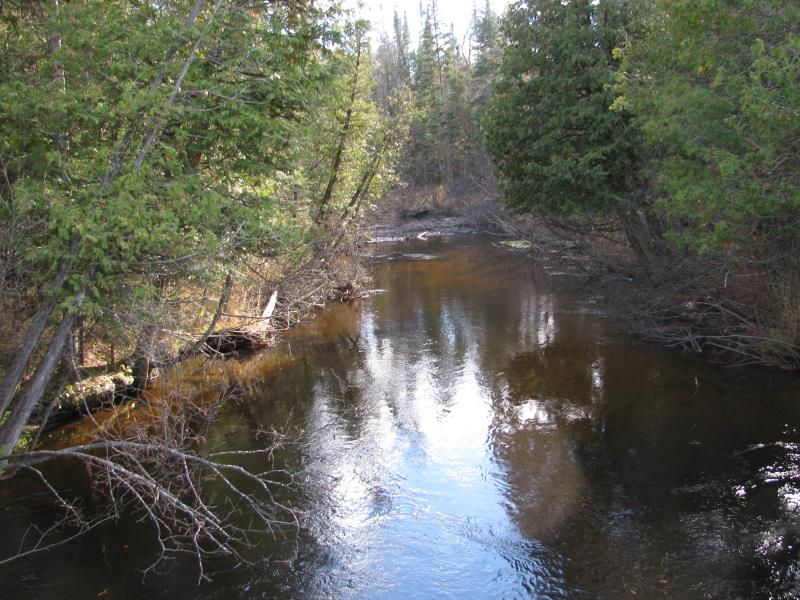

Downstream Conditions

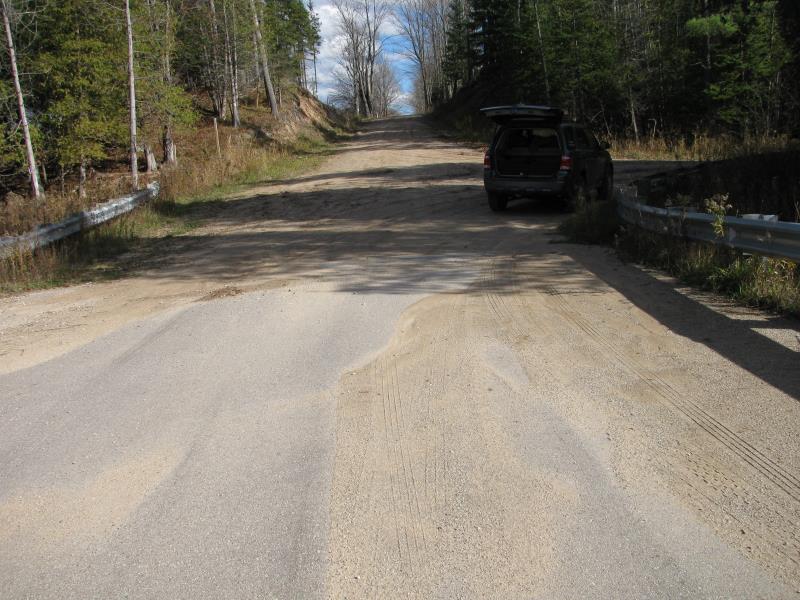

Road Approach - Left

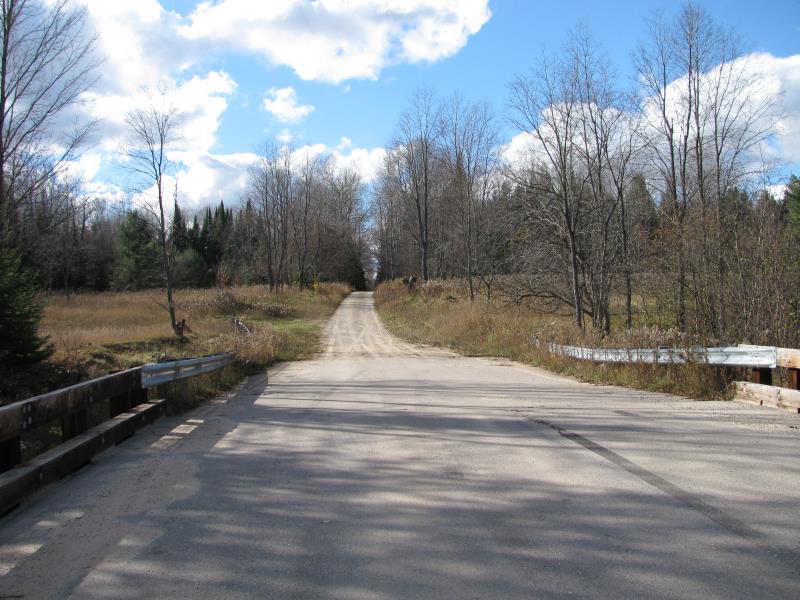

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Wood
Structure Substrate: Sand
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 31 ft. , Width 50 ft. , Height 7.3 ft.
Structure is NOT Perched

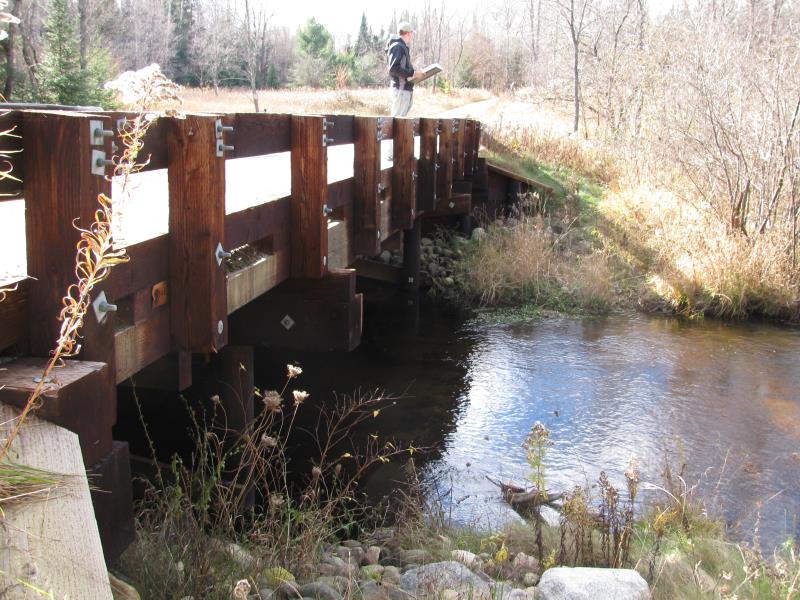

Structure Inlet
Water Depth: 1.8 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.7 ft./sec.

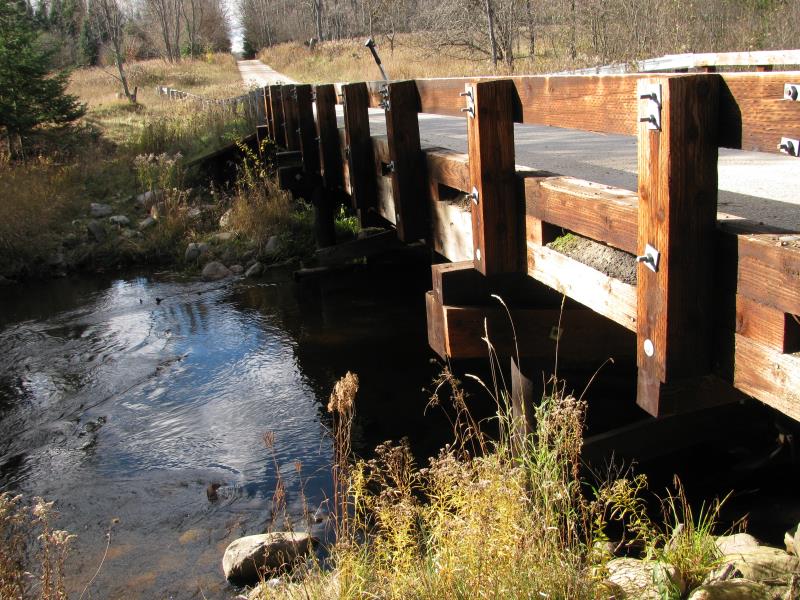

Structure Outlet
Water Depth: 1.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.5 ft./sec.
*Water Velocities were measured 0.8 ft. below Surface (with Meter)
Additional Comments

3 Span Timber Bridge

Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 1.9 ft.
Bankfull Width: 37 ft.
Wetted Width: 34 ft.
Water Velocity: 1.3 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 28 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 250 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.44
Erosion: 0.8485 tons/year
Right Approach
Length: 250 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.44
Erosion: 0.8485 tons/year
Erosion Information
Total Erosion at Crossing: 1.697 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
