Road Stream Crossing Site P083

Pine River Watershed, Unknown (tributary to North Branch Pine River)
230th Ave
Burdell Twp, Osceola County
Information collected by:
Site Location
GPS Coordinates: 44.1128 , -85.544
T20N R10W Sec 19
Owned by Private
Fish Passability 0
Perch Height: 0.2 ft.
Total Erosion: 2.0846 tons/year
Severity: Severe
Year Inventoried: 2014

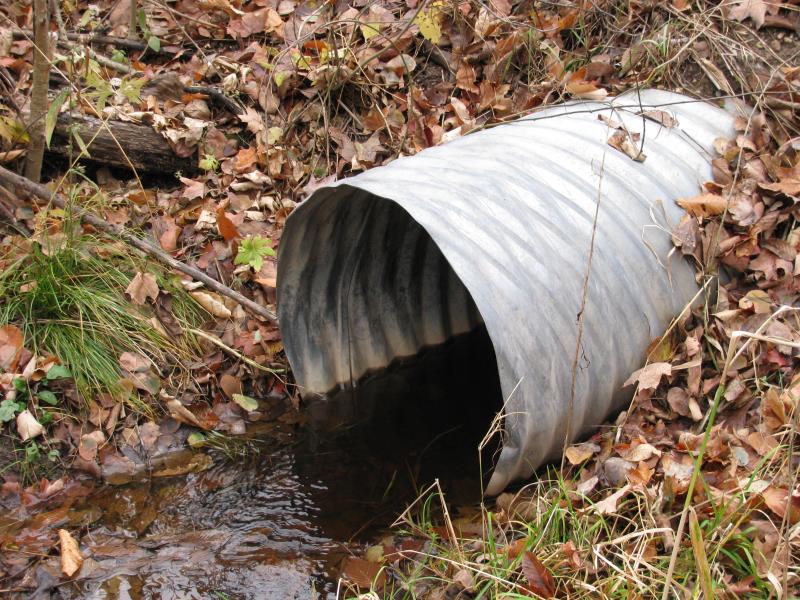

Inlet

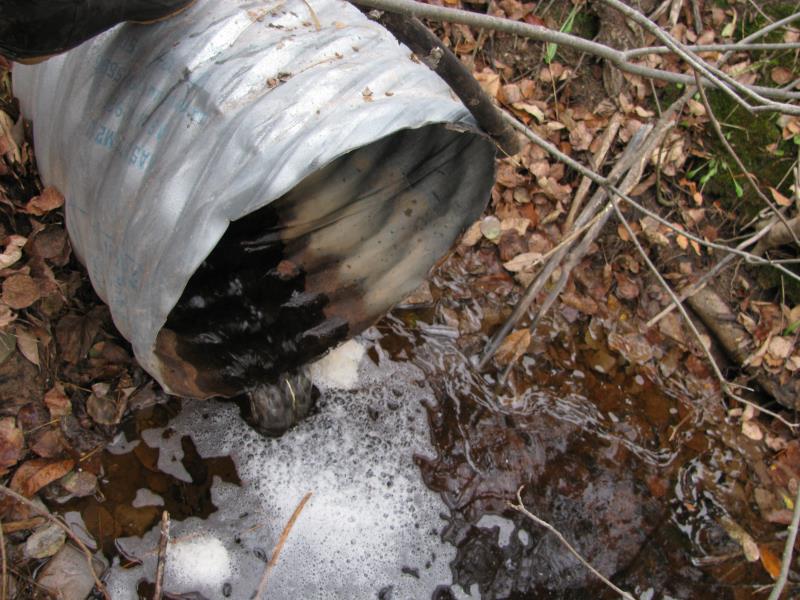

Outlet

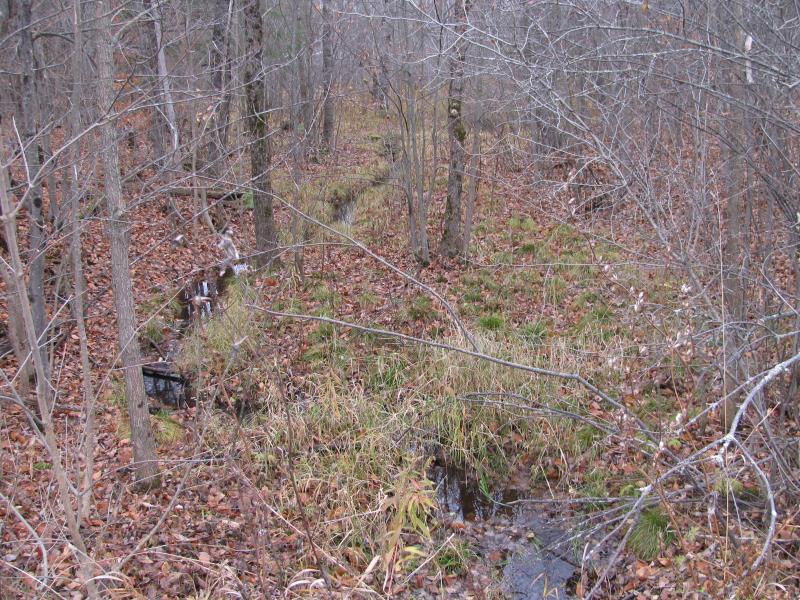

Upstream Conditions

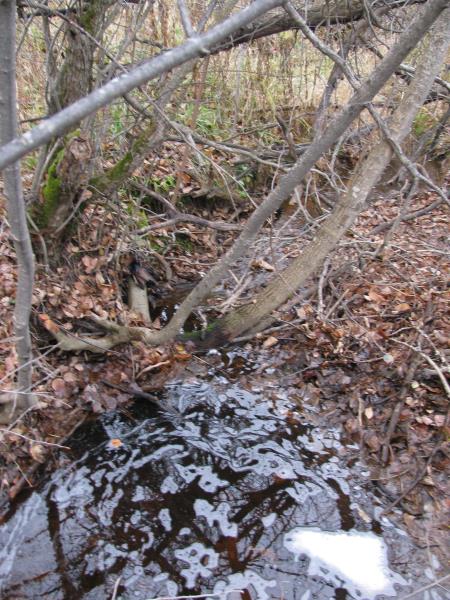

Downstream Conditions

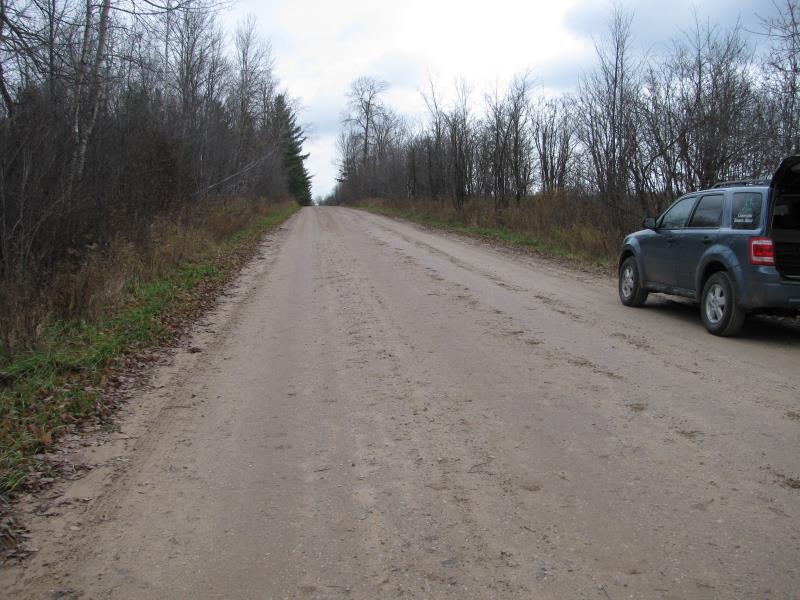

Road Approach - Left

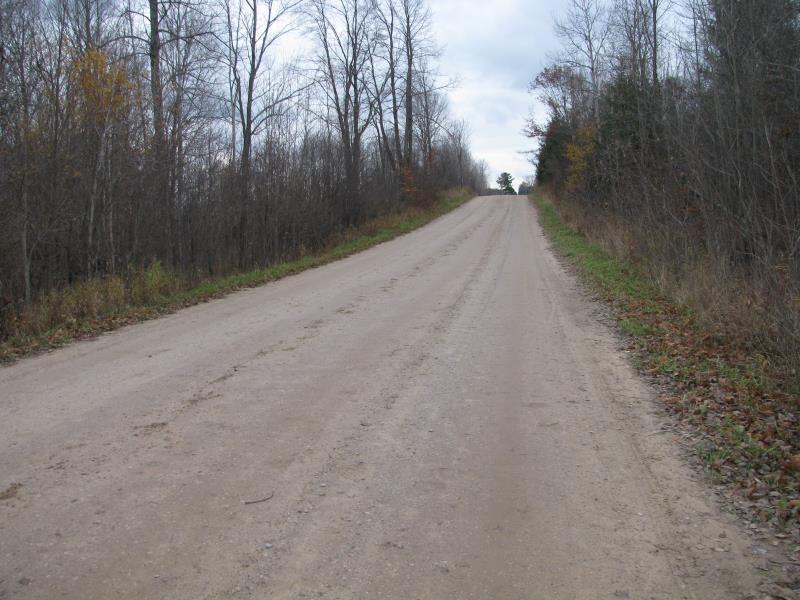

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 48 ft. , Width 2 ft. , Height 2 ft.
Perch Height: 0.2 ft.
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.3 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.3 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 7 ft. , Width 7 ft. , Depth 1 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 3.5 ft.
Wetted Width: 2.1 ft.
Water Velocity: 0.1 ft./sec. (Measured with Meter)
Dominant Substrate: Organics
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 23 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 4.3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 4.9 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 350 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.47
Erosion: 1.0423 tons/year
Right Approach
Length: 350 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.47
Erosion: 1.0423 tons/year
Erosion Information
Total Erosion at Crossing: 2.0846 tons/year
Summary Information
Fish Passability 0
