Road Stream Crossing Site P086
Pine River Watershed, Tributary to Pine River
230th Ave
Burdell Twp,
Osceola County
Information collected by:
Site Location
GPS Coordinates: 44.08032
, -85.54293
T20N
R10W
Sec 30
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 1.8182 tons/year
Severity: Moderate
Year Inventoried: 2014
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Poor
Structure Interior: smooth
Dimensions of Structure: Length 60 ft.
, Width 3.3 ft.
, Height 4.6 ft.
Structure is NOT Perched

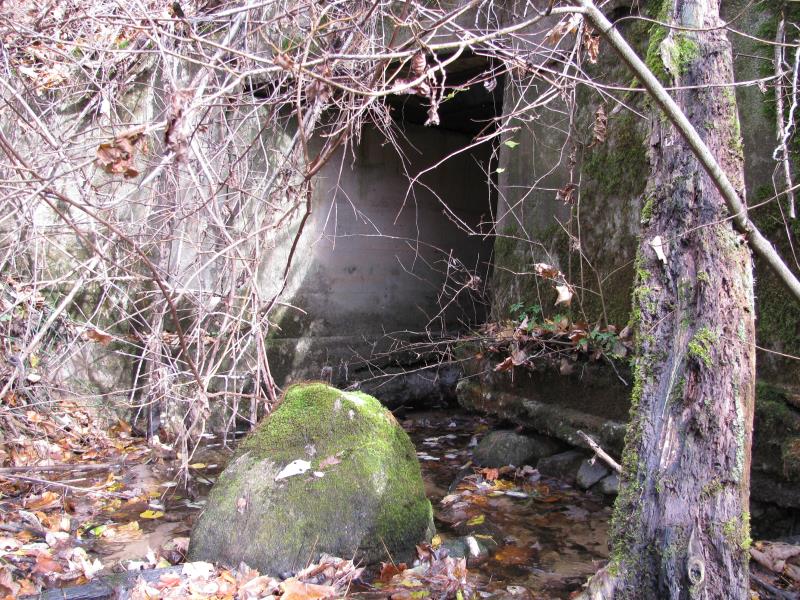

Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.

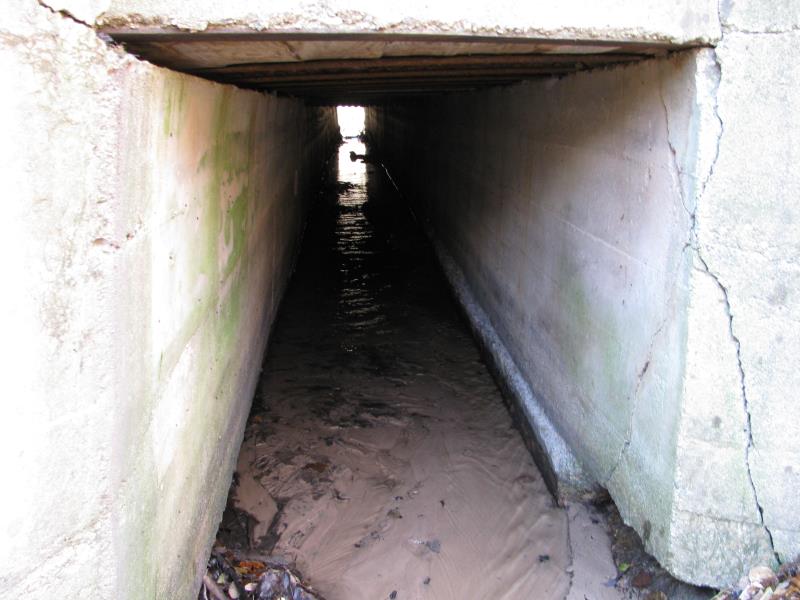

Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.5 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.1 ft.
Bankfull Width: 7 ft.
Wetted Width: 3.6 ft.
Water Velocity: 1.3 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 20 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments

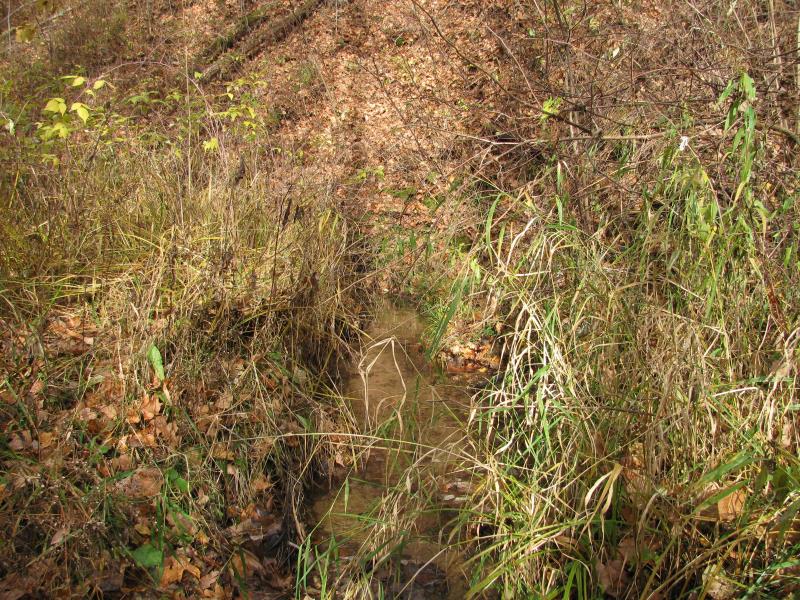

Upstream
Fill Depth: 11 ft.
Slope: 1:2

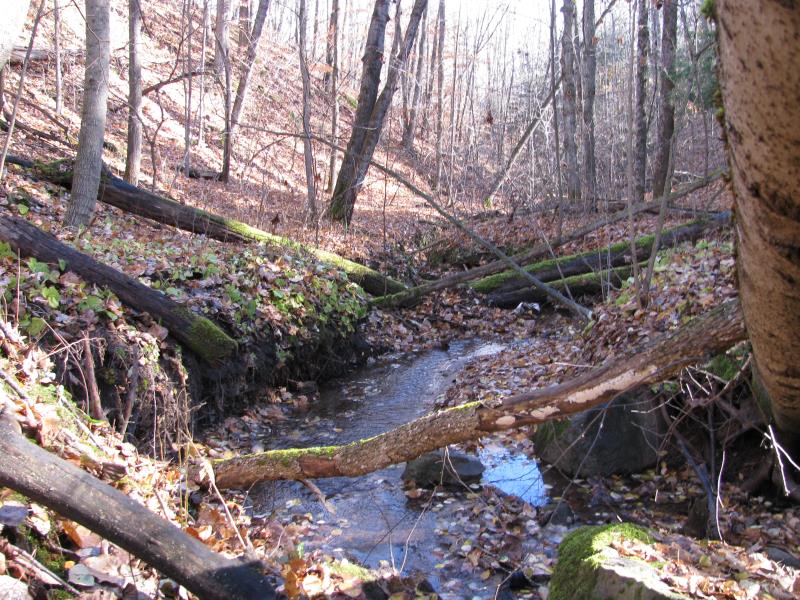

Downstream
Fill Depth: 11 ft.
Slope: 1:2
Approaches

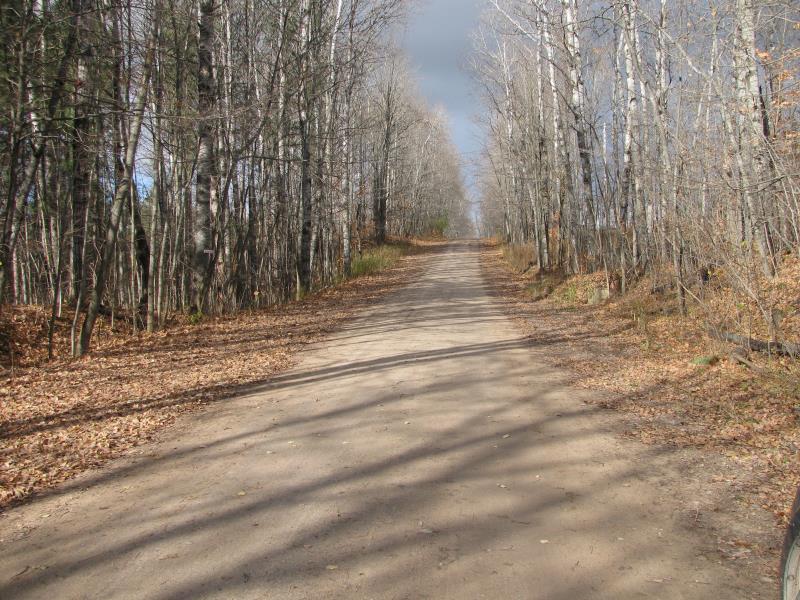

Left Approach
Length: 400 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.48
Erosion: 1.0579 tons/year

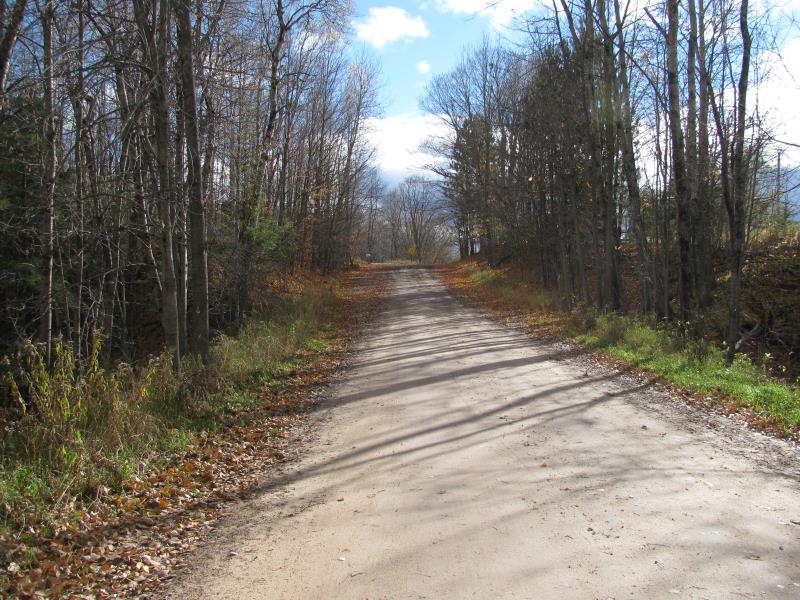

Right Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.7603 tons/year
Erosion Information
Total Erosion at Crossing: 1.8182 tons/year
Summary Information
Fish Passability 0.5
