Road Stream Crossing Site P107
Pine River Watershed, Dyer Creek
10 Mile Rd
Dover Twp,
Lake County
Information collected by:
Site Location
GPS Coordinates: 44.13664
, -85.58935
T20N
R11W
Sec 11
Owned by Federal
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 2.5196 tons/year
Severity: Moderate
Year Inventoried: 2014
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Ellipse
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 48 ft.
, Width 6 ft.
, Height 4 ft.
Structure is NOT Perched

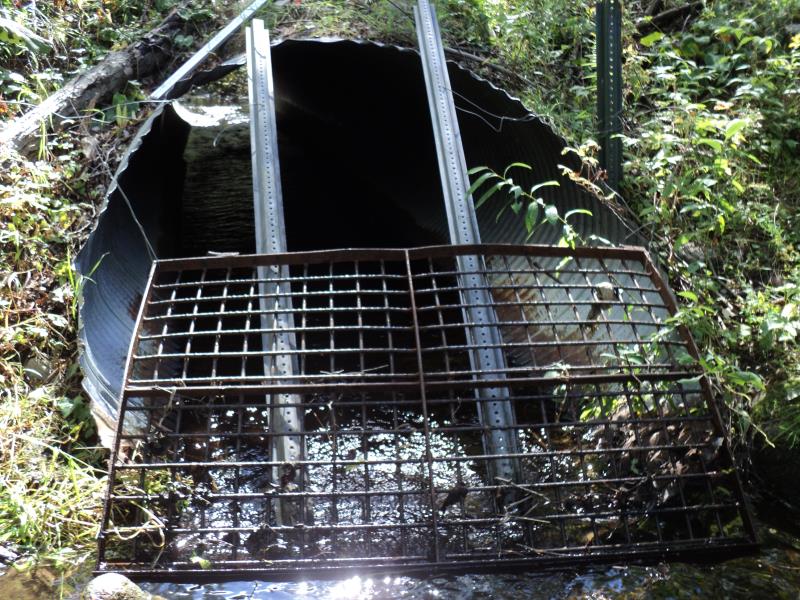

Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.7 ft./sec.

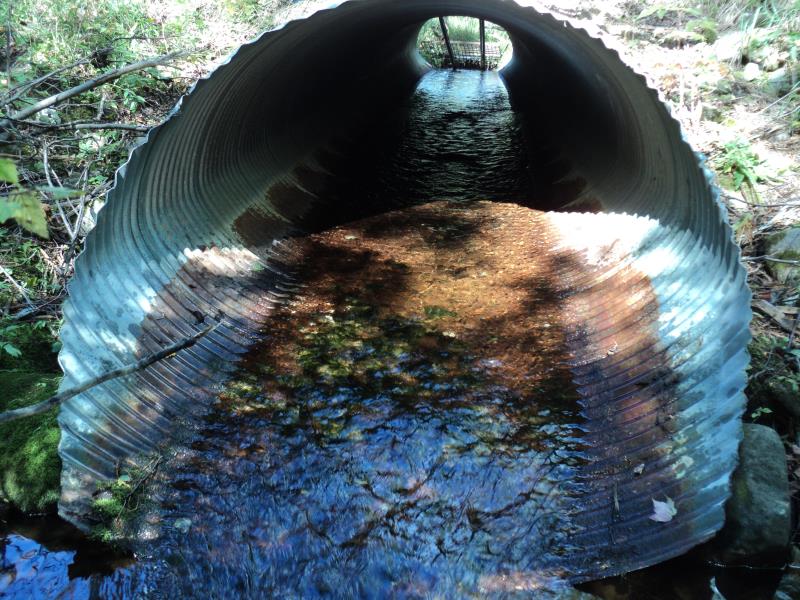

Structure Outlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.5 ft./sec.
*Water Velocities were measured 0.2 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 6 ft.
Wetted Width: 4.7 ft.
Water Velocity: 0.9 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel
Federal Road
Road Condition: Fair
Road Width at Culvert: 15 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments

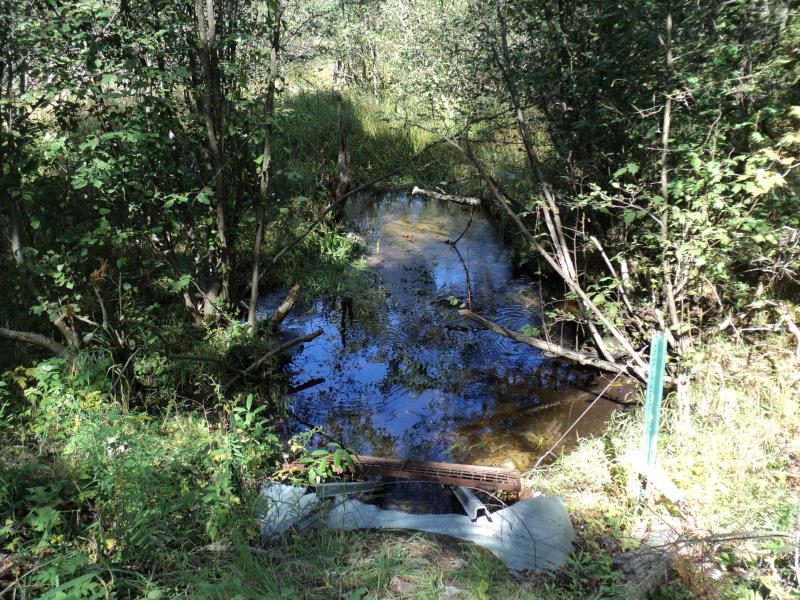

Upstream
Fill Depth: 1.4 ft.
Slope: More than 1:2

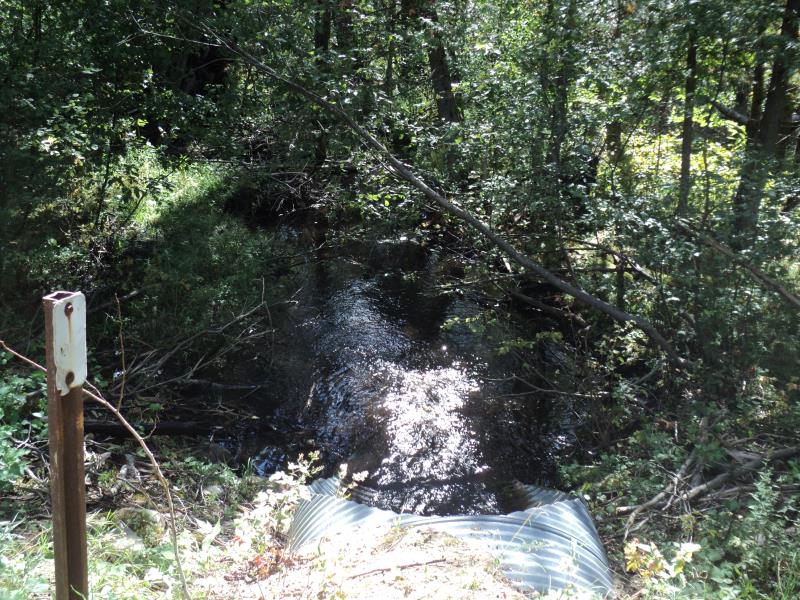

Downstream
Fill Depth: 1.8 ft.
Slope: More than 1:2
Approaches

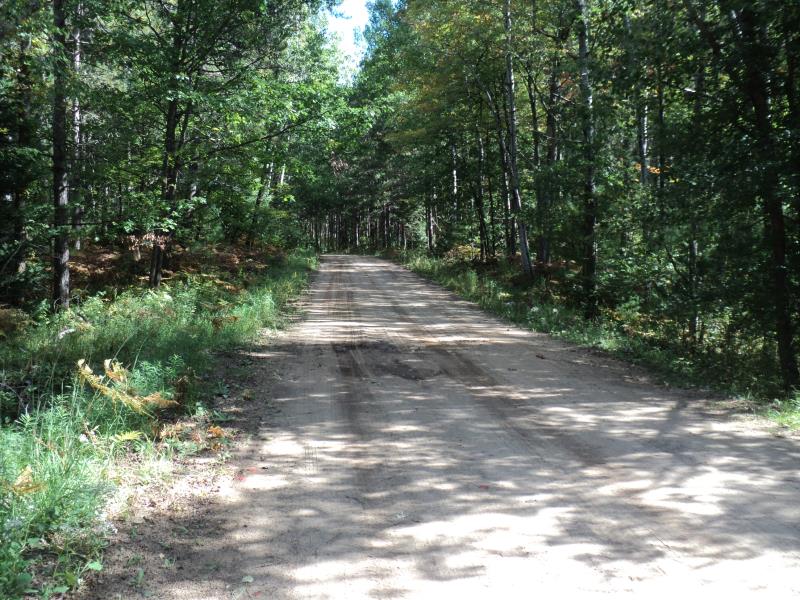

Left Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.5702 tons/year

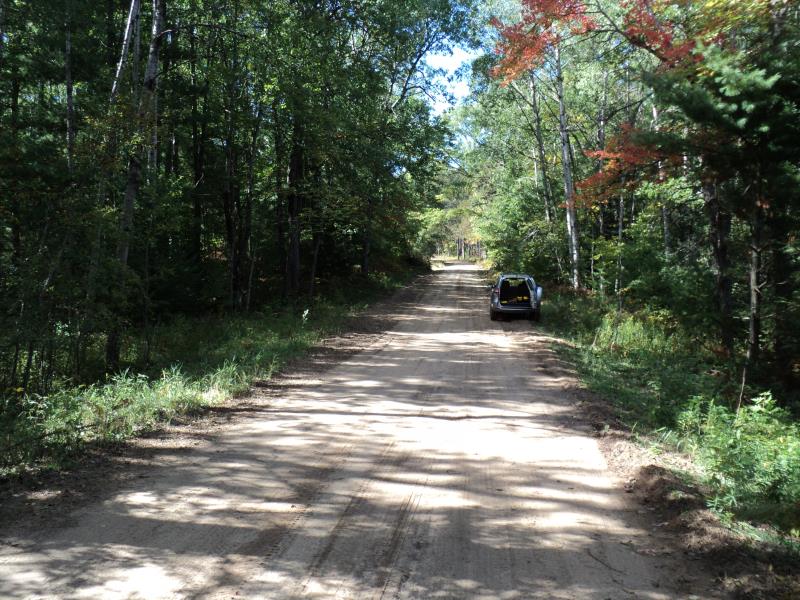

Right Approach
Length: 850 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.555
Erosion: 1.9494 tons/year
Erosion Information
Total Erosion at Crossing: 2.5196 tons/year
Summary Information
Fish Passability 0.5
