Road Stream Crossing Site P108

Pine River Watershed, Coe Creek
10 Mile Rd
Dover Twp, Lake County
Information collected by:
Site Location
GPS Coordinates: 44.14238 , -85.56452
T20N R10W Sec 12
Owned by Federal
Fish Passability 0
Perch Height: 0.1 ft.
Total Erosion: 0.9277 tons/year
Severity: Severe
Year Inventoried: 2014

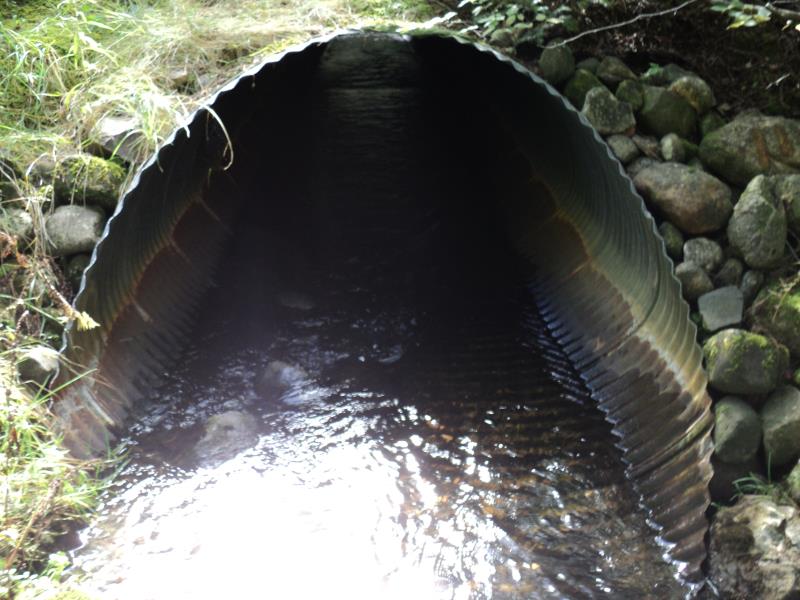

Inlet

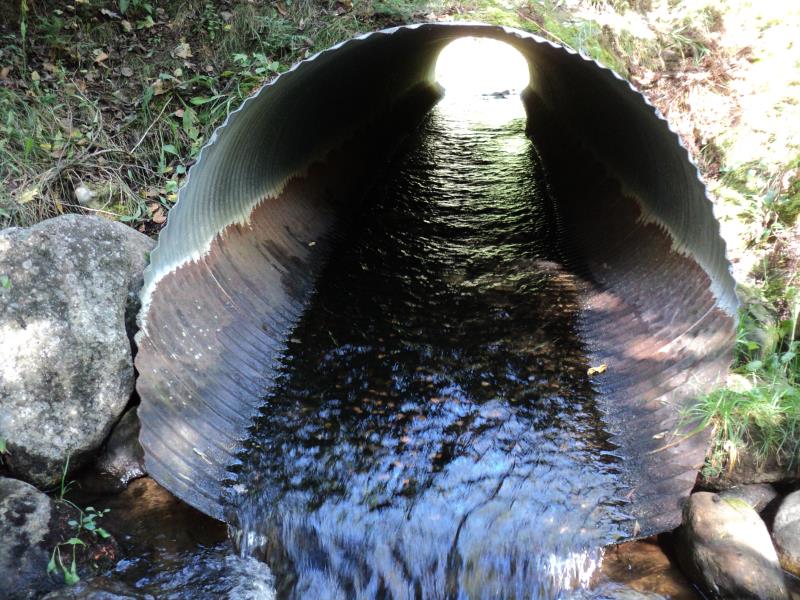

Outlet

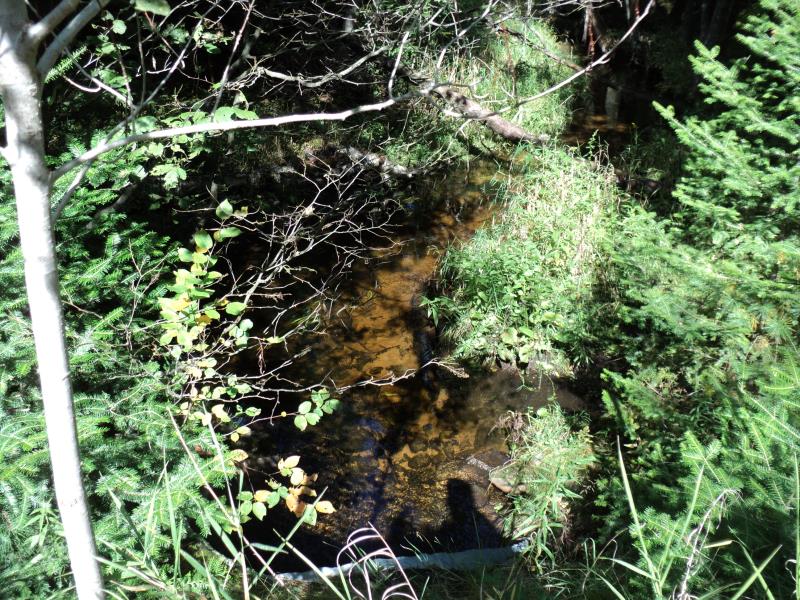

Upstream Conditions
Upstream Conditions

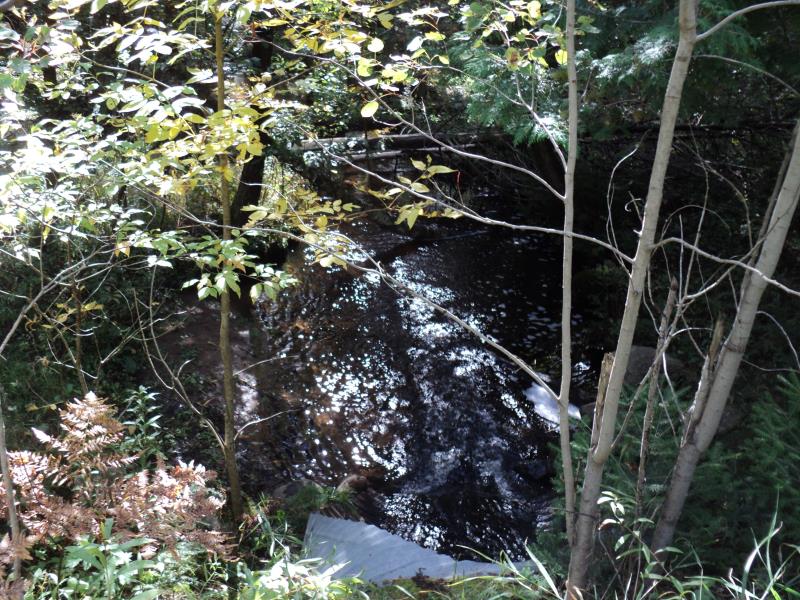

Downstream Conditions

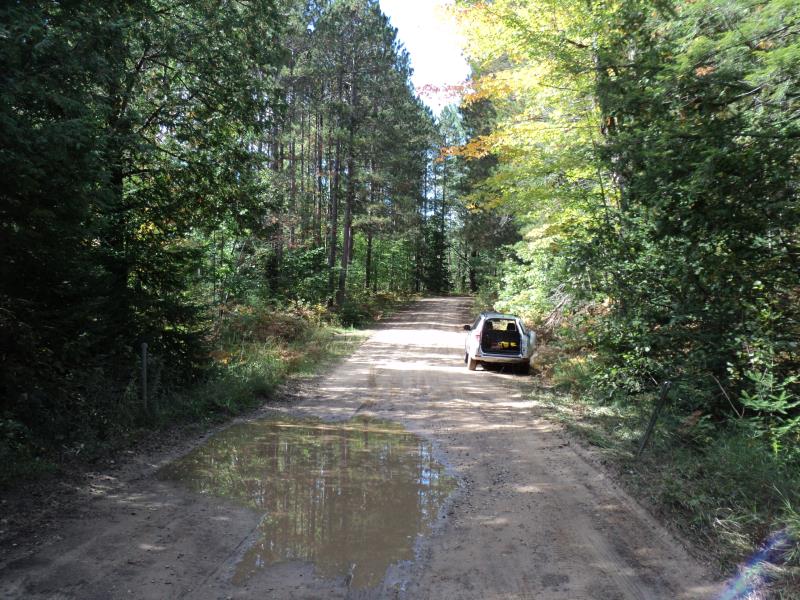

Road Approach - Left

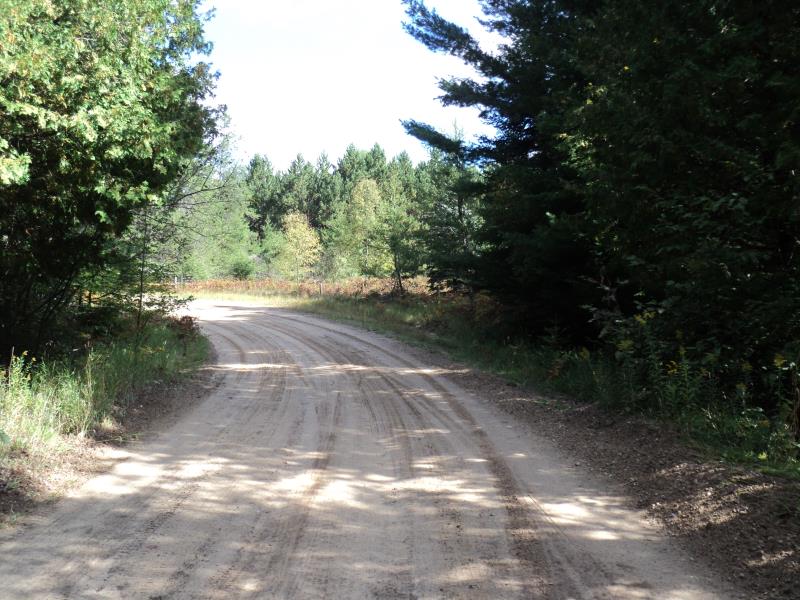

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Ellipse
Inlet Type: Mitered
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 48 ft. , Width 5.6 ft. , Height 3.8 ft.
Perch Height: 0.1 ft.
Structure Inlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.3 ft./sec.
Structure Outlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.4 ft./sec.
*Water Velocities were measured 0.2 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 18 ft. , Width 15 ft. , Depth 3 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 10.5 ft.
Wetted Width: 8.5 ft.
Water Velocity: 0.8 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel Federal Road
Road Condition: Good
Road Width at Culvert: 15 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.6 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 150 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.4
Erosion: 0.2479 tons/year
Right Approach
Length: 350 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.47
Erosion: 0.6798 tons/year
Erosion Information
Total Erosion at Crossing: 0.9277 tons/year
Summary Information
Fish Passability 0
