Road Stream Crossing Site P133

Pine River Watershed, North Branch Pine River
46 Rd
Clam Lake Twp, Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.20847 , -85.44692
T21N R9W Sec 13
Owned by Private
Structure is NOT Perched
Total Erosion: 0.3636 tons/year
Severity: Moderate
Year Inventoried: 2014

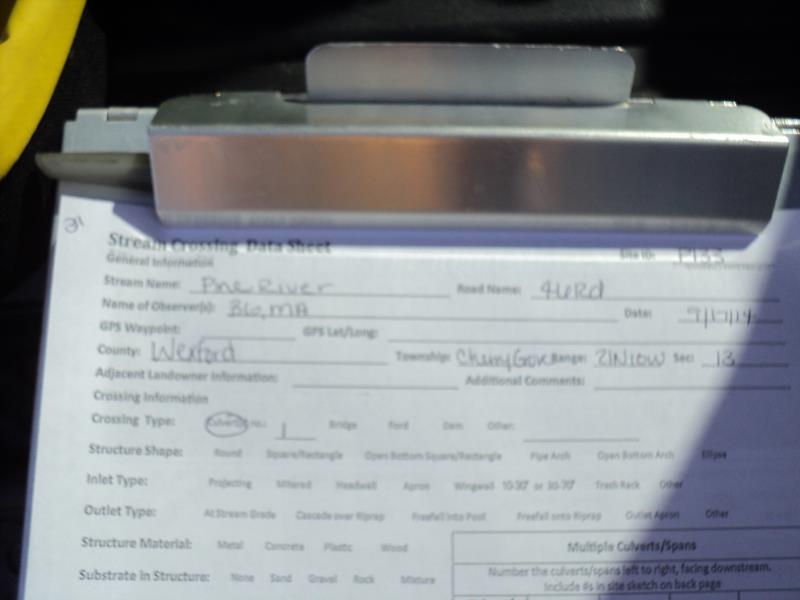

Site ID

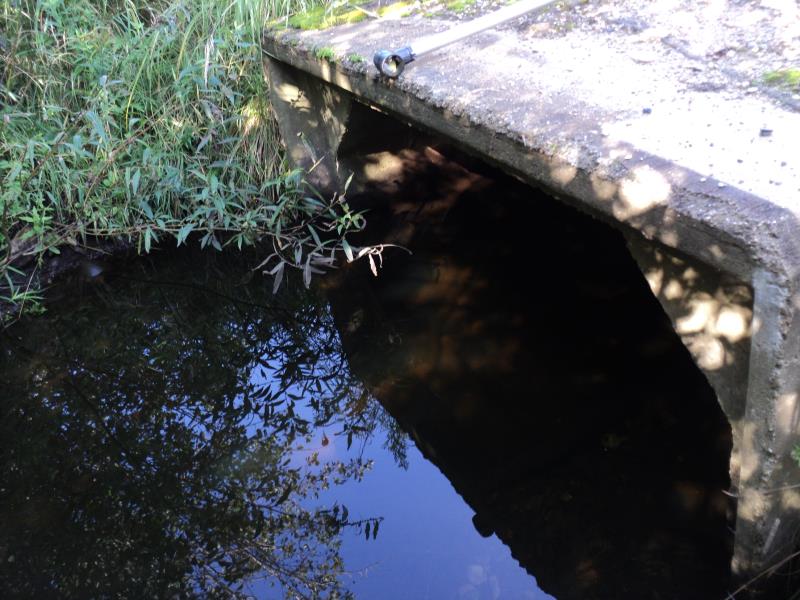

Inlet

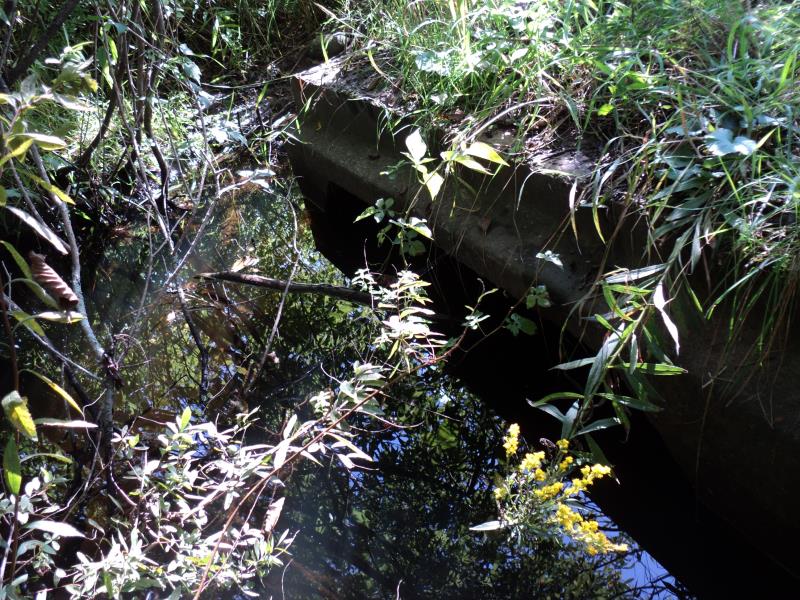

Outlet

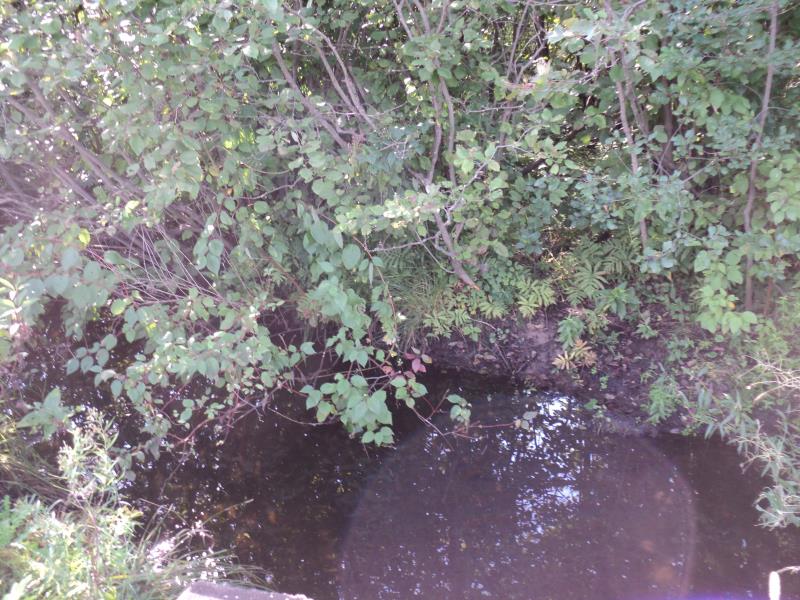

Upstream Conditions

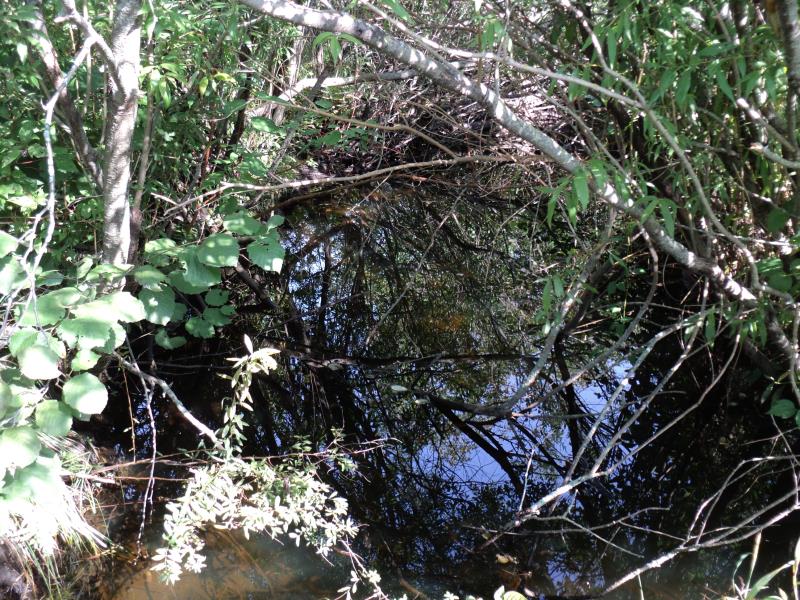

Downstream Conditions

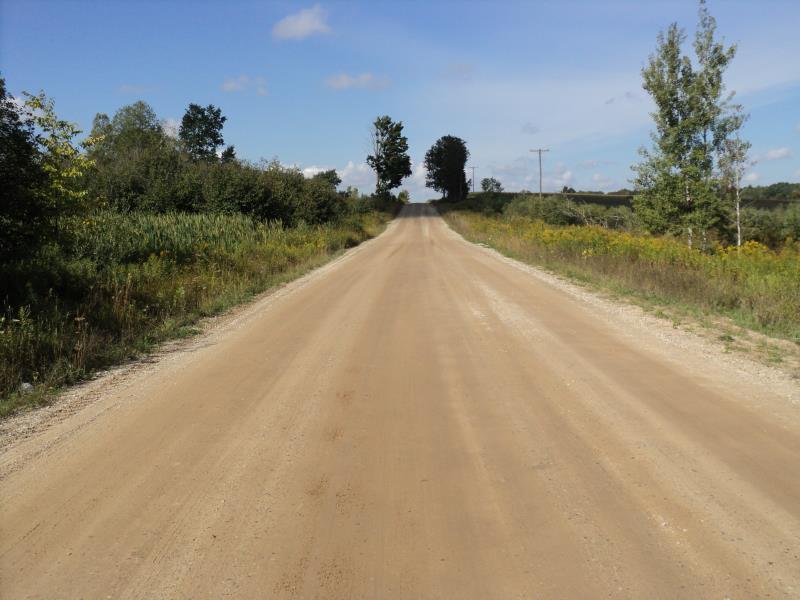

Road Approach - Left

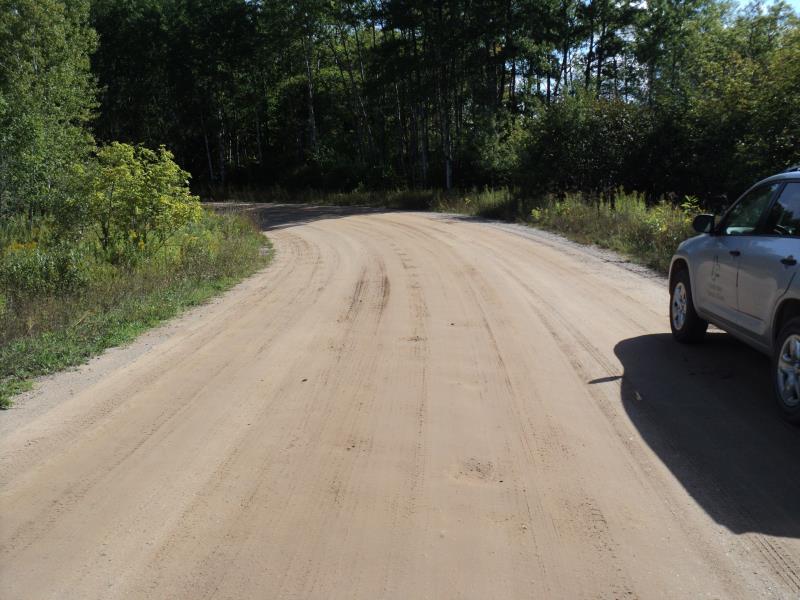

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Square/Rectangle
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: None
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 55 ft. , Width 6 ft. , Height 3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 2.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.6 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 14 ft.
Wetted Width: 9.4 ft.
Water Velocity: 0.6 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 150 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.4
Erosion: 0.3636 tons/year
Erosion Information
Total Erosion at Crossing: 0.3636 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
