Road Stream Crossing Site P159

Pine River Watershed, Fairchild Creek
W 46 Rd
Henderson Twp, Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.20823 , -85.59512
T21N R11W Sec 13
Owned by Federal
Private
Fish Passability 0
Perch Height: 0.1 ft.
Total Erosion: 2 tons/year
Severity: Severe
Year Inventoried: 2014

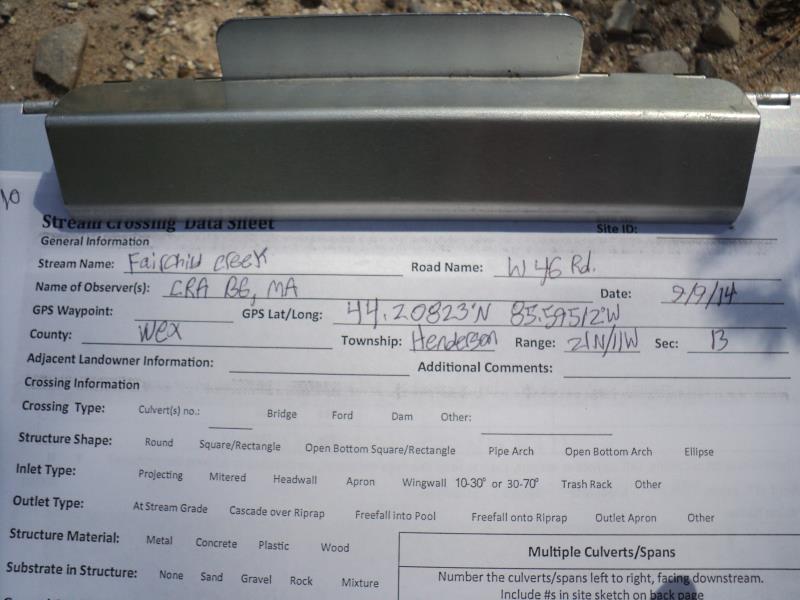

Site ID

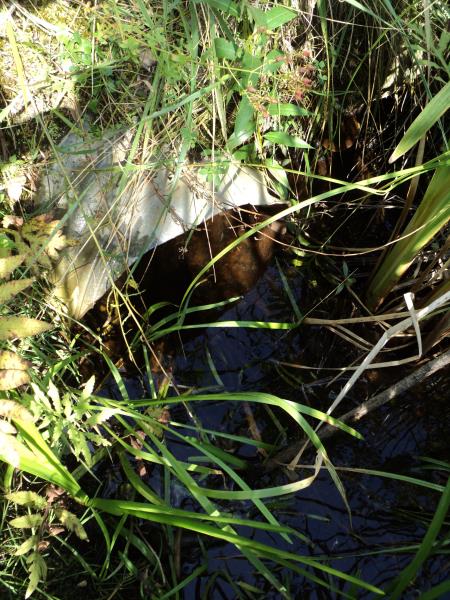

Inlet

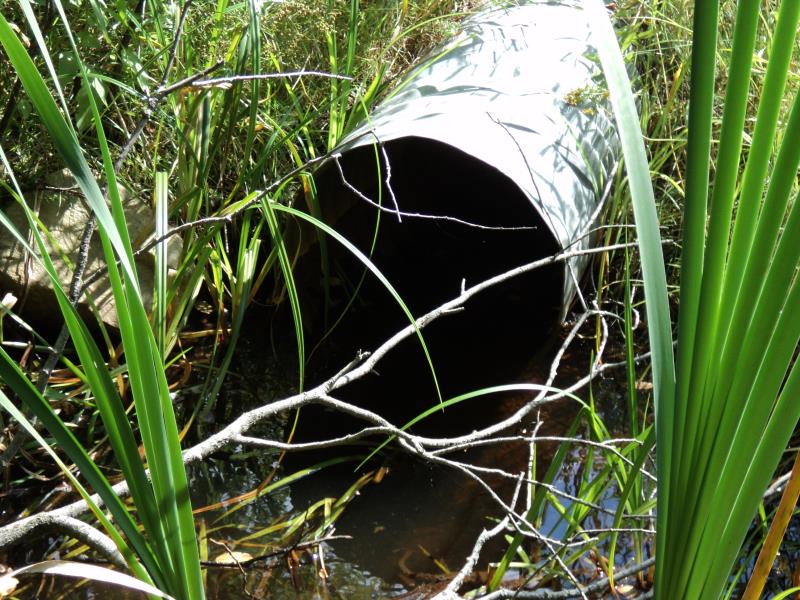

Outlet
Upstream Conditions

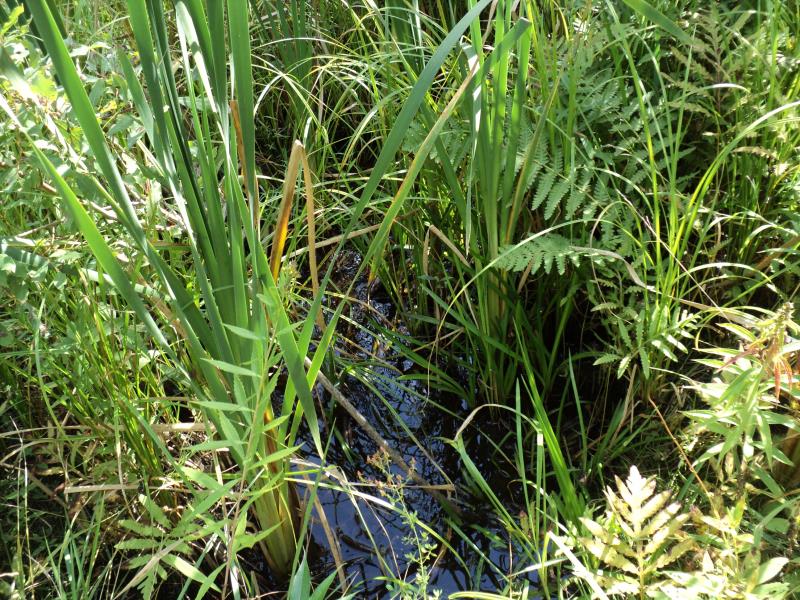

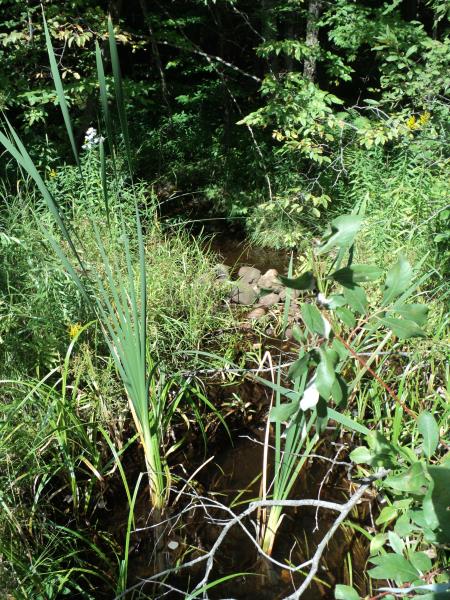

Downstream Conditions

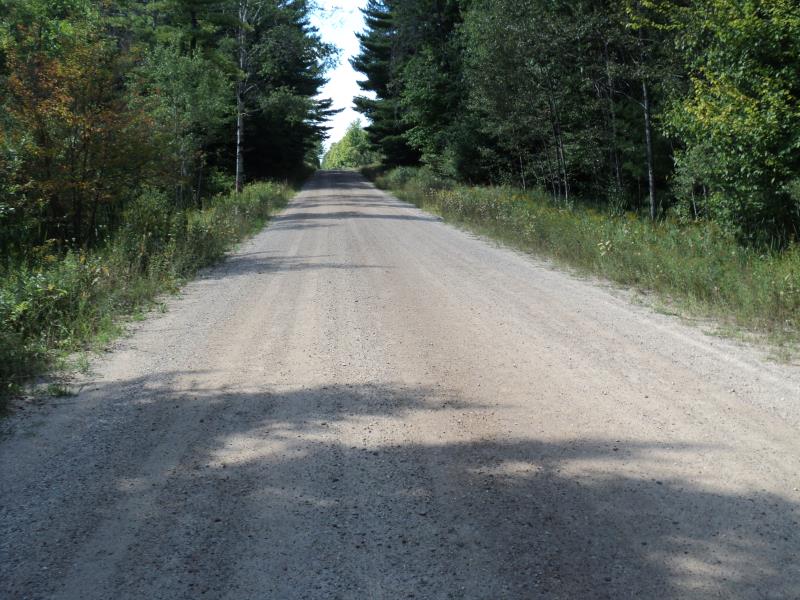

Road Approach - Left

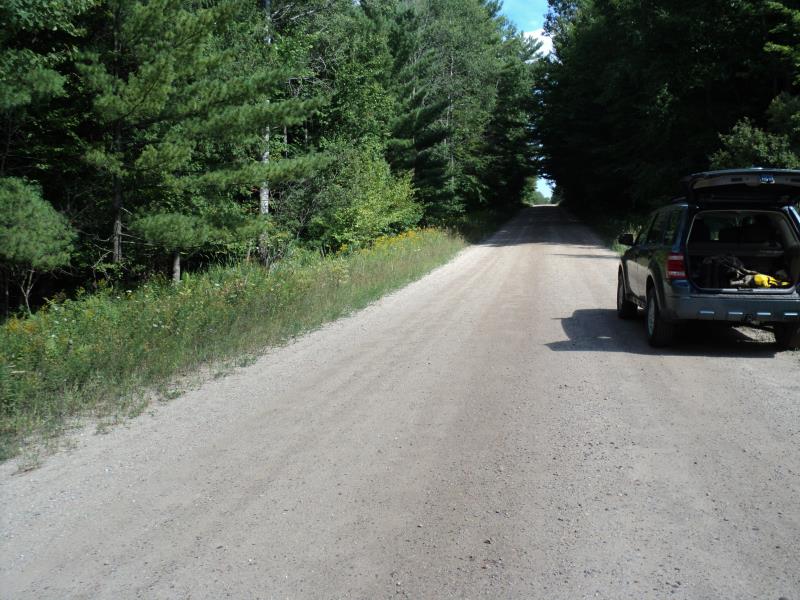

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 42 ft. , Width 1.5 ft. , Height 1.5 ft.
Perch Height: 0.1 ft.
Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
*Water Velocities were measured at the Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 10.5 ft. , Width 7 ft. , Depth 0.9 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 6 ft.
Wetted Width: 3.6 ft.
Water Velocity: 0.2 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 1.8 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.6 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.8364 tons/year
Right Approach
Length: 400 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.48
Erosion: 1.1636 tons/year
Erosion Information
Total Erosion at Crossing: 2 tons/year
Summary Information
Fish Passability 0
