Road Stream Crossing Site P160

Pine River Watershed, Poplar Creek
21 Rd / USFS #9787
Henderson Twp, Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.17888 , -85.62085
T21N R11W Sec 34
Owned by Federal
Structure is NOT Perched
Total Erosion: 0.5641 tons/year
Severity: Moderate
Year Inventoried: 2014

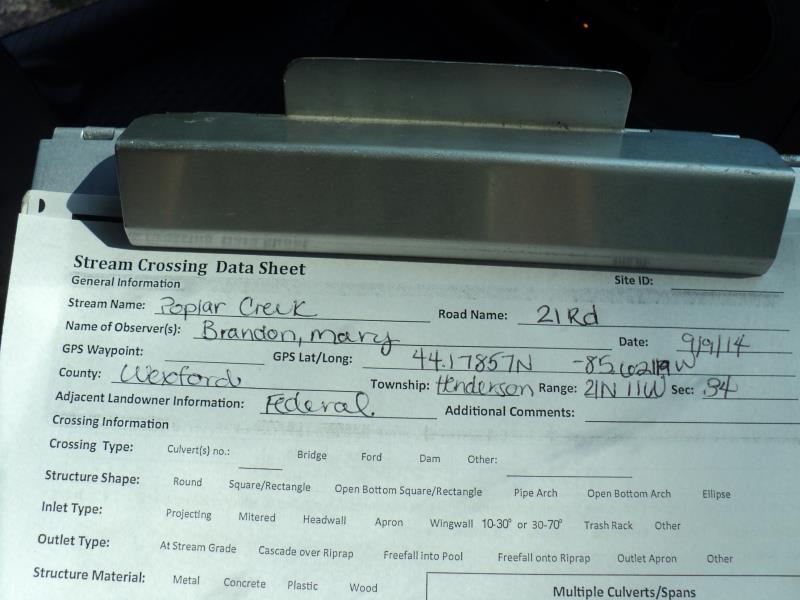

Site ID

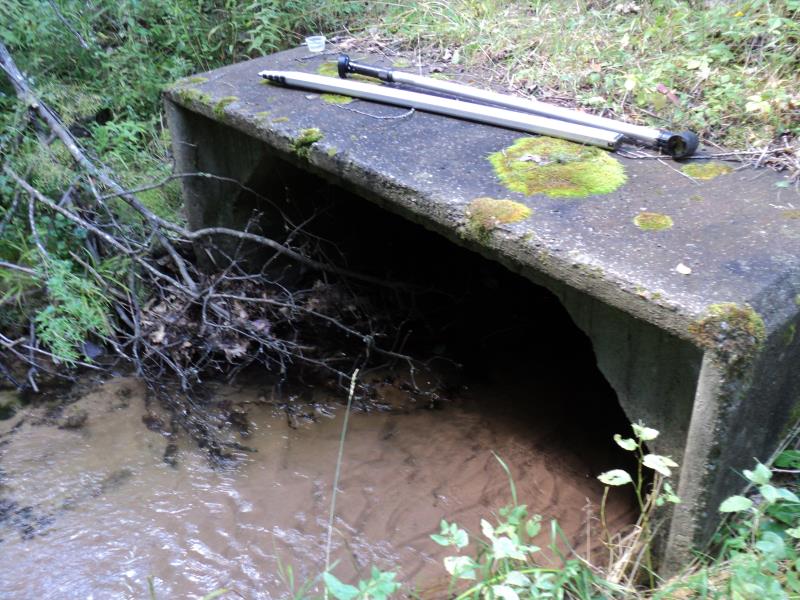

Inlet

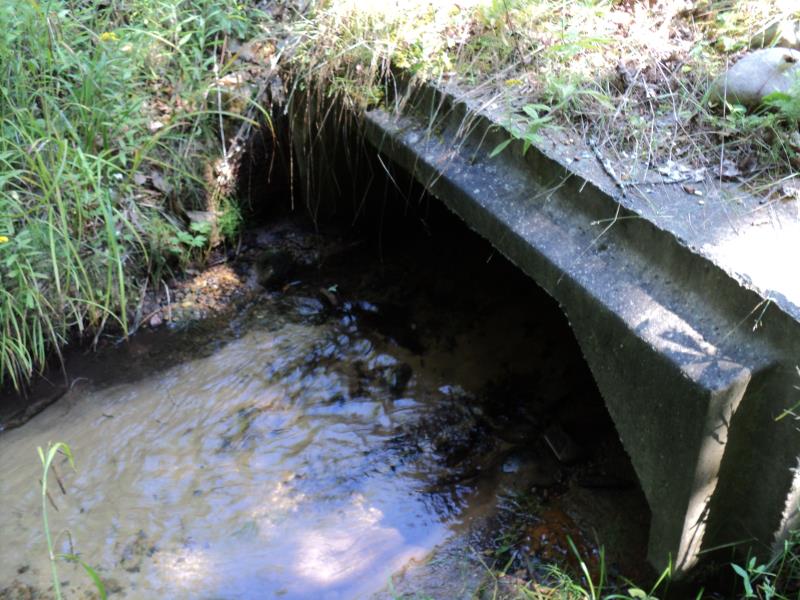

Outlet

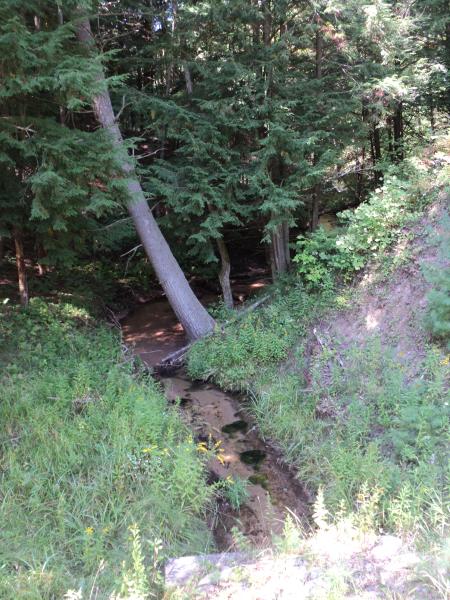

Upstream Conditions

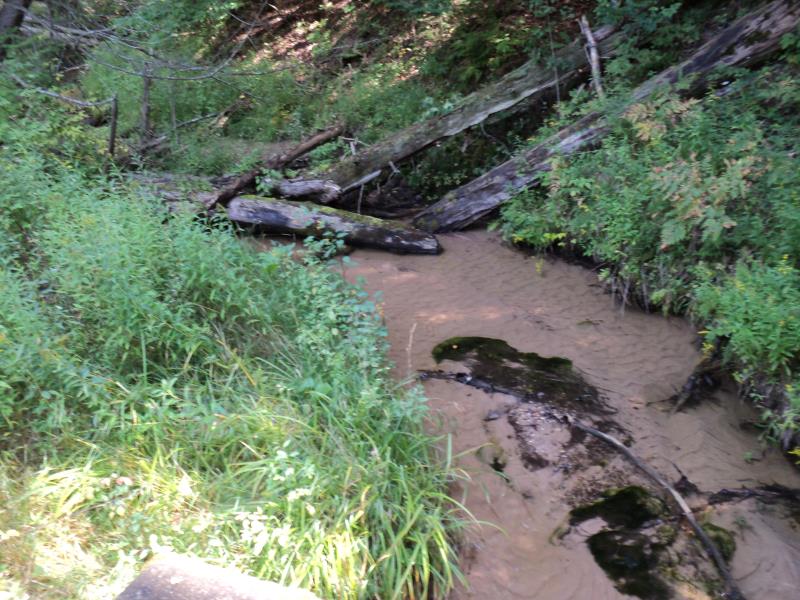

Downstream Conditions

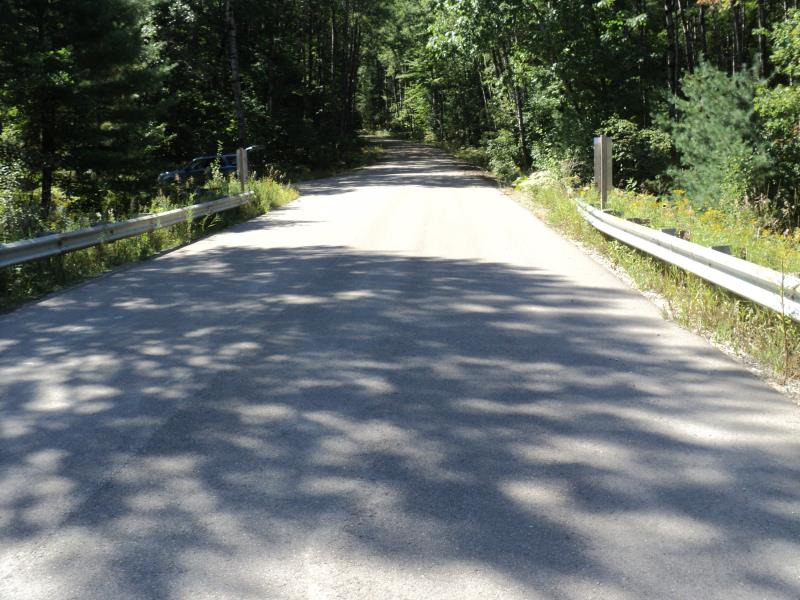

Road Approach - Left

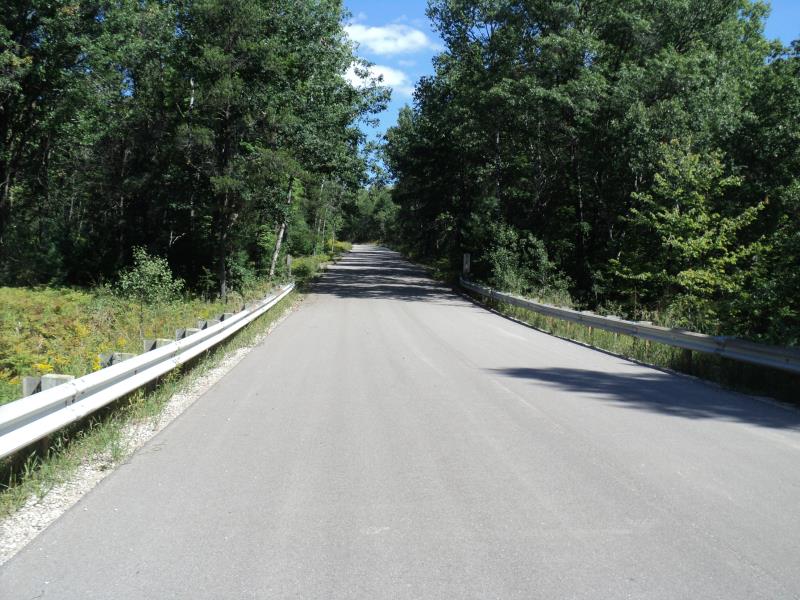

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Square/Rectangle
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 150 ft. , Width 6 ft. , Height 3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 0.6 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 1.6 ft./sec.
*Water Velocities were measured at the Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 14.3 ft.
Wetted Width: 9.4 ft.
Water Velocity: 0.9 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved Federal Road (Seasonal)
Road Condition: Good
Road Width at Culvert: 27 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 15.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 20 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 400 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.48
Erosion: 0.1714 tons/year
Right Approach
Length: 800 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.55
Erosion: 0.3927 tons/year
Erosion Information
Total Erosion at Crossing: 0.5641 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
