Road Stream Crossing Site P172

Pine River Watershed, Unknown (tributary to Pine River)
9 Rd
South Branch Twp, Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.17979 , -85.73964
T21N R12W Sec 27
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.1553 tons/year
Severity: Minor
Year Inventoried: 2014

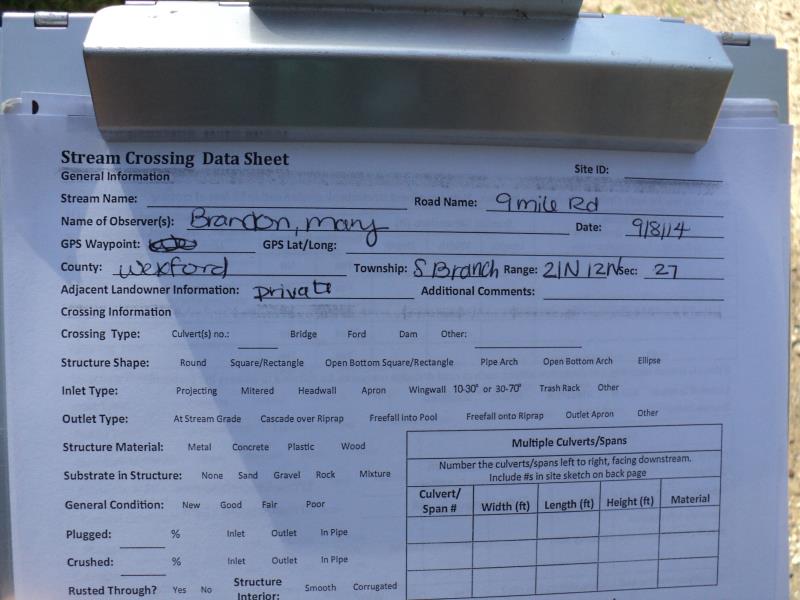

Site ID

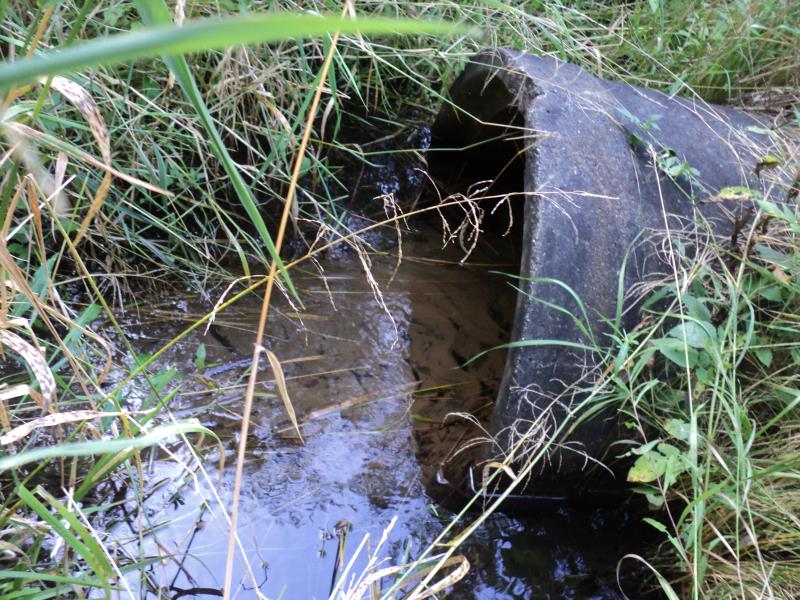

Inlet

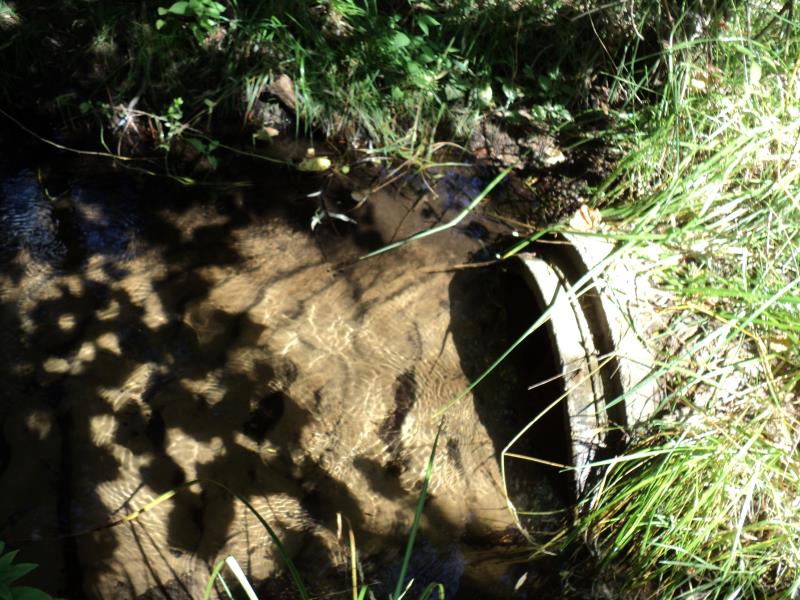

Outlet

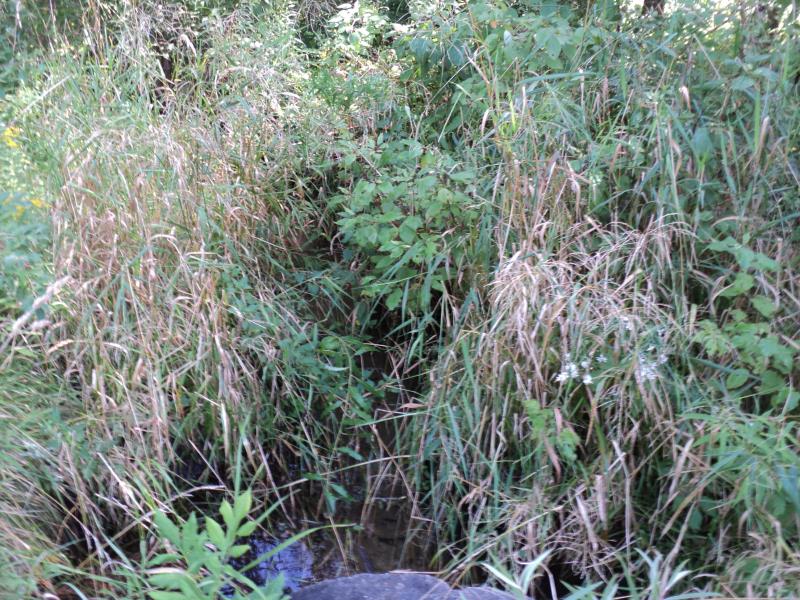

Upstream Conditions

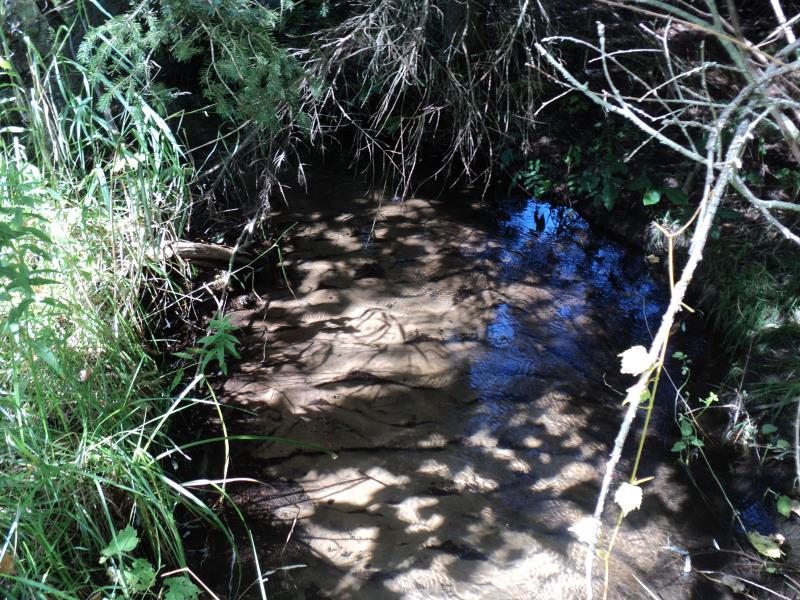

Downstream Conditions

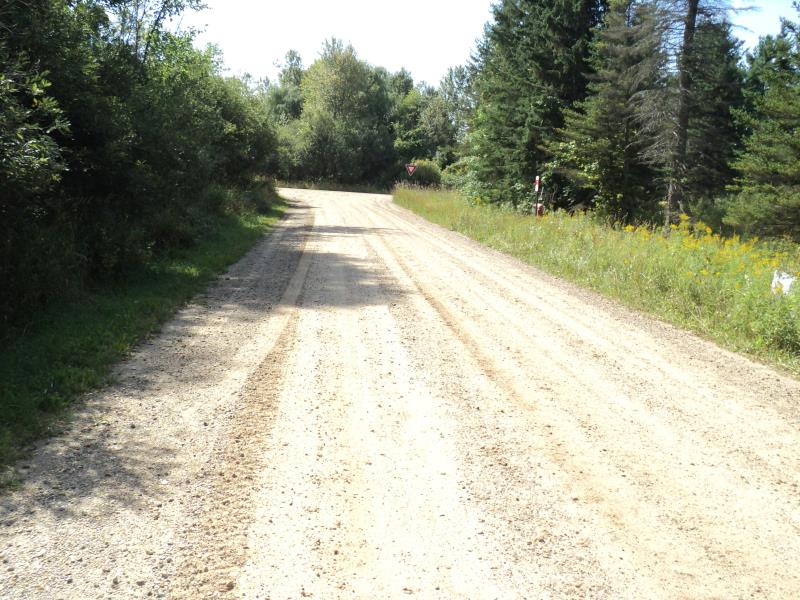

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 49.5 ft. , Width 2.5 ft. , Height 2.5 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0.6 ft.
Water Velocity*: 0.7 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 1.5 ft.
Water Velocity*: 0.5 ft./sec.
*Water Velocities were measured 0.6 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 5.5 ft.
Wetted Width: 4.5 ft.
Water Velocity: 0.4 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 20.5 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 180 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0508 tons/year
Right Approach
Length: 370 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.1045 tons/year
Erosion Information
Total Erosion at Crossing: 0.1553 tons/year
Summary Information
Fish Passability 0.9
