Road Stream Crossing Site P179
Pine River Watershed, Poplar Creek
17 Rd
Henderson Twp,
Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.17994
, -85.65801
T21N
R11W
Sec 29
Owned by Federal
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.2727 tons/year
Severity: Moderate
Year Inventoried: 2014

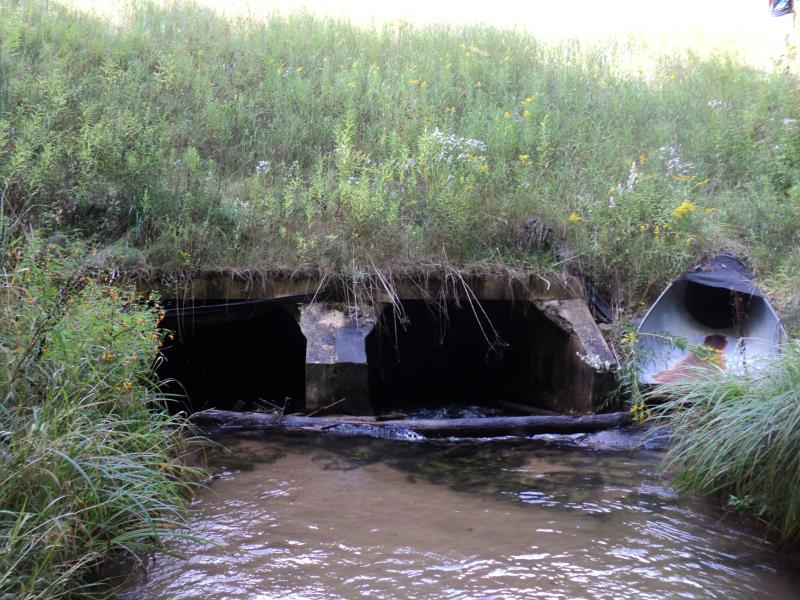

Inlet
Outlet

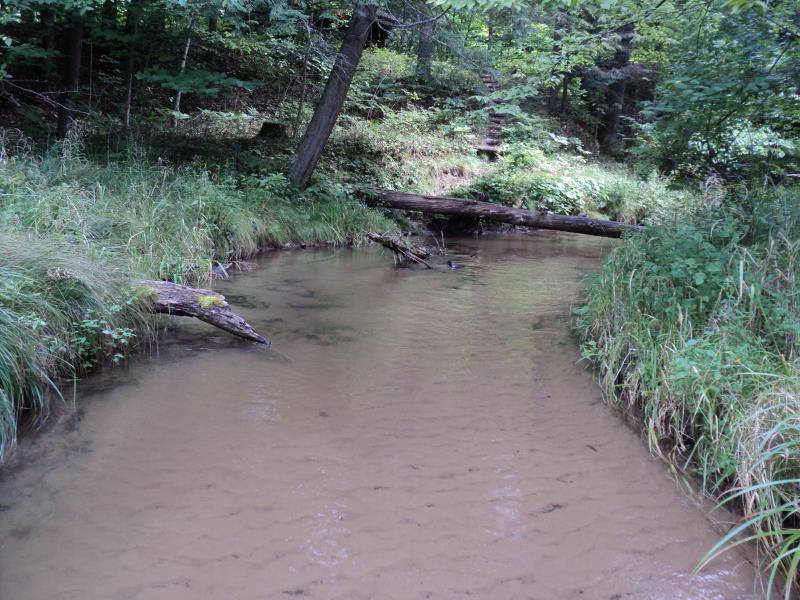

Upstream Conditions

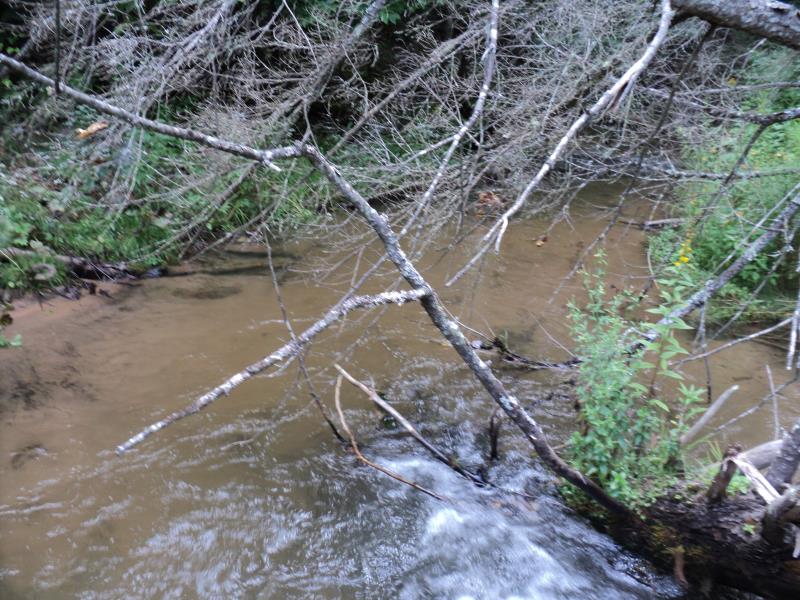

Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Square/Rectangle
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: None
General Conditions: Fair
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
2 |
6 ft. |
94.5 ft. |
4 ft. |
Concrete |
Structure Interior: smooth
Dimensions of Structure: Length 94.5 ft.
, Width 6 ft.
, Height 4 ft.
Percentage Plugged:
Inlet: 1% to 25%
Outlet: 0%
In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.5 ft./sec.
Structure Outlet
Water Depth: 1.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3 ft./sec.
*Water Velocities were measured 0.6 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 18 ft.
, Width 15 ft.
, Depth 2.5 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 1.4 ft.
Bankfull Width: 10 ft.
Wetted Width: 8 ft.
Water Velocity: 2 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 25 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 18 ft.
Slope: More than 1:2
Downstream
Fill Depth: 19.8 ft.
Slope: 1:2
Approaches
Left Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.114 tons/year
Right Approach
Length: 400 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.48
Erosion: 0.1587 tons/year
Erosion Information
Total Erosion at Crossing: 0.2727 tons/year
Summary Information
Fish Passability 0.5
