Road Stream Crossing Site P184

Pine River Watershed, Unknown (tributary to Pine River)
Lincoln Hills Rd
Newkirk Twp, Lake County
Information collected by:
Site Location
GPS Coordinates: 44.12693 , -85.69933
T20N R12W Sec 13
Owned by State
Fish Passability 0
Perch Height: 0.8 ft.
Total Erosion: 0.616 tons/year
Severity: Severe
Year Inventoried: 2014

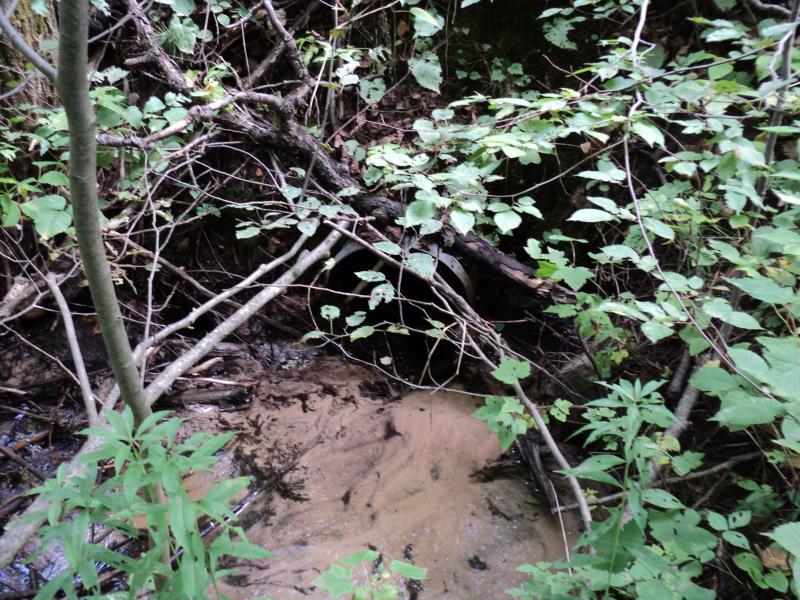

Inlet

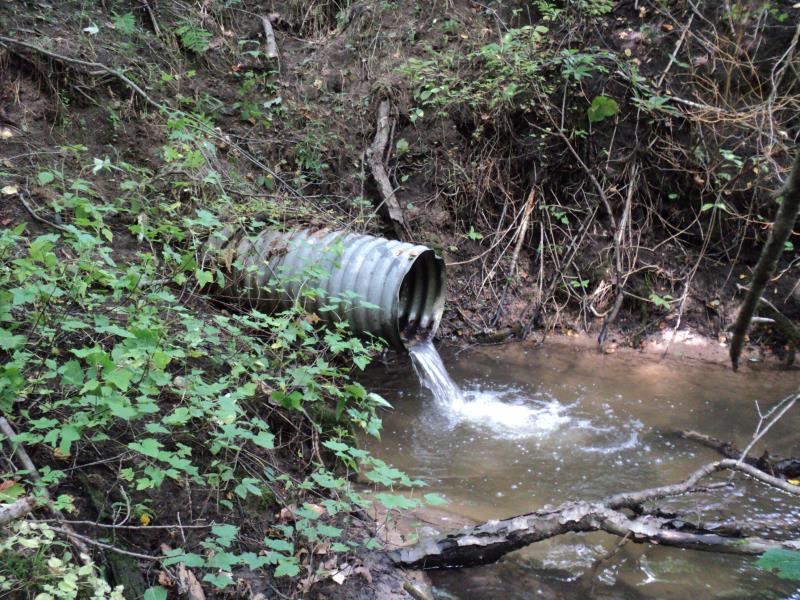

Outlet

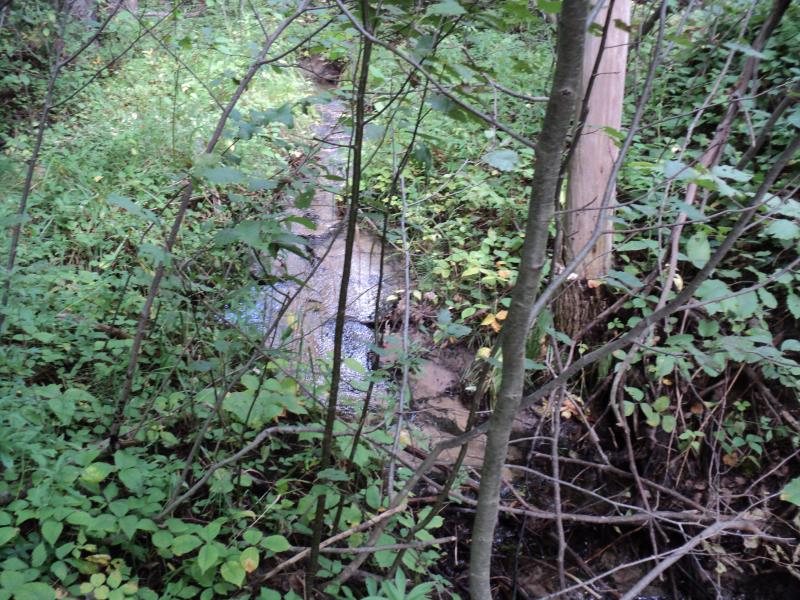

Upstream Conditions

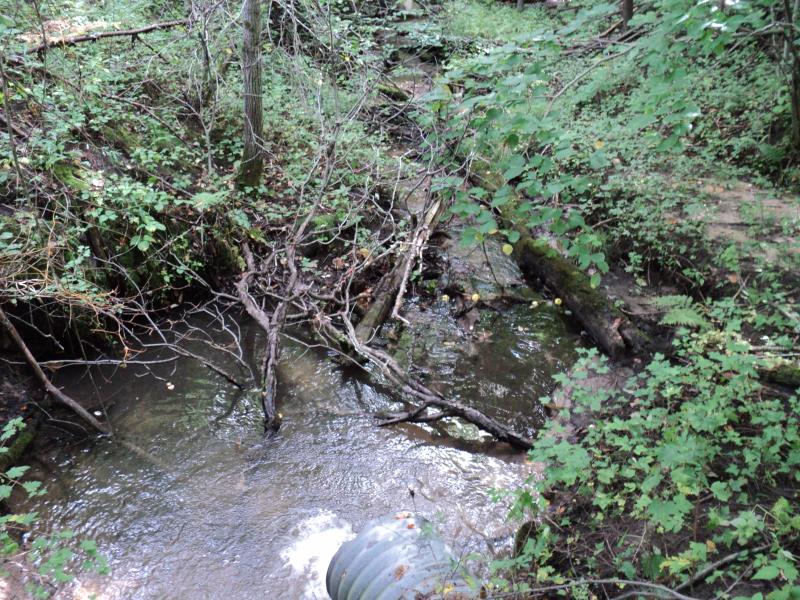

Downstream Conditions

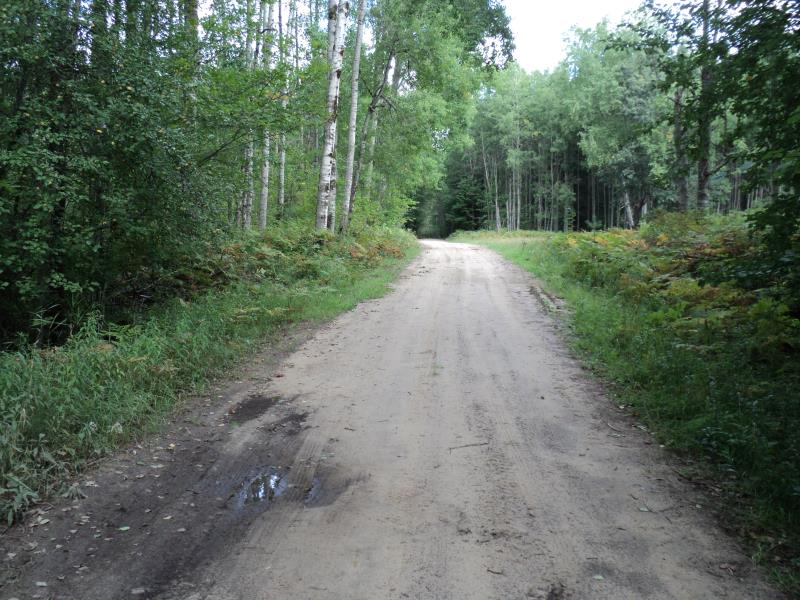

Road Approach - Left

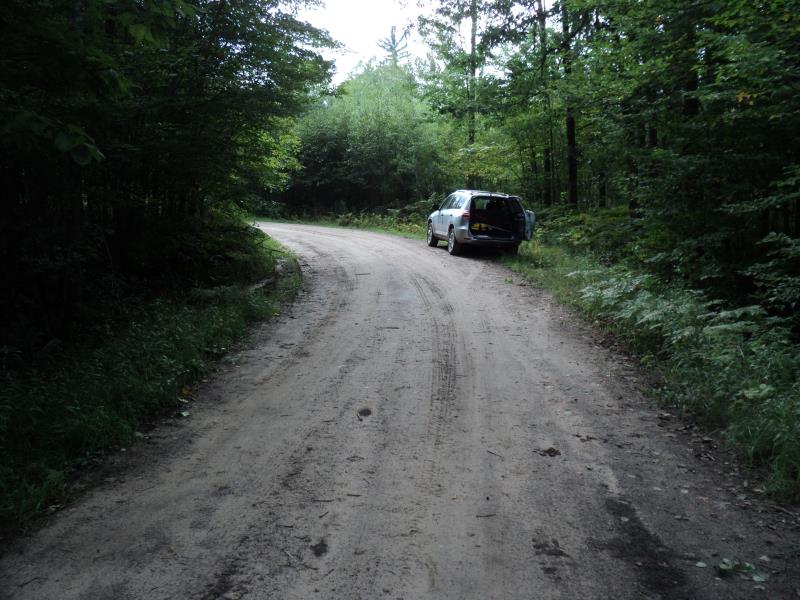

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 42 ft. , Width 1.5 ft. , Height 1.5 ft.
Percentage Plugged: Inlet: 1% to 25% Outlet: 0% In Pipe: 0%
Perch Height: 0.8 ft.
Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.4 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.3 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 12 ft. , Width 12 ft. , Depth 1.7 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 3.5 ft.
Wetted Width: 2.5 ft.
Water Velocity: 0.6 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Sand County Road
Road Condition: Fair
Road Width at Culvert: 13 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 6.5 ft.
Slope: 1:1
Downstream
Fill Depth: 7 ft.
Slope: 1:2
Approaches
Left Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.308 tons/year
Right Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.308 tons/year
Erosion Information
Total Erosion at Crossing: 0.616 tons/year
Extent of Erosion: Severe
Notes: Severe erosion on outlet side, steep sandy banks.
Summary Information
Fish Passability 0
