Road Stream Crossing Site P186
Pine River Watershed, North Branch Pine River
White Pine-Rail Trail
Clam Lake Twp,
Wexford County
Information collected by:
Site Location
GPS Coordinates: 44.20806
, -85.44647
T21N
R9W
Sec 19
Owned by Private
Structure is NOT Perched
Total Erosion: 0.0331 tons/year
Severity: Moderate
Year Inventoried: 2014

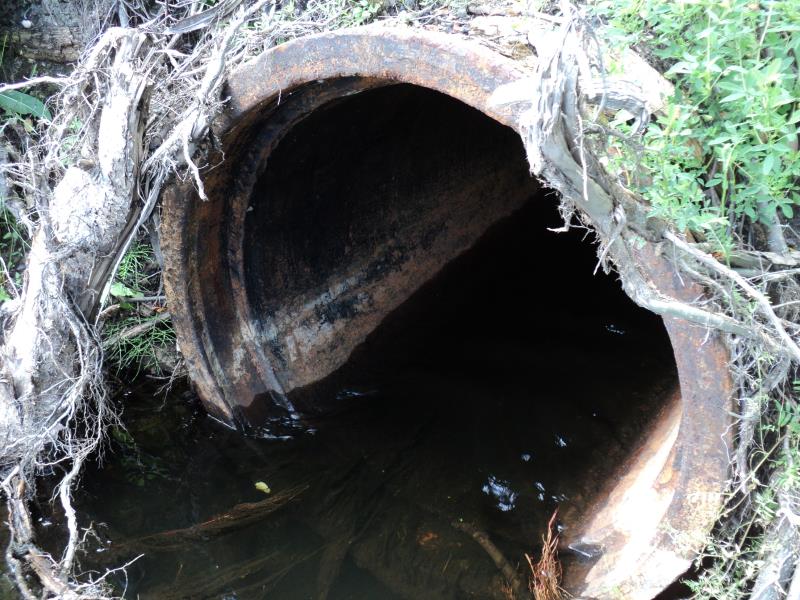

Inlet

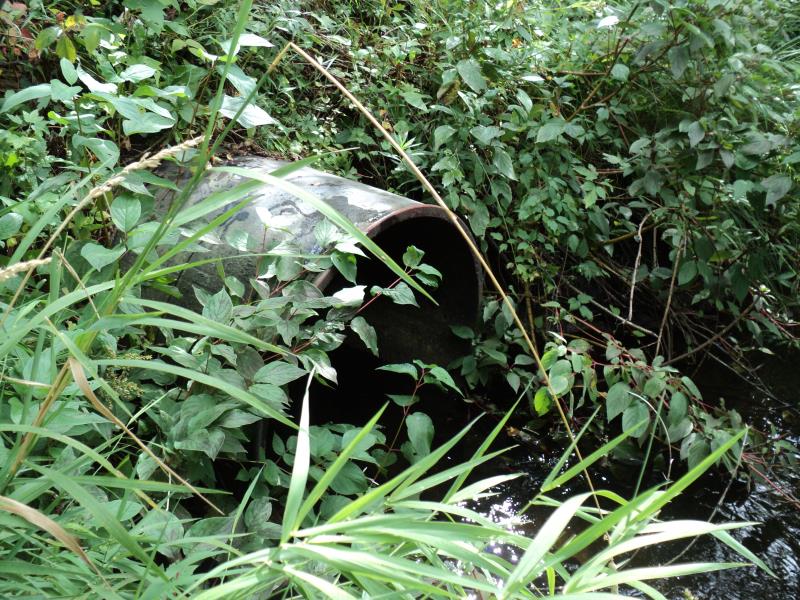

Outlet

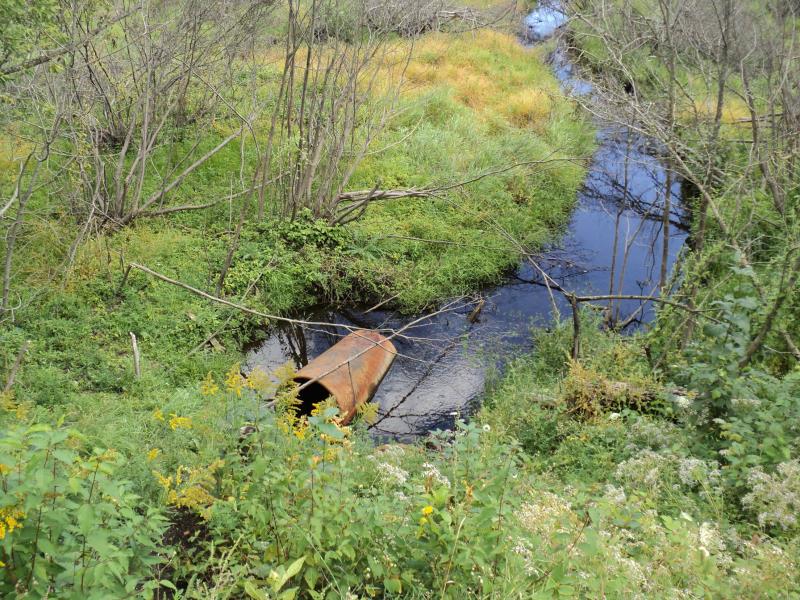

Upstream Conditions

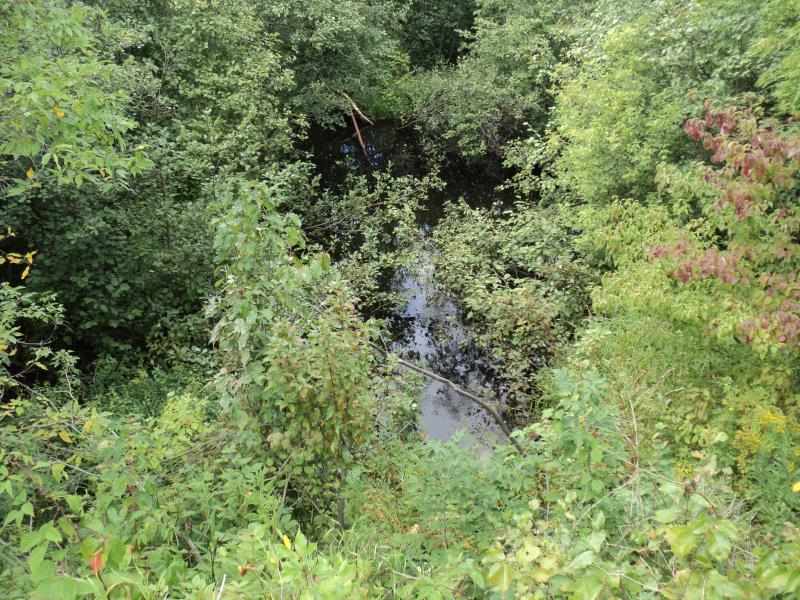

Downstream Conditions

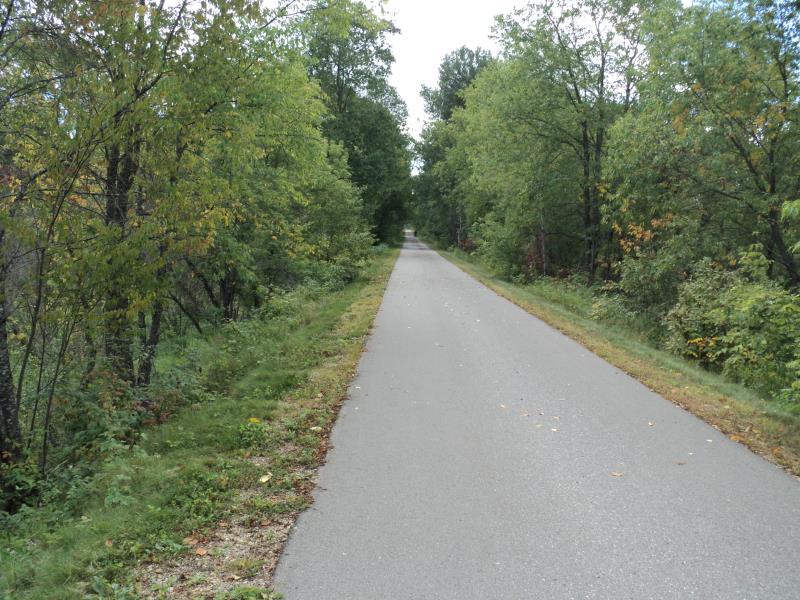

Road Approach - Left

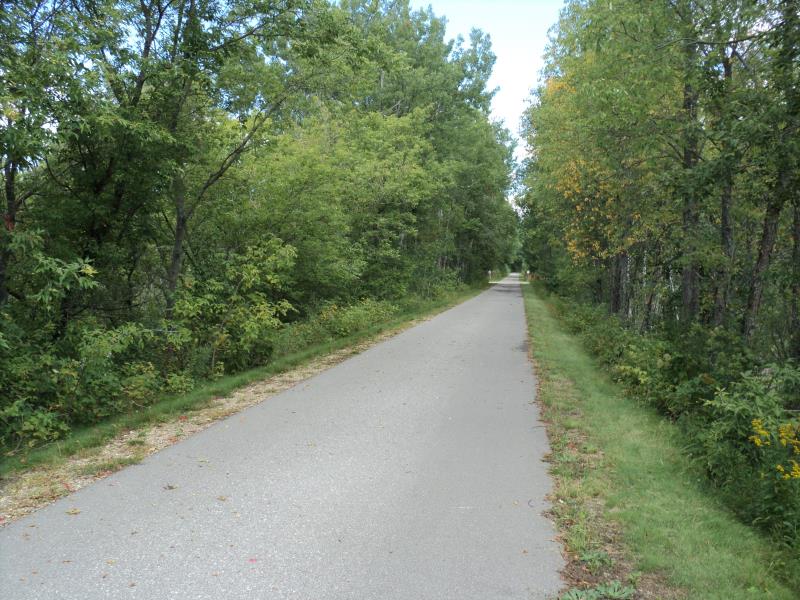

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 50 ft.
, Width 3 ft.
, Height 3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.7 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.2 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.8 ft.
Bankfull Width: 13 ft.
Wetted Width: 10 ft.
Water Velocity: 0.5 ft./sec.
(Measured with Meter)
Dominant Substrate: Organics
Road Information
Paved
Other Road
Road Condition: Good
Road Width at Culvert: 10 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 20 ft.
Slope: 1:1
Downstream
Fill Depth: 20 ft.
Slope: 1:1
Approaches
Left Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0165 tons/year
Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0165 tons/year
Erosion Information
Total Erosion at Crossing: 0.0331 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
