Road Stream Crossing Site Jordan_JO-8

Lake Charlevoix Watershed, Jordan River
Old State Rd
Jordan Twp, Antrim County
Information collected by:
Site Location
GPS Coordinates: 45.060401380705 , -85.0690438486774
T31N R6W Sec 29
Owned by Private
State
Total Erosion: 0.0511 tons/year
Severity: Restored
Year Inventoried: 2019

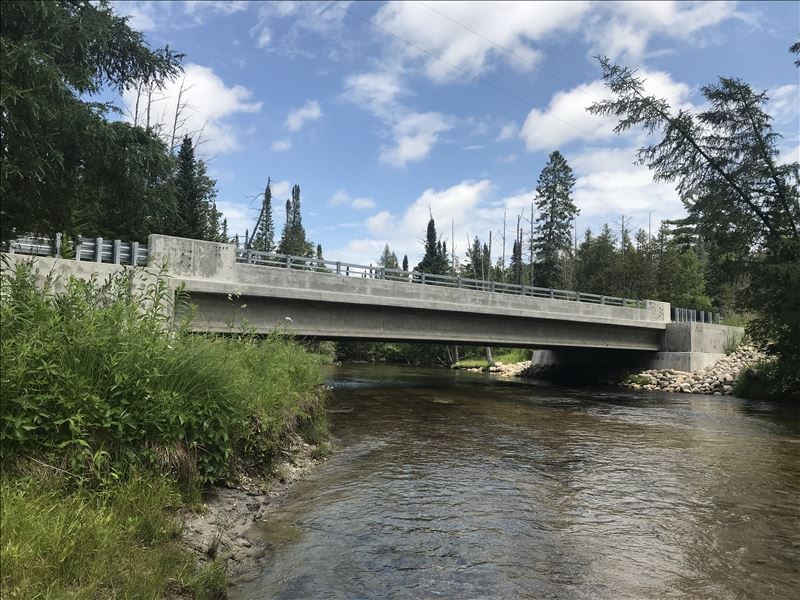

Inlet

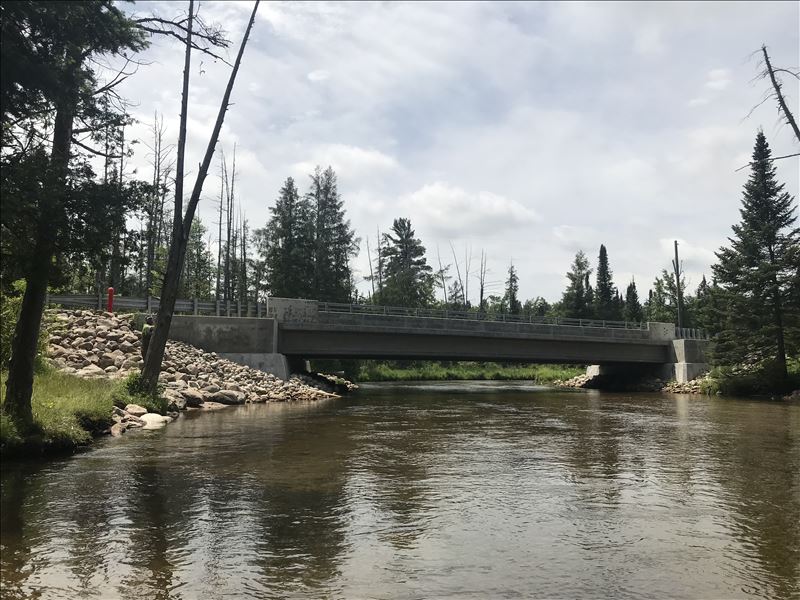

Outlet

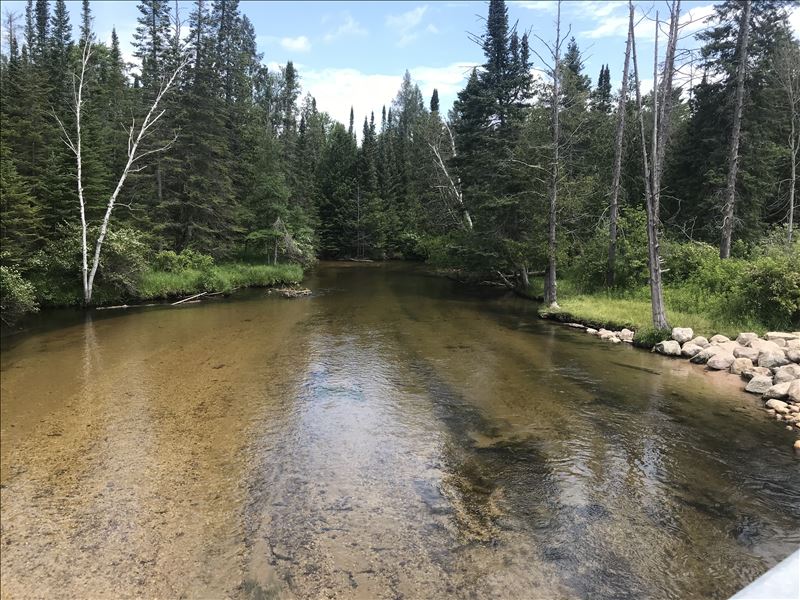

Upstream Conditions

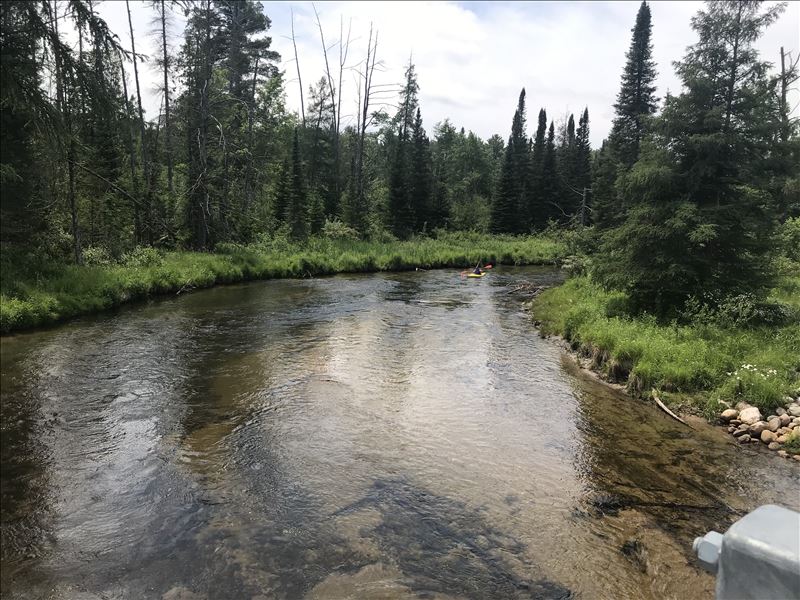

Downstream Conditions

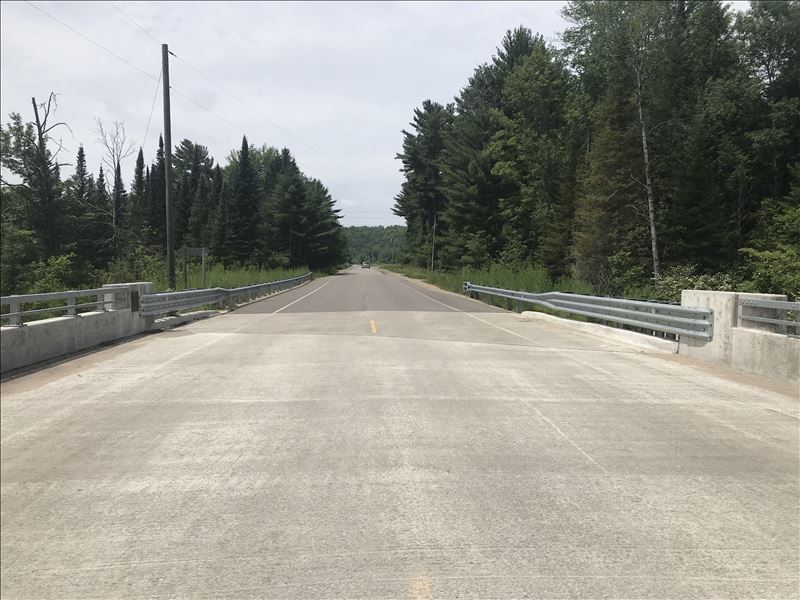

Road Approach - Left

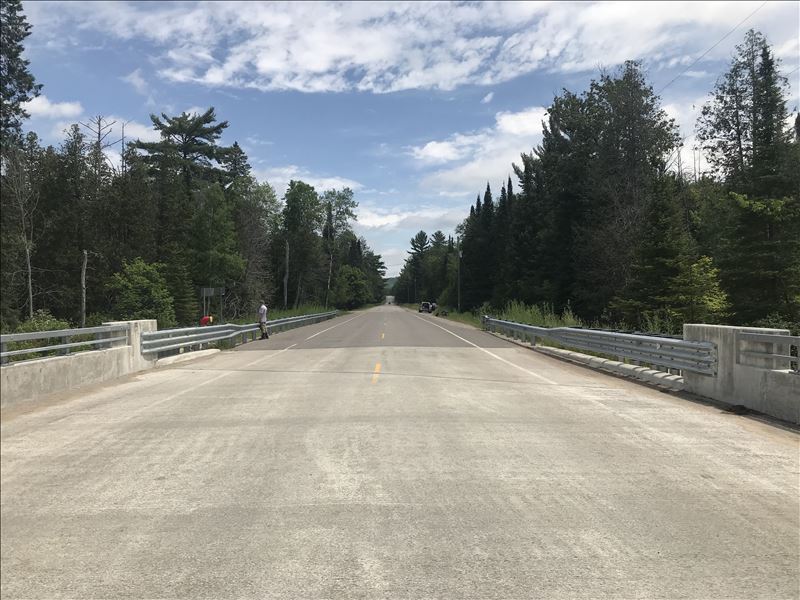

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 10-30 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: New
Structure Interior: smooth
Dimensions of Structure: Length 37.5 ft. , Width 90 ft. , Height 8 ft.
Structure Inlet
Water Depth: 1.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.3 ft./sec.
Structure Outlet
Water Depth: 1.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.3 ft./sec.
*Water Velocities were measured 1 ft. below Surface (with Meter)
Additional Comments

Site restored in 2017. For more information visit www.rivercare.org Chestonia Bridge Project

Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 3.7 ft.
Bankfull Width: 54.25 ft.
Wetted Width: 45 ft.
Water Velocity: 2.2 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 34 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: More than 1:2
Fill Depth: 0 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 150 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0084 tons/year
Right Approach
Length: 100 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.38
Erosion: 0.0427 tons/year
Erosion Information
Total Erosion at Crossing: 0.0511 tons/year
Extent of Erosion: Stabilized
Summary Information
Erosion is an area of concern for this site.
