Road Stream Crossing Site ST008
Sturgeon River Watershed, Sturgeon River
White Rd
Mentor Twp,
Cheboygan County
Information collected by:
Site Location
GPS Coordinates: 45.338659
, -84.627569
T34N
R03W
Sec 13
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.3954 tons/year
Severity: Moderate
Year Inventoried: 2015
Site ID

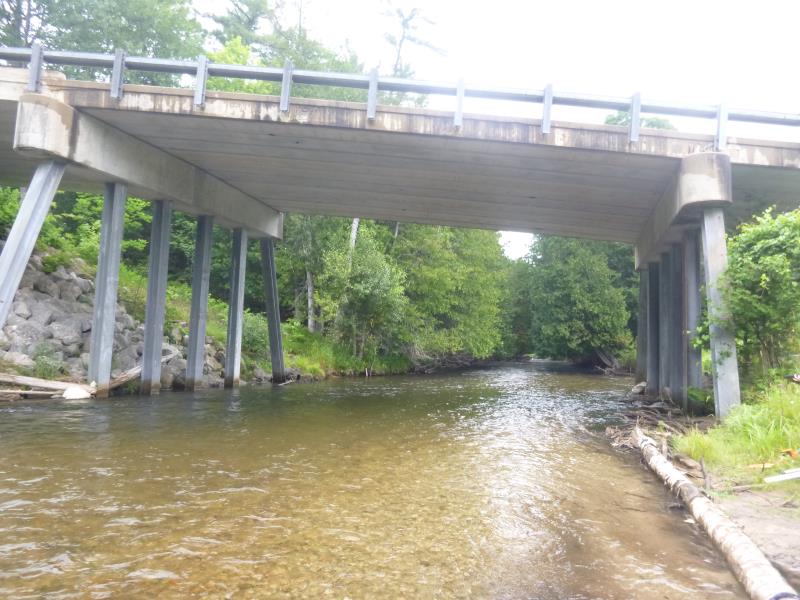

Inlet

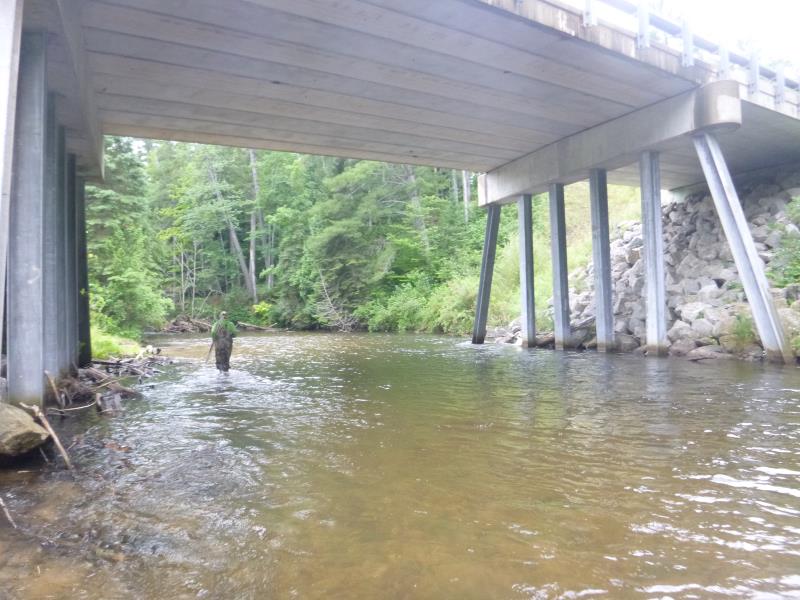

Outlet

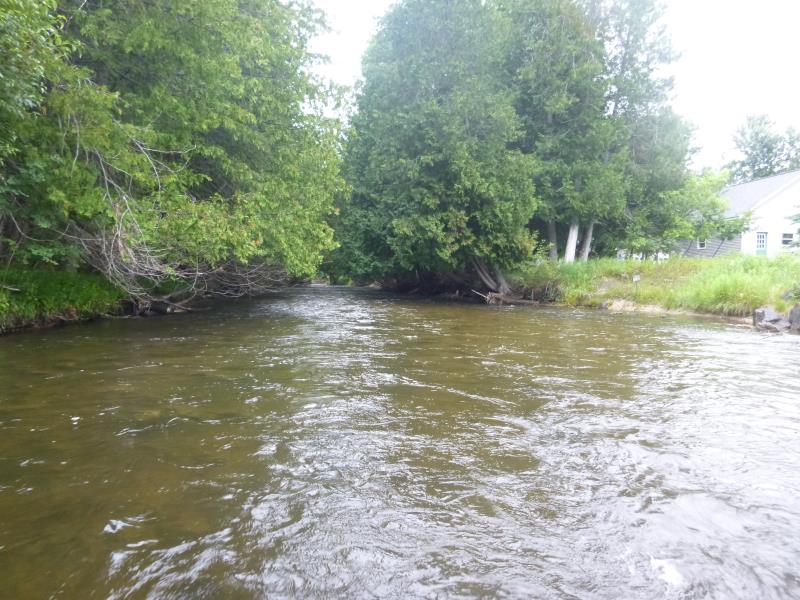

Downstream Conditions

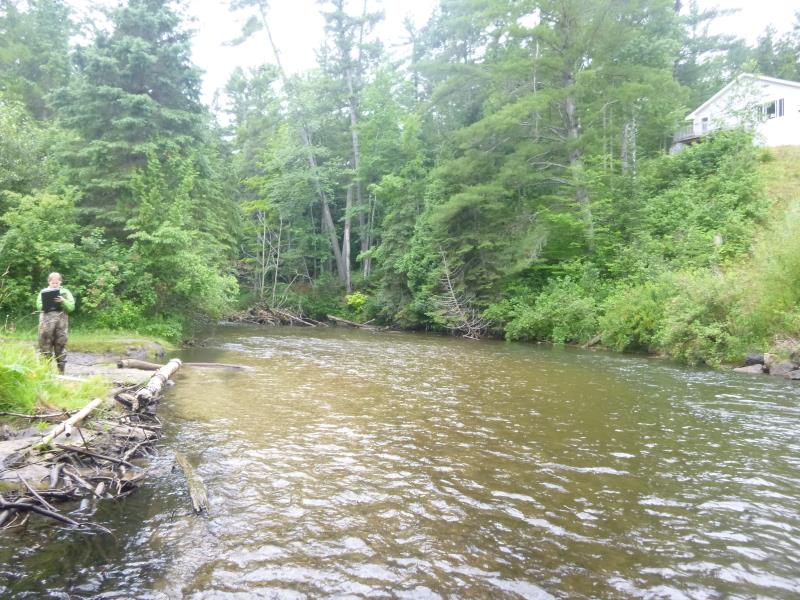

Upstream Conditions

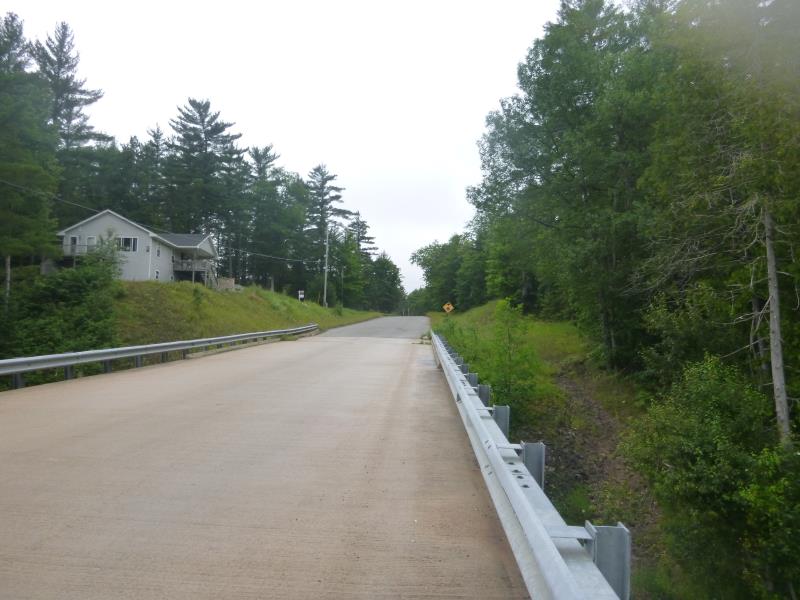

Road Approach - Left

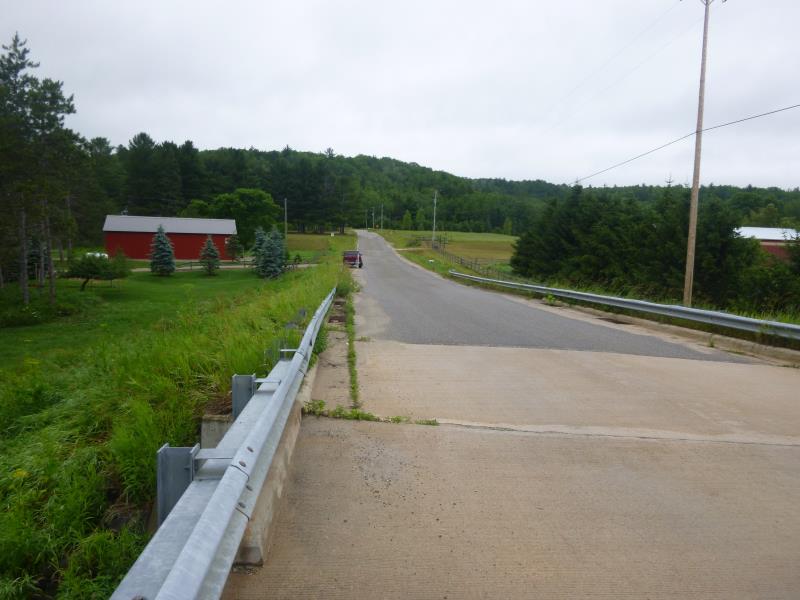

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Other
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Gravel
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 31 ft.
, Width 131.7 ft.
, Height 22.3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 2.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3 ft./sec.
Structure Outlet
Water Depth: 2.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.6 ft./sec.
*Water Velocities were measured 2 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Road Information
Paved
State Road
Road Condition: Good
Road Width at Culvert: 31 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 539 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.508
Erosion: 0.2805 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.3954 tons/year
Extent of Erosion: Moderate
Erosion is occurring and corrective actions can be installed to address the problem.
Notes: River access point
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Total Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | |
Right Upstream Streambank |
22.7 ft. |
24.3 ft. |
0.4 ft. |
yes |
Sandy Loam |
0.061 |
Left Downstream Streambank |
35 ft. |
6 ft. |
0.2 ft. |
yes |
Sand |
0.0539 |
Summary Information
Fish Passability 1
A future visit to this site is recommended. Monitor erosion around access site
These non-native species were observerd at this site: Wild parsnip
