Road Stream Crossing Site ST016
Sturgeon River Watershed, Sturgeon River
Scott Rd
Ellis Twp,
Cheboygan County
Information collected by:
Site Location
GPS Coordinates: 45.29141
, -84.605864
T34N
R02W
Sec 31
Owned by Private
State
State
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.0704 tons/year
Severity: Minor
Year Inventoried: 2015
Site ID

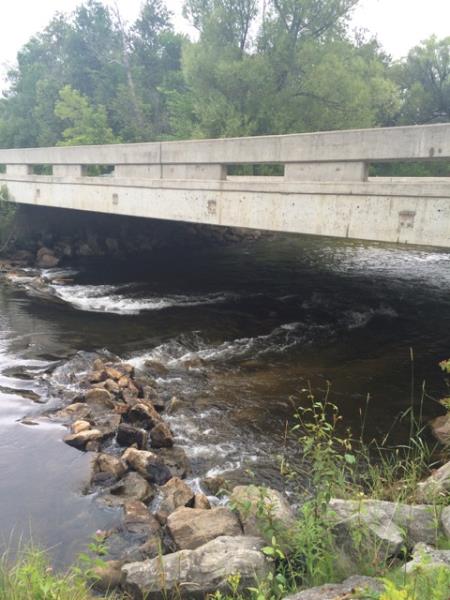

Inlet

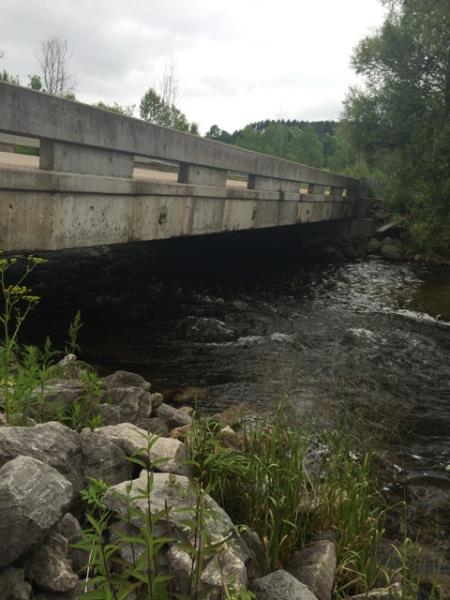

Outlet

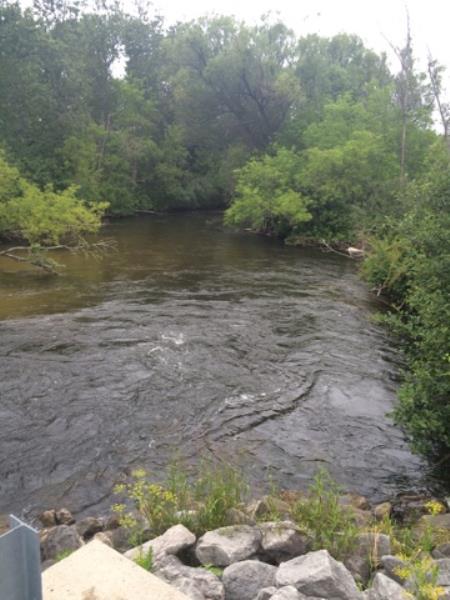

Downstream Conditions

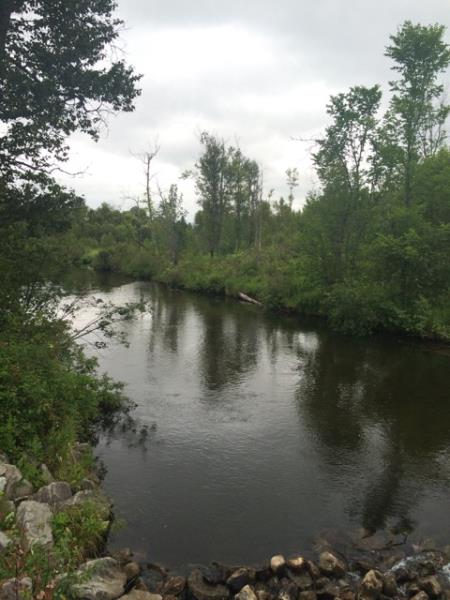

Upstream Conditions

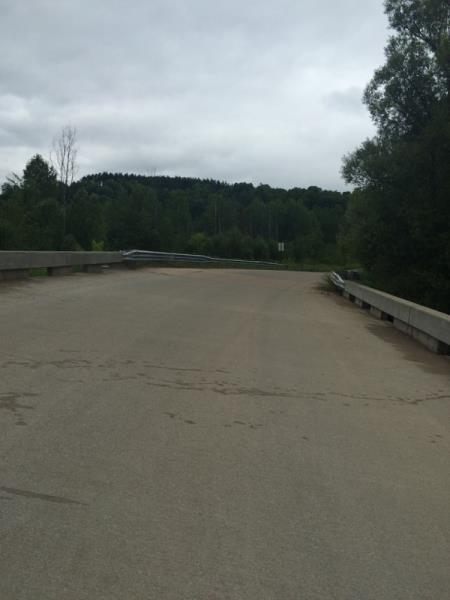

Road Approach - Left

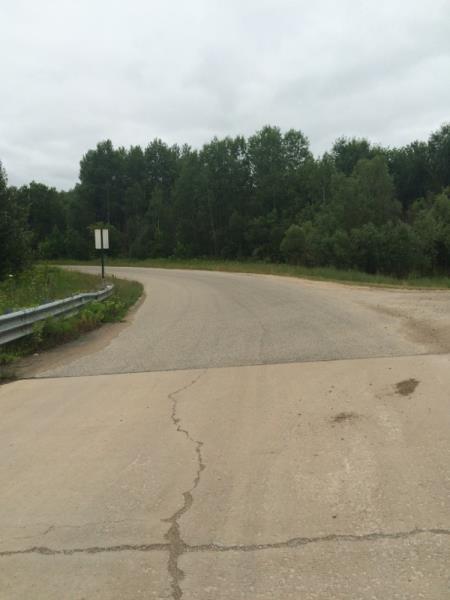

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Other
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Rock
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 34 ft.
, Width 71.7 ft.
, Height 8.3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 3.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 7 ft./sec.
Structure Outlet
Water Depth: 7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 7 ft./sec.
*Water Velocities were measured at the Surface
(with Estimate)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 32 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 151 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.441
Erosion: 0.0704 tons/year
Erosion Information
Total Erosion at Crossing: 0.0704 tons/year
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Wild parsnip, leafy spurge
