Road Stream Crossing Site ST058

Sturgeon River Watershed, Sturgeon River
Trowbridge Rd
Nunda Twp, Cheboygan County
Information collected by:
Tip of the Mitt Watershed Council
Site Location
GPS Coordinates: 45.222304 , -84.588177
T33N R02W Sec 29
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.08 tons/year
Severity: Minor
Year Inventoried: 2015
Site ID

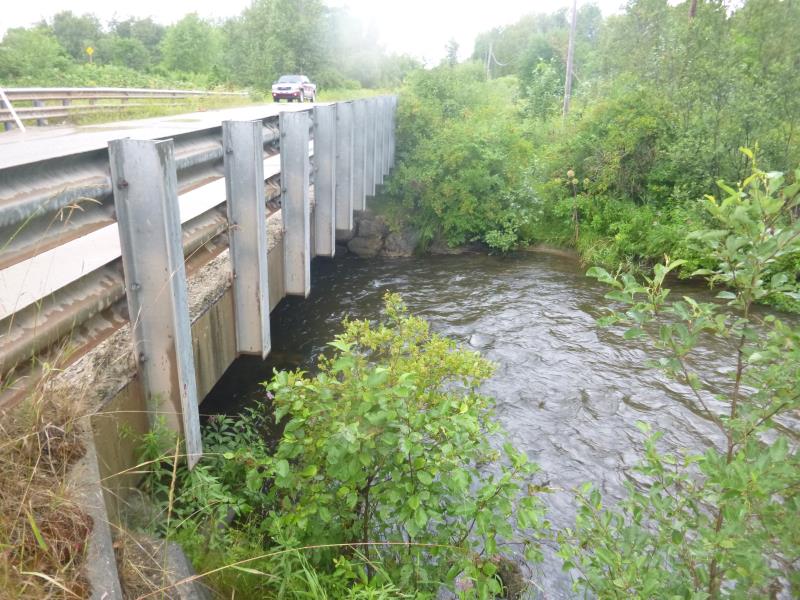

Inlet

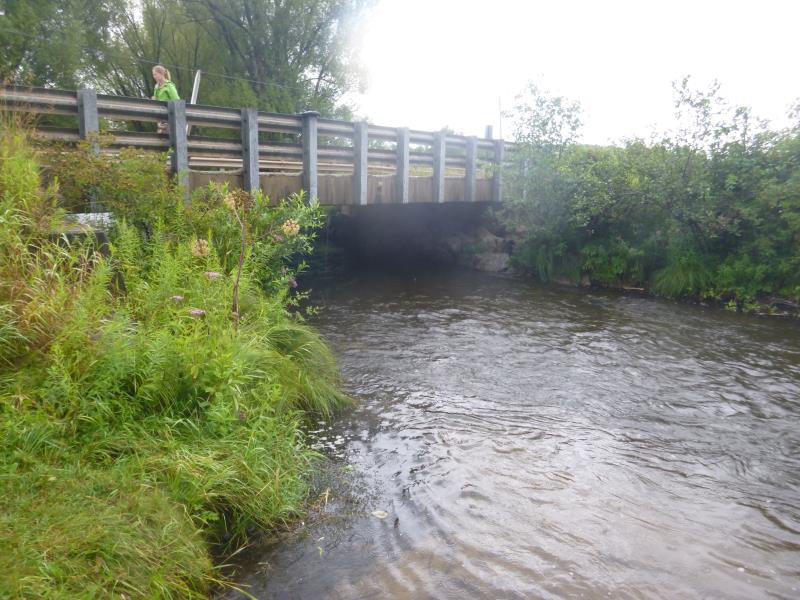

Outlet

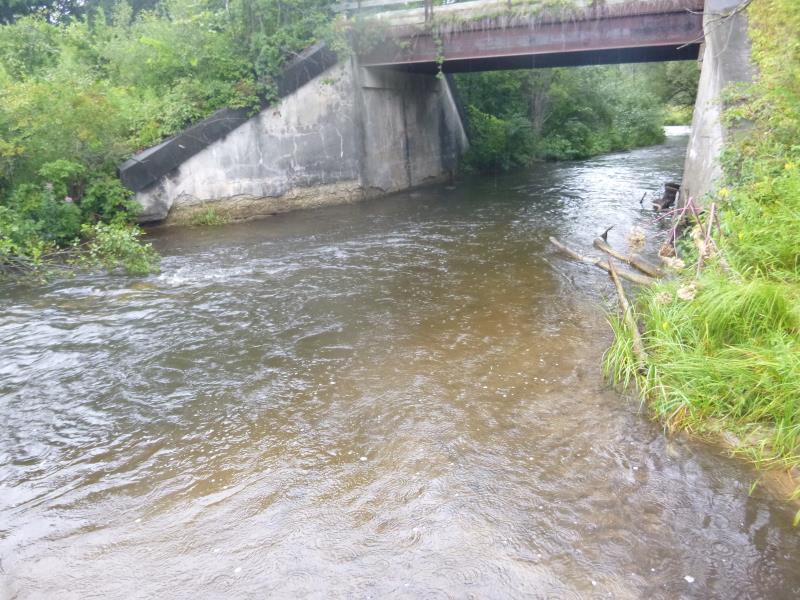

Downstream Conditions

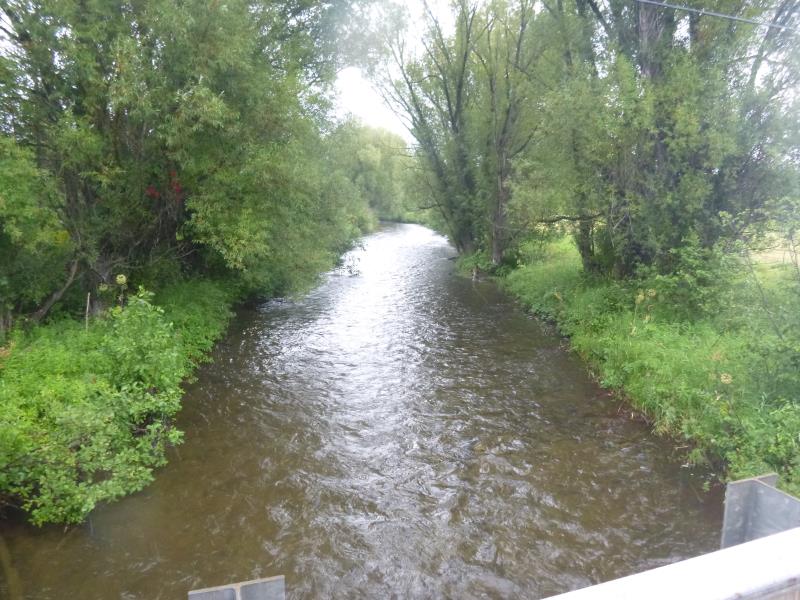

Upstream Conditions

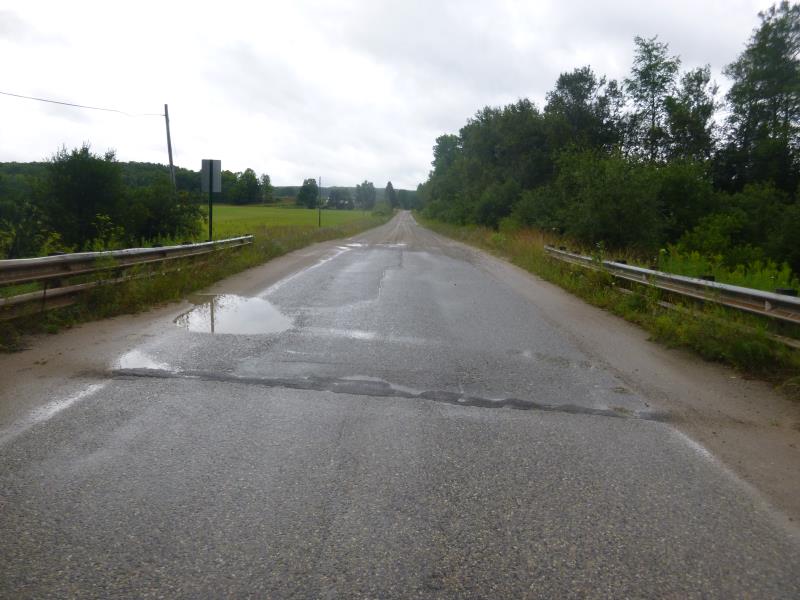

Road Approach - Left

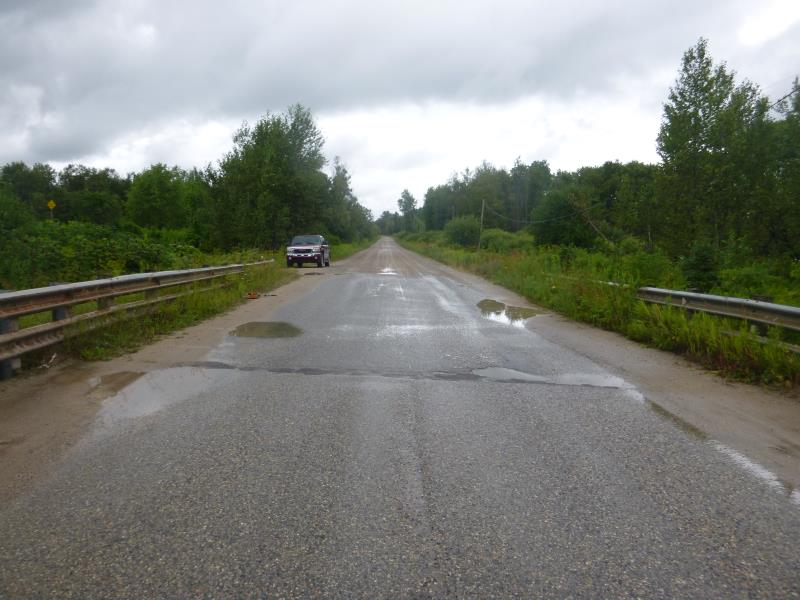

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 10-30 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 30 ft. , Width 44.6 ft. , Height 7.4 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.7 ft./sec.
Structure Outlet
Water Depth: 2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.7 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
(Measured with Meter)
Road Information
Paved State Road
Road Condition: Fair
Road Width at Culvert: 30 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 105 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.382
Erosion: 0.0398 tons/year
Right Approach
Length: 106 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.382
Erosion: 0.0402 tons/year
Erosion Information
Total Erosion at Crossing: 0.08 tons/year
Summary Information
Fish Passability 1
These non-native species were observerd at this site: Wild parsnip, spotted knapweed
