Road Stream Crossing Site ST132
Sturgeon River Watershed, Club Stream
Fontinalis Rd
Corwith Twp,
Otsego County
Information collected by:
Site Location
GPS Coordinates: 45.1645
, -84.591283
T32N
R02W
Sec 17
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.3396 tons/year
Severity: Minor
Year Inventoried: 2015
Site ID

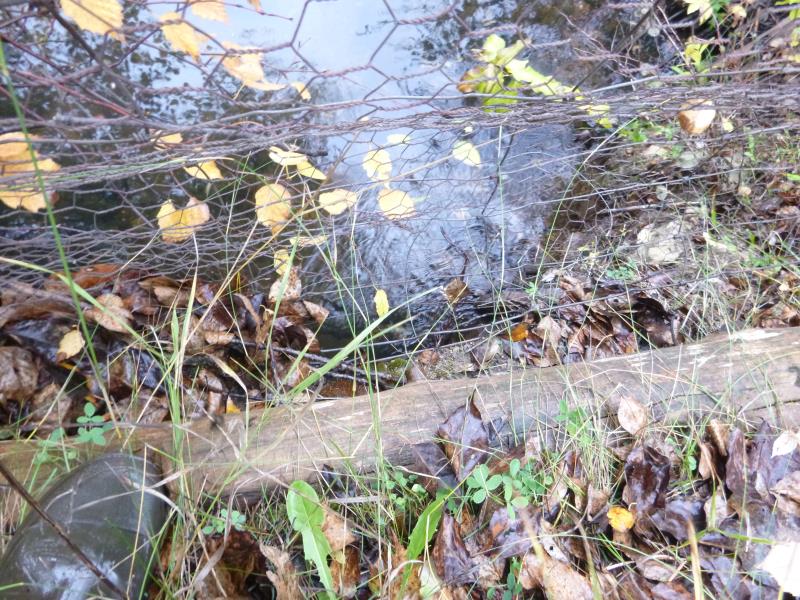

Inlet

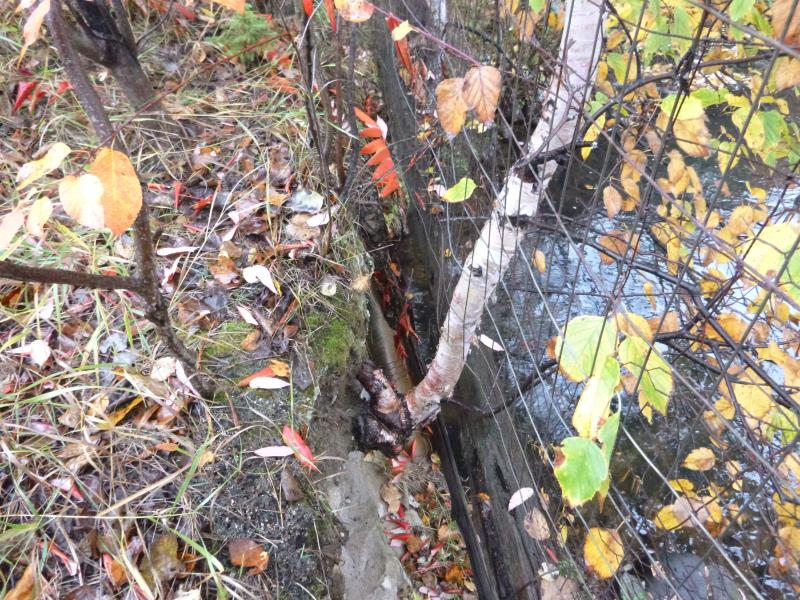

Outlet
Downstream Conditions

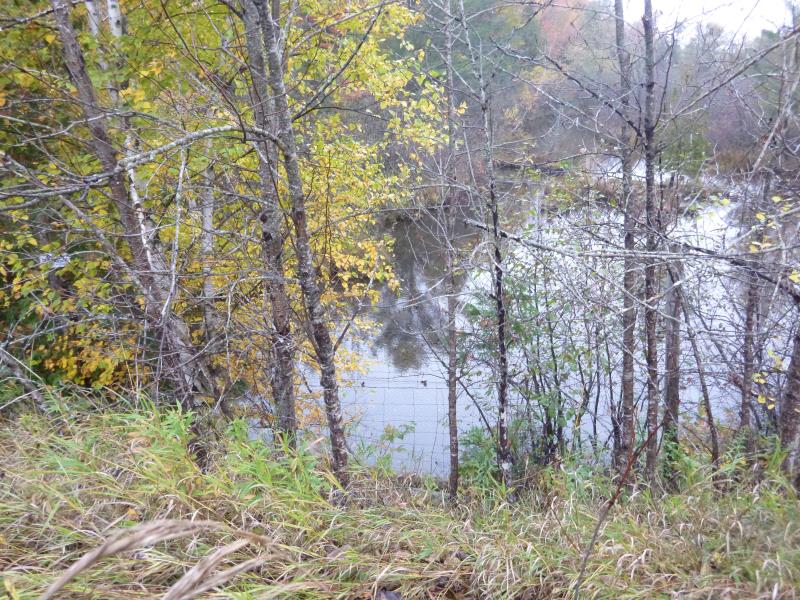

Upstream Conditions

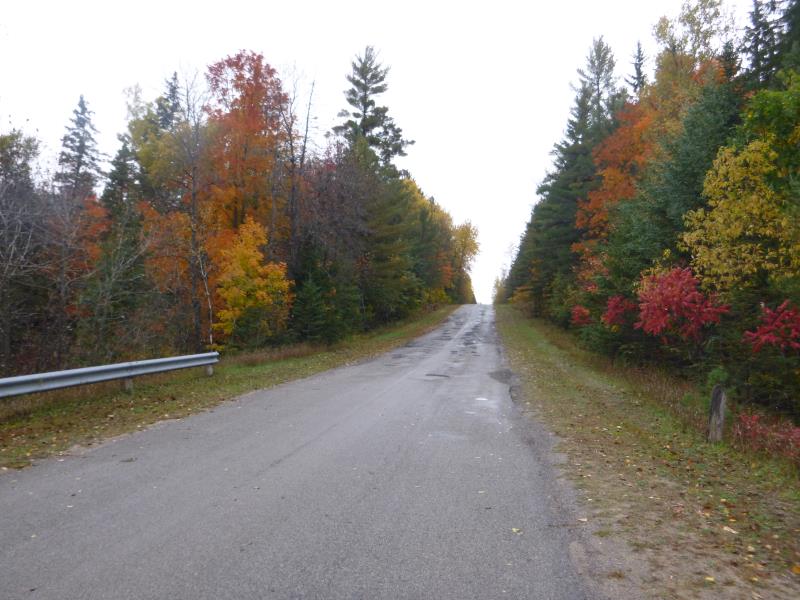

Road Approach - Left

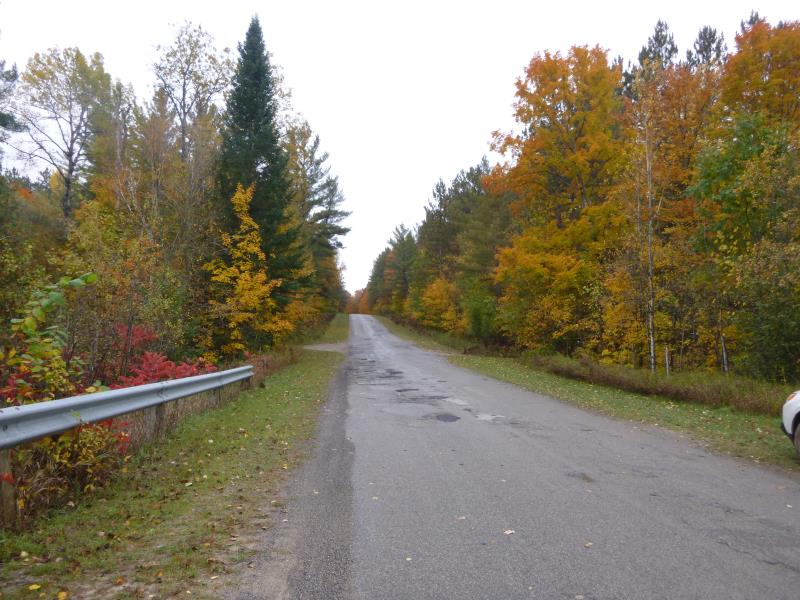

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 64 ft.
, Width 7 ft.
, Height 6.5 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 1.7 ft./sec.
Structure Outlet
Water Depth: 1.8 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.7 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 17.5 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 9.1 ft.
Slope: 1:1.5
Downstream
Fill Depth: 8.6 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 471 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.494
Erosion: 0.1347 tons/year
Right Approach
Length: 668 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.53
Erosion: 0.2049 tons/year
Erosion Information
Total Erosion at Crossing: 0.3396 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 1
