Road Stream Crossing Site ST146

Sturgeon River Watershed, Club Stream
E. Sturgeon Valley Rd
Corwith Twp, Otsego County
Information collected by:
Tip of the Mitt Watershed Council
Site Location
GPS Coordinates: 45.141417 , -84.623733
T32N R03W Sec 24
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.9836 tons/year
Severity: Moderate
Year Inventoried: 2015
Site ID

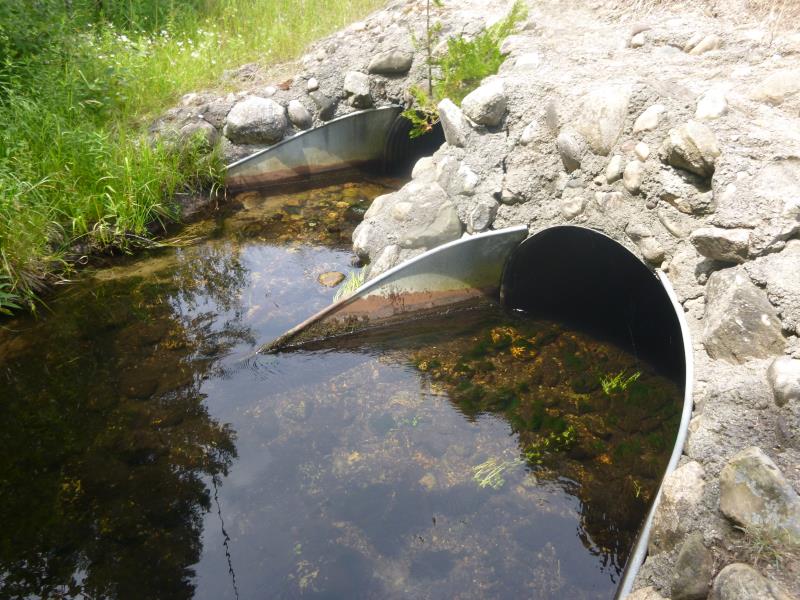

Inlet

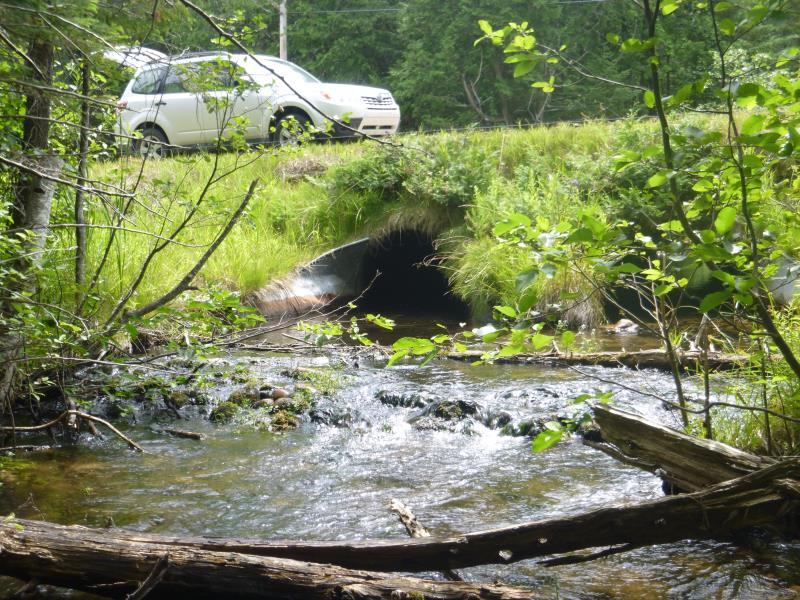

Outlet

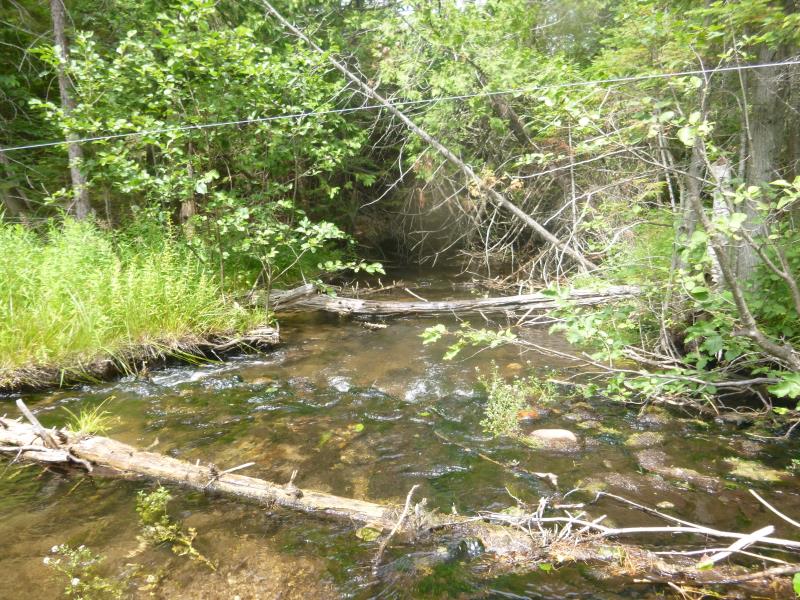

Downstream Conditions

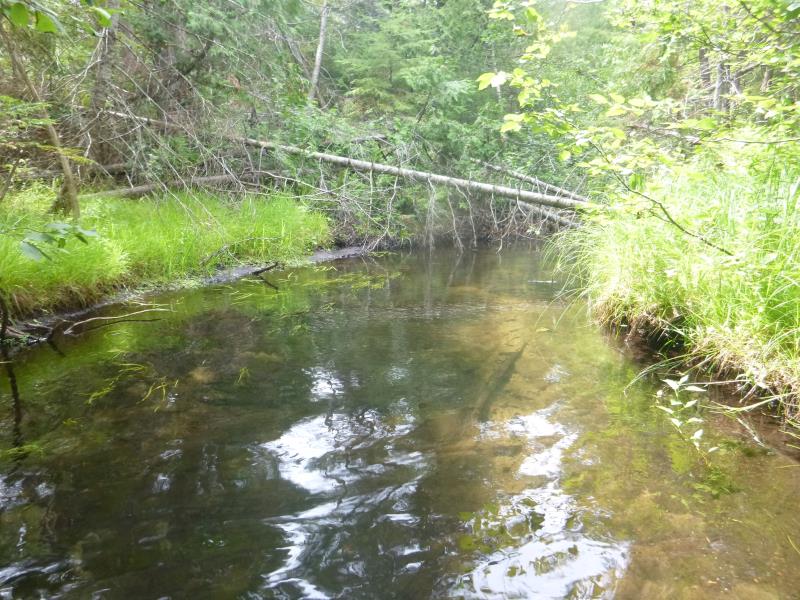

Upstream Conditions

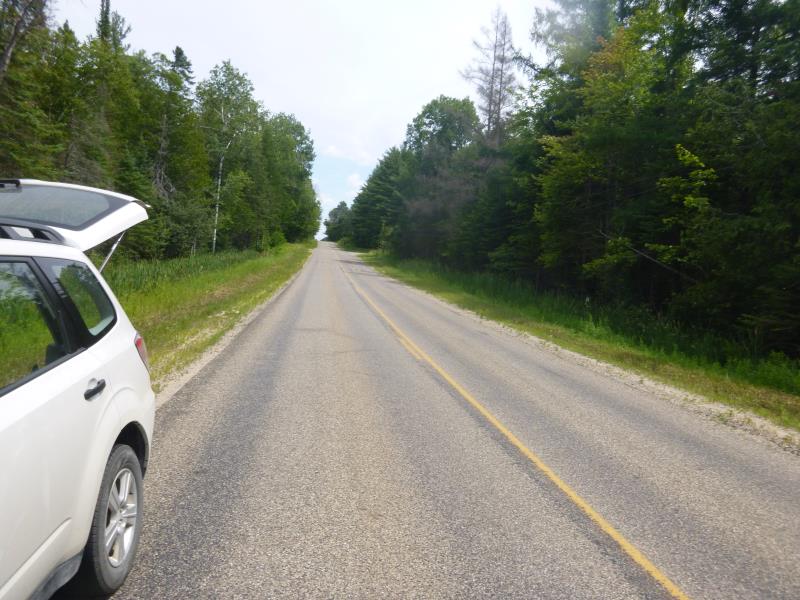

Road Approach - Left

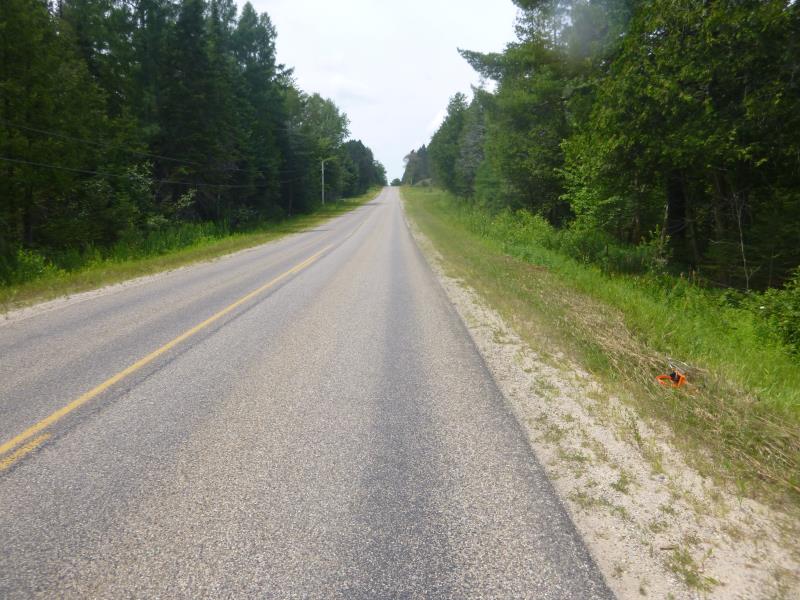

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Round
Inlet Type: Mitered
Outlet Type: Outlet Apron
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Good
Multiple Culverts/Spans
Culvert/Span
Width
Length
Height
Material
2
4.5 ft.
54.9 ft.
3.4 ft.
Metal
Structure Interior: corrugated
Dimensions of Structure: Length 54.9 ft. , Width 3.7 ft. , Height 3.9 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 1.44 ft./sec.
Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 1.44 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 25.5 ft. , Width 20.5 ft. , Depth 1.4 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 17.8 ft.
Wetted Width: 17.5 ft.
Water Velocity: 1 ft./sec. (Measured with Float Test)
Dominant Substrate: Cobble
Road Information
Paved State Road
Road Condition: Good
Road Width at Culvert: 26.1 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.6 ft.
Slope: 1:1.5
Downstream
Fill Depth: 3 ft.
Slope: Vertical
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.4918 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.4918 tons/year
Erosion Information
Total Erosion at Crossing: 0.9836 tons/year
Summary Information
Fish Passability 0.9
